Corsair with its headquarters in California in the United States is one of the best known manufacturers of storage, housing, cooling and power supplies. The RMX Series Corsair speaks to all those who want high-end technology with 80 Plus Gold-art, but can do without the digital interface of RMI models. Five models cover gen entire power range from 550 to 1,000 watts from continuous output. Who does not need a software interface such as Corsair Link is replaced with the RMX-mode power supplies very similar technique to the more favorable price.
Corsair with its headquarters in California in the United States is one of the best known manufacturers of storage, housing, cooling and power supplies. The RMX Series Corsair speaks to all those who want high-end technology with 80 Plus Gold-art, but can do without the digital interface of RMI models. Five models cover gen entire power range from 550 to 1,000 watts from continuous output. Who doe...
Corsair with its headquarters in California in the United States is one of the best known manufacturers of storage, housing, cooling and power supplies. The RMX Series Corsair speaks to all those who want high-end technology with 80 Plus Gold-art, but can do without the digital interface of RMI models. Five models cover gen entire power range from 550 to 1,000 watts from continuous output. Who doe...
No products found

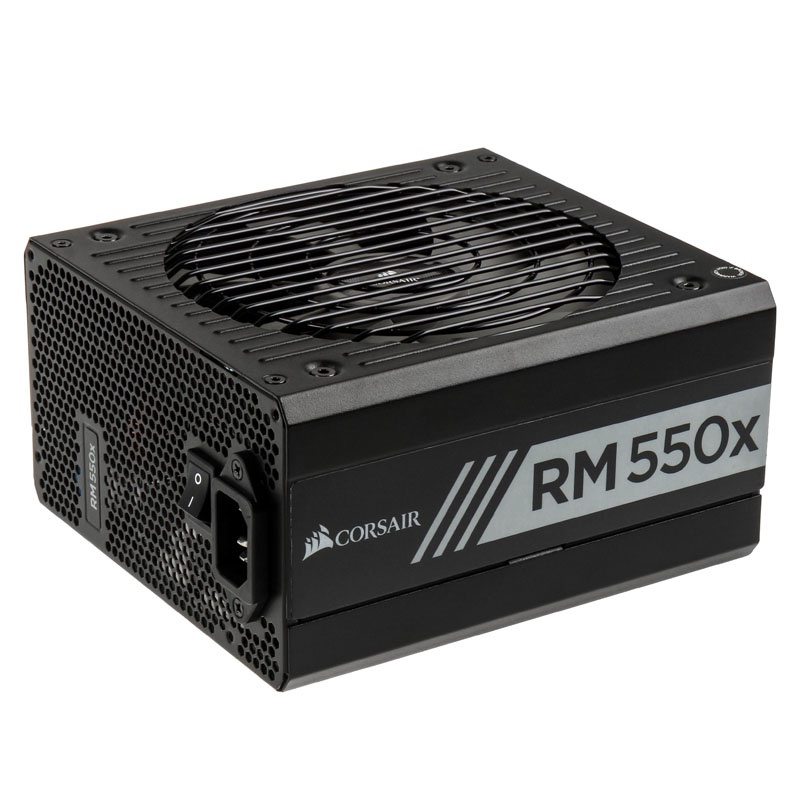

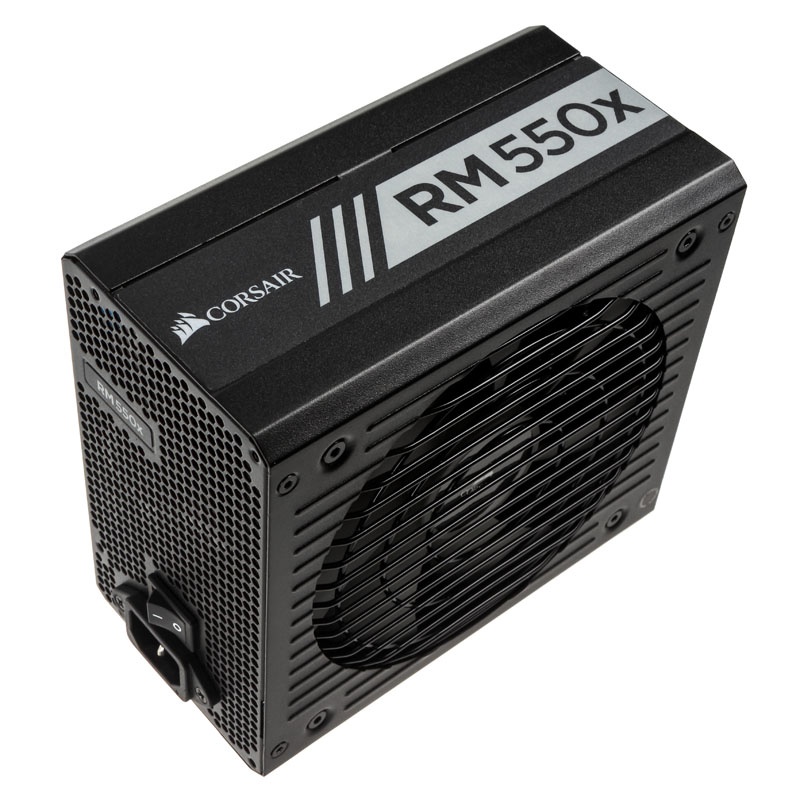

High-quality technology in noble-simple design with high functionality, that is the principle with respect to the external design of the RMX. With the exception of the black-white sticker on the side of the power supply is designed decently. A large 135 mm fan ensures adequate cooling of the electronics and is also controlled according to the heat generation, resulting in an additional gun barrel bearings (Rifle bearing) ensures permanently smooth and quiet operation. Below a power output of about 225 watts, the fan also does not rotate, the Corsair PSU is thus semi-passive designed to work completely silent at idle. The efficiency achieved on average a 50 percent utilization at least 90 percent, therefore, it was awarded the 80 Plus Gold certificate.
Despite lower compared to hxi and RMi price Corsair does not skimp on the electronics: With DC-DC voltage conversion is beyond the voltage regulation beyond any doubt. The output voltages are even in demanding scenarios such as full load or asymmetrical load is always close to the setpoint. The components are employed also on quality: There are only 105 degrees Electrolytic Capacitors Japanese makes and polymer solid capacitors used. These are regarded as particularly durable. Whole Seven years warranty showing confidence in the brand RMX series.
With 550 watts of total power and up to 549.6 watts of power on the + 12-volt single-rail particularly demanding systems with a graphics card and dual-GPU configurations with mid-range and performance cards are supplied permanently and stable electricity itself. In order to make this enormous power and every instrument available, the RM550x offers enough connections. All connectors are designed modularly as a black ribbon cable and are connected only when needed with the power supply – free air flow for optimum cooling of all components. In addition to the 20 + 4-pin connector and the 4 + 4-pin port for powering the motherboard and CPU are available two 6 + 2-pin PCIe plugs for the graphics card. With six SATA and four 4-pin Molex and one floppy connector, all systems in this performance class without an adapter-craft solutions can operate.
Technical specifications:
Dimensions: 150 x 86 x 160 mm (W x H x D)
Weight: 1.66 kg
Fan: 135 mm (automatic control, semi-passive)
Efficiency: min. 90/87/87% at 50/20/100% utilization (115V, efficiency in the European 230-volt power is slightly higher), including 80 Plus Gold certificate.
Active PFC
Form Factor: ATX12V 2.4 / EPS 2.92
Power: 550 W
+ 3.3V: 25A
+ 5V: 25A
+ 3.3V & + 5V: 130W
+ 12V: 45.8 A / 549.6 W
-12V: 0.8A / 9.6W
+ 5Vsb: 3 A / 15 W
Connectors (detachable):
1x 20-pin ATX + 4
1x 4 + 4-pin EPS12V / ATX12V
2x 6 + 2-pin PCIe
6x SATA
4x 4-pin Molex
1x Floppy (Adapter)
Manufacturer Warranty: 7 years
