- SKU: NEBE-173
- MPN: BN215
- EAN: 4260052185629
- Warranty: 12 Months

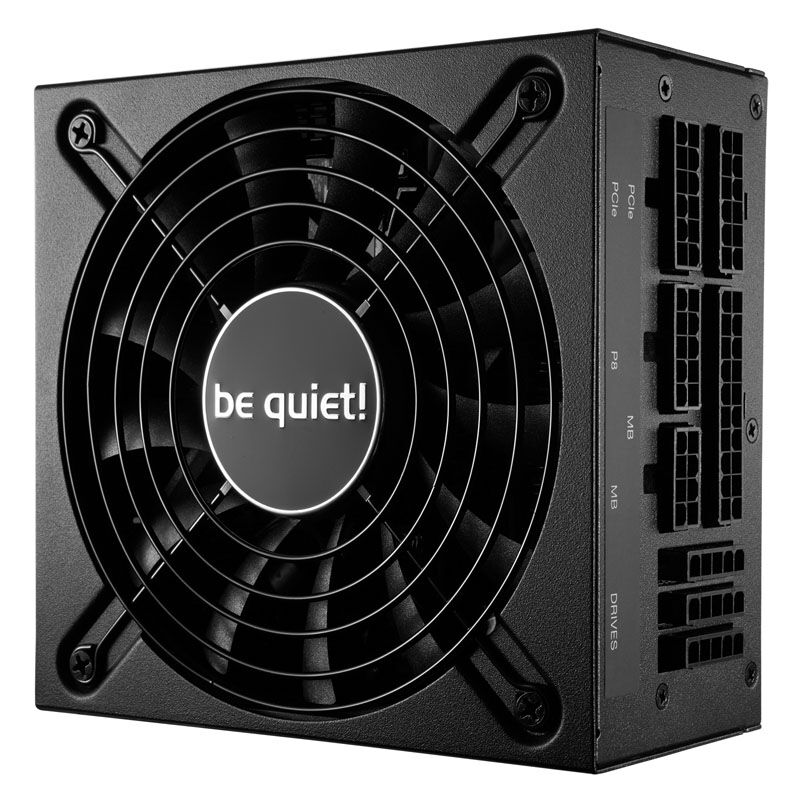

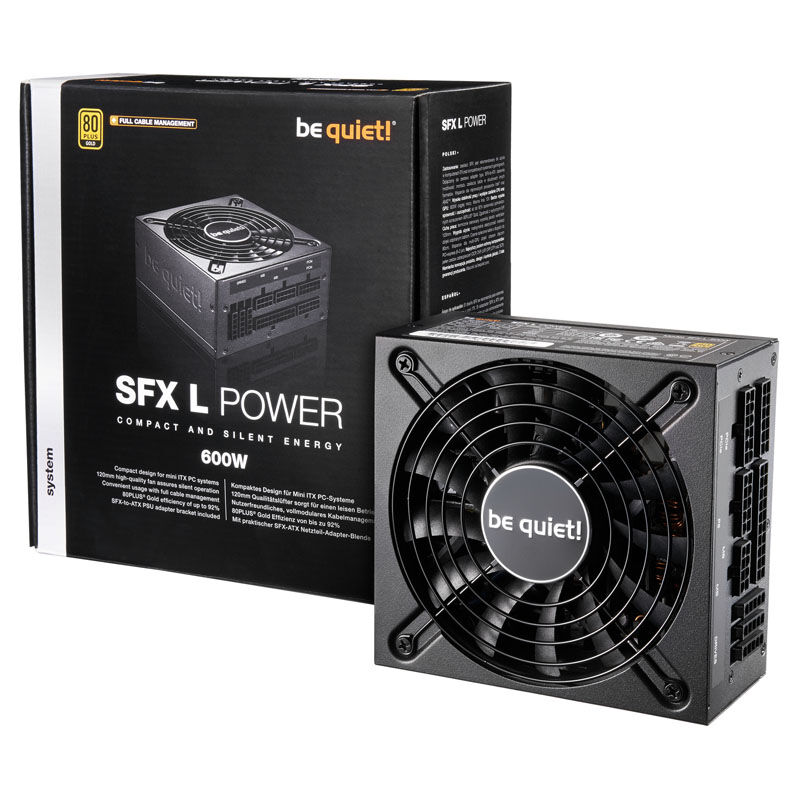

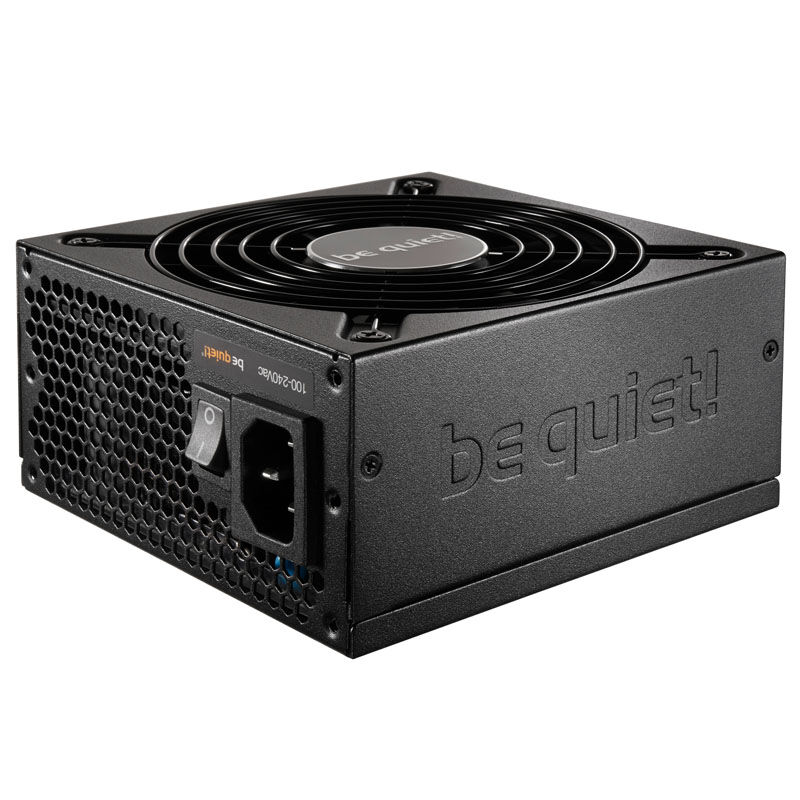

The be quiet! SFX-L Power 80 Plus Gold Power Supply at a glance:
Compact SFX-L form factor
600 watt total power
Strong Singlerail with 50 A
80 Plus Gold Certificate
Silent 120-millimeter fan
Fully modular cable management
1x 20 + 4-pin / 1x 4 + 4-pin / 4x 6 + 2-pin / 6x SATA / 3x 4-pole Molex
The perfect blend: SFX-L form factor
With the SFX-L power supply unit, be quiet! to the compact SFX-L form factor, which removes one of the few disadvantages of the classic SFX format by slightly increasing the length of the PSU. By this measure a larger and quieter 120 mm fan fits in the compact energy dispenser instead of the 80 mm fan, which is often too fast. The result is a powerful SFX-L power supply with a tremendously high continuous power of 600 watts and a quiet fan which controls its rotational speeds depending on the load.
Thanks to the SFX-L format, the SFX-L Power is especially designed for mini-housings, but it still stands out due to its extensive connection arsenal and offers very high performance with minimal dimensions. However, due to the depth of 12.5 cm, the compatibility with the desired housing must be considered before purchase. The PSU can also be installed in ATX housings using the supplied replacement screen.
Full Modular Cable Management & 80Plus Gold Efficiency

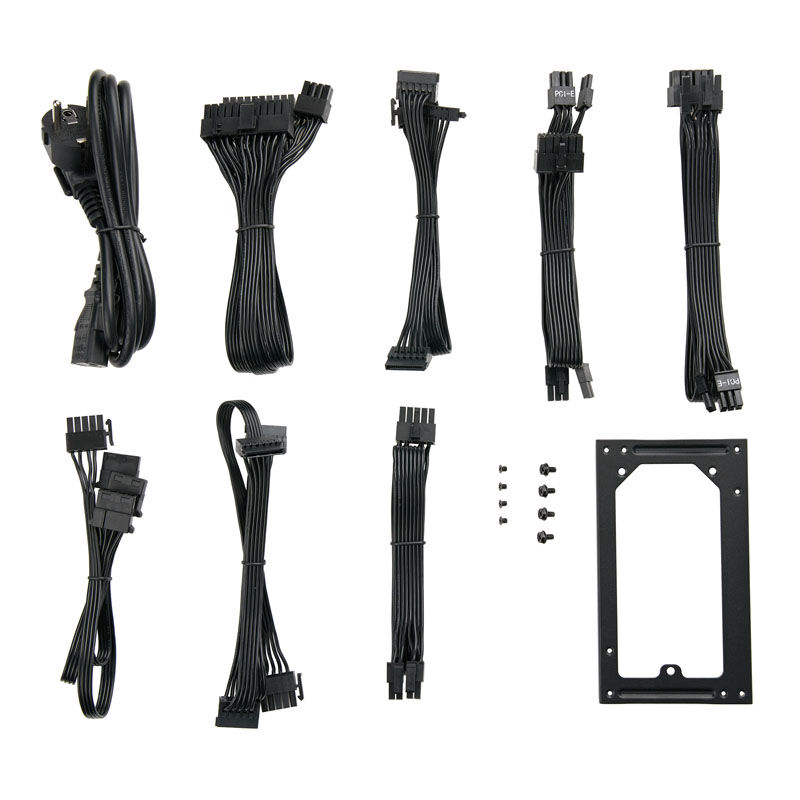

The mounting of the power supply in small housings is particularly comfortable thanks to the excellent cable management, as the device is fully-modular and is supplied with detachable flat-ribbon cables for a demand-oriented connection. The extremely high efficiency of the power supply of an average of 86.5% – 89.5% has been awarded the 80Plus Gold certificate and ensures that only relatively little electrical energy is converted into heat.
Instead of a multi-split 12 V line, this version has a powerful single-rail with a full 50 Ampere and offers various protection functions. The individually pluggable connections make the power of the power supply clearer: in addition to 20 + 4-pin and 4 + 4-pin connectors, even four 6 + 2-pin PCI Express connections are available. SATA devices such as HDDs or burners are supplied via six SATA connectors and three 4-pin Molex connectors.
Technical Details
| Dimensions (W x H x D) | 130 x 63.5 x 125 mm |
| Fan | 120 mm |
| Efficiency | At least 90/87/87% at 50/20/100% load (115V), slightly higher in the European 230V network, including 80 Plus Gold certification |
| PFC | Active PFC |
| Form Factor | SFX-L |
| Life Expectancy | 100,000 hours |
| Noise Level | 9.9 / 14.5 / 28.5 dB(A) @ 20/50/100% load |
| Total Power | 600 W |
| +3.3V | 22 A |
| +5V | 22 A |
| 3.3V + 5V Combined | 105 W |
| +12V | 50 A (600 W) |
| -12V | 0.3 A (3.6 W) |
| 5VSB | 3 A (15 W) |
| Connections | 1 x 20+4-pin 1 x 4+4-pin CPU 4 x PCIe 6+2-pin 6 x SATA 3 x 4-pin Molex |
