Corsair Obsidian 250D Cube Case - Black

With the 250D Corsair Obsidian extends the well-known series again and created a smaller cube – off, which is tailored specifically to the needs of mini – system – trailers, meeting those boards in the mini -ITX format. Even with this compact form factor , the compilation of very powerful systems is now possible – provided you have the right case !

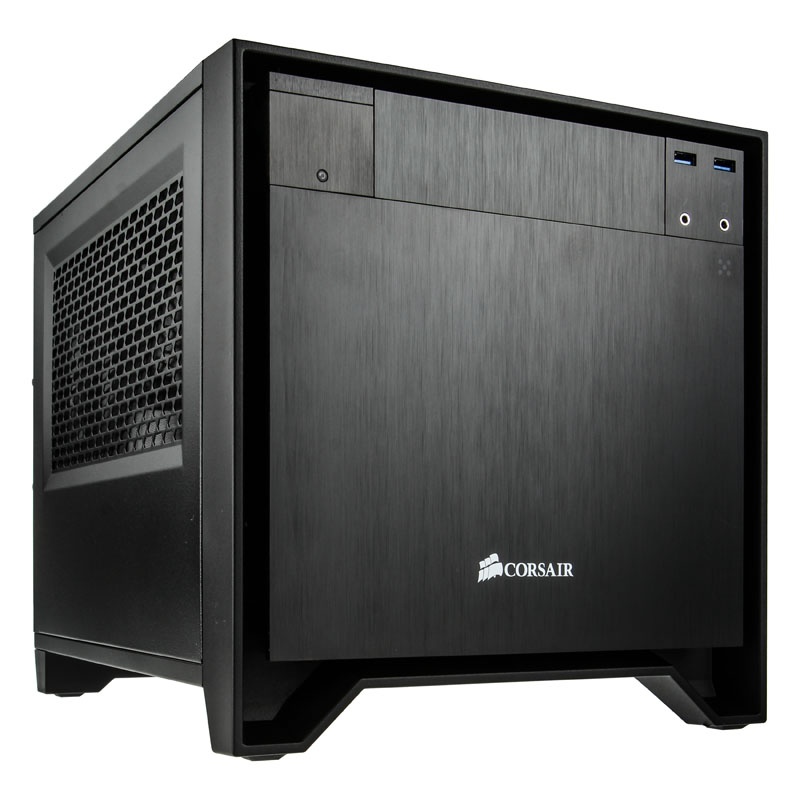

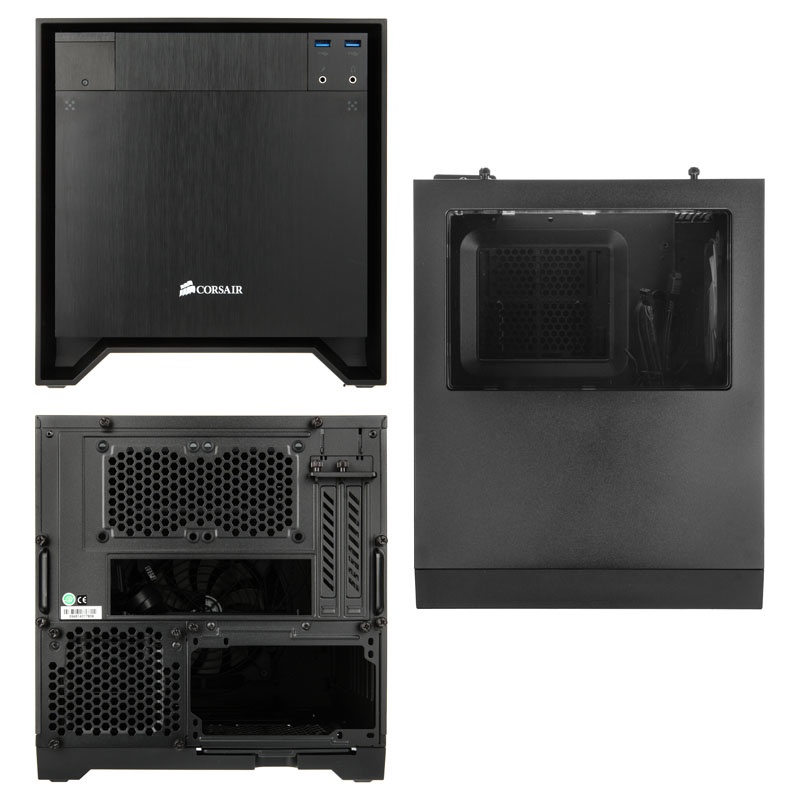

And that is precisely the Obsidian 250D . Not only that, it impresses with its simplicity and the use of brushed aluminum on the front of black steel bodys . Moreover, it is also a maximum practically designed , designed to be extremely versatile and a super easy mounting of the PC components out . Thus, for example, in all fan slots fitting dust filter without tools remove easy.

Likewise, media tools are used , for which beside the power supply a small cage for up to two 3.5 -inch drives and directly below another two 2.5 -inch drives is available. In the 3.5 -inch slots is also can also be integrated 2.5 -inch drives , so you could install a total of four SSDs. Also, an external 5.25- inch drive can be used up to the front. Does not need one this slot , the cage can also simply unscrew .

The full black interior is designed so well thought out that the two PCI aperture and thus also possible graphics cards are exactly the side of the drive cage . All pixels accelerator used can thus be 29 cm long in doubt and you have to miss out on anything anyway. Here, the space is just exploited and distributed in two levels. In the lower level of the power supply takes place in the upper motherboard and the drives. Even so you can show off in the choice of CPU cooler . Since the motherboard is installed horizontally , the CPU cooler is at a relatively large space .

Taking off the front panel, which can easily be solved via clips , there is a pre-installed 140 mm fan , which sucks air into the case. Another 200 or a 140s or 120s can also be installed in the front, while the side part also takes two optional 120 mm fans , one of which is pre-installed. In the side panel even dual radiators can be used up to a size of 240 mm!

Also on dust-protected power supply in the bottom position are no compromises to make , because there enough (about 200 mm) is available for PSU cars with extreme power, who , if necessary, to supply water-cooled graphics cards in multi-VGA composite . Plenty of space for cable laying and two modern USB 3.0 ports on the easily accessible and above all send I / O panel complete the picture of a brilliant and modern cubes from .

Technical details :
Dimensions: 277 x 290 x 351 mm (W x H x D)
Material: Steel (Body ) , Brushed aluminum (front)
Color: Black
Form Factor: Mini -ITX
Fan total possible :
1x 200/140 /120 mm (front)
2x 120 mm (side section )
2x 80 mm (rear)
Of preinstalled:
1x 140 mm ( front)
1x 120 mm (side section )
Radiator Mountings :
1x max. 240 mm (side section )
Filters: front , power supply, side panel
Drive Bays:
1x 5.25 inches (external, tools )
2x 3.5 / 2.5 inch (internal, without tools )
2x 2.5 inch (internal, without tools )
Power Supply: Standard ATX 1x (optional)
Expansion Slots : 2
I / O panel :
2x USB 3.0 ( internal connection)
1x each Audio In / Out
Maximum graphics card length : 290 mm
