Corsair MP600 Pro XT NVMe SSD, PCIe 4.0 M.2 Type 2280 - 4 TB

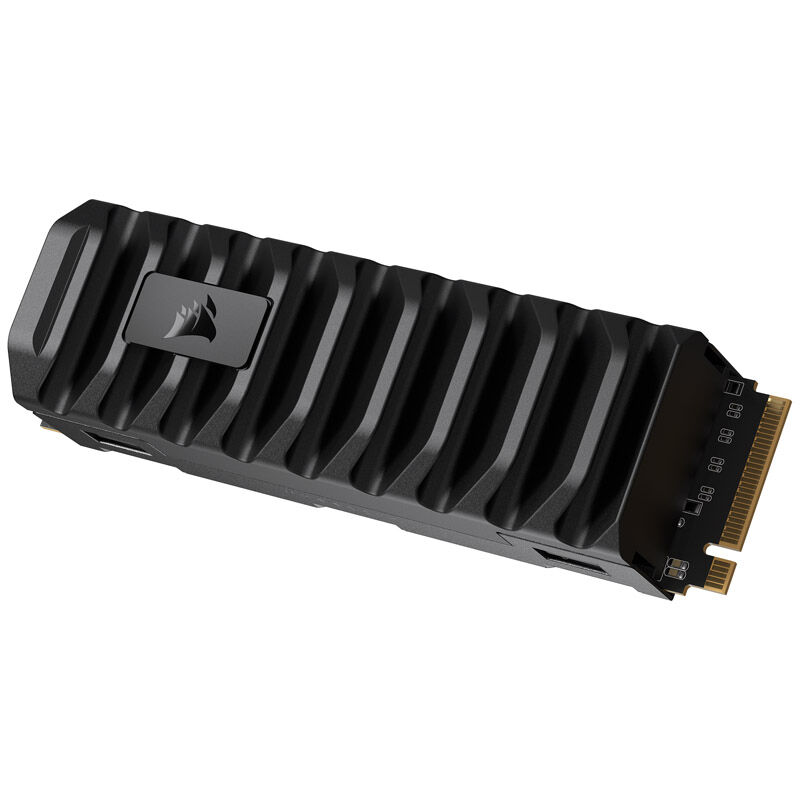

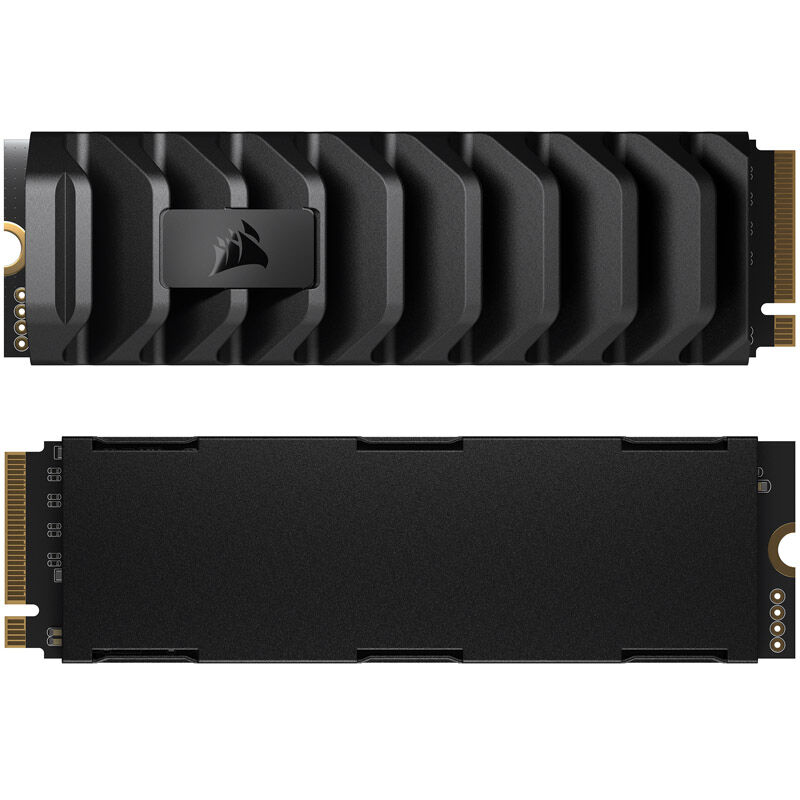

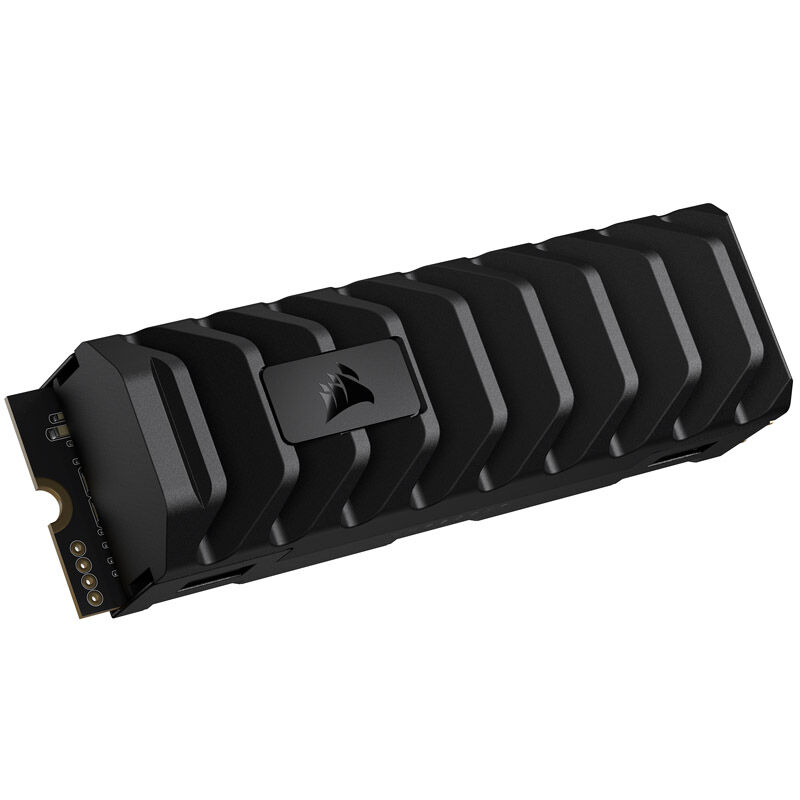

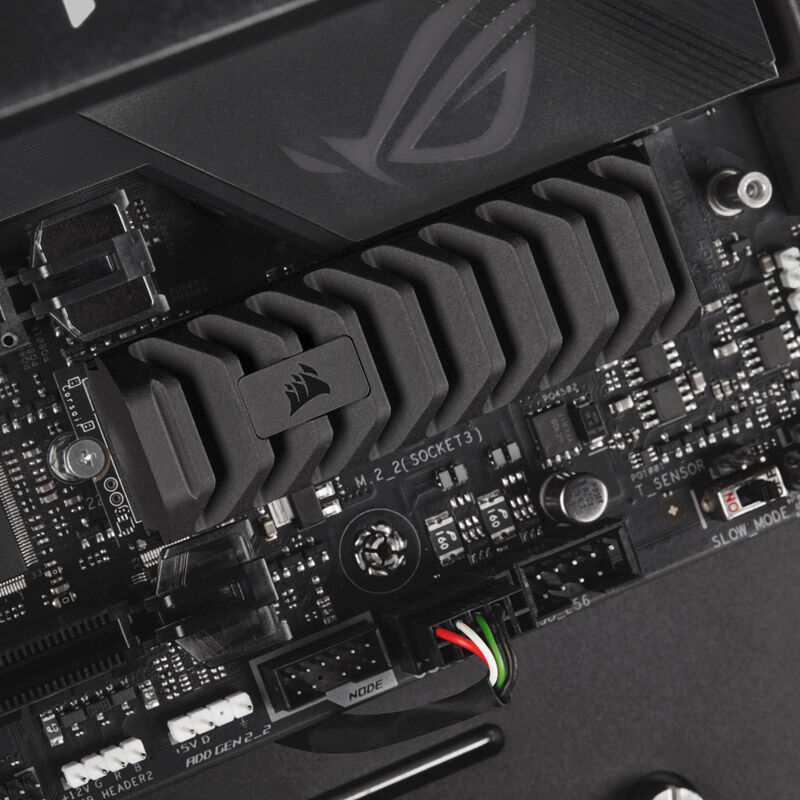

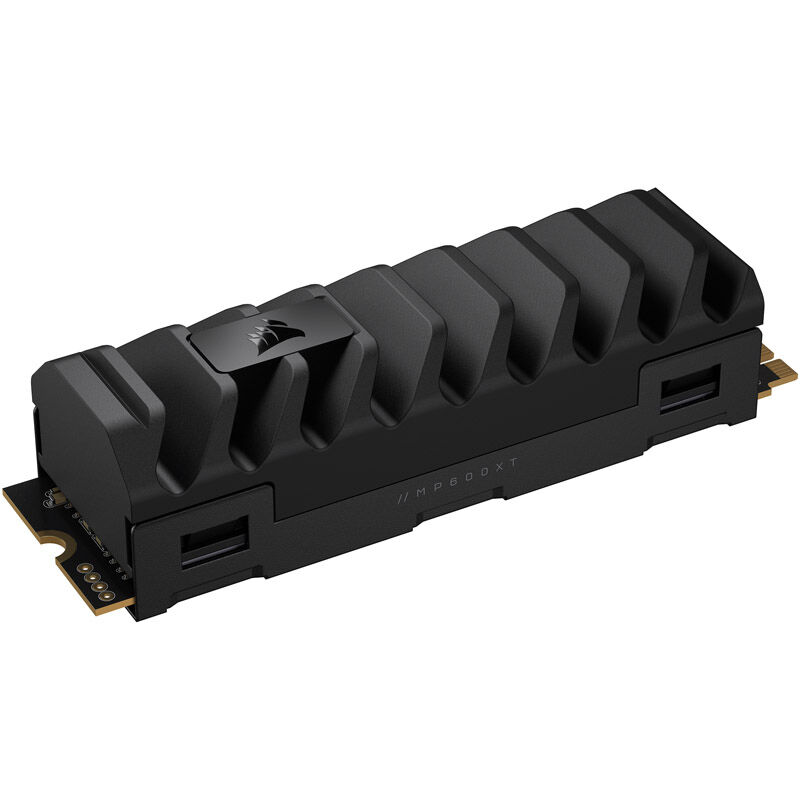

In order to be able to maintain the enormous performance, the manufacturer equips the SSD with a large aluminum heat sink ex works.

The Corsair Force Series MP600 Pro XT NVMe M.2 SSD at a glance:
Ultra-fast SSD with 4 TB capacity
High-end PCIe 4.0 NVMe interface in a small M.2 form factor
Up to 7,100 / 6,800 MB / s data transfer when reading / writing
A total of 1,200,000 / 1,000,000 IOPS 4KB random read / write
Guaranteed write volume: 3,000 TBW
Large aluminum heat sink for enduring high performance
M.2 NVMe PCIe SSD with brute read and write speed

The Phison controller of this hyper-fast drive supports four PCI Express lanes of the 4.0 standard, which make a theoretical maximum of around 7,800 MB / s possible! In conjunction with the built-in 3D TLC NAND, the 1 TB version of the Corsair Force Series MP600 Pro XT achieves an enormous 7,100 MB / s reading and 6,800 MB / s writing, as well as fantastic IOPS values of 1,200,000 in 4KB Read or 1,000,000 in 4KB write.

Support for the NVM Express protocol for PCIe SSDs
In addition, this Corsair Force Series MP600 Pro XT also supports the NVM Express protocol (NVMe for short), which has been specially developed for modern PCI Express SSDs. This replaces the old AHCI protocol, which comes from the time before the general spread of SSDs and is not optimized for highly parallelized data carrier access. NVMe ensures significantly lower latencies as well as multiple and deeper command queues, which is reflected in significantly more performance for non-linear transfers such as 4K read / write.

Technical details:
Dimensions: 23 x 19 x 80 mm (W x H x D)
Weight: 66 g
Format & interface: M.2 / M-Key 2280 (PCIe 4.0 x4 / NVMe)
Capacity: 4 TB
Controller: Phison PS5018-E18
NAND: 3D TLC
Performance (PCIe 4.0):
Read: max. 7,100 MB / s
Write: max. 6,800 MB / s
IOPS (4KB Random Read): 1,200,000
IOPS (4KB Random Write): 1,000,000
Power consumption (idle / operation): 0.005 / 8.1 W.
Guaranteed write volume (TBW): 3,000 TBW
Application temperature: 0 to 70 degrees C
Shock resistance: up to 1,500 G
Manufacturers guarantee: 5 years
