The Corsair Graphite Series case is generally remained its owners and the industry in mind. With the two new housings 380T and 780T appear two new models of the Graphite series, which Corsair repeat the effect, if does not want to offer.

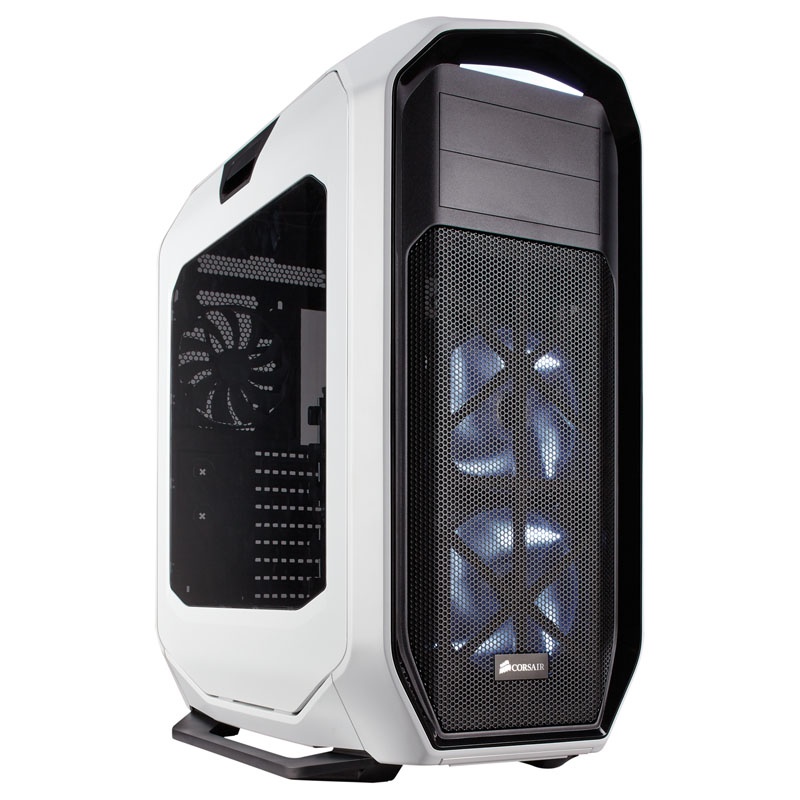

The Corsair Graphite 780T is the larger of the two housing and even summarizes XL-ATX motherboards in its interior. His white and black design, impressed with a lot of mesh insert, a large tinted window and beautiful, slightly abraded edges, underscore the symmetrical, but loosened housing architecture with a certain sense of coolness.
The Corsair Graphite Series case is generally remained its owners and the industry in mind. With the two new housings 380T and 780T appear two new models of the Graphite series, which Corsair repeat the effect, if does not want to offer.
The Corsair Graphite 780T is the larger of the two housing and even summarizes XL-ATX motherboards in its interior. His white and black design, impressed with...
The Corsair Graphite Series case is generally remained its owners and the industry in mind. With the two new housings 380T and 780T appear two new models of the Graphite series, which Corsair repeat the effect, if does not want to offer.
The Corsair Graphite 780T is the larger of the two housing and even summarizes XL-ATX motherboards in its interior. His white and black design, impressed with...
No products found

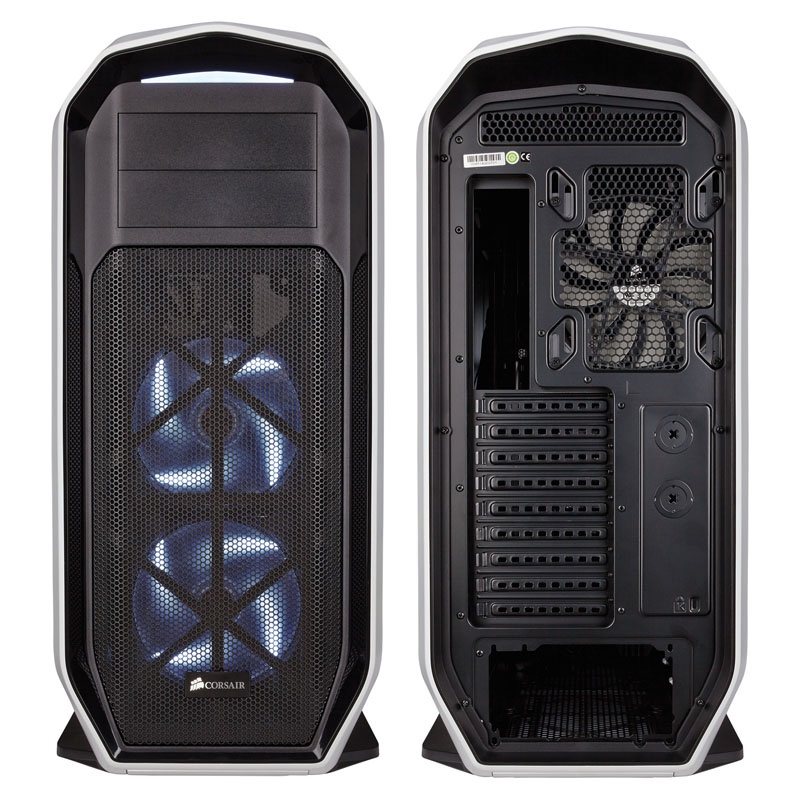

Two blue glowing 140-mm fan who deliver together with the illuminated in white color I / O panel is a continuous aesthetic overall picture conceals its mesh front. Design and function go hand in hand when 780T. So both sides are, for example, to open over easy handles for tools to install all drives and created the modular HDD cages.
The white illuminated I / O panel located on the front cover and offers two USB 3.0 ports, two USB 2.0 ports, the power switch and the audio jacks and a fan controller that allows you the speed of the fan can regulate.
The Graphite 780T can then also total up to nine fan install. Three 140 mm fans are preinstalled. The two blue LED fan in the front sucking in his breath, while another 140s, the air blows out again through the back. In the front you can instead also three 120-mm fan mount. The lid either three 120s or two 140s fan can be installed. If you remove a hard drive cage can be additionally in the bottom two more 120 mm fan installed.
If you prefer instead draws on air cooling, the possibility of a watercooling system into consideration, it also has plenty of options. Thus, in the front and a radiator in the sizes 360, install 280 or 240 mm. The same applies to the lid. In the bottom lets a 240-radiator mount and in the back again mount a 140mm radiator.
Inside the Graphite 780T, two 5.25-inch drives can attach behind the two drive panel. For hard drives and SSDs six combo slots are given, which can accommodate both 3.5-inch and 2.5-inch sized drives. This can be done without tools likewise. The drive slots are also partners the possibility of hot swapping and are in modular cages. Three SSDs can additionally be mounted on the side of the motherboard tray.
In addition, the 780T can also nine expansion cards installed. If you use these for graphics cards, has 355mm space for its length. Who wants to install a CPU cooler, it has a height of 200 mm. Power supplies may be 260 mm long.
Corsair has designed its package of the 780T also with an accessory and screw set and a Quick Start Guide from to get started immediately.
Technical Details:
Dimensions: 288 x 602 x 637 mm (W x H x D)
Material: steel (Body), plastic (front cover)
Weight: 11.3 kg
Color: White / Black
Lighting: White (can be deactivated)
Form factor: XL-ATX, E-ATX, ATX, Micro-ATX, Mini-ITX
Fan total possible:
2x or 3x 140 mm 120 mm (front)
1x 140/120 mm (rear)
2x or 3x 140 mm 120 mm (lid)
2x 120 mm (soil, without HDD cage)
Thereof pre-installed:
2x 140 mm (front; AF140L, blue LED)
1x 140 mm (back side; AF140L)
Radiator Mountings:
1x 360/280/240 mm (front)
1x 140/120 mm (rear)
1x 360/280/240 mm (cover)
1x 240 mm (bottom)
Drive bays:
2x 5.25 inch (external; tools)
6x 3,5 / 2,5 inch (internally; tools)
3x 2.5 inch (internal, without tools)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 9
I / O panel:
2x USB 3.0 (internal connection)
2x USB 2.0 (internal connection)
1x per Audio In / Out
1x fan control
Maximum video card length: 355 mm
Maximum CPU cooler height: 200 mm
Maximum PSU length: 260 mm
