The Graphite 760T V2 big tower of Corsair combines design and function, as one would expect from Corsair packages, and can still take motherboards with the form factor XL-ATX and E-ATX. End users with large boards and components still need so do not be content with a chunky wedge under her desk.
The Graphite 760T V2 big tower of Corsair combines design and function, as one would expect from Corsair packages, and can still take motherboards with the form factor XL-ATX and E-ATX. End users with large boards and components still need so do not be content with a chunky wedge under her desk.
The Graphite 760T V2 big tower of Corsair combines design and function, as one would expect from Corsair packages, and can still take motherboards with the form factor XL-ATX and E-ATX. End users with large boards and components still need so do not be content with a chunky wedge under her desk.
No products found

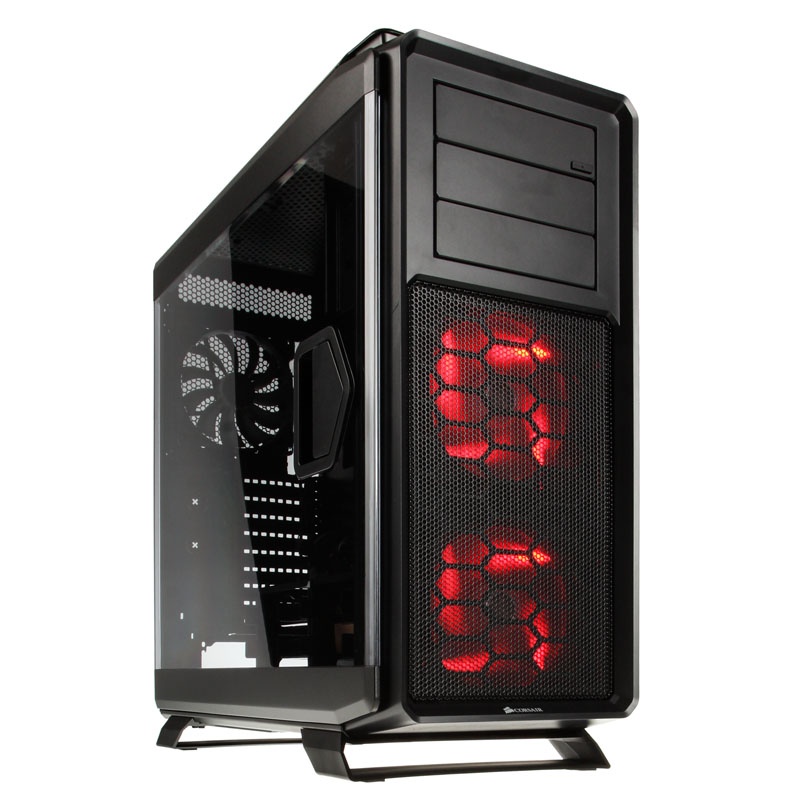

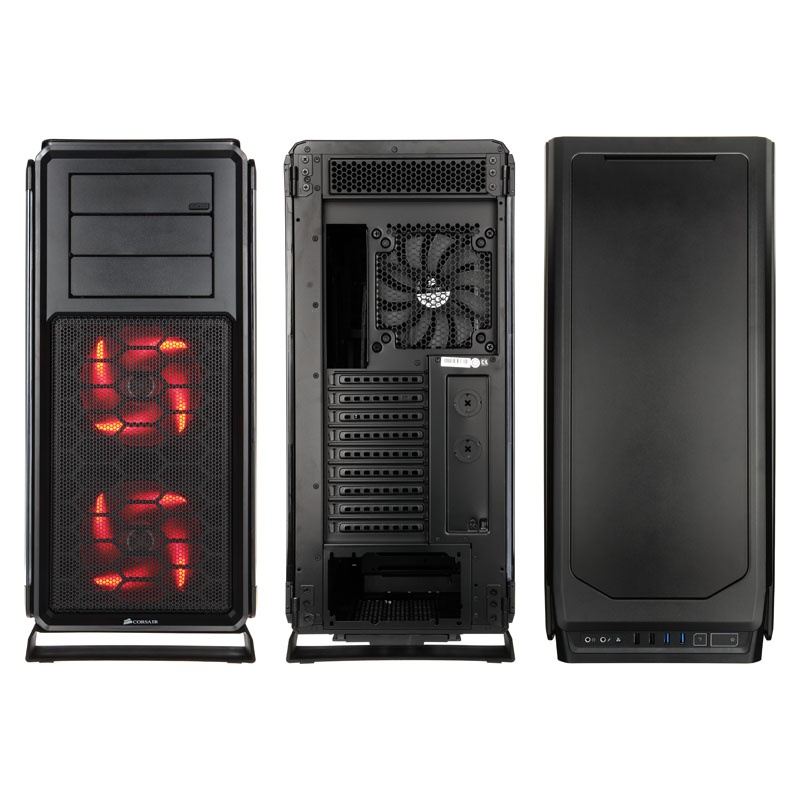

The Graphite 760T V2 is made of steel and appears in a matte black. Outwardly, it boasts a mesh front, a detachable side and a hinged window that provides a view of the interior. The opening of the 760T is done by a simple pull closure. Both window and side panel can thereby be removed completely by simply lifted from the hinges.
Taking a look at the interior is clear how much room was left the hardware components. This is accomplished primarily by an intelligent arrangement of the drive slots. During the three external 5.25-inch drives are mounted firmly under the lid, the two HDD cages each with three slots for 3.5 and 2.5-inch drives can move modular or completely remove. In addition there are again four more SSD slots on the motherboard wall. A total of nine expansion cards can be integrated in the back.
This intelligent arrangement of the interior volume is maximized, which can be graphics cards up to a length of 450 mm, power supplies with a length up to 220 mm and CPU cooler very easy to install with a height up to 170 mm.
In addition, the Graphite 760T V2 Big-Tower also offers numerous ventilation. Behind the front cover two 140-mm LED fans with dust filters are installed. This can be regulated via the integrated fan control on the front panel. So can be made between performance and silent mode switch with a push of a button. The fans are custom-made by Corsair, which provide a high air flow at low volume manufacturer.
Another 140-mm fan is factory installed in the back. Additionally you can in the cover up to three 140 mm (or three 120 mm) attach great fan and install a 120mm fan in the soil.
Who is more of a fan of water cooling systems, can also appreciate the numerous Radiator Mountings. Thus, in the front, instead of integrating the two fans, a 280er- or 240 radiator. The cover can even be installed a 360 mm large radiator. In addition, the pre-installed 140mm fan can be replaced with a radiator of the same size, and a 120 mm radiator can be integrated in the ground.
The front panel can be found on the top front and has two USB 3.0 and two USB 2.0 ports and headphone and microphone jacks, and of course the aforementioned fan control. In addition, is made possible by several rubberized cable penetrations an excellent cable management.
Technical details:
Dimensions: 246 x 568 x 564 mm (W x H x D)
Material: Steel
Weight: 11.2 kg
Color: Black
Form Factor: XL ATX, E-ATX, ATX, Micro-ATX, Mini-ITX
Fan total possible:
2x 140/120 mm (front)
1x 140/120 mm (rear)
3x 140 / 3x 120 mm (lid)
1x 120 mm (bottom)
Of this pre-installed:
2x 140 mm (front; AF140L, red LEDs)
1x 140 mm (rear; AF140L)
Radiator Mountings (partial waiver of fan-Slots)
1x max. 280/240 mm (front)
1x max. 140/120 mm (rear)
1x max. 360/280/240 mm (lid)
1x max. 120 mm (bottom)
Filters: Front
Drive Bays:
3x 5.25 inches (external)
6x 3.5 / 2.5 inch (internal, 2 modular HDD cages)
4x 2.5 inches (internal)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 9
I / O Panel:
2x USB 3.0 (internal links)
2x USB 2.0 (internal links)
1x per Audio In / Out
1x fan control
Maximum video card length: 450 mm (without any waiver)
Maximum CPU cooler height: 170 mm
Maximum power supply Length: 220 mm
Manufacturer Warranty: 2 years
