With the CX-F RGB series, Corsair offers chic and fully modular power supplies for gaming systems.
No products found
The 80 plus bronze power supplies are characterized by their stylish design and high performance. The perfectly coordinated electronics is cooled by a powerful 120 mm fan whose speed is adjusted by the intelligent control of the system load.

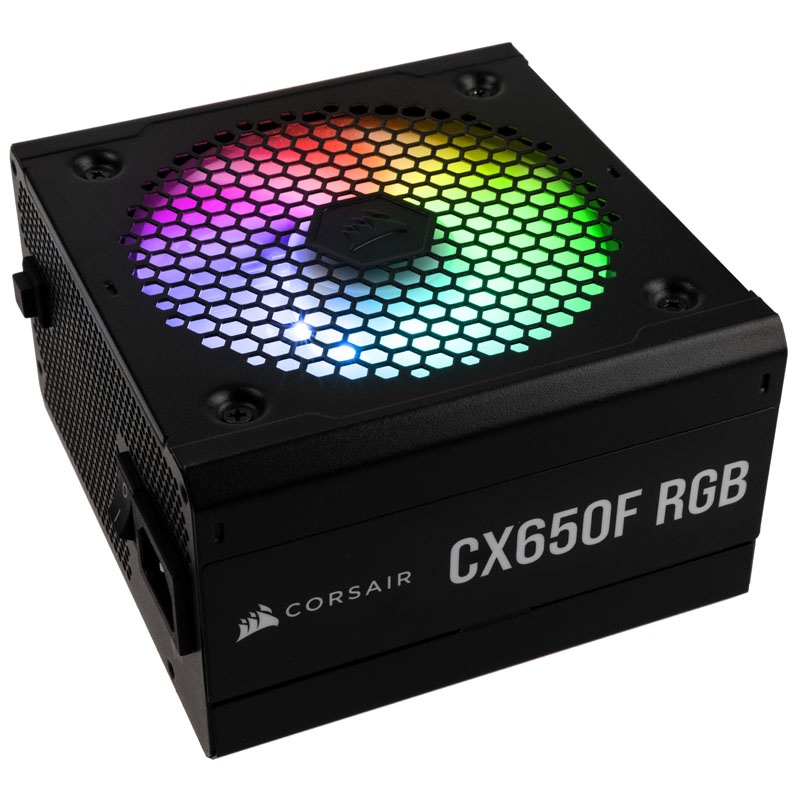

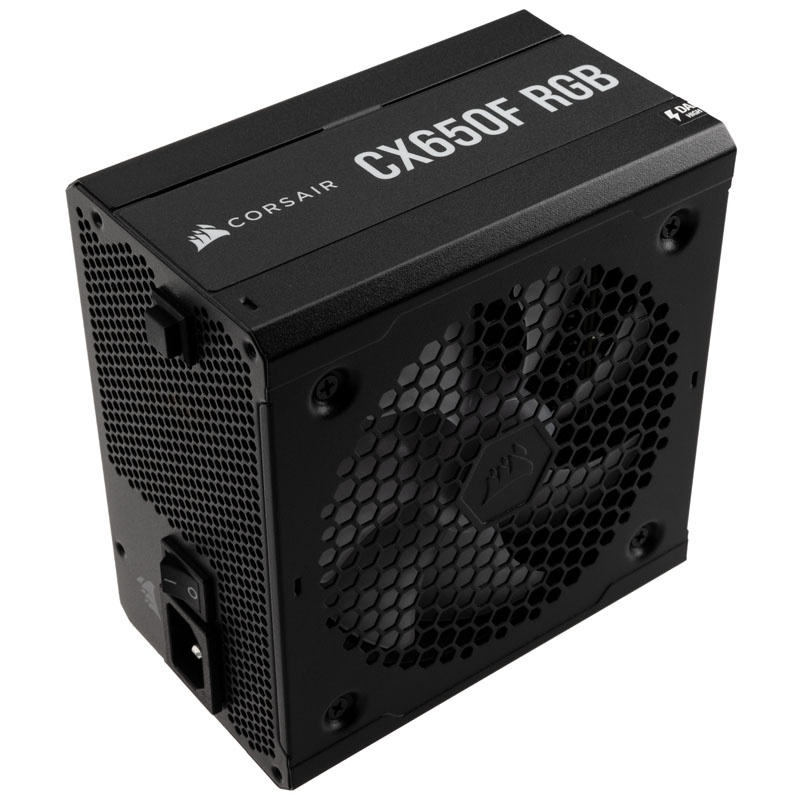

The Corsair CX650F RGB 80 plus bronze power supply at a glance:
– 650-Watt ATX power supply with strong 54-a-singlerail
– With 80 plus bronze certificate
– Load-controlled 120 mm fan
– ARGB lighting with three control options
– Full modular with individually removable cables
– Four 6 + 2 pin PCIe plugs for graphics cards
– Black ribbon cable
– 80 Plus Bronze Efficiency and Strong 54-A-Singlerail
The Corsair CX650F RGB is a powerful power supply and supplies with its 650 Watt complete output power also gaming PCs with a lot of power. The powerful 12-volt rail supplies rich 54 amps. The power supply is certified with 80 plus bronze and thus operates efficiently and quietly.
In addition to a 24-pin and two 4 + 4 pin cables, the Corsair CX650F RGB provides four 6 + 2 pin PCIe plugs as well as seven SATA and four 4-pole Molex connectors. With this connection variety, performing systems can be realized. Visually, the power supply fits perfectly into each setup with its black case and black ribbon cables.
The built-in 120-millimeter fan provides the power supply quietly and reliably with fresh air. The intelligent fan control ensures a load-dependent speed of the fan. This is especially noticeable in noise and the maximum possible cooling capacity, depending on how much the power supply is stressed.
The integrated RGB lighting of the fan can be ruled on three types: with the button on the back of the power supply, with an optionally available Corsair Icue Controller or by connecting via 3-pin RGB plug to a compatible motherboard.
Technical details:
– Dimensions: 150 x 86 x 140 mm (W x H x D)
– Weight: 1.4 kg
– Color: Black
-Fan:
– Type: 120 mm (intelligent fan control)
– LEDs: ARGB, eight pieces
– Efficiency: max. 90% @ 50% load, 80 plus bronze certificate
– Active PFC
– Form factor: ATX12V
– Power: 650 W
– + 3.3V: 20 A
– + 5V: 20 A
– + 3,3V & + 5V: 130 W
– + 12V: 54 A / 648 W
– -12V: 0.3 A / 3.6 W
– + 5VSB: 3 A / 15 W
– Connections:
– Full-modular
– 1x 24-pin (610 mm)
– 2x 4 + 4-pin (650 mm)
– 4x 6 + 2-pin PCIE (650 mm)
– 7x SATA (800/700 mm)
– 4x 4-pole molex (650 mm)
– 1x fan LED cable (500 mm)
– 1x MB ARGB (300 mm)
– Protection: OVP, RRP OPP, SCP, OCP
