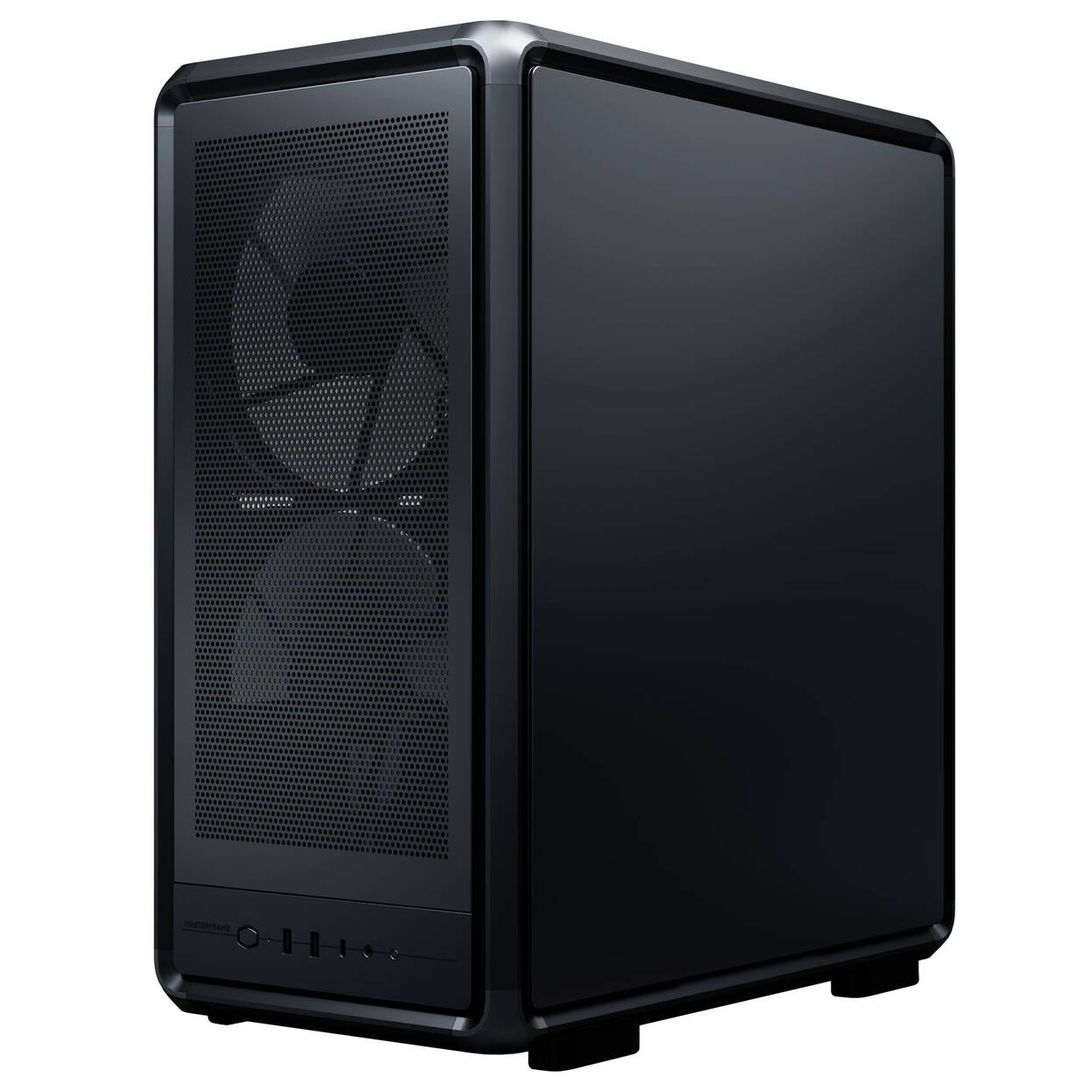

The Cooler Master MasterFrame 500 Mesh is a modular open-frame mid-tower case featuring mesh ventilation, strong airflow, and full FreeForm 2.0 modding freedom. The non-ARGB version deliberately forgoes lighting and is aimed at performance enthusiasts focusing on functionality and cooling performance.
The Cooler Master MasterFrame 500 Mesh is a modular open-frame mid-tower case featuring mesh ventilation, strong airflow, and full FreeForm 2.0 modding freedom. The non-ARGB version deliberately forgoes lighting and is aimed at performance enthusiasts focusing on functionality and cooling performance.
The Cooler Master MasterFrame 500 Mesh is a modular open-frame mid-tower case featuring mesh ventilation, strong airflow, and full FreeForm 2.0 modding freedom. The non-ARGB version deliberately forgoes lighting and is aimed at performance enthusiasts focusing on functionality and cooling performance.

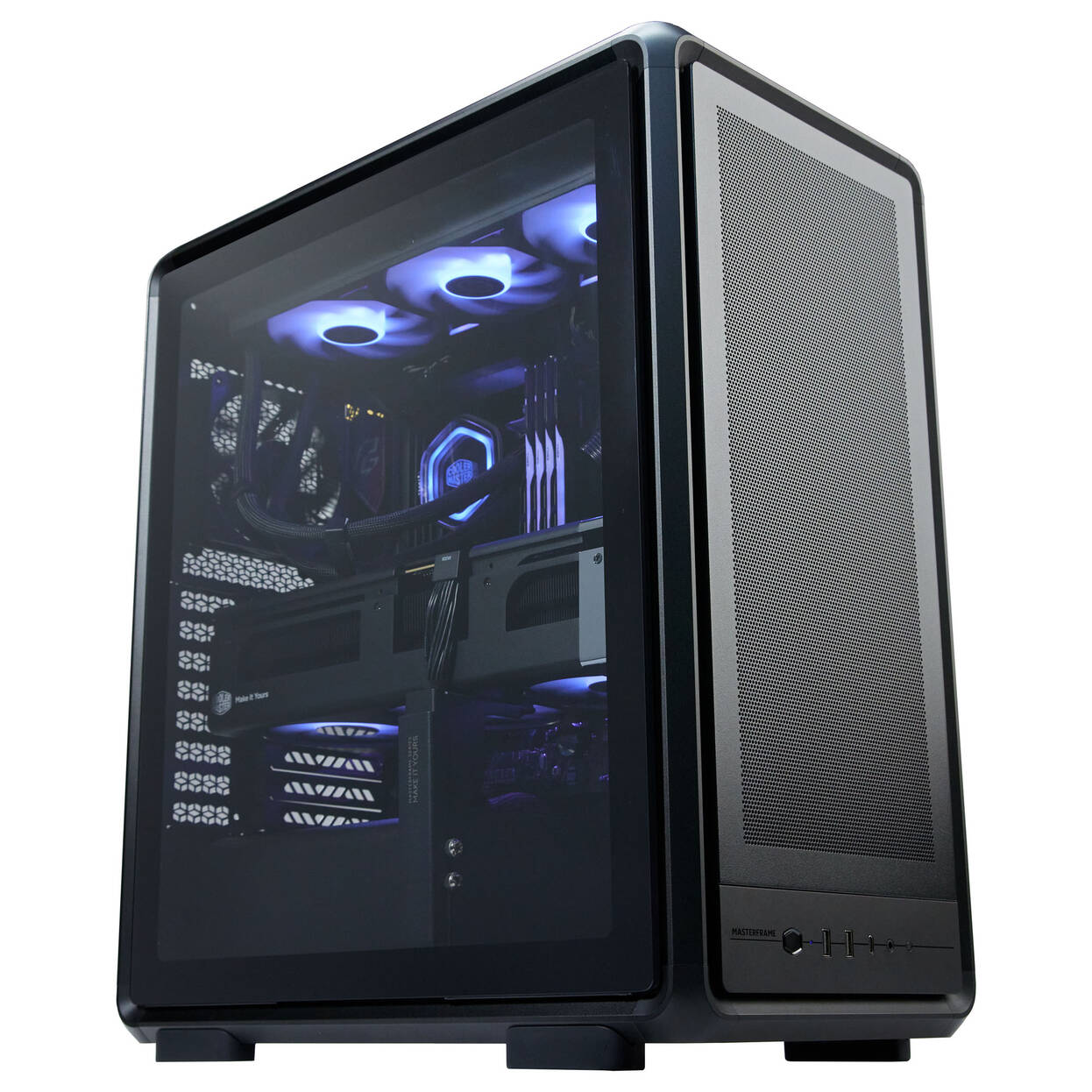

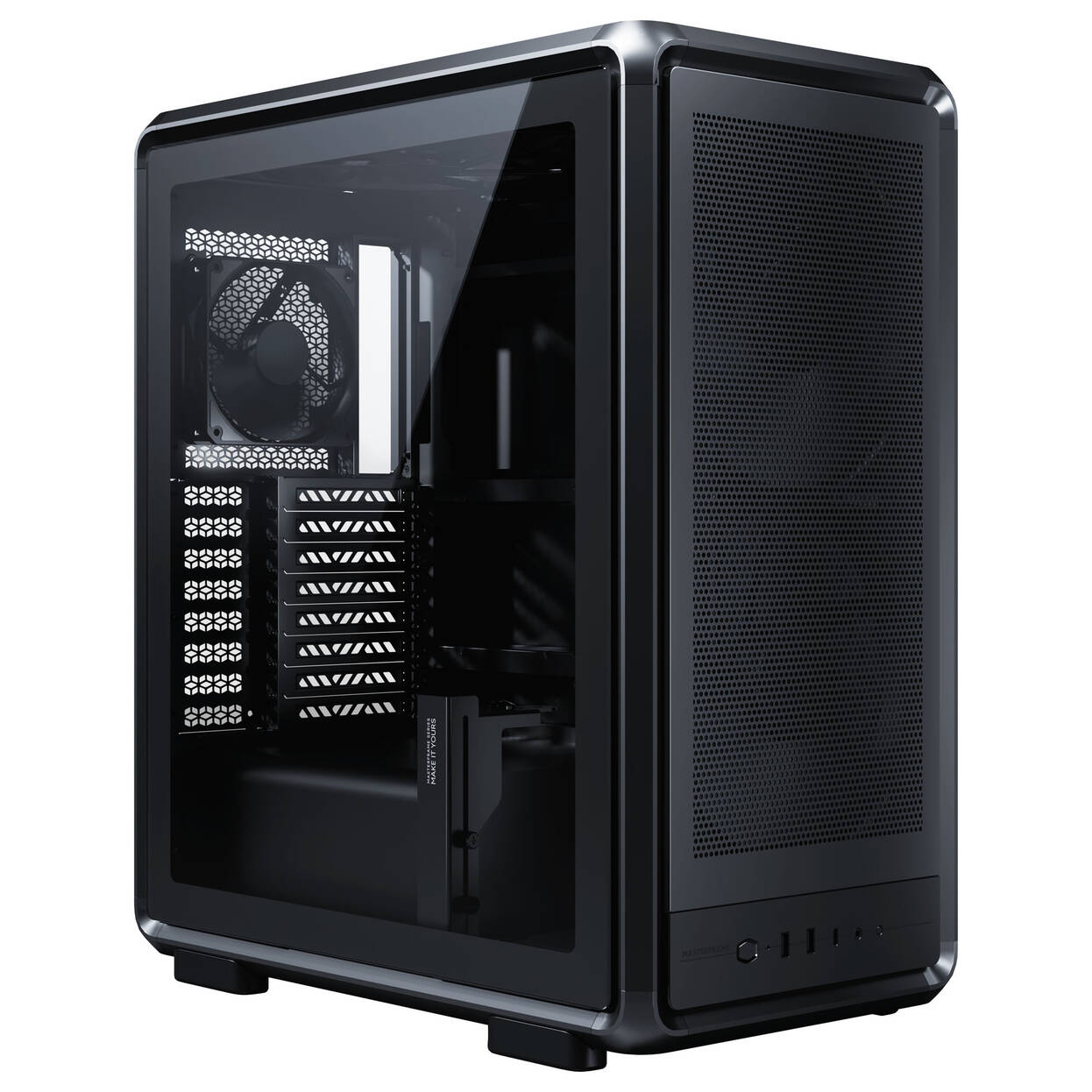

The Cooler Master MasterFrame 500 Mesh is a modular open-frame mid-tower case featuring mesh ventilation, strong airflow, and full FreeForm 2.0 modding freedom. The non-ARGB version deliberately forgoes lighting and is aimed at performance enthusiasts focusing on functionality and cooling performance.
– Two 200mm SickleFlow PWM fans pre-installed at the front
– One 120mm PWM fan pre-installed at the rear
– Supports up to eight fans and two 360 mm radiators
– GPU support up to 390 mm, CPU cooler up to 190 mm, PSU up to 235 mm
– Tempered glass side panel, USB-C, mesh filter, GPU support bracket included
– Open, focused, well-ventilated
The MasterFrame 500 Mesh relies on an open design with strong air circulation through the large mesh front and top sections. Two powerful 200 mm PWM fans at the front generate massive airflow, while the solid rear houses a 120 mm fan – all without ARGB for a clean look.
Cooling performance without compromise
The case offers space for up to eight fans as well as radiators up to 360 mm in length at the front and top. This makes the MasterFrame 500 Mesh ideal for AiO or custom loop systems that prioritize high air performance and maximum hardware compatibility.
Maker-friendly & future-proof
Thanks to the FreeForm 2.0 concept, you have access to flexible panel options. Tool-free removable side panels and 43 mm cable management depth make installation easier. Includes a GPU bracket to prevent sagging with heavy graphics cards.
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions & Weight | |
| Width | 261 mm |
| Depth | 471 mm |
| Height | 544 mm |
| Weight | 10 kg |
| Internal Volume | 60.9 L |
| Case & Compatibility | |
| Case Type | Mid Tower |
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-DTX, Mini-ITX, SSI-CEB |
| Max. Motherboard Size | E-ATX |
| Internal Clearance | |
| Max. CPU Cooler Height | 190 mm |
| Max. GPU Length | 390 mm |
| Max. PSU Length | 235 mm |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Rear Bottom or Top |
| Cooling Support | |
| Max. Fan Support | 8 Fans |
| Supported Fan Sizes | 120 mm (8×), 140 mm (4×), 180 mm (4×), 200 mm (4×) |
| Radiator Support | 1 × 120 mm, 2 × 360 mm |
| Drive Bays | |
| 2.5″ Drive Bays | 1 |
| 3.5″ Drive Bays | 1 |
| Combined Drive Bay | 1 × 3.5″ / 2.5″ |
| 5.25″ Bays | 0 |
| Hot-Swap Bays | No |
| Front I/O | |

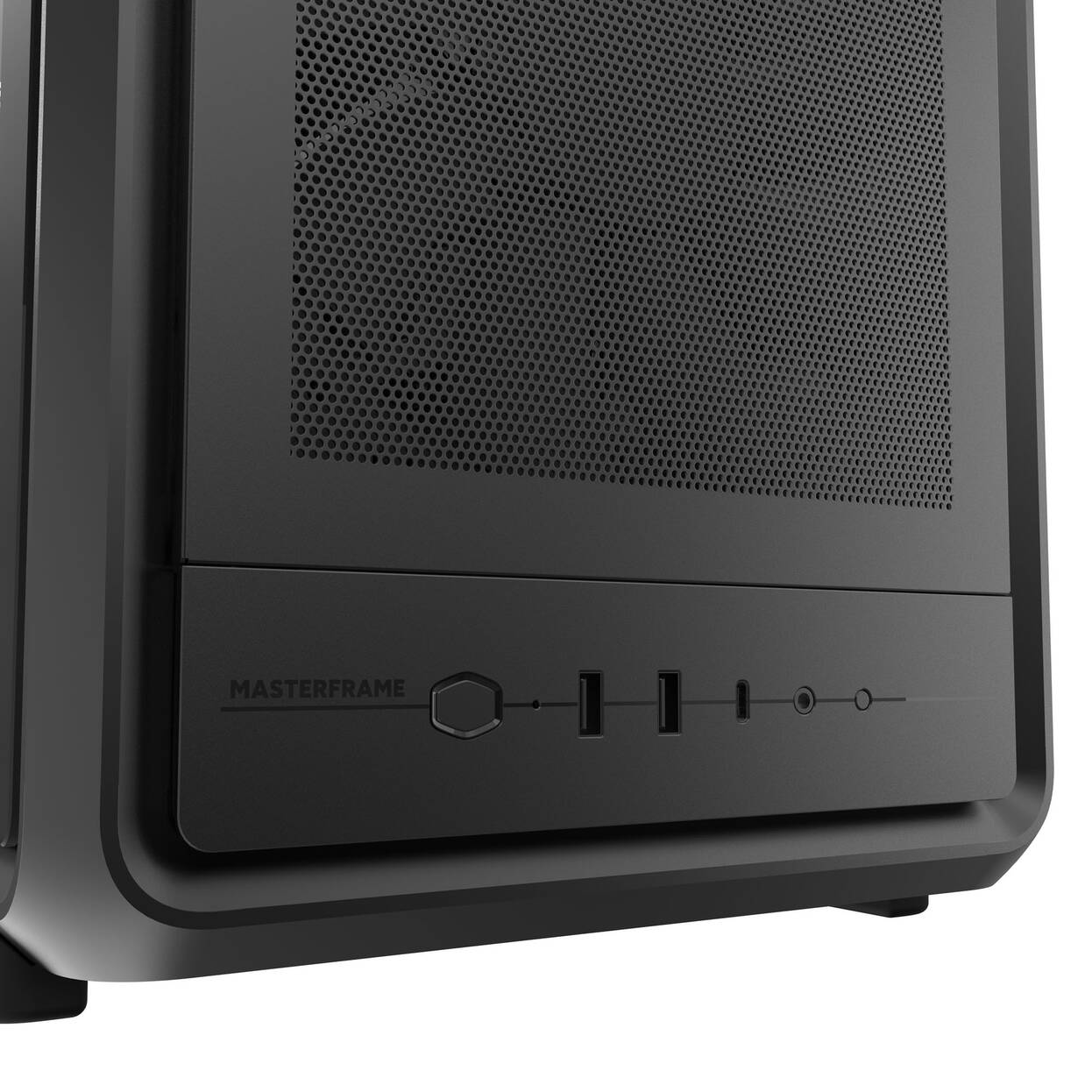

| USB Ports | 1 × USB-C (3.1), 2 × USB-A (3.0) |
| Audio | 3.5 mm Combo Jack (TRRS) |
| Case Features | |
| I/O Position | Front / Top |

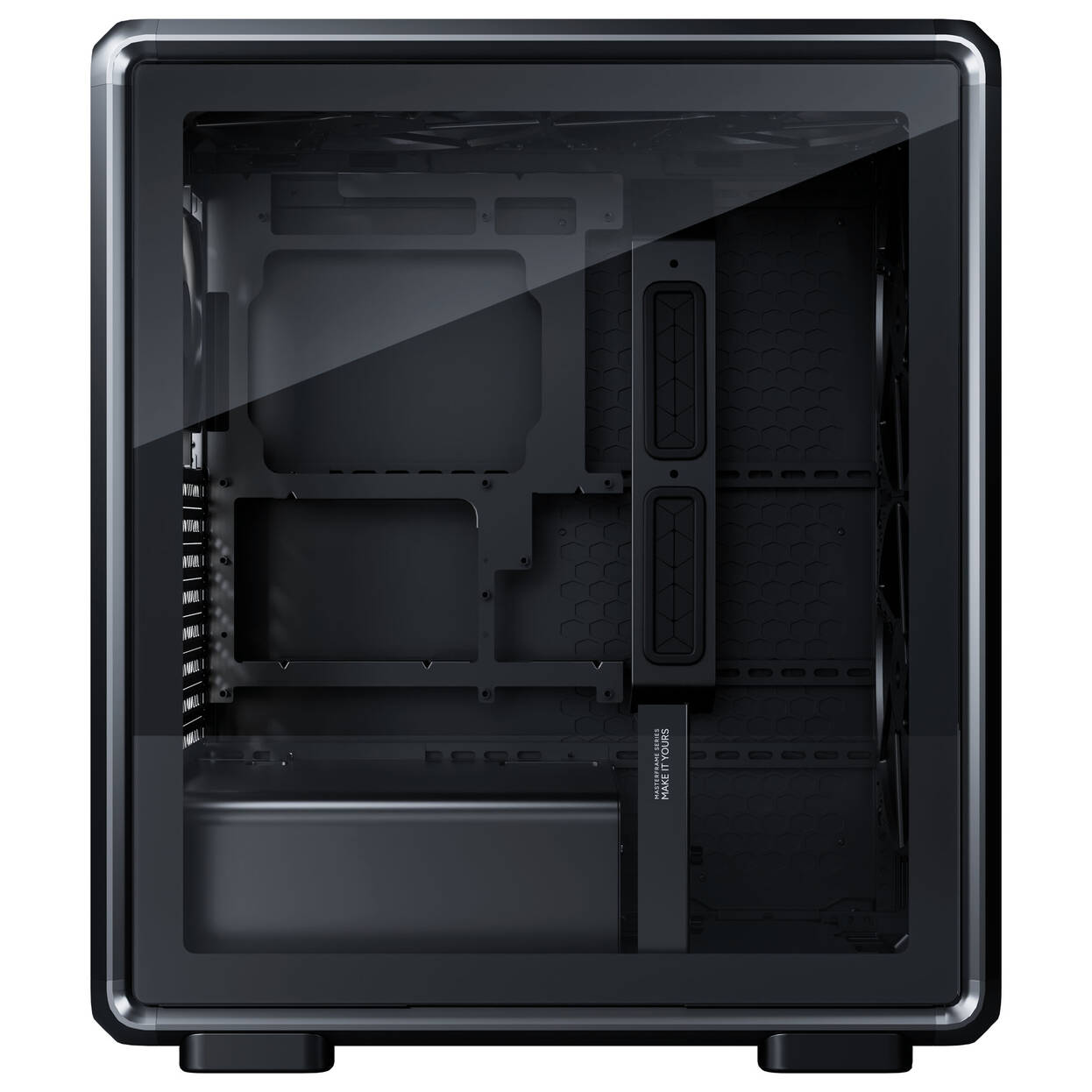

| Side Panel | Tempered Glass Window |
| Cable Management | Yes |
| Dust Filters | No |
| Noise Dampening | No |
| Vertical GPU Support | No |
| Expansion | |
| Expansion Slots | 8 |
| Materials | |
| Construction | Aluminium, SGCC Steel, Tempered Glass |
| Additional Contents | |
| Pre-Installed Fans | 1 × 120 mm, 2 × 200 mm |
| Lighting | |
| RGB Lighting | No |
£135.26£112.72 Inc VatEx Vat
