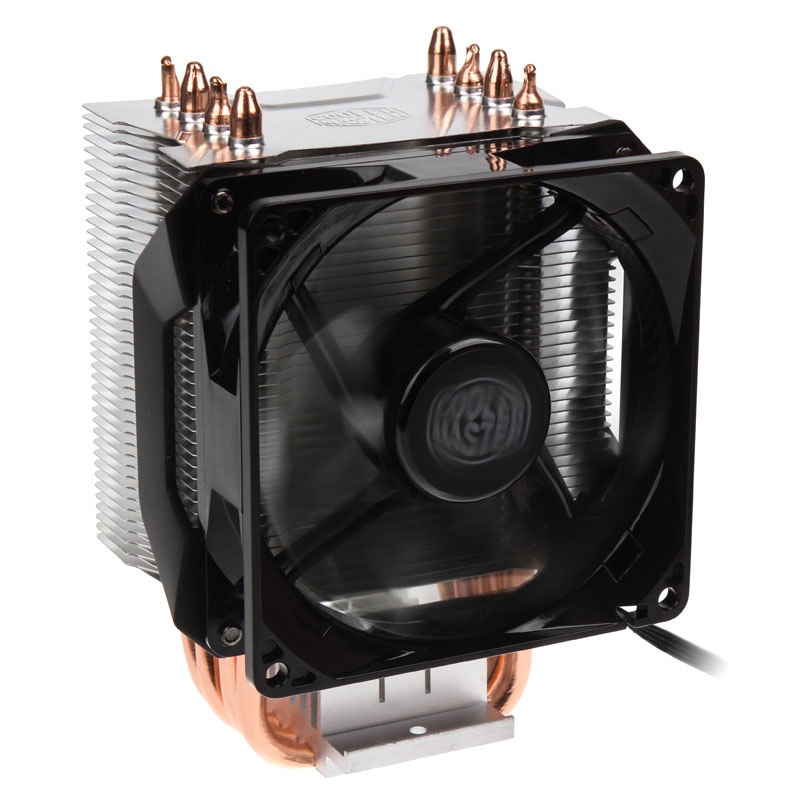

The Cooler Master Hyper H412R is the successor to the legendary Hyper 103 CPU cooler. Equipped with numerous improvements, Cooler Master has managed to improve the performance of the cooling tower while reducing the volume. This is achieved by the 92 mm PWM fan, the exclusive CDC technology and the funnel-shaped arrangement of the aluminum fins.
Special features of the Cooler Master Hyper H412R
Compact CPU cooler with a height of only 136 mm
Speed ranges from 600 to 2,000 rpm
High airflow of 57.93 m³ / h
Solid contact pressure with 1.79 mm H2O
Low volume of 29.4 dB (A)
Optimized cooling lamella design
High compatibility with modern sockets from Intel & AMD
Long life expectancy of 40,000 hours
4-pin connector
No products found
In addition, the universal mounting of the Hyper H412R ensures easy and secure installation of all common platforms.
Special features of the Cooler Master Hyper H412R
Compact CPU cooler with a height of only 136 mm
Speed ranges from 600 to 2,000 rpm
High airflow of 57.93 m³ / h
Solid contact pressure with 1.79 mm H2O
Low volume of 29.4 dB (A)
Optimized cooling lamella design
High compatibility with modern sockets from Intel & AMD
Long life expectancy of 40,000 hours
4-pin connector
Sophisticated design for maximum efficiency

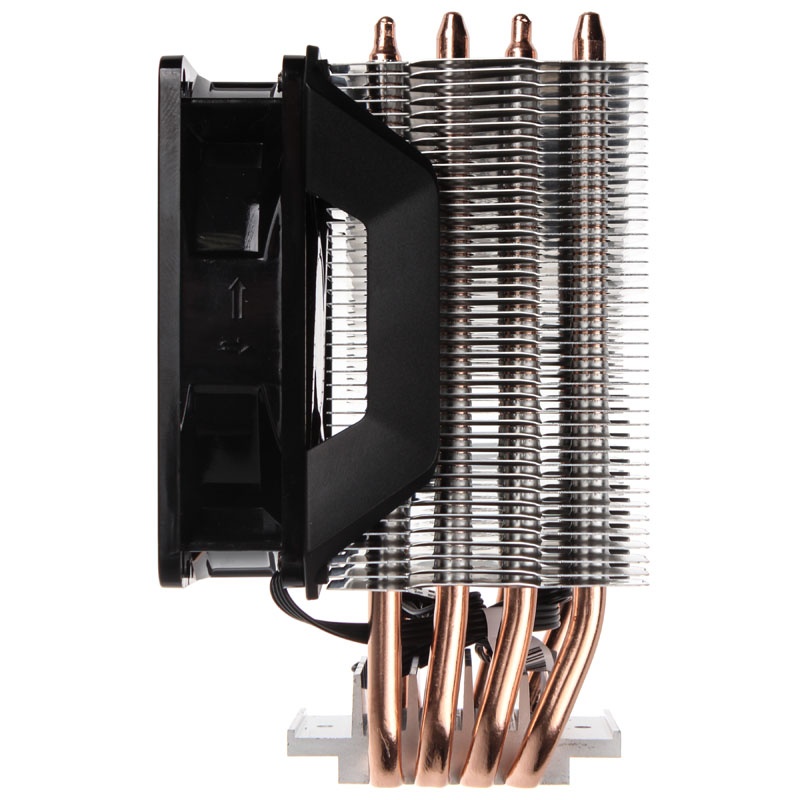

The Hyper H412R by Cooler Master in a compact tower design features four vertical heatpipes for heat transfer from the CPU to a cuboid heat sink made of layered aluminum fins. Due to the tunnel-effect layout, the arrangement of the lamellae creates small micro-vortexes which are supposed to increase the airflow and better circulate the air around the heatpipes.
The heatpipes themselves each have a diameter of 6 millimeters and, unlike the standard concept, are located directly on the CPU thanks to CDC technology. This creates a surface with gapless contact that brings unsurpassed cooling efficiency. This design principle has the advantage that the heat can be transferred and removed directly. This results in a particularly high cooling capacity.
The heatpipes also find support in the funnel-shaped arrangement of the aluminum fins. The air flow of the fan is directed more targeted to the heat pipes and does not create zones that are not reached by the air flow, which eventually leads to a reduction in CPU temperatures.

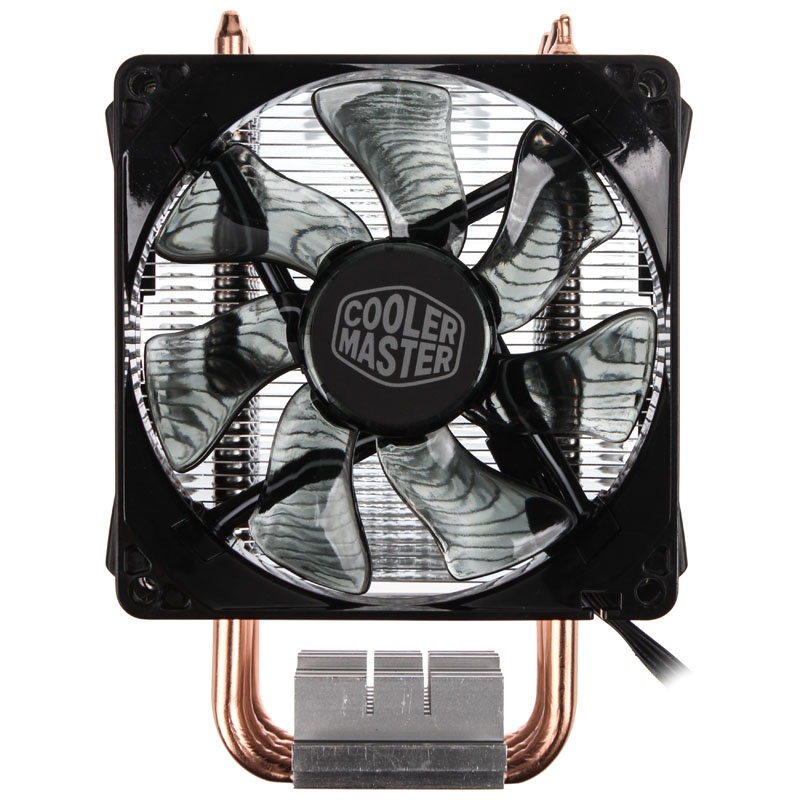

Strong 92mm fan provides a cool breeze
A powerful 92 mm PWM fan ensures the right airflow. It covers a wide speed range of 600 to 2,000 rpm and, despite its size, produces an airflow of 57.93 m³ / h at a high static pressure of 1.79 mm H2O. These impressive results are achieved with the Hyper H412R at only 29.4 dB (a) volume and therefore offers an incredibly quiet operating noise. Thanks to the PWM connection, the fan can also be controlled by the mainboard.
Mounting & Compatibility of the Cooler Master Hyper H412R
Mounting the Hyper H412R is very easy. Thanks to the included X-brackets, the cooler can be quickly and easily installed on all common CPU sockets. As a result, the CPU cooler can be mounted on AMDs LGA 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3 and 2066 sockets and AMDs FM1, FM2, FM2 +, AM2 +, AM3, AM3 + and AM4 ensures adequate cooling.
Technical specifications:
Dimensions (total): 102 x 136 x 63.5 mm (W x H x D)
Material: copper (heatpipes), aluminum (base plate, lamellas)
Weight without fan: 358 g
Heatpipes: 4x Ø 6 mm
Fan:
Dimensions: 92 x 92 x 25 mm (W x H x D)
Color: Black
Volume: 29.4 dB (A)
Speed: 600 – 2,000 rpm ± 10%
Delivery volume: 57.93 m³ / h ± 10%
Static pressure: 1.79 mm H2O ± 10%
Power consumption (watts): 2.4 W
Life expectancy: 40,000 h
Connection: 4-pin PWM
Compatibility:
Intel Socket 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD Sockets FM1, FM2, FM2 +, AM2 +, AM3, AM3 +, AM4
