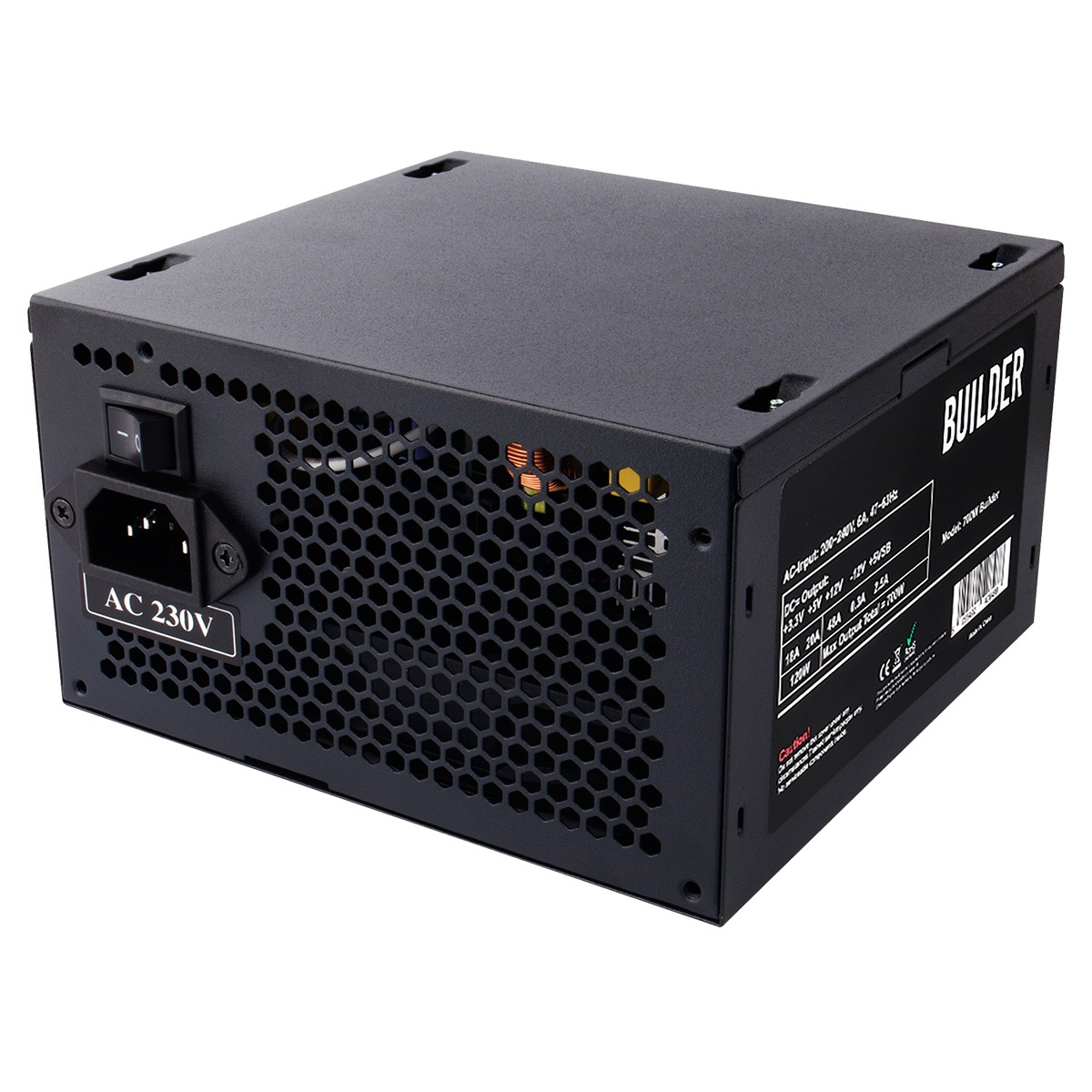

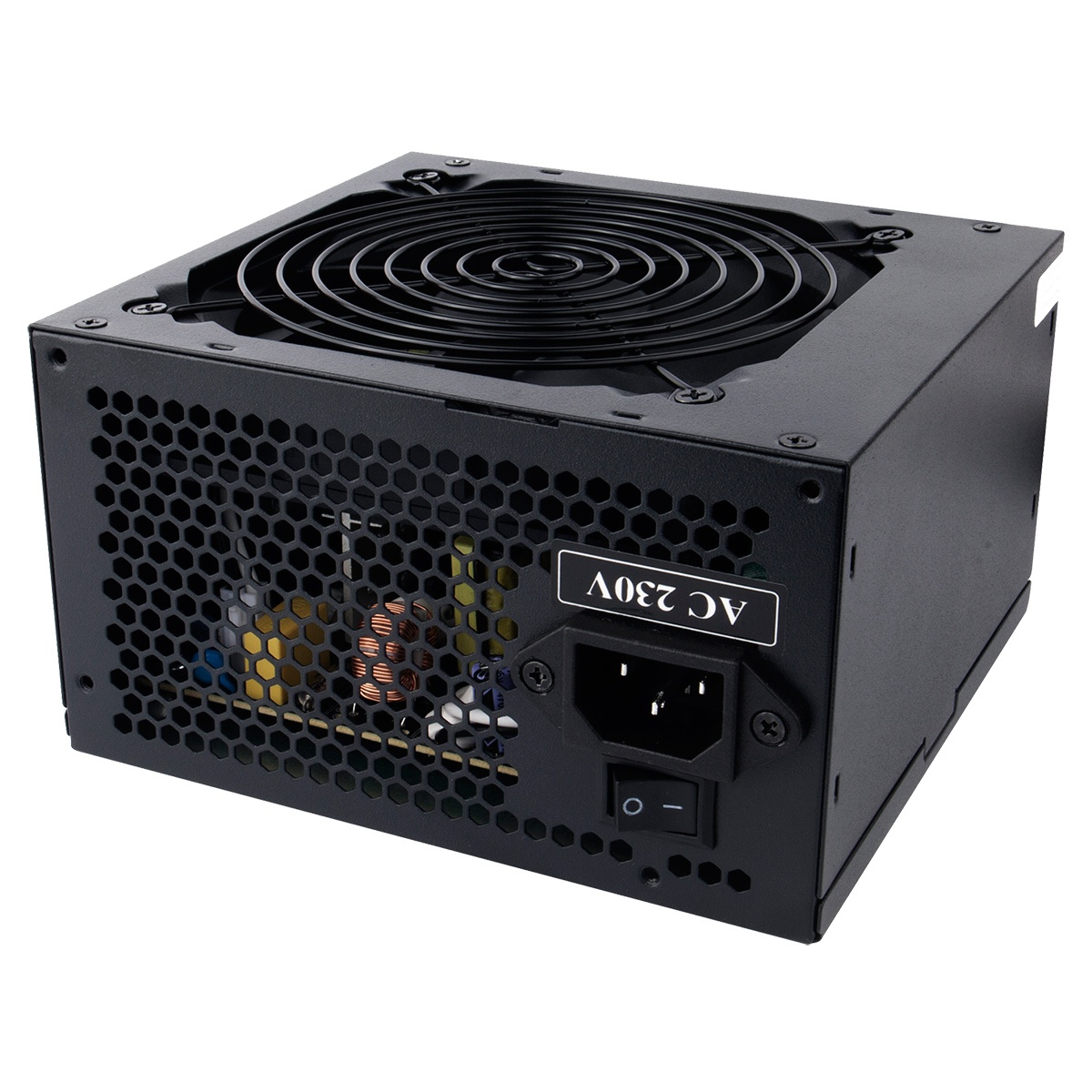

CIT 700w Builder PSU PPFC 6xSata 1xPCIE6+2 4+4pin

The new Builder range, are non-modular ATX power supplies which are an excellent entry level power supply for system integrators who are looking to build basic systems or first time builders looking for a power supply that brings quality and value. This new range comes in two power configurations, a 600W and 700W version.

Key Features

• Builder Series – The new Builder range is available in two configurations, a 600W or a 700W with an efficiency of 70%.
• Type – The Builder is an ATX 12V 700W power supply making it compatibility for all types of Mainboards and CPUs.
• Cooling Fan – A 12cm cooling fan enables excellent airflow and a power supply with a lower noise.
• Connectors – The Builder 700W comes with a 20 + 4 pin (535mm), 4 + 4 pin (545mm), 1 x 6 + 2 Pin (445mm), 4 x SATA (970mm), 1 x SATA / 1 x Molex / 1 x FDD (685mm) & 2 x Molex & 1 x SATA (640mm).
• Protection – Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP), Over Power Protection (OPP) and Short Circuit Protection (SCP).

PSU Specifications

Connectors

Detailed Specifications
Dimensions: 150mm x 85mm x 140mm (W x H x D)
Input Voltage: 200-240VAC
Input Current: 6A
Input Frequency Range: 47-63HZ
PFC: PPFC
Power Good Signal: 306ms
Hold Up Time: 8ms
Efficiency: 70%
MTBF: 50,000 Hours
Protection: OVP / UVP / OLP / OPP / SCP
Power: 700W
Operation Temperature: 0-40 degreesC
Safety: CE / CCC
Cooling: 120mm Cooling Fan
Noise: 40dBA

General Specifications
Manufacturer Part Number: 700W BUILDER
EAN Number: 5055492408488
Has Mains Plug: No
Colour: Black

Whats In The Box:
PSU
Cable Ties
Screws

Unit (Product) Dimensions (mm): 150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm): 231mm x 170mm x 96mm (W x H x D)
Net Weight (KGs): 1.28 KGs
Gross Weight (KGs): 1.39 KGs
