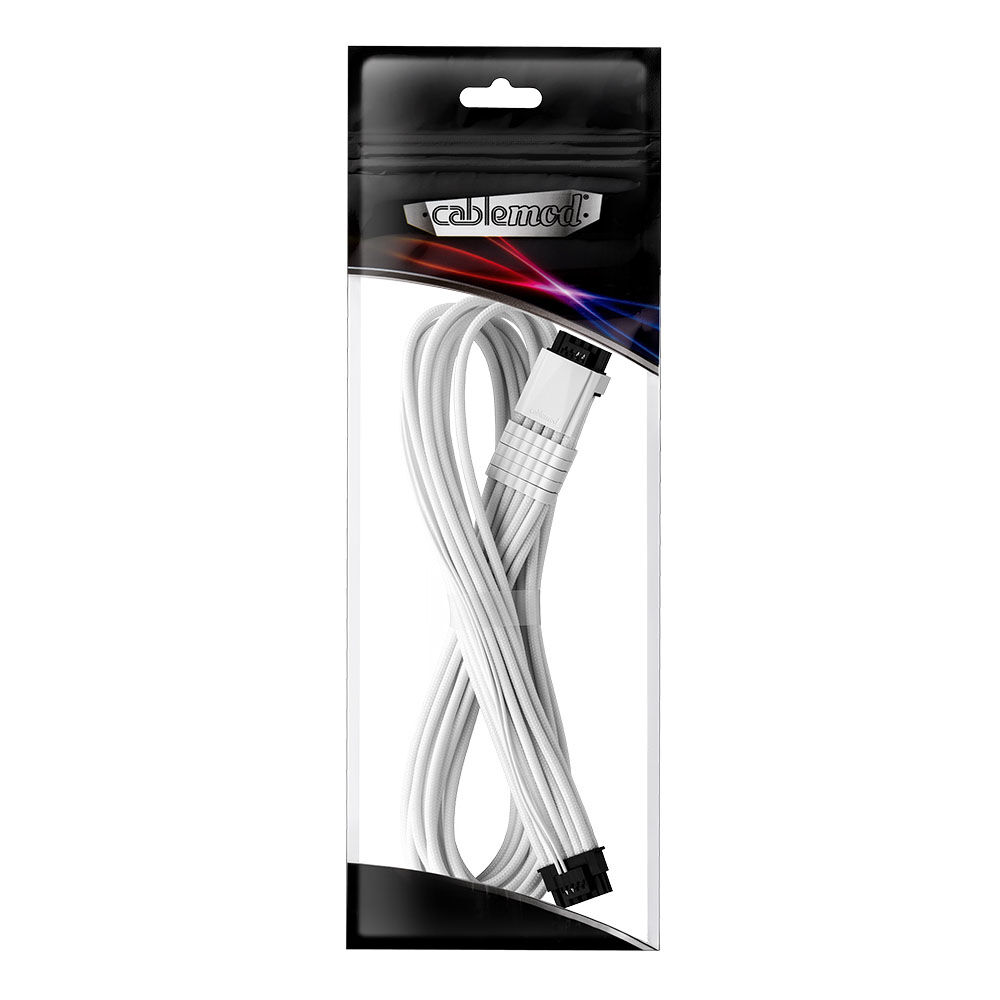

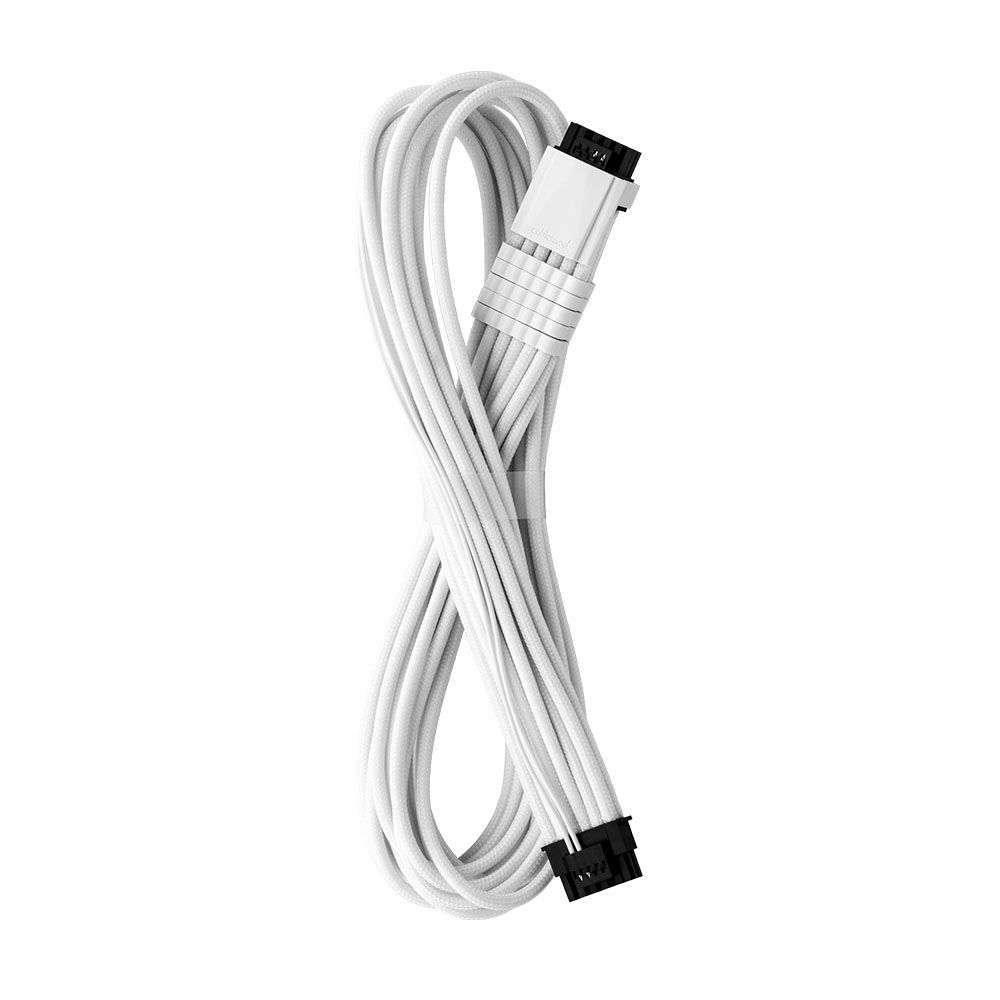

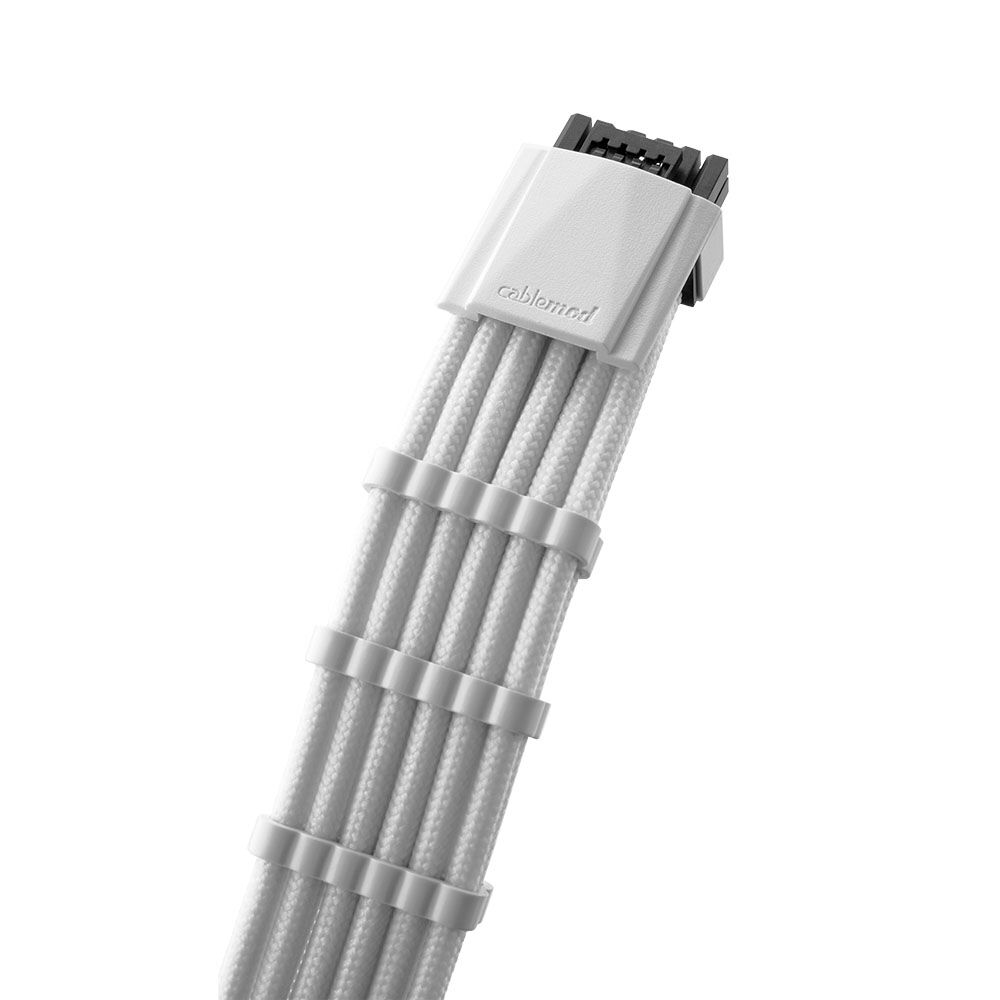

CableMod PRO ModMesh RT 12VHPWR PCIe cable ASUS/Seasonic/Phanteks - 60cm, white

NVIDIAs GeForce RTX 4000 series graphics cards use a new 16-pin connector (12+4-pin) with PCIe standard for power supply. This connector is also known as a 12VHPWR connector. With the PRO ModMesh RT 12VHPWR PCIe, CableMod offers a 12VHPWR PCIe adapter that was developed for power supplies from the RT series from ASUS, Phanteks and Seasonic without a native 12VHPWR connector.

The CableMod PRO ModMesh RT 12VHPWR PCIe cable uses high-quality ModMesh sleeving. This cable consists of 16AWG cables with support for up to 600 watts and is equipped with five pre-installed, closed cable combs.

Important notes: For the 16-pin 12VHPWR to PCIe cable to work correctly, all 8-pin connectors must be connected to the power supply. The distance between the graphics card connector and the side panel must be at least 4 to 4.5 cm. In addition, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, it should be ensured that the 12+4-pin connector is fully and securely inserted into the socket on the graphics card.

Technical details
– Length: 600 mm
– Color: white
– Material: ModMesh
– Conductor thickness: 16 AWG
– Connectors:
– 1x 16-pin 12VHPWR PCIe
– 2x PCIe-8-pin
– Compatibility:
– ASUS Loki SFX-L, ROG Strix, ROG Thor, TUF Gaming
– Seasonic CORE, FOCUS, G-Series, P-Series, PRIME, VERTEX, X-Series
– Phanteks Amp, Revolt
– You can find an extensive compatibility list on the manufacturers website
