ASUS TUF Gaming B650M-E, AMD B650 motherboard - Socket AM5, DDR5

– Supports max. 128 GB DDR5 RAM up to 6,400 MHz (OC)
– 2x M.2 (including 1x PCIe 5.0 and 1x PCIe 4.0) / 4x SATA 6G
– 1x USB-C 3.1, 1x USB-A 3.1, 2x USB-A 3.0, 4x USB-A 2.0 on the I/O panel
– OC features: 8+2 phase MOSFETs, Digi+ VRM, CMOS reset
– A total of 5x 4-pin PWM fans possible
– Fast network connection with 2.5 gigabit

ASUS TUF GAMING B650M-E: Micro ATX motherboard with AMD AM5

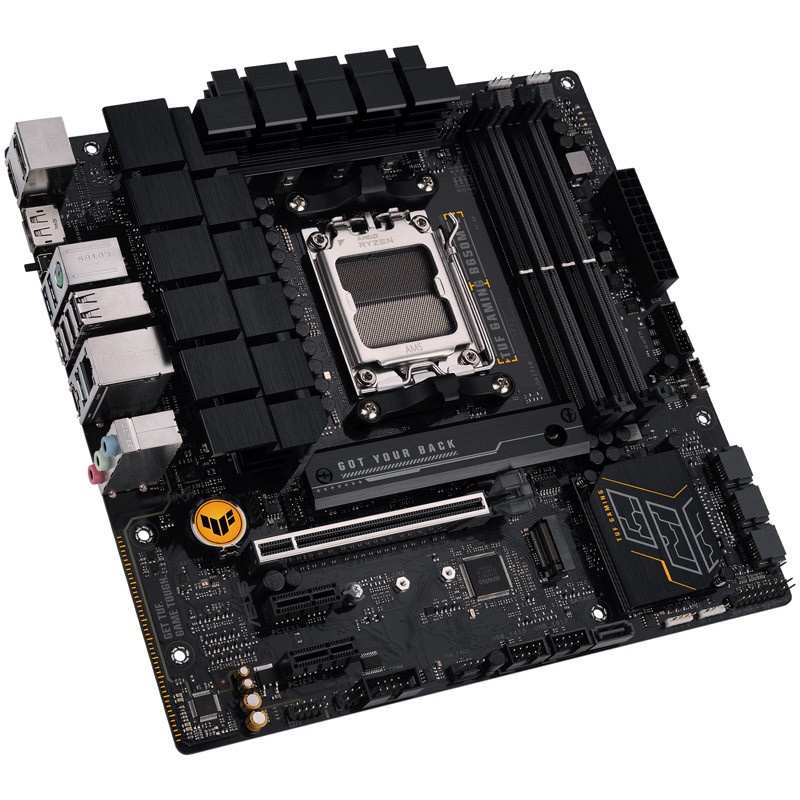

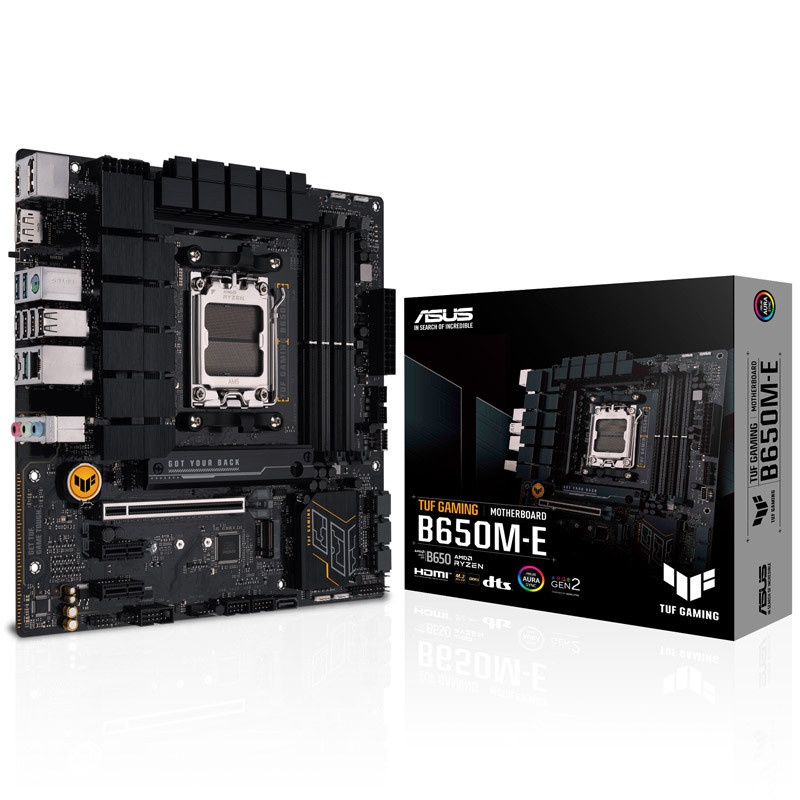

The picture shows the ASUS TUF GAMING B650M-E motherboard. The ASUS TUF GAMING B650M-E is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and has numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to the support of PCIe 5.0 and the expanded power supply, the Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased number of pins, the actual size of the socket remains identical to older sockets, so that most CPU coolers for socket AM4 can be mounted on the motherboard.

The ASUS TUF Gaming B650M-E is designed for gaming so you can enjoy even the most demanding games without any problems. The high-quality voltage converters with 8+2 virtual phases offer a stable power supply to the CPU to guarantee high clock speeds even over a longer period of time. There are also features such as DIGI+ VRM for adjusting the VRM voltage and frequency modulation as well as BIOS Flashback and Clear CMOS so that your PC is quickly ready for use again if something goes wrong. And as usual, the DDR5 RAM can also be used to its full potential with higher clock speeds.

Only compatible with AMD Ryzen 7000 series CPUs!
Technical details:
Format:
– Micro ATX (244 x 244 mm)
– Chipset:
– AMD B650
– Base:
– AM5 (LGA 1718)
– R.A.M:
– 4x DDR5 (5,600 MHz, validated up to 6,400 MHz using OC)
– Dual channel
– Max 128GB
– Slots (physical):
– 1x PCIe 4.0 x16
– 2x PCIe 4.0 x1
– Internal connections:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1 x Clear CMOS Header
– 1 x COM Port Header
– 1 x Front Panel Audio Header (AAFP)
– 1 x 20-3 pin system panel header with chassis intrude function
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU opt-fan header (4-pin)
– 2x fan header (4-pin)
– 1x AiO pump header
– RGB header:
– 3x 3-pin ARGB headers
– 1x 4-pin RGB header
– External connections:
– 1x PS/2 keyboard/mouse
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek)
– 3x 3.5 mm jack (Realtek ALC 897)
– 1x BIOS flashback
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– 1x 4-pin ATX12V
– Accesories:
– 2x SATA data cable
– 1x I/O panel
– 1x M.2 rubber piece package
– 1x screw package for M.2 SSDs
– 1x TUF GAMING sticker
– 1x TUF certificate
– 1x user manual
