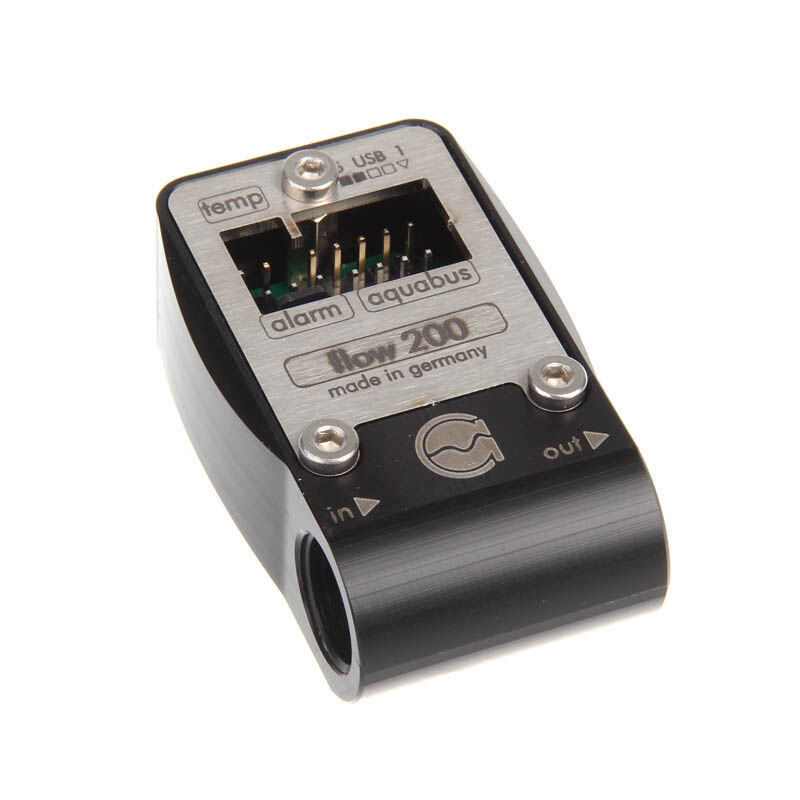

Aqua Computer flow sensor MPS Flow 200

Most of this value is only indirectly recorded on the pump speed on the control side – what does this but for real impact, can be deduced from this. To check the actual water flow, to offer separate instruments in the cooling circuit. These also provide the advantage that interference (such as constipation) are detected quickly and reliably.
Aquacomputer makes this the right solutions for Aquero 5-series, so XT, PRO and LT-control front, which has a very low flow resistance and therefore suitable also for high-flow systems. In addition, the sensor is incorporated into a high-quality housing and therefore convinced with high quality and good looks.
The flow sensors mps flow series are technically based on a differential pressure measurement, which requires no moving parts and thanks to the high sensitivity of the sensor has minimal flow resistance. Through this area in the PC water cooling unique principle of the flow sensors mps flow series are extremely compact. The sensors have an integrated electronic evaluation system with USB and aquabus interface, a configurable alarm output, a built-in water temperature sensor and an external temperature sensor input ..
For monitoring and configuring the software is available for download aquasuite. The four-pole aquabus interface also allows direct connection to a aquaero 5 controller (not included). The alarm output can be optionally configured as an artificial speed signal output for connection to a fan with speed signal analysis (eg the motherboard) or contact output, for example, to switch a LED on alarm. For alarm monitoring, in addition to the measured flow rate are also the water temperature and the external temperature sensor input. The external temperature sensor input is compatible with all services offered by Aqua Computer Temperature Sensors
Note: When using terminals are mounted or hoses with an inner diameter of less than 8 mm (eg, plug & cool) must initially sided flow between mps mps flow 200 or 400 for an extension in order to harmonize the flow in front of the sensor. Without extension is a reliable measurement in these cases is not possible!
