Noise is an annoying side effect caused not only at the airport by aircraft taking off and on the road by trucks roaring by. Just in your own home, many people are therefore working to ensure peace, to find relaxation. Sorry, there is also the PC in many cases these efforts meet and annoying during operation with high noise levels.
The sources of noise are initially all rotating components, which primarily affects fans and hard drives. These should be decoupled and, where appropriate, the speed is reduced. Many housing support these measures and provide appropriate equipment at the factory.
Noise is an annoying side effect caused not only at the airport by aircraft taking off and on the road by trucks roaring by. Just in your own home, many people are therefore working to ensure peace, to find relaxation. Sorry, there is also the PC in many cases these efforts meet and annoying during operation with high noise levels.The sources of noise are initially all rotating components, wh...
Noise is an annoying side effect caused not only at the airport by aircraft taking off and on the road by trucks roaring by. Just in your own home, many people are therefore working to ensure peace, to find relaxation. Sorry, there is also the PC in many cases these efforts meet and annoying during operation with high noise levels.The sources of noise are initially all rotating components, wh...
No products found

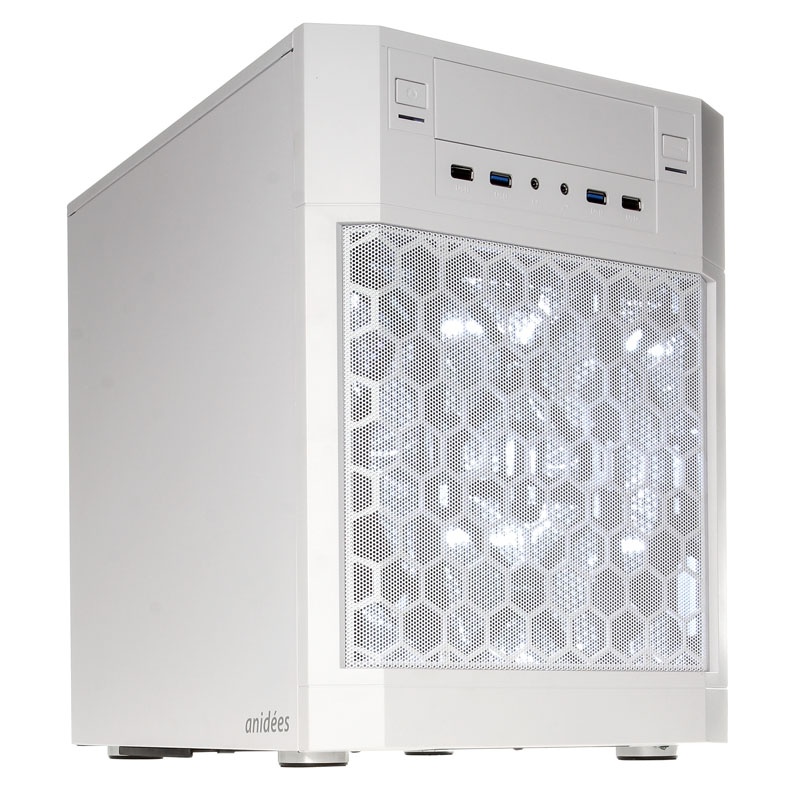

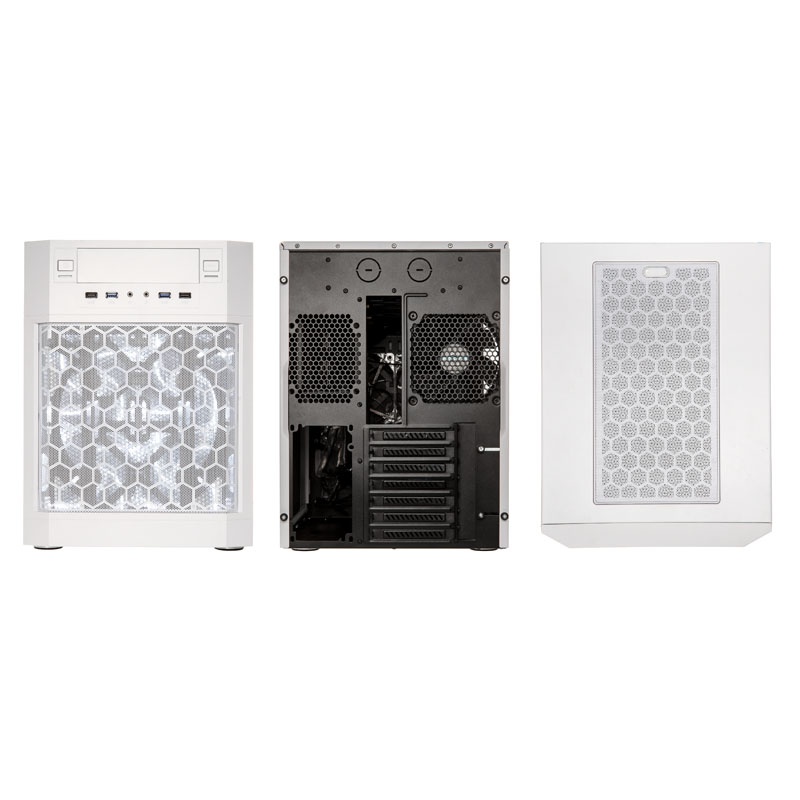

In addition, an insulation ensure an even lower exterior noise. With this modified version of the anidees AI-7W in white, both approaches are connected and the housing equipped with a pre-installed insulation.
The peculiarity of this compilation is that included additional insulation in addition to the pre-installed insulation mats. This is also a precise fit and allows for additional sealing of other body parts. As a result, you have the choice of how much insulation they obstruct to achieve an individual optimum of cooling and Laustärkereduzierung.
In the state of anidees AI-7W 13 insulation mats are already glued or clamped. In addition, there are 3 mats loose in the housing, which are mounted as needed themselves.
These mats are not installed, not to restrict the ventilation system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of pre-glued, clamped or enclosed mats provide the information below specifications.
All additional insulation mats are labeled, which provides in conjunction with the installation instructions included for easy installation. The guide is specifically tailored to the requirements of anidees AI-7 and explained in detail the installation, provides practical tips and explains the possibilities and insulation options.
To function: The insulating mats achieve noise reduction over two effects. First, the soft material absorbed by air impinging vibrations. At the same time reduce mats on the housing itself forwarded vibrations, especially by their own weight. Both system works in conjunction sure that the housing outer sides are hardly excited to oscillate.
More information about the material specifications of the insulation material can be obtained from the datasheet.
Notes: Please note that due to the insulating mats space can be lower within the housing. Thus, under certain circumstances can only be restricted routing cables behind the motherboard tray in comparison to the non-insulated version.
Technical details:
Dimensions: 288 x 380 x 380 mm (W x H x D)
Weight: 6.35 kg
Material: steel, plastic
Color: White
Form Factor: ATX, Micro-ATX, Mini-ITX
Fan total possible:
1x 200 mm / 140 mm 2x / 4x 120mm (front)
1x 120 mm (rear left)
1x 92 mm (rear right)
2x 140/120 mm (cover)
1x 120 mm (bottom)
Of this pre-installed:
4x 120 mm (front, blue LEDs)
1x 120 mm (rear)
Radiator Mountings (partial waiver of fan-Slots)
2x max. 240 mm (front)
1x max. 120 mm (rear)
1x max. 240 mm (lid; waiver of ODD and 2x 3.5 / 2.5-inch internal)
Filters: front cover, base, power supply (removable)
Drive Bays:
1x 5.25 inches (external)
4x 3.5 inches (internal, tools)
5x 2.5 inches (internally; 4x instead of 3.5 inches)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 7
I / O Panel:
2x USB 3.0 (internal connection)
2x USB 2.0
1x per Audio In / Out
Maximum power supply Length: 200 mm
Maximum video card length: 348 mm
Maximum CPU cooler height: 174 mm
Insulation (pre-installed):
The left side panel
Right side panel front
Right side panel above the rear
front top
floor Front
bottom right
cover right
cover left
Back top right
Back top left
Insulation (clamped):
bottom left
lid center
Back top center
Insulation (enclosed):
Face down
back right
back left
