Low-noise successor to the successful DDC pump from Laing. The Alphacool Laing DDC310 was designed with a quiet operating sound in mind and is housed in a massive brass housing.
Low-noise successor to the successful DDC pump from Laing. The Alphacool Laing DDC310 was designed with a quiet operating sound in mind and is housed in a massive brass housing.
Low-noise successor to the successful DDC pump from Laing. The Alphacool Laing DDC310 was designed with a quiet operating sound in mind and is housed in a massive brass housing.
The included decoupling option adds to the quiet operating noise of the pump. With a delivery rate of 200 l / h and a delivery height of 2.44 meters, it delivers very respectable performance despite its silent orientation.
The features of the Alphacool Laing DDC310 Pump Single Edition Silver at a glance:
– Volume-optimized further development of the Laing DDC pump
– 200 liters per hour flow / 2.44 meters head
– Brass housing for optimized cooling in Silver Nickel
– Supplied decoupling option
– Powered by 4-pin Molex cable
– Single Edition without attachment for free choice and flexibility
The features of the Alphacool Laing DDC310 Pump Single Edition Silver in Detail
The Alphacool Laing DDC310 Pump Single Edition in Silver is the logical evolution of the successful Laing DDC pump. Great emphasis was placed on the volume of the DDC310. In order to allow extremely quiet operating noise, the performance of the pump has been somewhat reduced. Nevertheless, with a capacity of 200 liters per hour and a head of 2.44 meters, the DDC310 offers more than enough power for most water cycles.

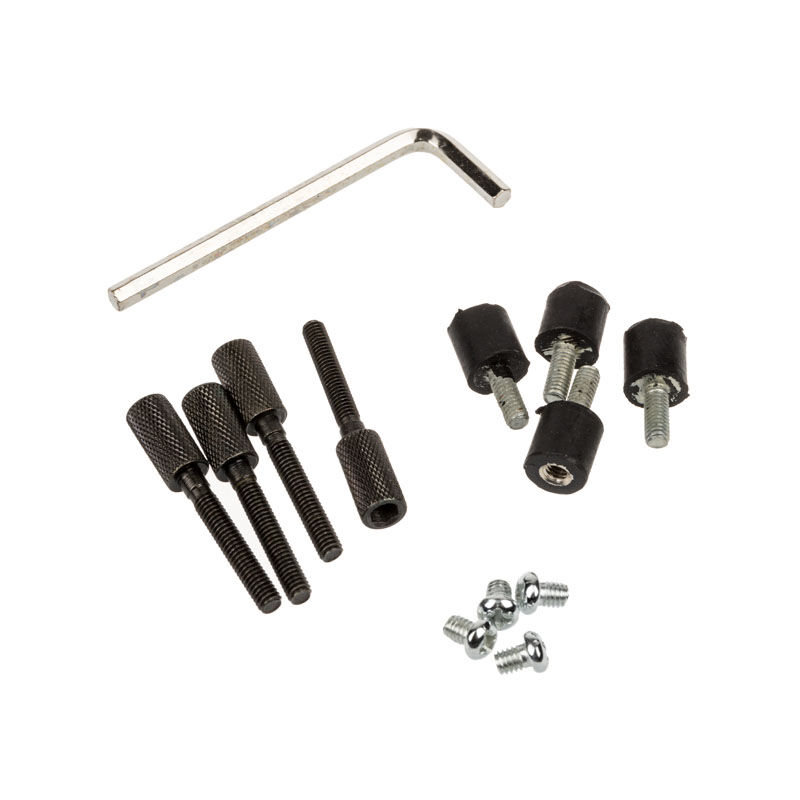

In addition to the reduced operating noise, the brass housing is the second major innovation of the DDC310. This actively contributes to the cooling of the electronics and thus promises a longer life of the pump. In addition, the included decoupling option of the DDC310 can be used in combination with an attachment. Using the special M4 screws, the enclosed decoupler kit can also be attached to the pump, which effectively prevents the transmission of vibrations and the generation of noise.
The power supply with the required 12 volts via a 4-pin Molex cable. Another 3-pin Molex Small connector connects to the motherboard and monitors speed.
| General Specifications | |
| Dimensions (W × H × D) | 61 × 21 × 60 mm |
| Material | Brass, Stainless Steel, Alumina, Hard Coal |
| Colour | Silver (Silver Nickel), Black |
| Performance | |
| Maximum Flow Rate | 200 L/h |
| Delivery Height | Approx. 2.44 m |
| Maximum System Temperature | 60 °C |
| Electrical Specifications | |
| Operating Voltage | 12 V |
| Power Consumption | 10 W |
| Connections | |
| Power Connector | 4-pin Molex |
| Monitoring Connector | 3-pin Molex Small (Speed Signal) |
| Compatibility | |
| Attachment Support | DDC Compatible Attachments |
| Included Accessories | |
| Package Contents | Alphacool Laing DDC Metal Bottom (Silver Nickel) Thermal Pad Decoupling Set Mounting Material |
£55.99£46.66 Inc VatEx Vat
