Connect external water-cooling components easily and conveniently to internal PC cooling components via the PCIe slot bracket.
The Alphacool ES PCIe slot bracket is designed to route and connect external water-cooling components to an internal cooling loop. The two G1/4" ports can be used, for example, to connect external radiators, pumps, or chillers without having to drill additional holes into the case.
Connect external water-cooling components easily and conveniently to internal PC cooling components via the PCIe slot bracket.
The Alphacool ES PCIe slot bracket is designed to route and connect external water-cooling components to an internal cooling loop. The two G1/4" ports can be used, for example, to connect external radiators, pumps, or chillers without having to drill additional holes in...
Connect external water-cooling components easily and conveniently to internal PC cooling components via the PCIe slot bracket.
The Alphacool ES PCIe slot bracket is designed to route and connect external water-cooling components to an internal cooling loop. The two G1/4" ports can be used, for example, to connect external radiators, pumps, or chillers without having to drill additional holes in...

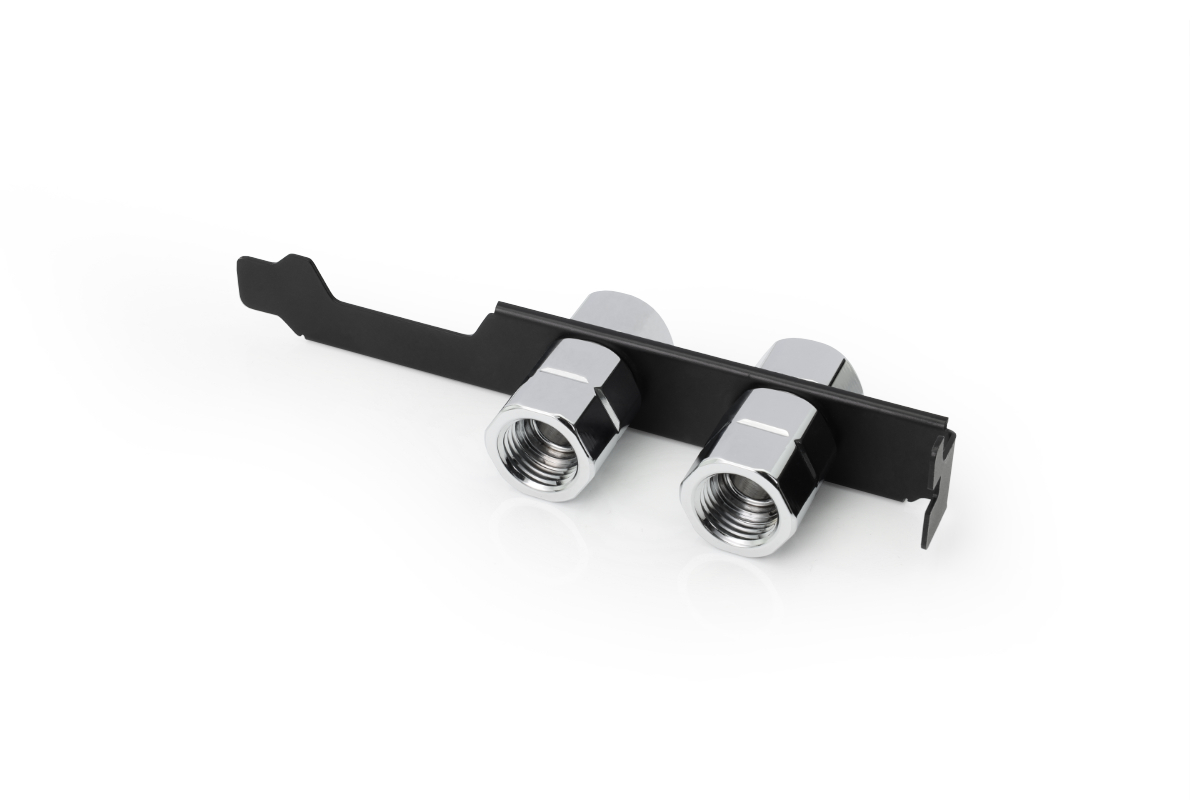

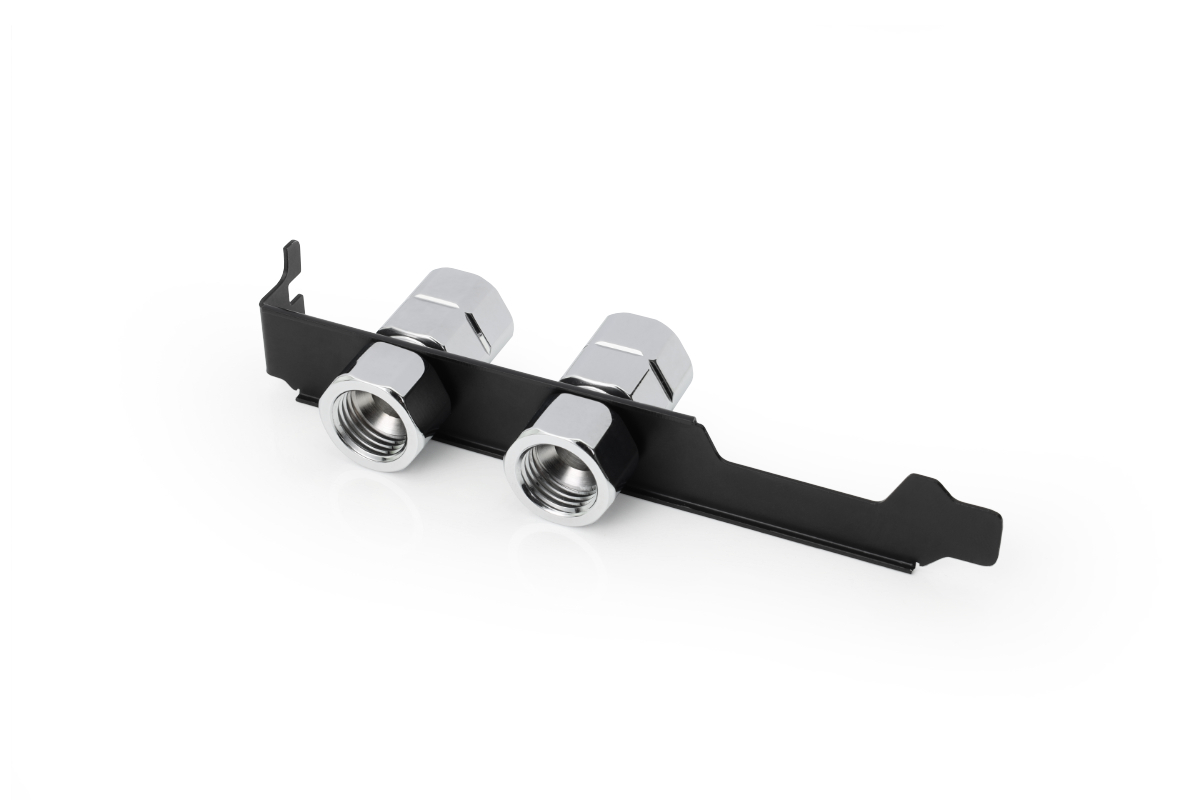

The Alphacool ES PCIe slot bracket is designed to route and connect external water-cooling components to an internal cooling loop. The two G1/4″ ports can be used, for example, to connect external radiators, pumps, or chillers without having to drill additional holes into the case.

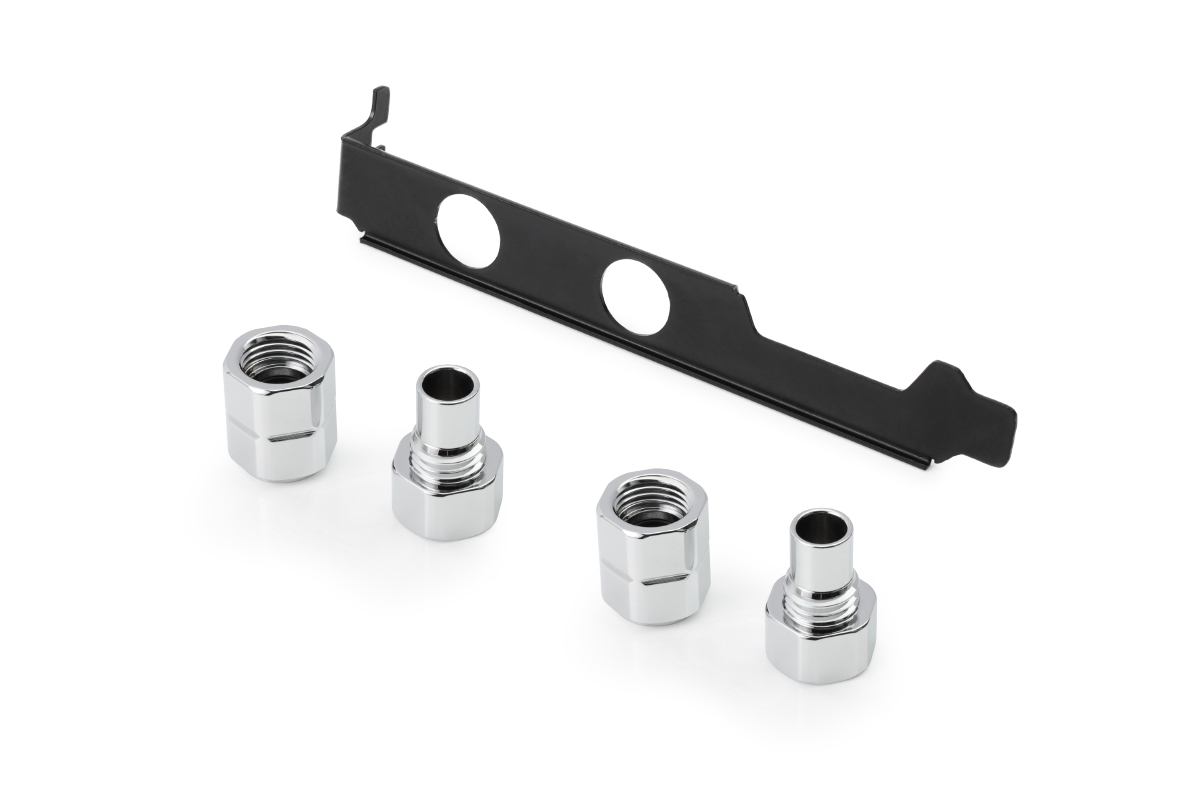

Both ports feature G1/4″ female threads and are designed with one short and one long section. The connector ends can be unscrewed and reassembled in the opposite orientation to compensate for any recessed areas of the case around the slot brackets. This allows the installation position to be adapted to the available space inside the case.

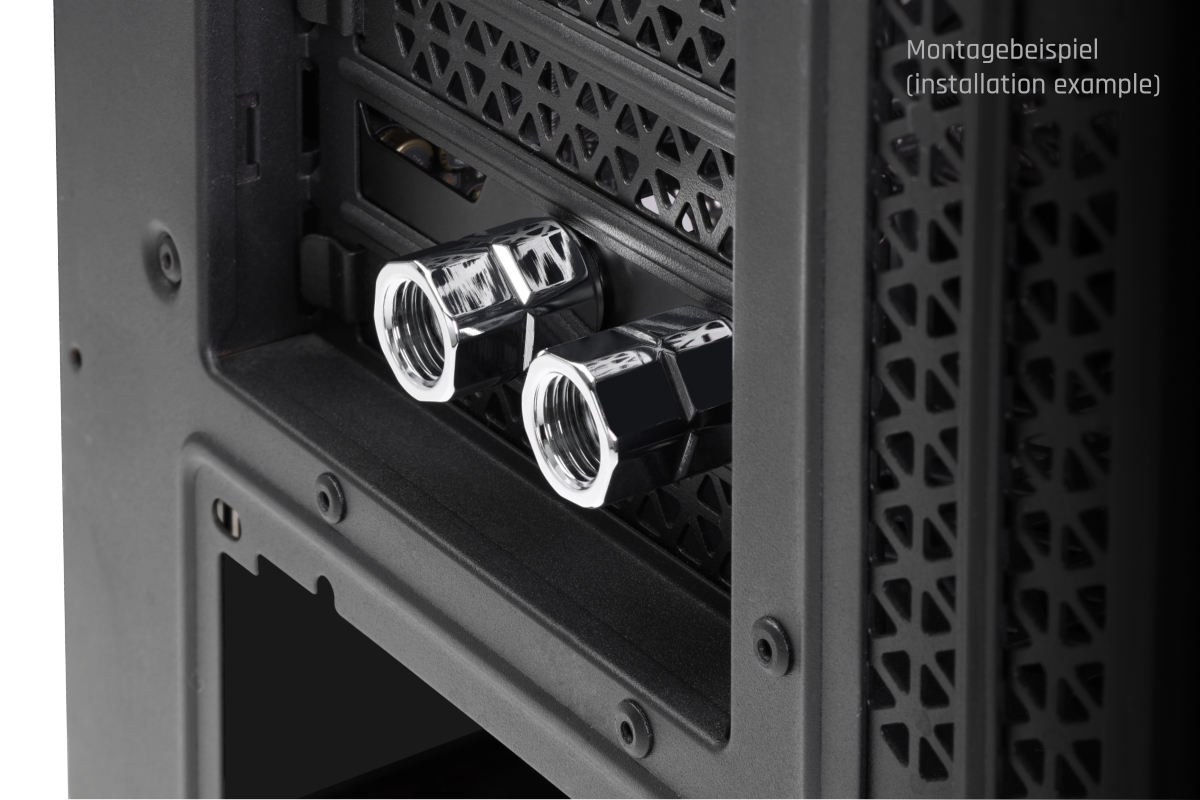

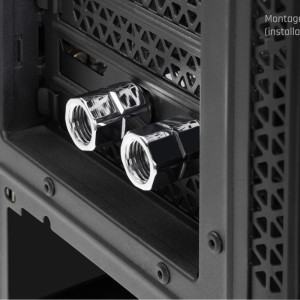

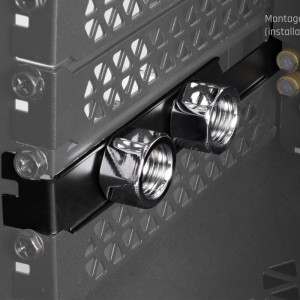

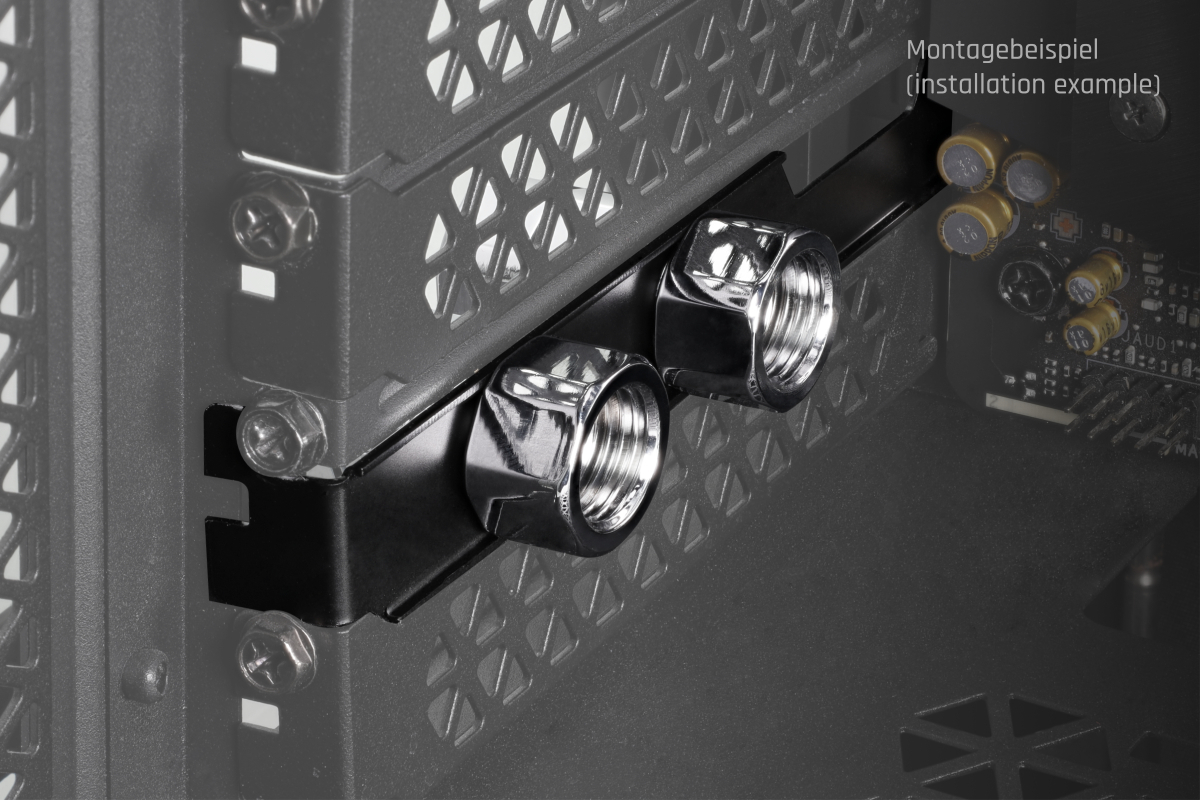

The slot bracket is installed in an available PCIe slot of the case. If there are crossbars in the area of the PCIe slot covers, the G1/4″ fittings must first be removed from the slot bracket. The slot bracket can then be installed, after which the G1/4″ fittings are reattached.
In addition, the slot bracket features a cutout for routing cables. This allows any required cables to be routed out of the case alongside the cooling-loop connections.
The G1/4″ fittings are made from a brass alloy (CuZn39Pb3) and are chrome-polished. The slot bracket is made from unalloyed quality steel (Cr01) and features a black painted finish.
| Technical Data | |
|---|---|
| Connection | 2 x G1/4″ |
| Thread | Inner thread |
| Connection Material | Brass alloy (CuZn39Pb3) |
| Material for Slot Cover | Non-alloy quality steel (Cr01) |
| Color | Chrome | Black |
£27.17£22.64 Inc VatEx Vat
