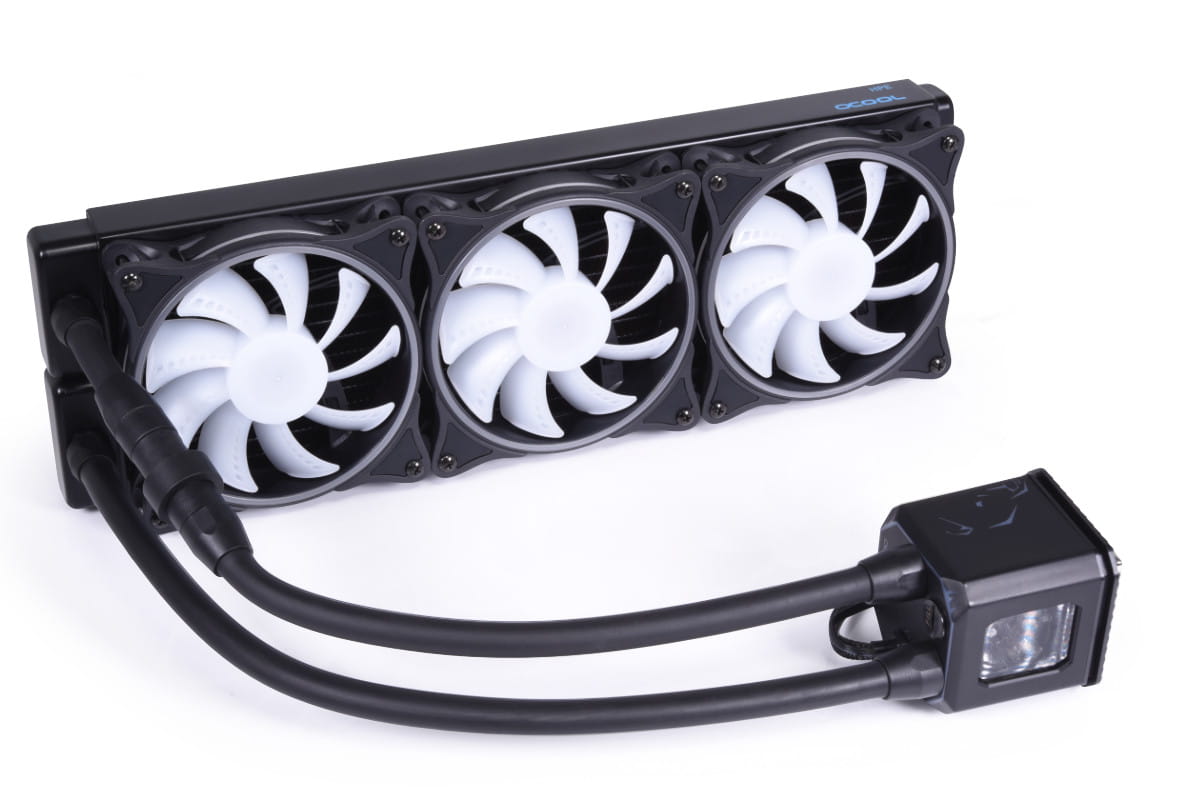

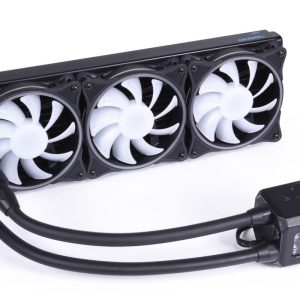

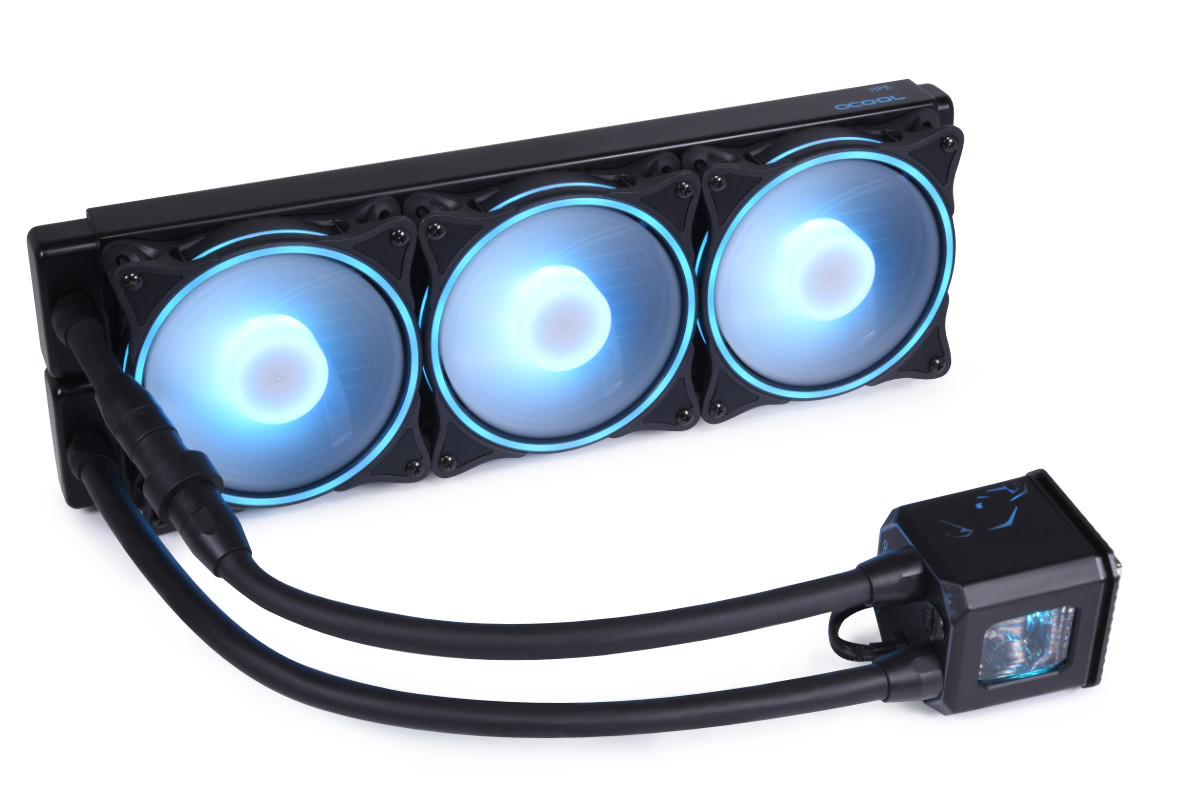

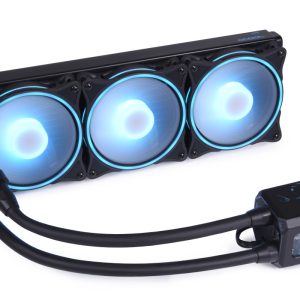

Alphacool Eisbaer Aurora HPE Edition 360 CPU AIO

Radiator & Pump

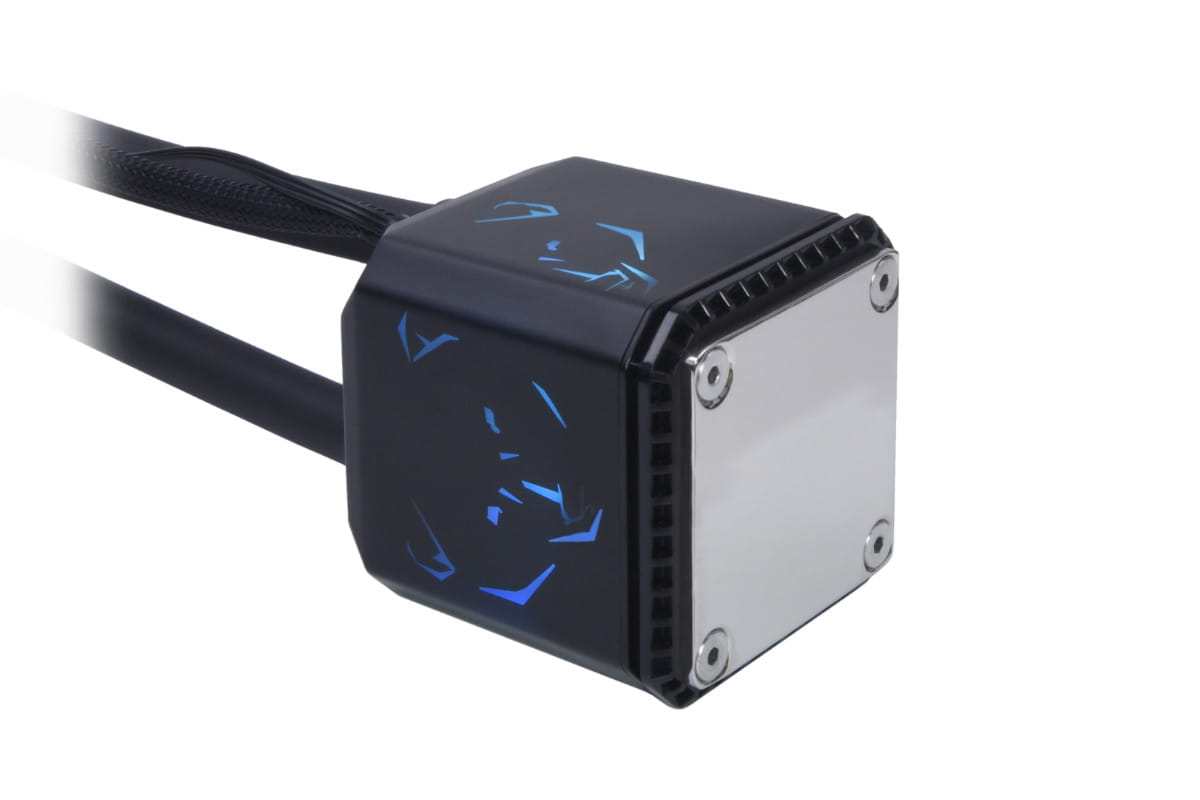

As with all Alphacool products, the radiator base is made of nickel-plated copper and is equipped with very fine cooling fins that are distributed over the entire base. A nozzle plate provides an accelerated flow over the cooling fins which increases the cooling performance. The water flow is optimized so that all areas of the cooler base are cooled evenly. The Eisbaer LT Aurora cooler uses the very compact and small DC-LT 2 pump. It provides enough power to add another component such as a GPU water cooler or another radiator to the circuit.

Fan
The Alphacool Rise Aurora fan offers a wide control range as well as superior Digital aRGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fans special design create unique effects. The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. Additionally, it offers a Zero control, which allows the fan to be regulated down to 0 RPM and then starts at approximately 350 RPM. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9 m³/h) paired with high static pressure (3.17mm/H₂O).

DIY connections and ES hoses
The hose connections are from the normal DIY segment and therefore use a G1/4 thread. Thus, it is very easy to replace them. The black TPV hose comes, like the connectors, from the Alphacool ES series which is primarily installed in servers and workstations. The hose does not contain any plasticizers and, unlike classic PVC hoses, does not deform at high temperatures. The quick connector is not made of heavy brass, but of extremely light, durable and robust nylon. The quick disconnect is compatible with many other models in the Alphacool product line.

Full Digital aRGB Illumination

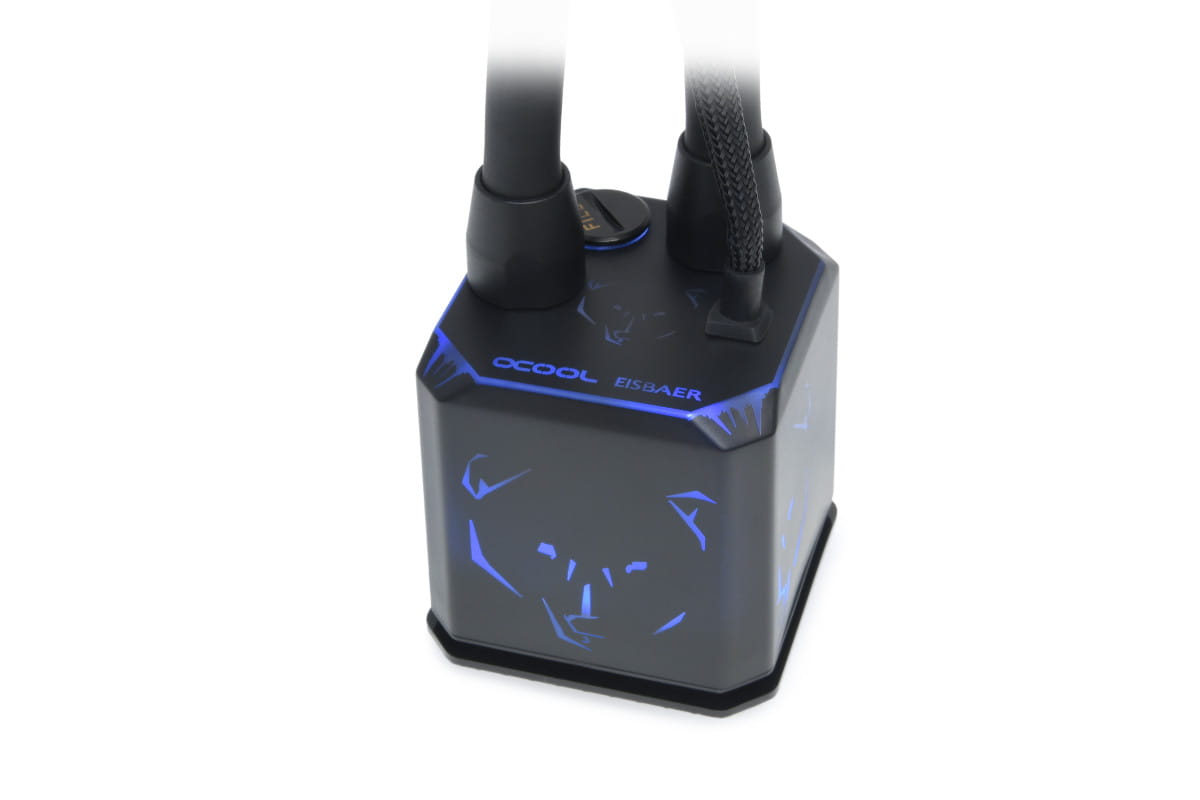

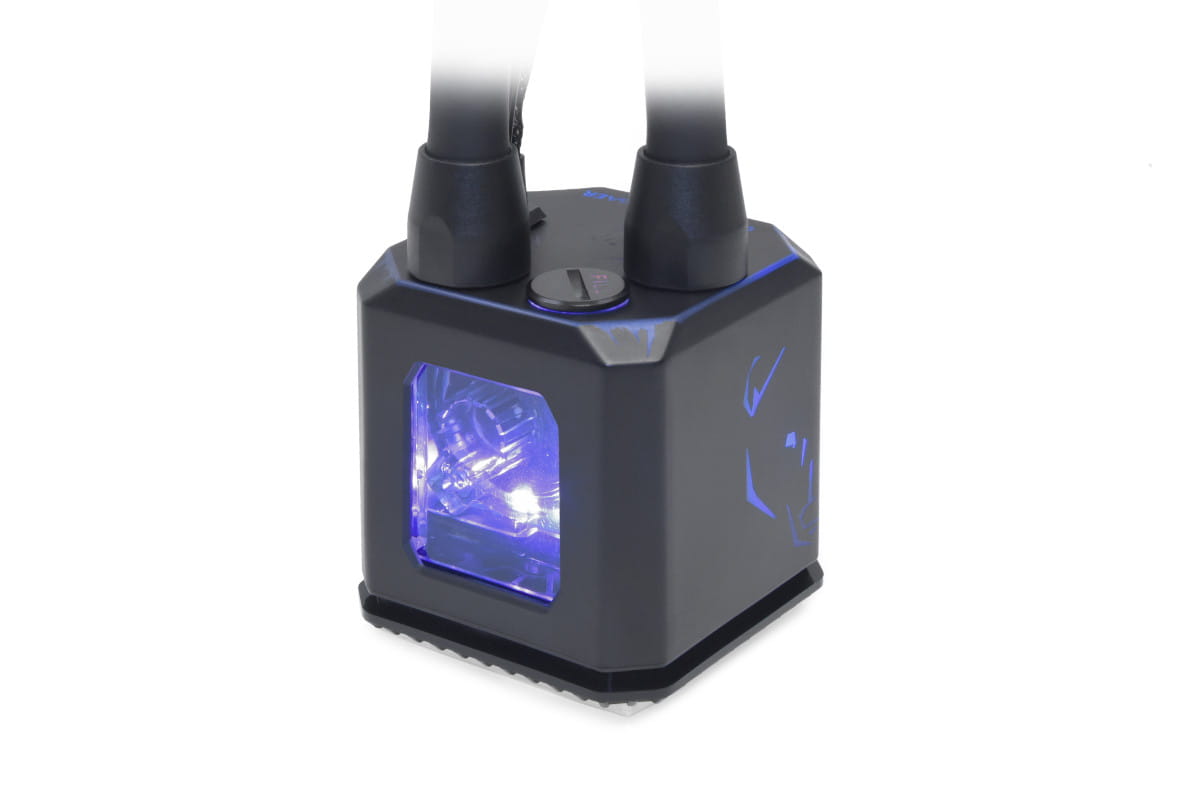

The cooler pump assembly and fans are fully equipped with Digital RGB LEDs, also known as addressable RGB or aRGB. Extensive effects can be set with the included controller or a Digital RGB controller on the motherboard. For a nice visual effect, of course, the illuminated polar bear on the cooler pump unit. For easier control via a controller, the fans and also the pump can be connected in series as a daisy chain. This enables a neat wiring of the individual LED components.

Compatibility:
Intel: 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
AMD: AM4 / TR4 / sTRX4 / sWRX8 / SP3

Technical data cooler with pump
– L x W x H 66 x 66 x 69mm
– Material cooler bottom nickel plated copper
– Material cooler top & reservoir nylon, acrylic
– Threads 2x G1/4 (+ 1x Fillport G1/4)
– Pump type DC-LT2
– Pump speed 2600 rpm (+/- 10%)
– Head of delivery 0,95 m
– Maximum flow rate 75 L/h
– Voltage 12V DC
– Power consumption 4W
– Pressure tested 0,8 Bar
– Maximum working temperature 60 degreesC

Technical data fans
– L x W x H 120 x 120 x 25mm
– Speed 0 – 2500 (+/- 10%)
– Bearing Sleeve Bearing
– Connection 4-Pin PWM
– Cable length 40cm
– Voltage 12V DC
– Current consumption 0,65A (0,72 max)
– Static pressure 3,17 mm/H₂O
– Max. air flow 118,9 m³/h
– Noise max. 31,5 dB(A)
– Number of digital aRGB LEDs 20

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
