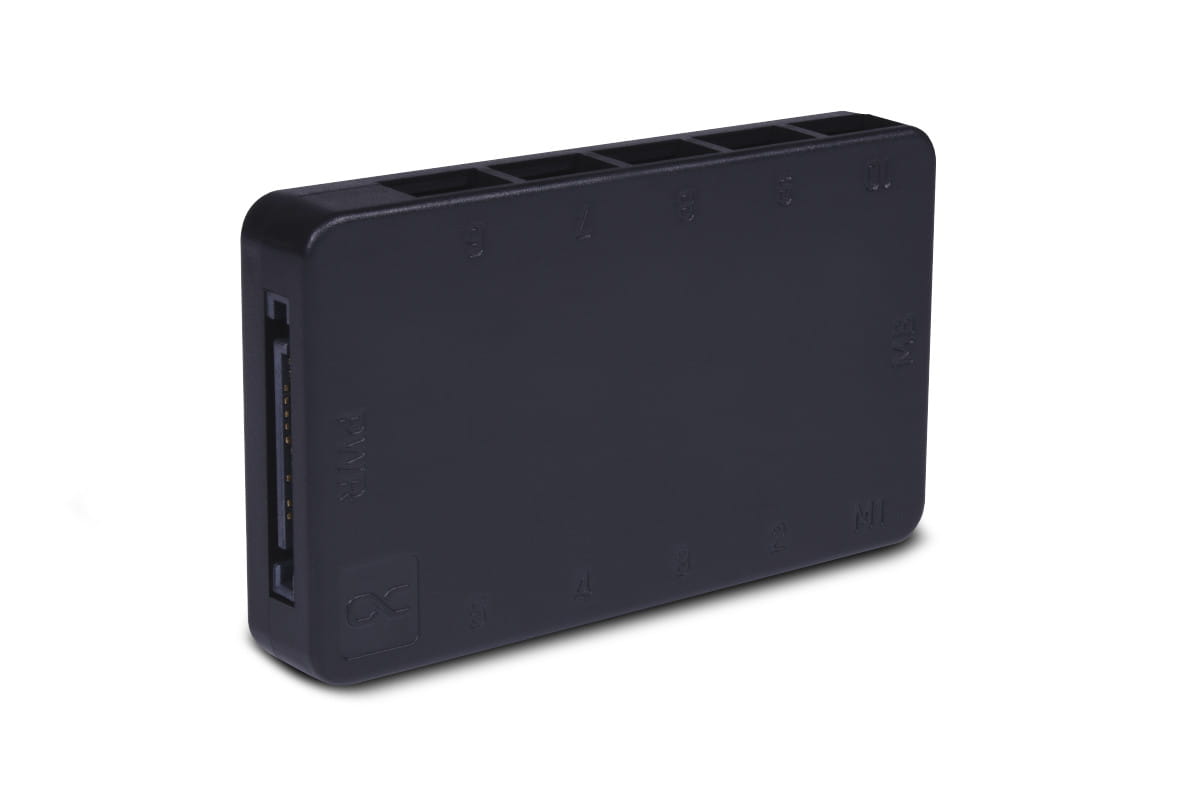

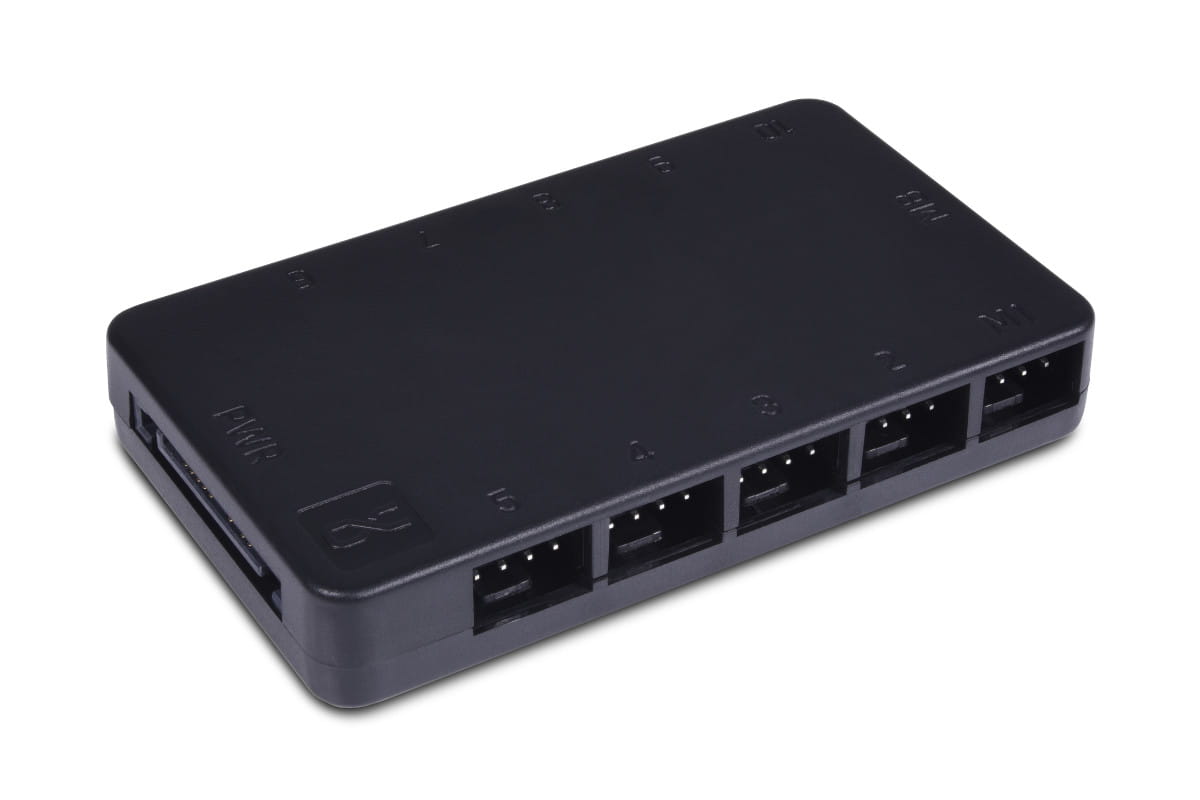

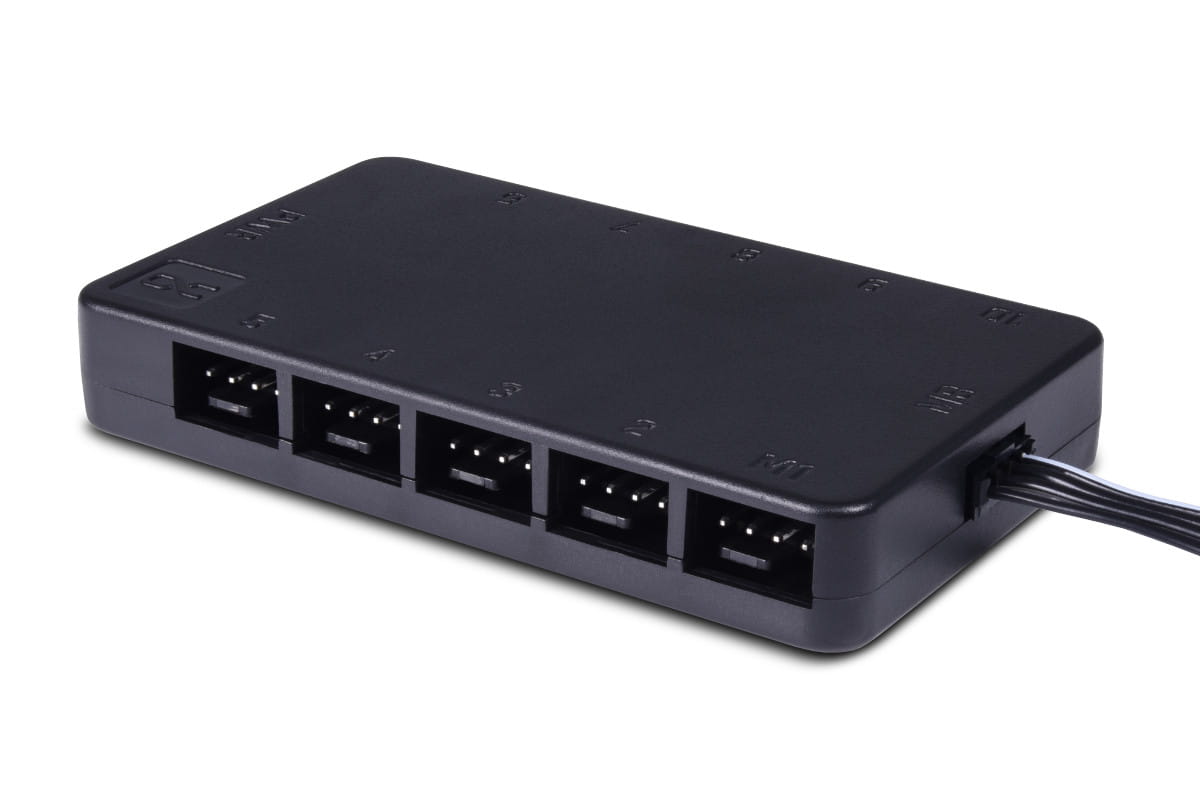

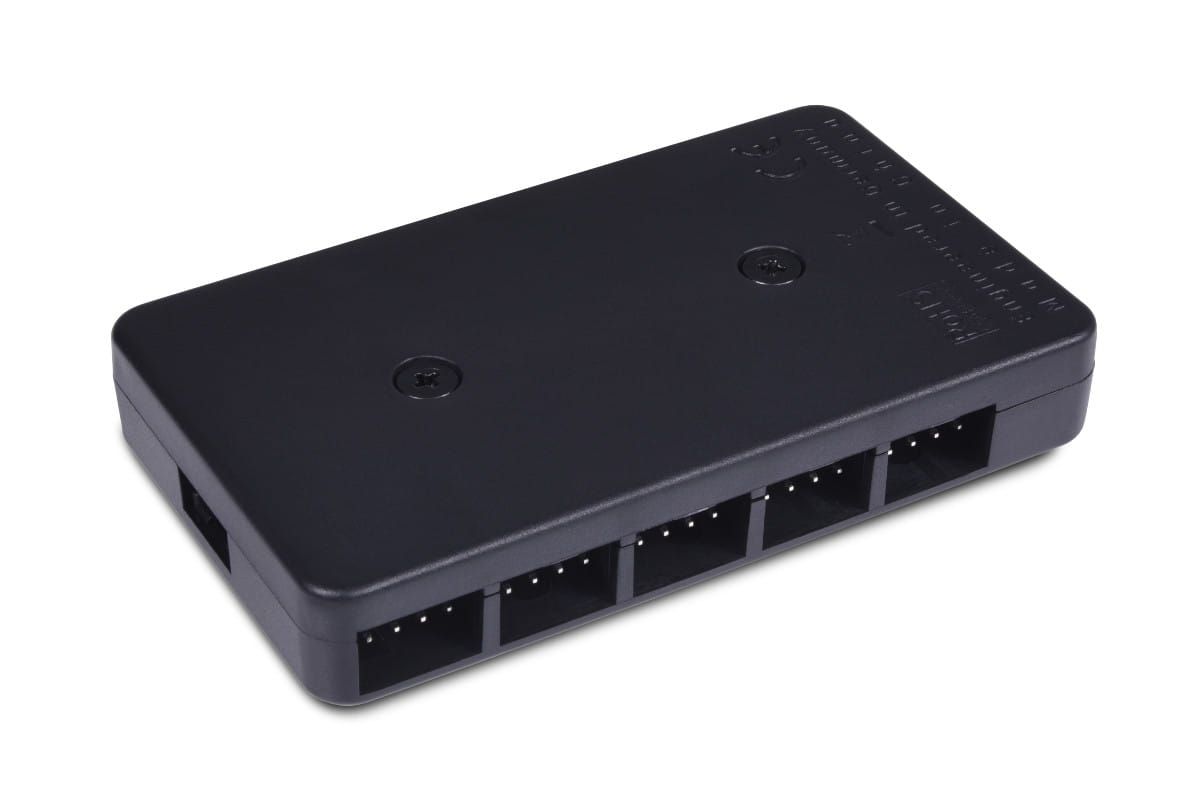

The Alphacool Core Splitter offers the possibility to control up to ten fans at the same time using the mainboard via PWM.
The Alphacool Core Splitter offers the possibility to control up to ten fans at the same time using the mainboard via PWM.
The Alphacool Core Splitter offers the possibility to control up to ten fans at the same time using the mainboard via PWM.
Thanks to its compact design, the splitter can be used even in the tightest spaces and enables coordinated cable management.

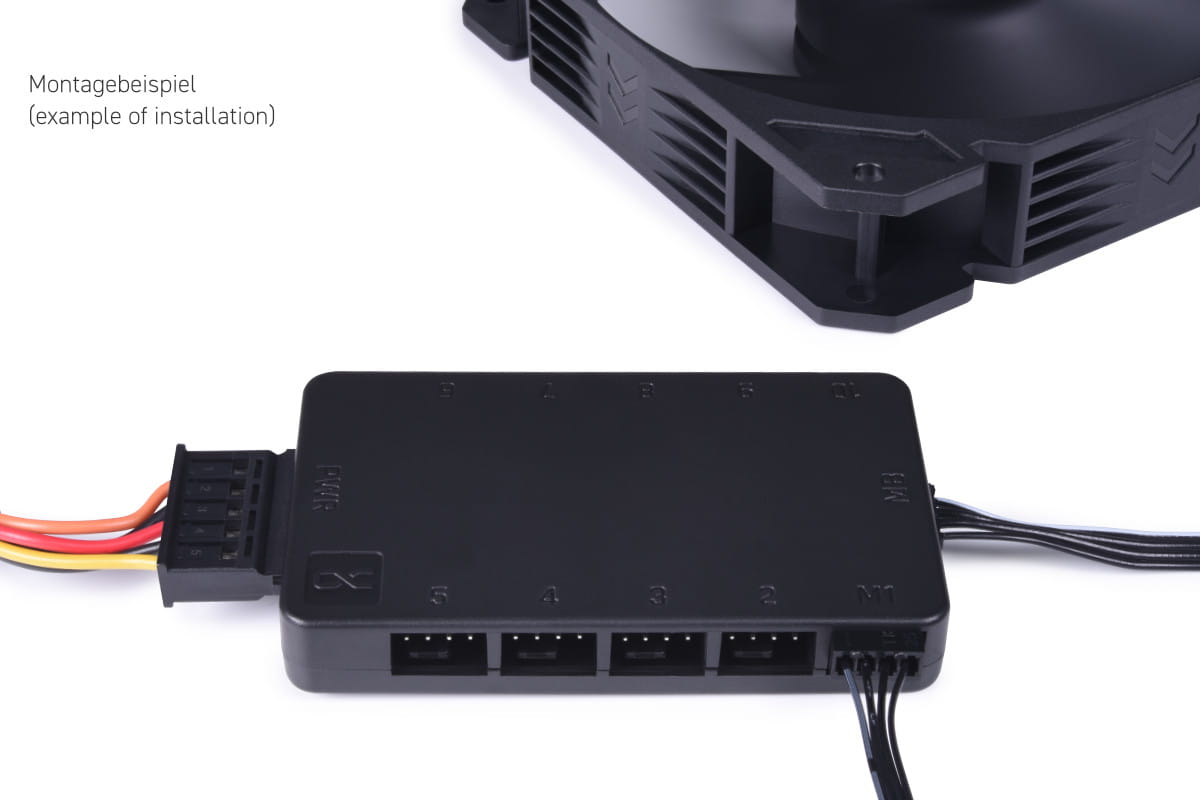

The splitter is connected directly to the mainboard via a 4-pin connector (MB) using the adapter cable supplied. The splitter is supplied with power using a SATA plug of the PC power supply (PWR port). Then the first fan is connected to the master port. The speed will be read from this fan in the future. A maximum of 10 fans with a total power consumption of 54W (4.5A) can be connected to the splitter. The speed of all fans will be controlled by the master fan.
The splitter can be installed anywhere in the computer housing in a space-saving manner using the Velcro tape included in the scope of delivery.
| Technical Data – Fan Hub / Controller | |
|---|---|
| Dimensions (L × W × H) | 79.75 × 46.47 × 12.6 mm |
| Power Supply | SATA Power Connector |
| Threads / Connections | 10 × 4-Pin PWM (fans), 1 × 4-Pin PWM (mainboard), 1 × SATA |
| Maximum Power Consumption | 54 W (4.5 A) |
£12.85£10.71 Inc VatEx Vat
