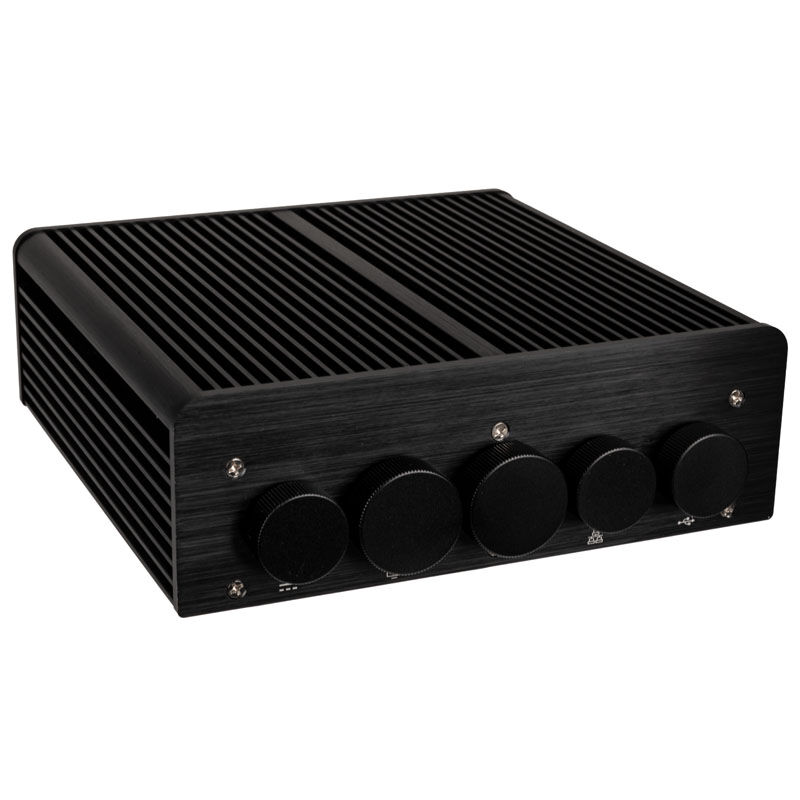

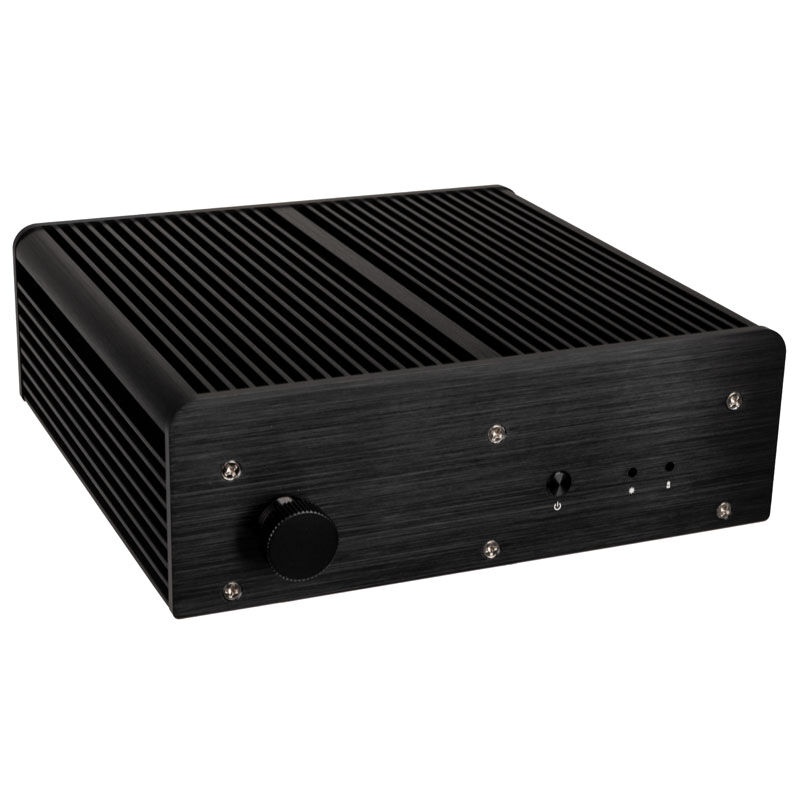

Akasa has come up with something very special for its Pascal PX housing for Intels Gen. 8 NUCs (Provo Canyon): The Pascal PX is actually protected against water jets and dust-resistant, even according to protection class IP65.
Akasa has come up with something very special for its Pascal PX housing for Intels Gen. 8 NUCs (Provo Canyon): The Pascal PX is actually protected against water jets and dust-resistant, even according to protection class IP65.
Akasa has come up with something very special for its Pascal PX housing for Intels Gen. 8 NUCs (Provo Canyon): The Pascal PX is actually protected against water jets and dust-resistant, even according to protection class IP65.

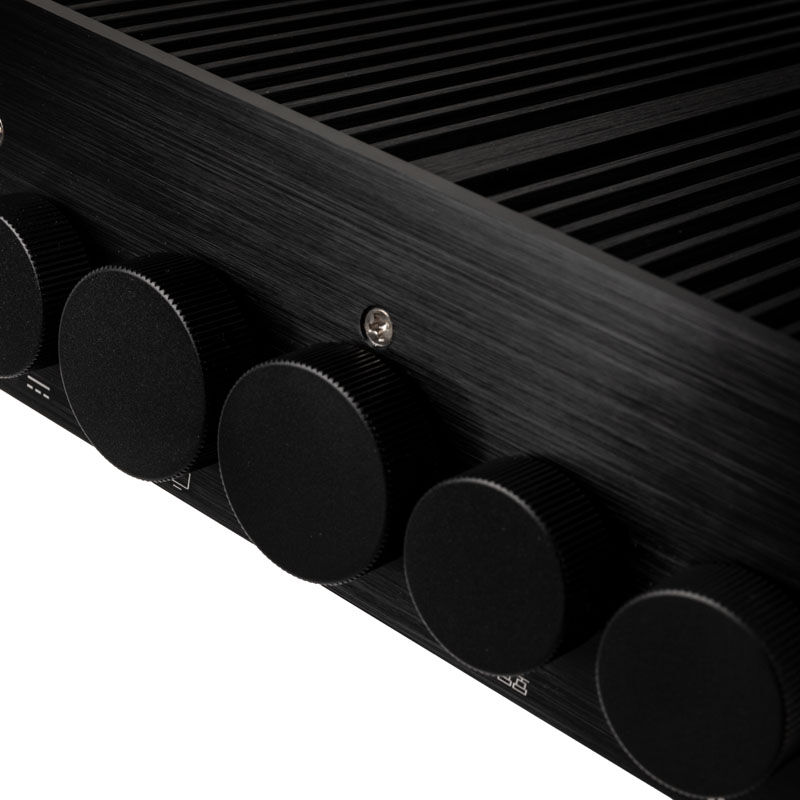

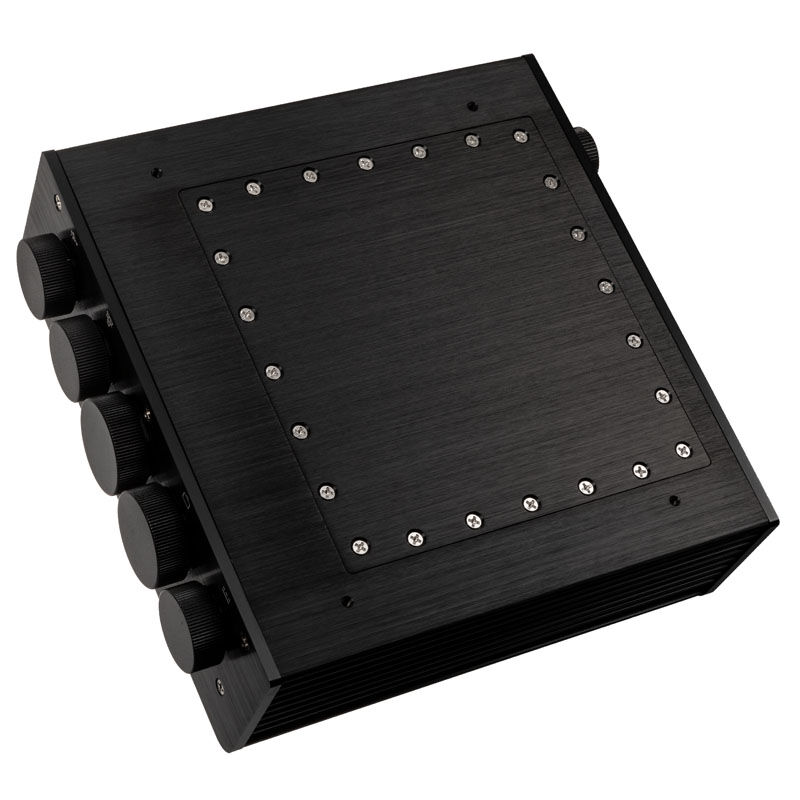

How serious Akasa is with this feature can be seen from the fact that extra round seals are supplied for all housing connections so that they can be closed when not in use. The round plugs are attached to the case with screw threads.
The features of the Akasa Pascal PX IP65 UCFF housing (Intel NUC) at a glance:
Robust and compact UCFF housing
Jet water and dust repellent according to IP65
Modular sealed cables are included
Quiet, fanless operation
Ideal for outdoor use
The Pascal PX IP65 UCFF housing (Intel NUC) in detail

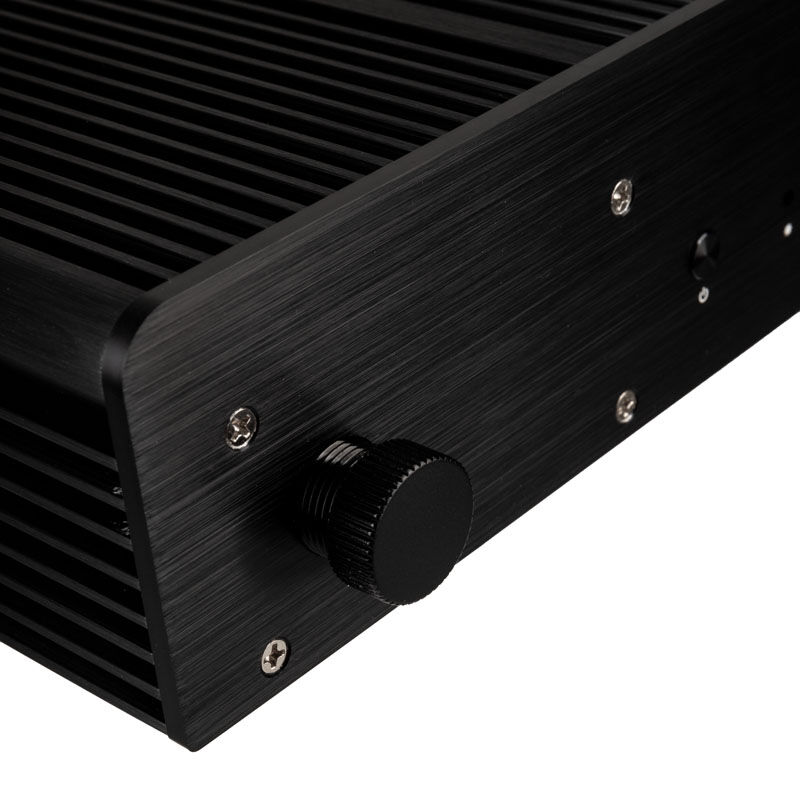

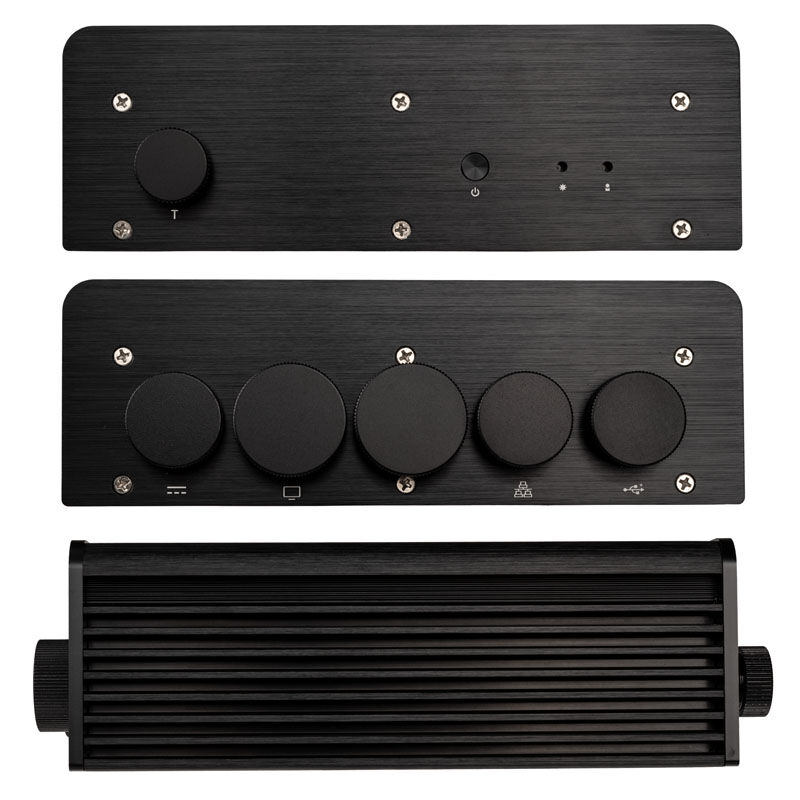

The sockets for LAN, HDMI, USB and the power supply from an external power supply unit are hidden at the back. Akasa even includes appropriate waterproof cables for operation in wet environments. A front made of brushed aluminum makes the black Akasa Pascal a restrained and yet dead-chic contemporary, which also fits perfectly into any hi-fi landscape as an HTPC dwelling.
Fanless cooled and waterproof

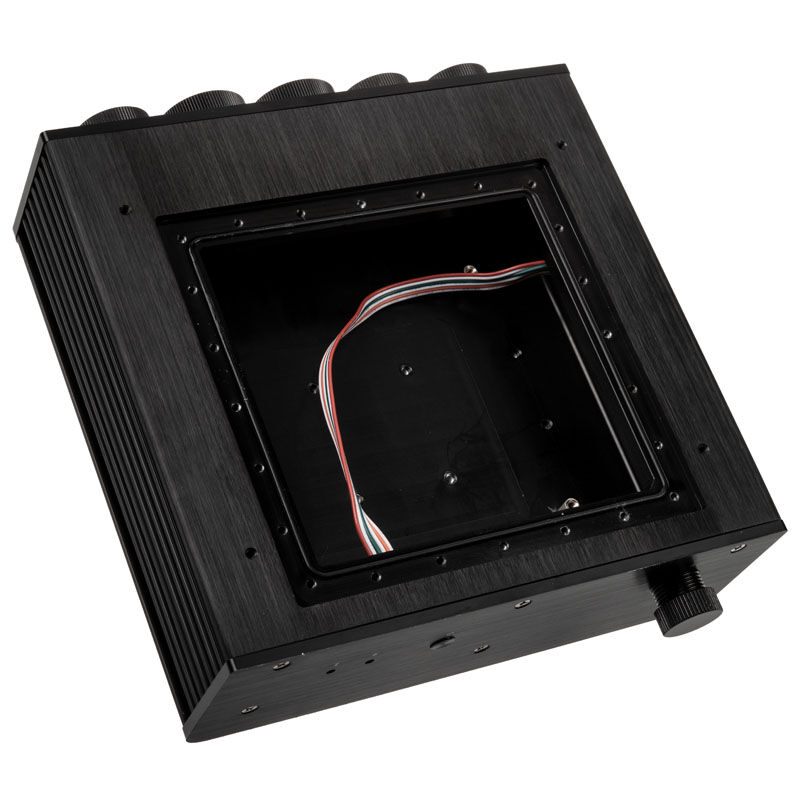

The top and outer edges are almost completely provided with cooling fins made of aluminum, which makes sense because the housing itself is the cooler and does not need a fan. This means that the NUC system works completely silently in the Akasa Pascal PX. To do this, the CPU comes into direct contact with special contact surfaces on the housing. The waste heat then reaches the housing walls evenly via the heatsink plates and is released into the environment via the fins – absolutely silent!

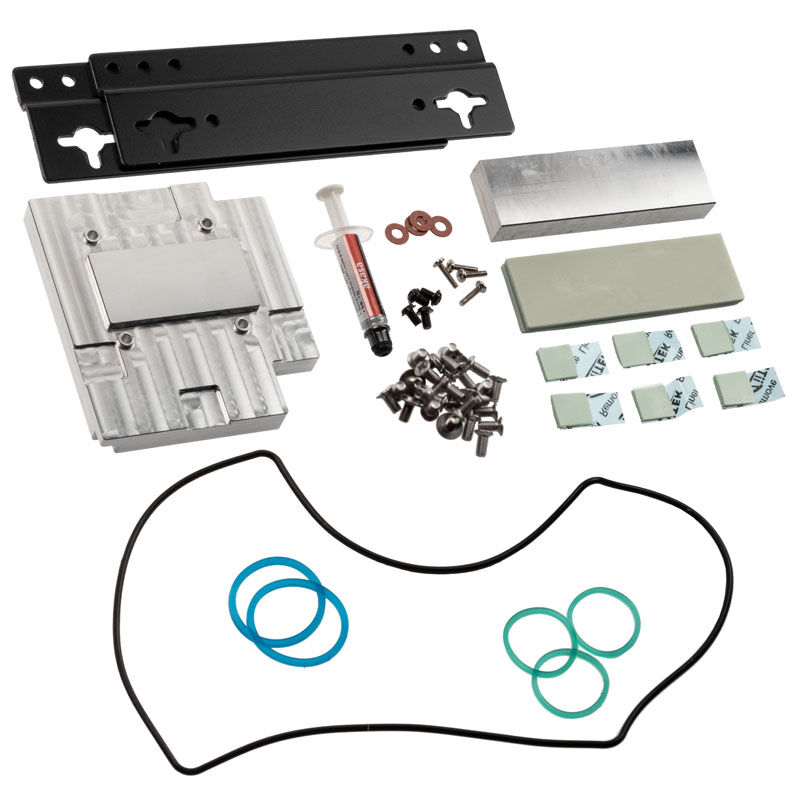

Thermal paste is included for ideal heat transfer. In addition, there are mainboard screws, all other necessary mounting materials as well as a waterproof HDMI, USB 2.0 and network cable and, last but not least, a waterproof barrel connector extension in the scope of delivery.
Technical details:
– Dimensions: 195.6 x 64.4 x 214.7 mm (W x H x D)
– Material: aluminum
– Color: Black
– Form factor: UCFF 4 x 4 inches, for Intels Gen. 8 NUCs (Provo Canyon)
– Cooling: passive
– Power supply: external
– Compatibility (NUCs):
– Intel NUC: NUC8v7PNH, NUC8v7PNK, NUC8v7PNB
– NUC8v5PNH, NUC8v5PNK, NUC8v5PNB
– NUC8i3PNH, NUC8i3PNK, NUC8i3PNB
– Water and dust protection: IP65

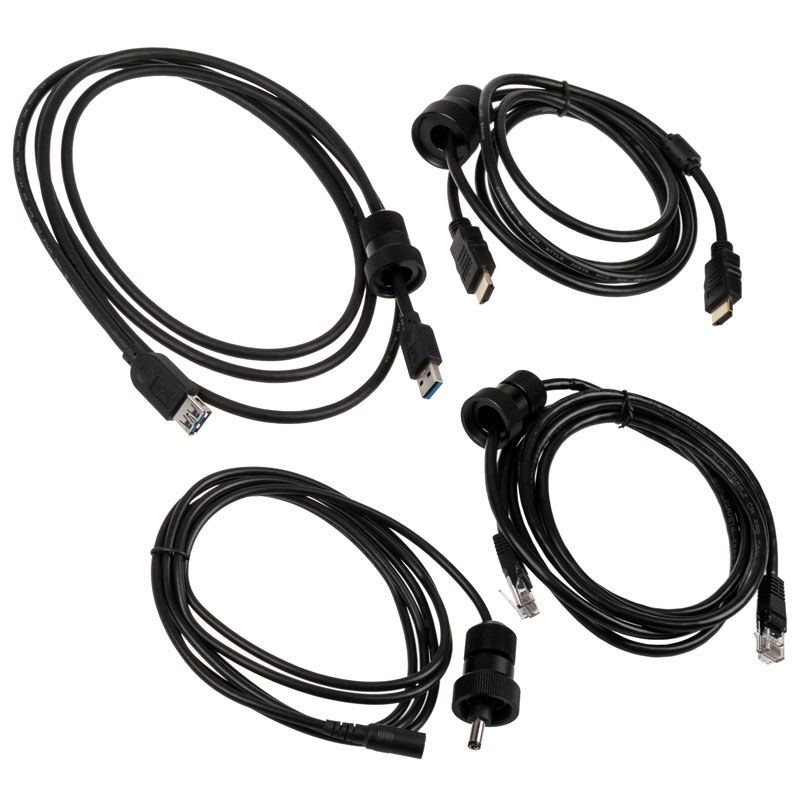

Scope of delivery:
– 1x waterproof HDMI cable
– 1x waterproof LAN cable
– 1x waterproof USB 3.0 cable
– 1x waterproof barrel connector extension for external power supply
– Thermal compound & all necessary mounting materials
£457.64£381.37 Inc VatEx Vat
