The XPredator cube that is offered here as a blue-red version, Aerocool expanded its XPredator range of cases and provides the ability to focus, to build very powerful micro systems with Mini-ITX or Micro-ATX motherboard as the heart, either are held by massively good Aircooling or by lush water cooling temperature. The design of the XPredator cubes can thereby detect which Aerocool range of cases, the small-form-factor case is allocated to without a doubt.
The XPredator cube that is offered here as a blue-red version, Aerocool expanded its XPredator range of cases and provides the ability to focus, to build very powerful micro systems with Mini-ITX or Micro-ATX motherboard as the heart, either are held by massively good Aircooling or by lush water cooling temperature. The design of the XPredator cubes can thereby detect which Aerocool range of ...
The XPredator cube that is offered here as a blue-red version, Aerocool expanded its XPredator range of cases and provides the ability to focus, to build very powerful micro systems with Mini-ITX or Micro-ATX motherboard as the heart, either are held by massively good Aircooling or by lush water cooling temperature. The design of the XPredator cubes can thereby detect which Aerocool range of ...
No products found

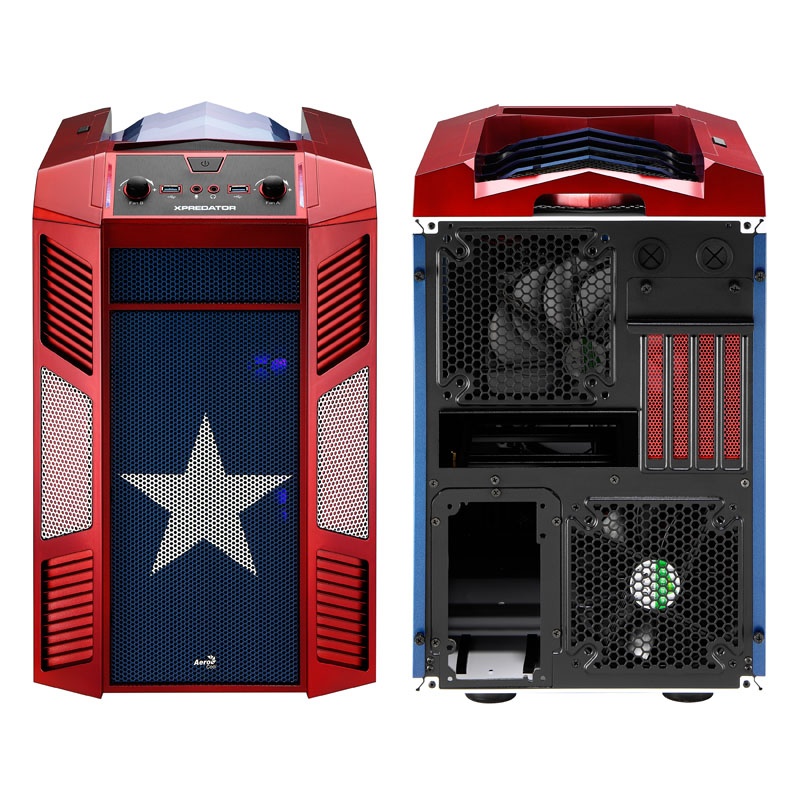

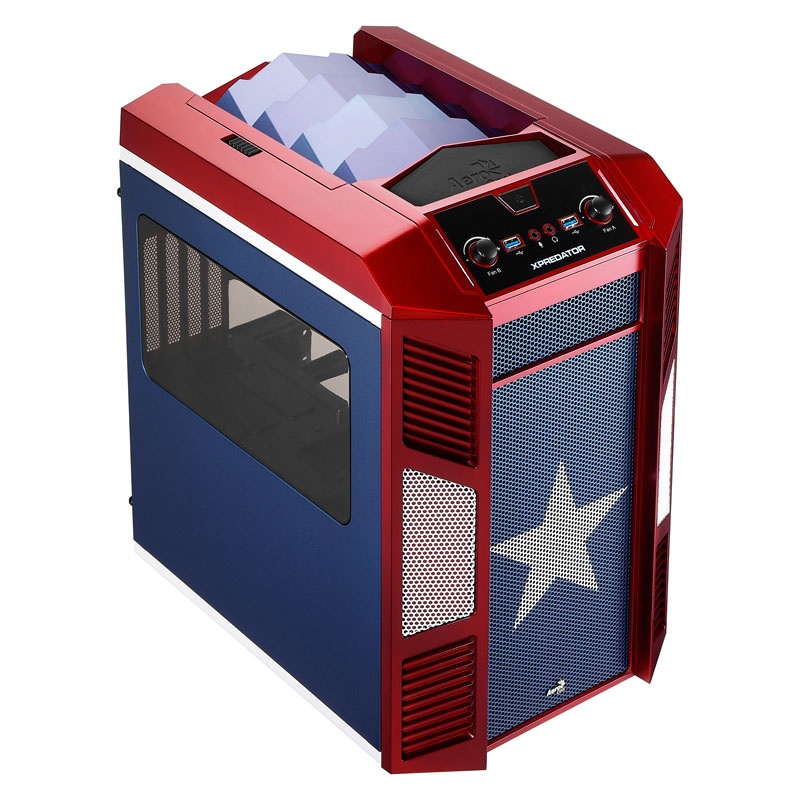

This begins with the distinctive front end with a lot of mesh, goes beyond the almost one to one the XPredator X3 Midi-Tower entliehenem I / O panel with its two USB 3.0 ports and two fan control knobs (per channel max. 15 Watt ) and will make the clearest on the cover, where open and close four blue, wedge-shaped ventilation flaps using a slider on the left. Depending on the situation, thus the Silent mode priority (closed) or it is the cooling potential of the underlying fan (optional 2x 120 or 140 mm) and a radiator (up to 240 or 280 mm) increases (open).
The Aero XPredator Cube is not only top-side extraordinarily receptive happy, it can also be equipped with two rear positions with 120er- or 140mm fans (is 140s already installed) and behind the black hole mesh front can be next to another dual heat exchanger (max. 240/280 mm) and two 120- or 140-mm fan place if you do not want to stick with the big 200-mm propeller that there is advanced from AeroCool. The Cooling – whether by air or water – is therefore extremely easy to achieve a compact housing. Moreover, the spatial distribution inside the XPredator cubes can be described as very modern.
The upper section is blowing in the mini-ITX lying or micro-ATX board, or the graphics card (up to 34.5 cm without front fan!) And a processor cooler (max. 19 cm without lid fan) reserved. Furthermore, some still an external 5.25-inch ODD, whose frame is removable (eg. As when a dual radiator has to be used in the cover), but this may at its bottom, two 2.5-inch drives wear. On the ground floor a removable cage for three more small or optionally 3.5-inch disk is available. The large hard drives are mounted without tools and decoupled.
Likewise, the ATX power supply that can be accommodated here and can use the entire space to the front (at least 32 cm). Fresh air sucks it at the right outer side and blows it out backwards, using a magnetised filter protects the PSU from dust. This dual-chamber layout gives the components in Aero XPredator Cube not only a lot of space, but also contributes significantly to the fact that the hardware does not heat each other. Also shows the view through the top-mounted window in the left side panel, only the respectable parts, while boring SSDs / HDDs, Cable Assemblies are hidden.
Technical details:
Dimensions: 280 x 380 x 350 mm (W x H x D)
Weight: 7.2 kg
Material: steel (0.7 mm), plastic
Color: Blue, Red
Form Factor: Mini-ITX, Micro ATX
Fan total possible:
1x 200 mm / 2x 140/120 mm (front)
2x 140/120 mm (rear)
2x 140/120 mm (cover)
Of this pre-installed:
1x 200 mm (front, LED)
1x 140 mm (rear)
Radiator Mountings (partial waiver of fan-Slots)
1x max. 280/240 mm (front)
2x max. 140/120 mm (rear)
1x max. 280/240 mm (lid, with waiver of 5.25-inch frame)
Fan control: 2 channels, max. each 15 W, continuously
Filters: front, power supply (removable)
Drive Bays:
1x 5.25 inches (external)
3x 3.5 inch (internal, tools)
5x 2.5 inches (internally, instead of 3.5 inches 3x, 2x at the 5.25-inch frame)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 4
I / O Panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
Maximum power supply Length: 320 mm
Maximum video card length: 320 mm (with front fan)
Maximum video card length: 345 mm (without front fan)
Maximum CPU cooler height: 165 mm (with lid fans)
Maximum CPU cooler height: 190 mm (without cover fan)
