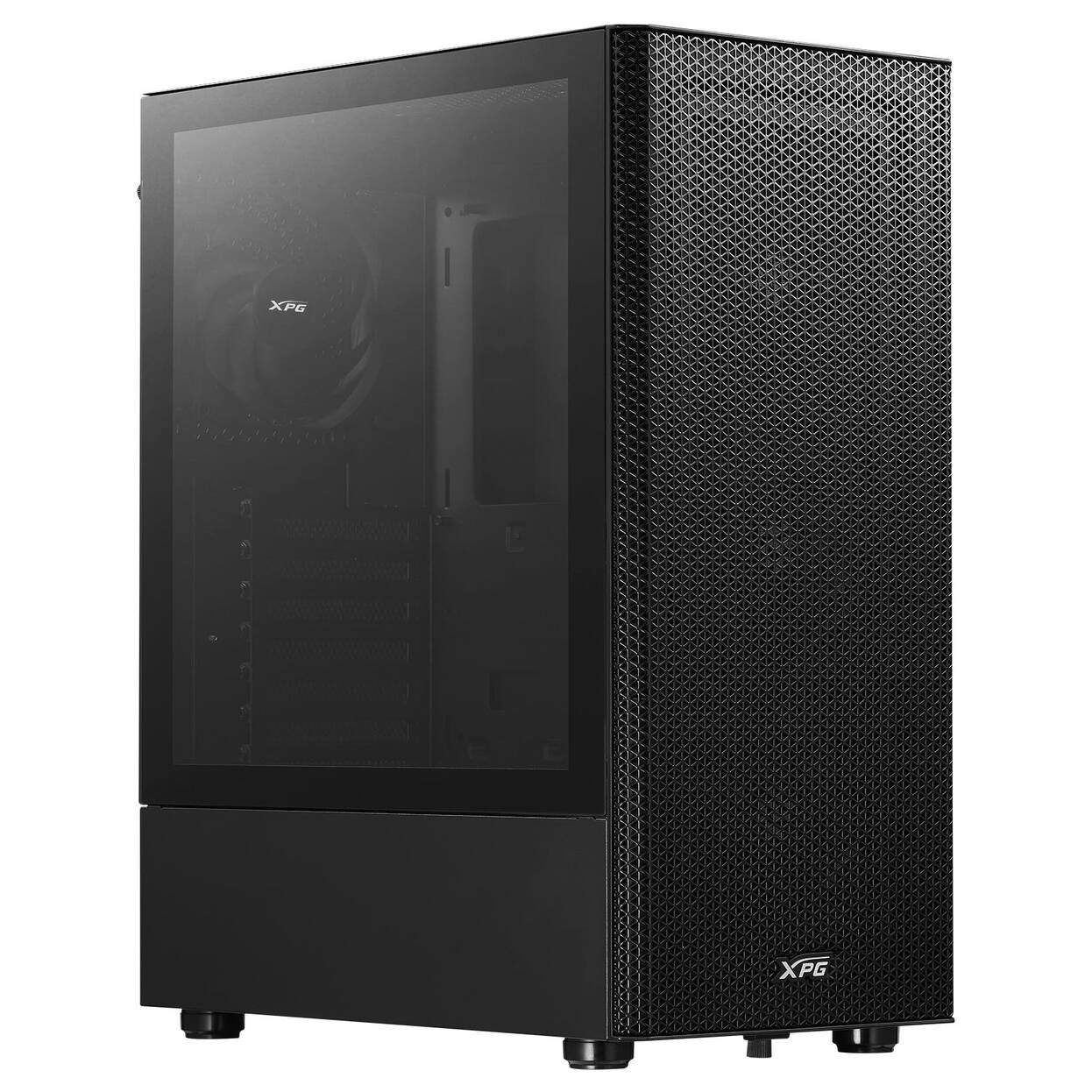

The XPG VALOR MESH is a compact mid-tower for gaming PCs and versatile desktop systems. The breathable mesh front and four pre-installed fans provide a solid foundation for cooling your hardware.
The XPG VALOR MESH is a compact mid-tower for gaming PCs and versatile desktop systems. The breathable mesh front and four pre-installed fans provide a solid foundation for cooling your hardware.
The XPG VALOR MESH is a compact mid-tower for gaming PCs and versatile desktop systems. The breathable mesh front and four pre-installed fans provide a solid foundation for cooling your hardware.
The XPG VALOR MESH is a compact mid-tower for gaming PCs and versatile desktop systems. The breathable mesh front and four pre-installed fans provide a solid foundation for cooling your hardware.

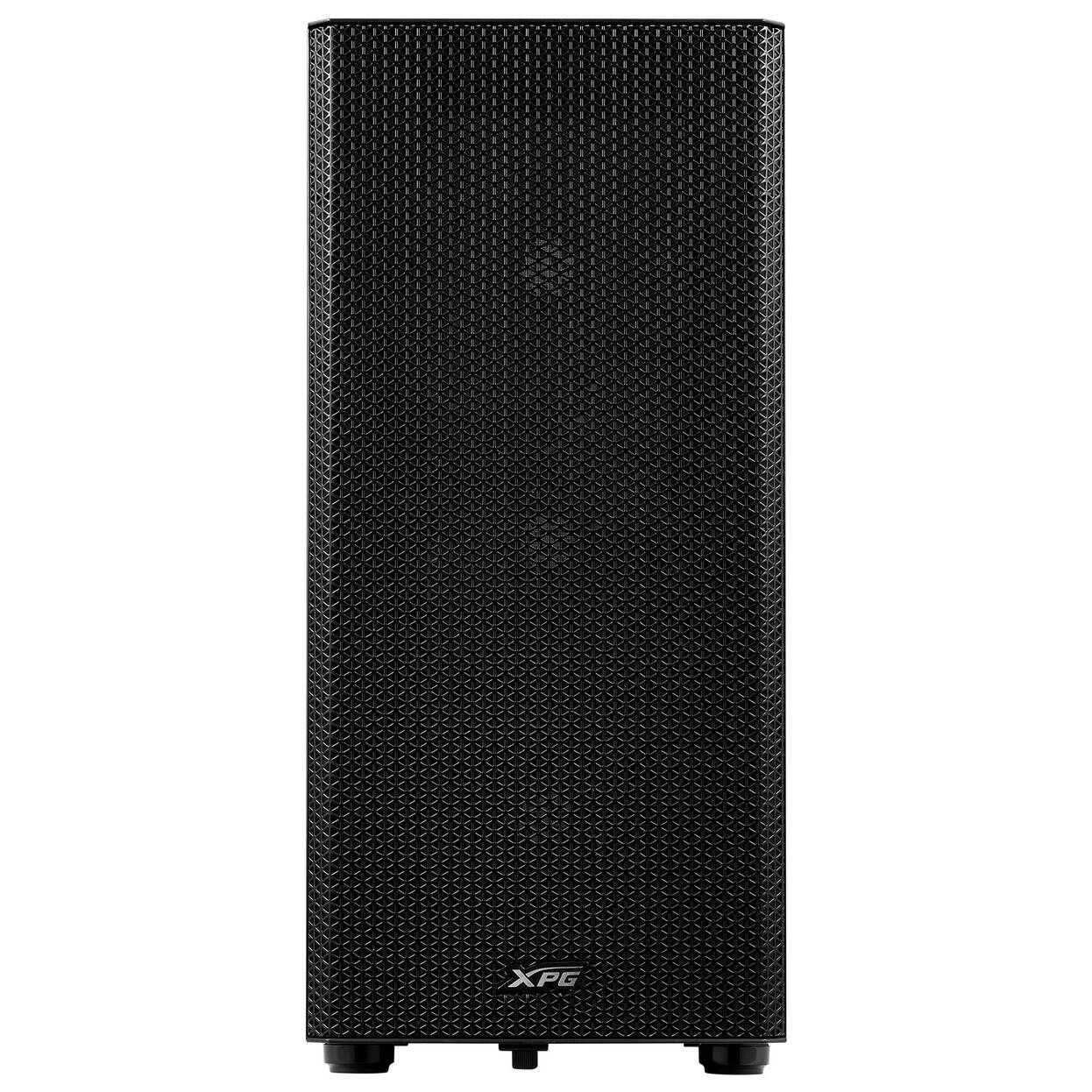

– Mesh front – supplies your hardware with fresh cooling air
– Four 120mm fans – deliver airflow straight out of the box
– 360mm radiator – enables powerful cooling at the front
– 305mm GPU clearance – applies with front fans installed
– Tempered glass – showcases your installed components
– Compact mid-tower for ATX systems
Benefit from high compatibility with a compact design with ADATA’s mid-tower. It offers space for large GPUs, powerful cooling systems, and modern cable management – ​​without feeling bulky.
The case supports Mini-ITX, Micro-ATX, and ATX motherboards. With a depth of 371 mm, it remains comparatively compact. Graphics cards can be up to 335 mm long without front fans installed. With the pre-installed front fans, up to 305 mm is available.
High airflow straight out of the box
Keep your components at optimal temperatures with the XPG Valor Mesh, the perfect choice for those who value powerful cooling. Its breathable design and optimized airflow architecture ensure ideal cooling, even during long gaming sessions or heavy system loads – a case that perfectly combines performance and cooling.

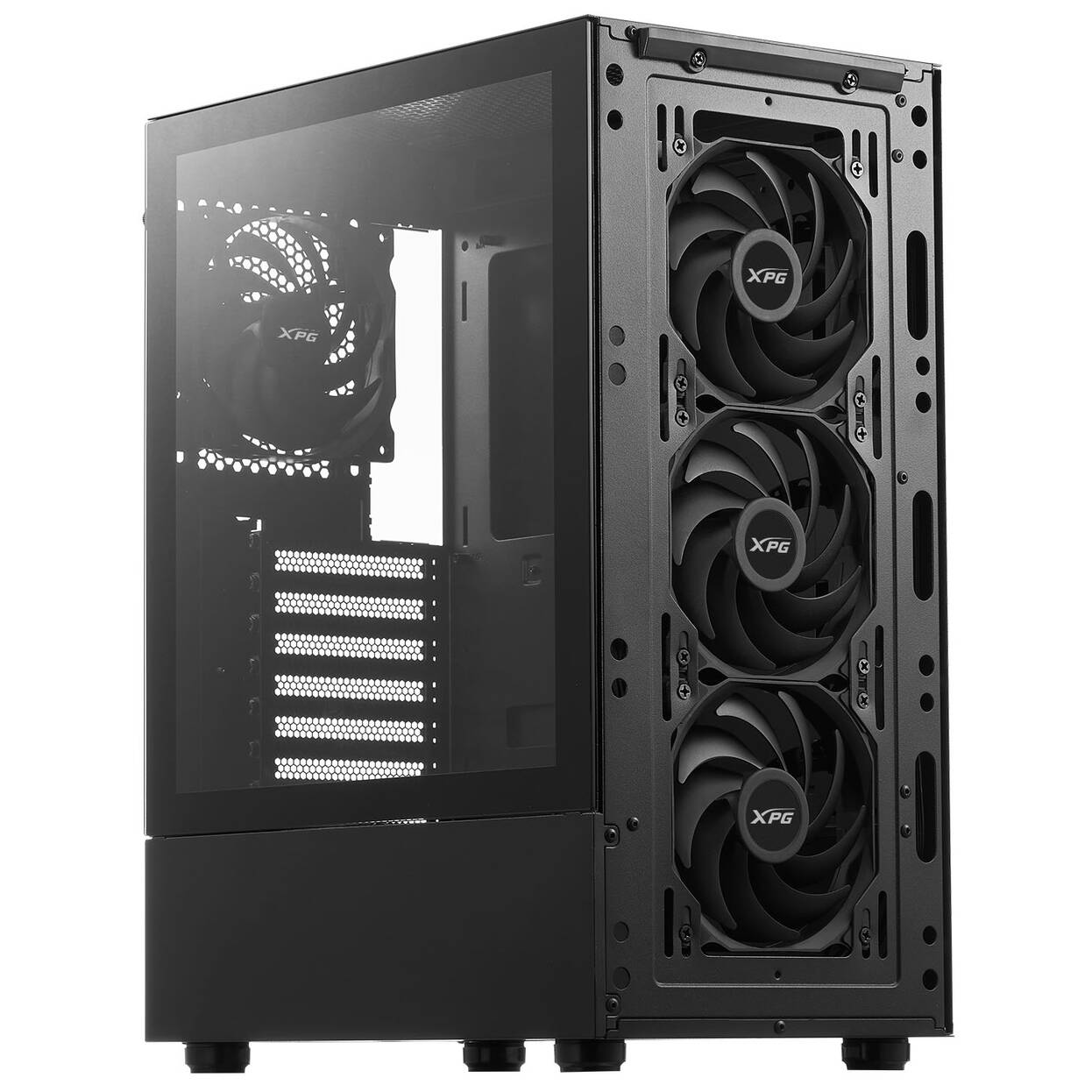

Three 120mm fans at the front draw cool air into the case. Another 120mm fan at the rear expels warm air. The mesh front supports as free an airflow as possible. CPU coolers can be up to 166 mm in height.
Flexible cooling and storage options
You can install radiators up to 360mm at the front. The top supports radiators up to 240 mm or two 140mm fans. Several 2.5- and 3.5-inch drive bays provide space for SSDs and HDDs. Two USB 3.2 Gen 1 ports and an audio jack are available on the I/O panel.
Specifications
| General | |
|---|---|
| Primary Colour | Black |
| Case Type | Mid Tower |
| Dimensions | |
| Length / Depth | 371 mm |
| Width | 210 mm |
| Height | 460 mm |
| Motherboard Support | |
| Compatible Motherboard Formats | ATX, Micro-ATX, Mini-ITX |
| Maximum Motherboard Size | ATX |
| Internal Clearance | |
| Maximum CPU Cooler Height | 166 mm |
| Maximum GPU Length | 335 mm |
| Maximum PSU Length | 180 mm |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Rear Bottom |
| Fan Support | |
| Front | 3 × 120 mm / 2 × 140 mm |
| Rear | 1 × 120 mm |
| Top | 2 × 120 mm / 2 × 140 mm |
| Maximum Number of Fans | 6 |
| 120 mm Fan Support | Up to 6 |
| 140 mm Fan Support | Up to 4 |
| Radiator Support | |
| Maximum Radiator Compatibility | 1 × 120 mm, 1 × 240 mm, 1 × 360 mm |
| Front | 240 mm / 280 mm / 360 mm Radiator |
| Rear | 120 mm Radiator |
| Top | 240 mm Radiator |
| Drive Bays | |
| 2.5″ Drive Bays | 3 |
| 3.5″ Drive Bays | 2 |
| 5.25″ Drive Bays | 0 |
| Hot Swap Drive Bays | No |
| Front I/O | |
| Audio | 1 × 3.5 mm Combo Audio Jack (TRRS) |
| Case Features | |
| I/O Position | Top |
| Side Panel | Tempered Glass Window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front Door | No |
| Cable Management | Yes |
| Dust Filters | Yes (Front) |
| Noise Dampening | No |
| Back Connect Support | No |
| Expansion | |
| Expansion Slots | 7 |
| Connectivity | |
| Card Reader | No |
| Fan Controller / Hub | No |
| Materials | |
| Material | SPCC Steel, Tempered Glass |
| Lighting | |
| RGB Lighting | No |
| Included Accessories | |
| Fans Included | Yes |
| Pre-installed Fans | 4 × 120 mm |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
