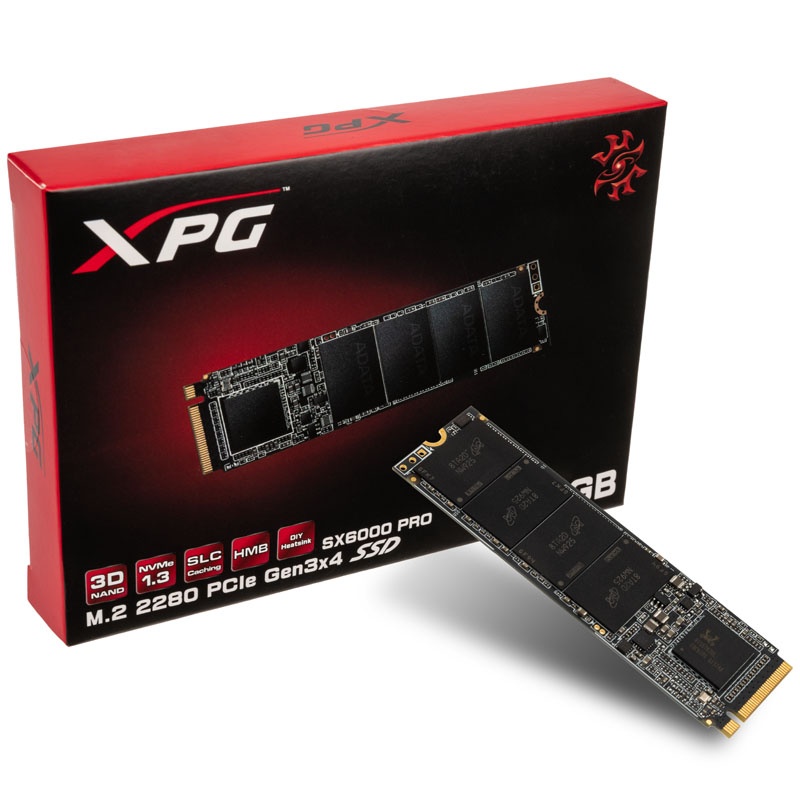

ADATA XPG SX6000 Pro Series NVMe SSD, PCIe 3.0 M.2 Type 2280 - 512 GB

The XPG SX6000 Pro in M.2 format with 512 GB capacity can achieve very high write speeds of up to 1.5 GB / s thanks to 3D TLC NAND memory cells, SLC cache and NVMe 1.3 protocol.

Overview of the ADATA XPG SX6000 Pro M.2 NVMe PCIe SSD:
– Modern M.2 NVMe PCIe SSD with 512 GB capacity
– Extreme fast 2,100 / 1,500 MB / s read / write (QD32)
– Total 250,000 / 240,000 IOPS 4KB Random Read / Write (QD32)
– Realtek RTS5763DL controller with LDPC error correction
– Guaranteed write volume (TBW): 300 TB (until then 5 years manufacturers warranty)

M.2 NVMe PCIe SSD with very high read and write speeds
The Realtek RTS5763DL controller on this hyper-fast drive supports four standard 3.0 PCI Express lanes that allow for a theoretical maximum of approximately 3,900 MB / s! Combined with the built-in 64-layer 3D TLC NAND, the 512 GB variant of the ADATA XPG SX6000 Pro achieves excellent 2,100 MB / s read speeds and 1,500 MB / s write speeds, as well as fantastic IOPS values of 250,000 in 4KB Read or 240,000 in 4KB Write.

High data security thanks to LDPC-ECC

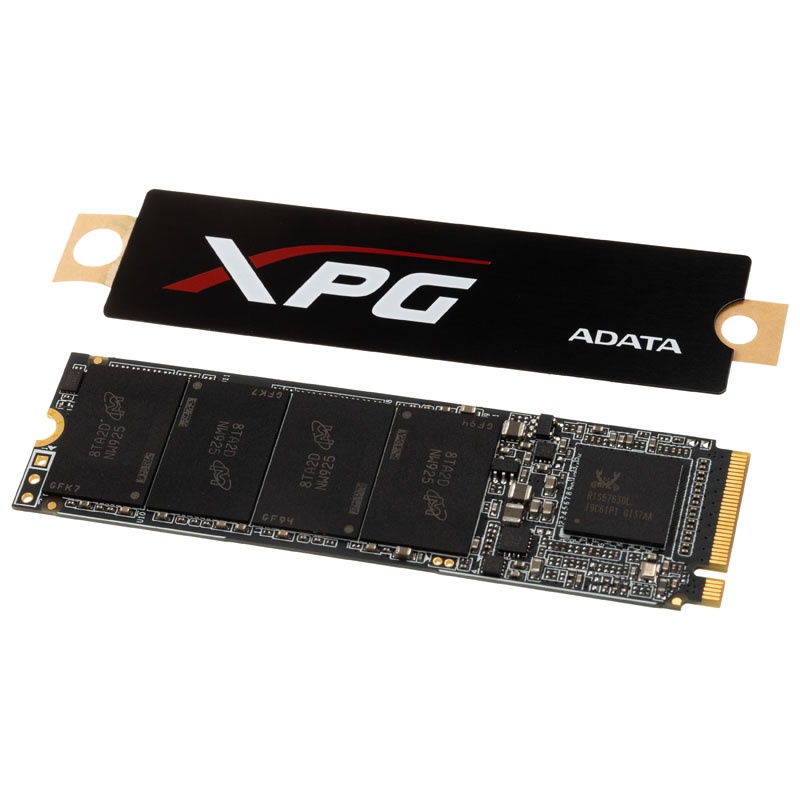

Thanks to ECC with low-density parity control, the XPG SX6000 Pro is designed for secure data transfers. In addition, the M.2 SSD supports end-to-end encryption and various RAID protocols. All NVMe SSDs of the SX6000 Pro series are equipped with memory chips on one side, which makes them particularly slim. The delivery includes a black heatsink with XPG logo.

Technical details:
– Dimensions: 22 x 2.15 x 80 mm (W x H x D)
– Format & Interface: M.2 / M-Key 2280 (PCIe 3.0×4, NVMe 1.3)
– Weight: 8 g
– Capacity: 512 GB
– Controller: Realtek RTS5763DL
– NAND: 3D TLC
Performance (PCIe 3.0):
– Reading: max. 2,100 MB / s
– Write: max. 1,500 MB / s
– IOPS (4KB Random Read, QD32): 250,000
– IOPS (4KB Random Write, QD32): 240,000
– Power consumption (Idle / Active): 0.14 / 0.33 W
– Compatibility (Features): NVMe 1.3, 256-bit AES, LDPC ECC, IEEE 1667 (Encrypted Drive), TCG Opal, SHA 256, TRNG
– Average life expectancy: 2 million h
– Guaranteed write volume (TBW): 300 terabytes (5 years manufacturers warranty)
– Operating temperature: 0 to 70 degrees C
– Shock resistant up to: 1,500 G
