Alphacools new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.

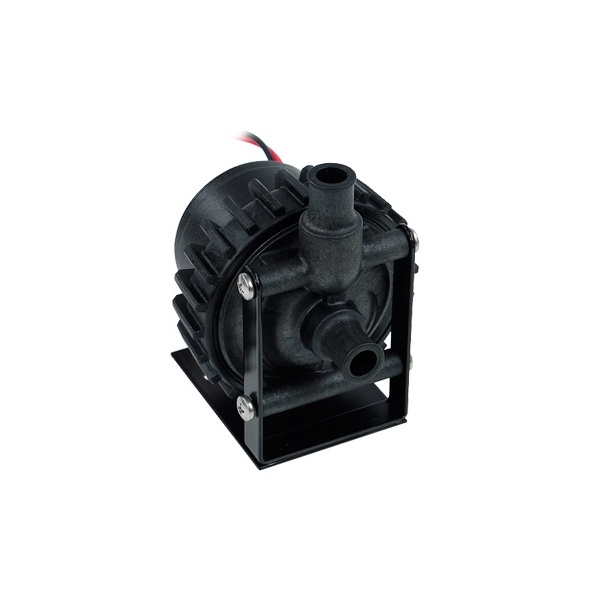

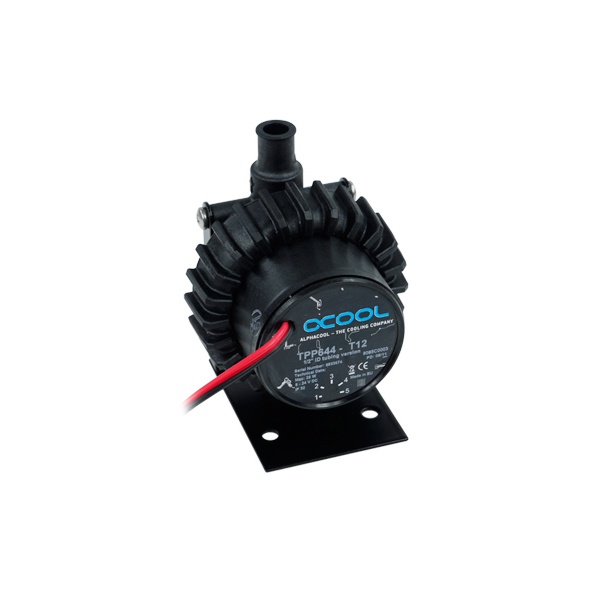

This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic.
Alphacools new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor...
Alphacools new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor...
No products found
The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.
The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.
The special feature of this model is the integrated 1/2 hose connector for tubing with an inner diameter of 13mm. This pump also has no integrated speed adjustment, why pay for the feature if it is not needed?
Technical specifications:
Dimensions (WxHxD): 90x90x90mm (without connectors)
Motor: Electronically commuted spherical motor
Rated voltage: 12V DC
Power consumption: 23W
Permitted voltage range: 8-24V DC
Pressure head at 12V: 3,7m
Maximum flow: 1500l/h
Pumped media: Water, water/glycol mixtures
Maximum system temperature: 60 degreesC
Connectors: 2x G1/2 barbed fittings
Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
Power connector: 4 Pin Molex
Details:
Size: 90 x 90 x 90mm
Operating voltage range: 8 to 24VDC
Nominal voltage: 12 V DC
Nominal Power (@12V): 24W
Nominal current (@12V): 2 amps
Maxium head: 10 ft (3.1 m)
Connection size: 1/2 barbs (12mm)
Maximum pressure: 50 PSI (3.5 BAR)
Temperature range: Up to 140 degreesF (60 degreesC)
Electrical connector: Molex 4pin
Motor type: Brushless, microprocessor controlled
MTBF: 50,000 Hours
Weight: 1.4 LB, 650g
Compact size allows installation almost anywhere in the case
Includes:
Laing D5 Vario Pump
Mounting Bracket / Noise Damper Pad
Manual
Compatibility:
For Use with 1/2 ID Hose
