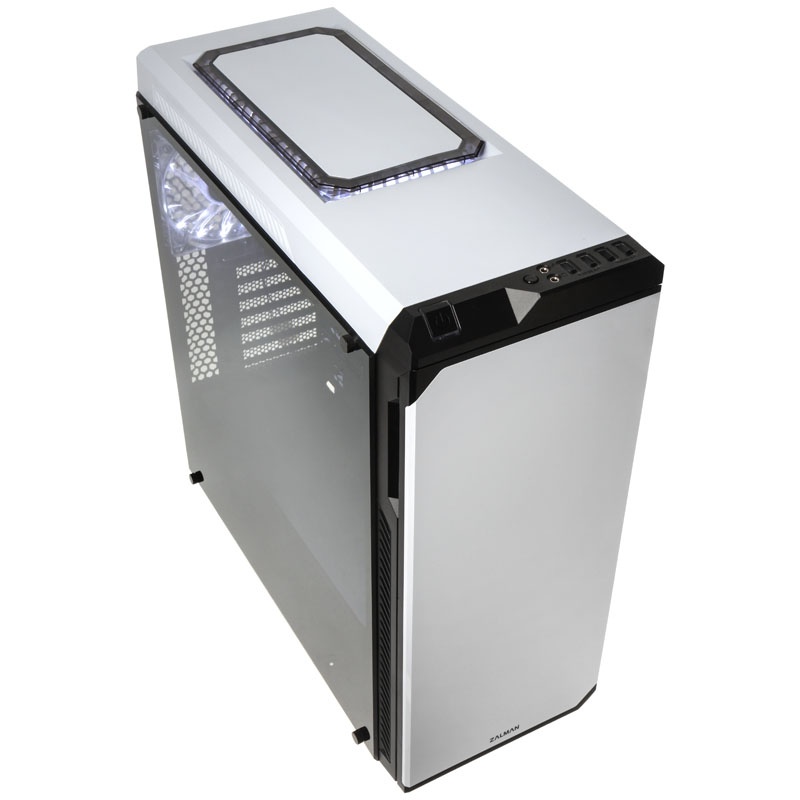

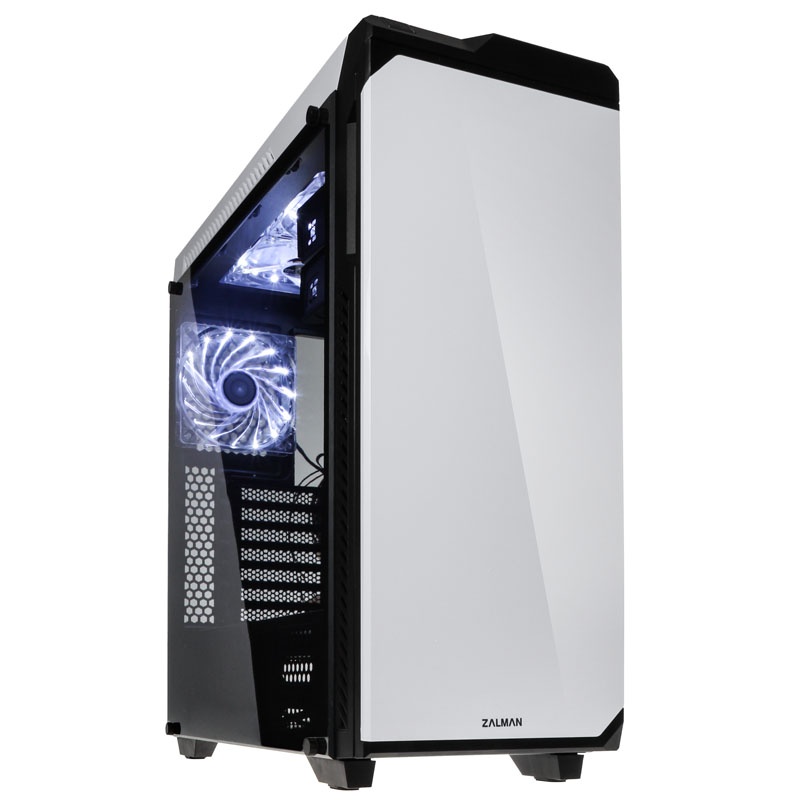

The Z9 Neo Plus midi-tower is the new flagship of the Z9 range and now comes with a large acrylic side panel. An elegant front flap in the look of brushed aluminum and an illuminated I / O panel provide a high-quality impression on the outside, while the LED fans installed in the case inside illuminate the hardware perfectly and cool down reliably due to the efficient airflow design.
The Z9 Neo Plus midi-tower is the new flagship of the Z9 range and now comes with a large acrylic side panel. An elegant front flap in the look of brushed aluminum and an illuminated I / O panel provide a high-quality impression on the outside, while the LED fans installed in the case inside illuminate the hardware perfectly and cool down reliably due to the efficient airflow design.
The Z9 Neo Plus midi-tower is the new flagship of the Z9 range and now comes with a large acrylic side panel. An elegant front flap in the look of brushed aluminum and an illuminated I / O panel provide a high-quality impression on the outside, while the LED fans installed in the case inside illuminate the hardware perfectly and cool down reliably due to the efficient airflow design.
No products found
The Zalman Z9 Neo Plus Midi Tower at a glance:
Stylish design with a large toned acrylic side panel
Five 120mm fans pre-installed – three of them with LED lighting
Illuminated I / O panel with 2x USB 2.0 & 3.0 & audio-in / out
Up to four SSDs / HDDs or a maximum of six SSDs
Removable dust filters & cable management & insulated front panel
Graphics cards up to 400 mm length & CPU coolers up to 160 mm height
Space for up to two 120 or 240 mm radiators
The features of the Zalman Z9 Neo Plus housing in detail:
The attractive exterior of the case is complemented by smart details in the interior. For example, the Z9 Neo Plus has a clean look with gummed cable grommets with Velcro straps and sufficient space for cable management behind the mainboard tray, while a PSU shroud allows a hidden installation of the ATX power supply. Up to two 3.5-inch hard drives or two 2.5-inch SSDs, which can be mounted without tools, are also found here at home.
Two additional 2.5-inch data storages can be accommodated on the mainboard tray and the two drive cages under the cover can be equipped with internal drives as an alternative to the two external 5.25-inch drives. The drive shades of the external drives are concealed by a stylish front flap with integrated insulation. The I / O panel, each equipped with two USB 2.0 and 3.0 connectors, is located on the top of the front panel and a LED light highlights the start button and the USB ports.
Five pre-installed 120-mm fans ensure excellent airflow. There is a removable cover over the fans installed in the cover, which can be used to optimize the removal of waste heat if required. The latter, like the fan installed in the rear, have an LED light that dips the installed hardware into a white light. Up to 240mm radiators can be installed in the front and lid to control gaming hardware via Aio or Custom water cooling.
The Z9 Neo Plus is the ideal base for a powerful gaming system, with several graphics cards of up to 400 mm in length. It also has a large recess in the mainboard tray for the use of large CPU coolers in combination with a backplate to allow a particularly stable mounting of the processor cooler, which may be up to 160 mm high.
Technical details:
Dimensions: 205 x 490 x 482 mm (WxHxD)
Material: steel, plastic
Weight: approx. 8 kg
Color white
Form Factor: ATX, Micro-ATX, Mini-ITX
Total fan possible:
2x 120/140 mm (front)
2x 120 mm (cover)
1x 120 mm (rear side)
Pre-installed:
2x 120 mm (front)
2x 120 mm (cover, white LED)
1x 120 mm (rear, white LED)
Radiator Mountings:
1x max. 240 mm (front)
1x max. 240 mm (cover)
Dust filter (removable): front, floor
drives:
2x 5.25 / 3.5 / 2.5 inch (external / internal)
2x 3.5 / 2.5 inch (internal)
2x 2.5 inches (internal)
Power supply (optional): Standard ATX
Expansion slots: 7
I / O Panel:
2x USB 3.0
2x USB 2.0
1x each audio in / out
Maximum graphics card length: 400 mm
Maximum net length: 200 mm
Maximum height CPU cooler: 160 mm
