With the Z11 Plus, Zalman shows us that a budget-priced midi-tower does not necessarily have to be dull.
No products found
No, on the contrary, the Z11 knows how to please with its unusual shapes, the beautiful contrast of black housing color and blue LED lighting as well as the high-quality workmanship.
The Z11 is available in two versions, both sharing the same basic design and differing only in features. In the full configuration shown here are more fans, that is another 120er with blue LED lighting, which is both in the cover through the ventilation openings, as well as through the window to marvel, installed. The Z11 Plus offers more powerful cooling and a fantastic visual experience.

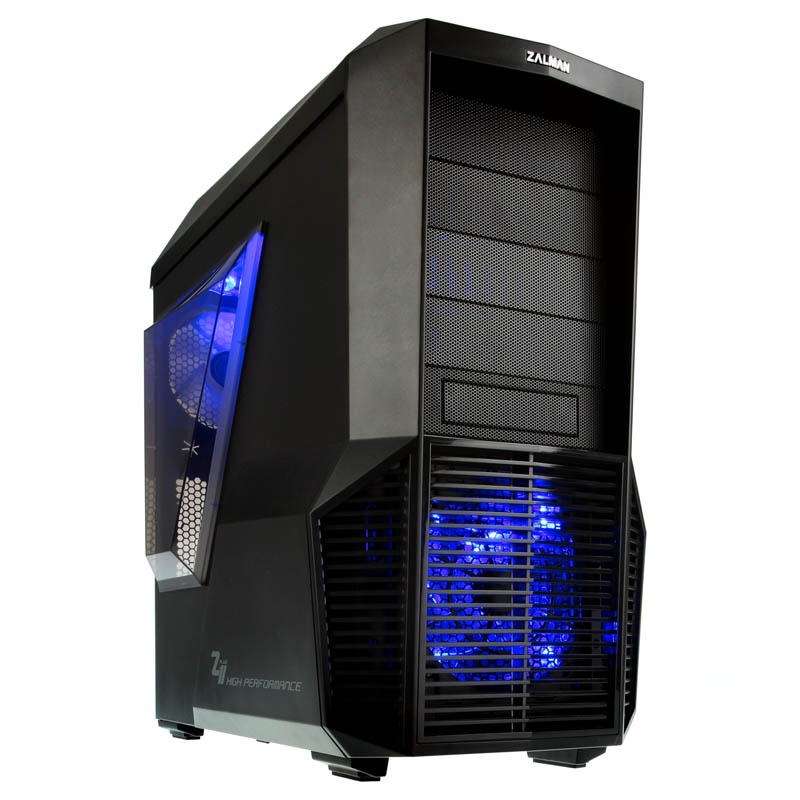

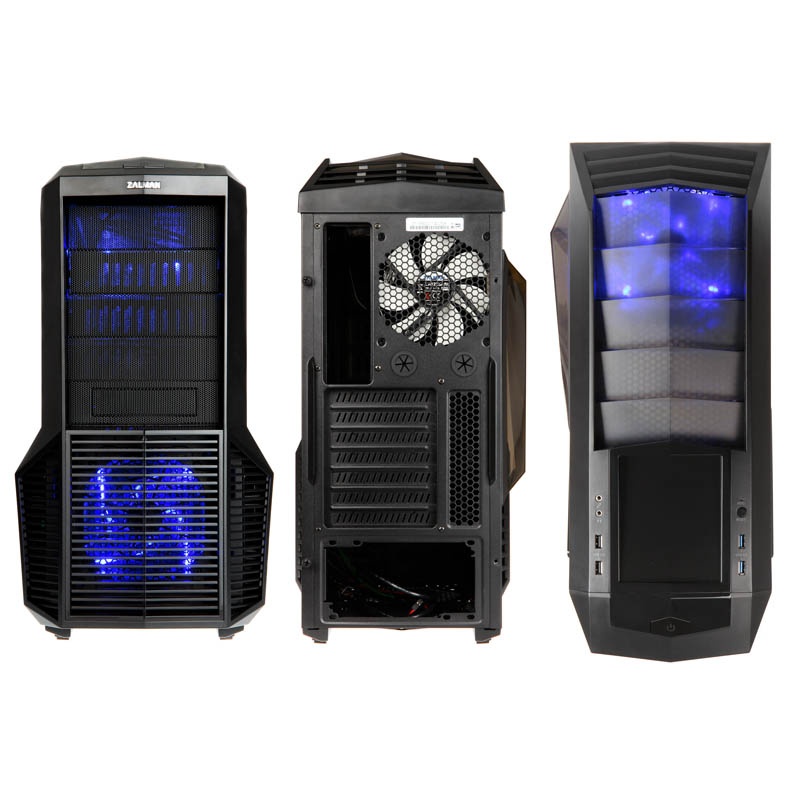

When designing the Midi Tower occurs as mentioned absolutely self-confident. When viewed from the front, the flared lower sections, which look like fenders on a sports car, immediately catch the eye. Overall, the actually quite small tower looks edgy and powerful. The front has four 5.25-inch slots and an external 3.5-inch slot. All slots are equipped with black mesh panels. The lid area also contains the I / O panel with external USB 3.0 ports.
The left side panel is equipped with a large, wedge-shaped and protruding window, which allows an excellent insight into the interior of the case. And thanks to black interior painting, the hardware is very good effect. Add to that the blue lighting of the fans, which achieve a great effect, especially in the dark.
In addition to the already mentioned external drives, the Z11 has five internal 3.5-inch slots. These are decoupled and thus offer a vibration-damped storage of the HDDs. In addition, SSDs (2.5 inches) are no problem – one can be installed behind the motherboard and another in the external 3.5-inch slot, which is designed as a convertible – thus 3.5-, 2.5 Inch drives and also floppy drives can record. Mainboard cut-outs for backplate installation and cable management are also included.
The fan assembly is generous with the Z11 Plus. The scope of supply includes three 120-mm fans, which are mounted on the front, on the back and under the cover and, with the exception of the rear fan, are illuminated with blue LEDs. 80mm fans are already integrated once in each sidewall. Two additional fans are additionally installable, a 140 or 120 mm fan in the bottom and a 120 fan in the lid.
Technical details:
– Dimensions: 260 x 498 x 525 mm (W x H x D)
– Material: steel
– Weight: 7.2 kg
– Color: Black
– Form factor: ATX, Micro-ATX
Fan:
– 1x 120 mm (front, blue LED)
– 1x 140 mm (front, optional instead of 120 mm)
– 1x 120 mm (cover, blue LED)
– 1x 120 mm (lid, optional)
– 1x 120 mm (back)
– 2x 80 mm (side panel)
– 1x 140/120 mm (floor, optional)
– Filter: front, bottom
drives:
– 4x 5.25 inches (external)
– 1x 3.5 + 1x 2.5 inches (external / internal)
– 5x 3.5 inches (internal)
– 1x 2.5 inches (internal)
– Power supply (optional): Standard ATX
– Expansion Slots: 7
I / O Panel:
– 2x USB 3.0 (externally connected)
– 2x USB 2.0
– 1x each audio in / out
– Maximum graphics card length: 290 mm
