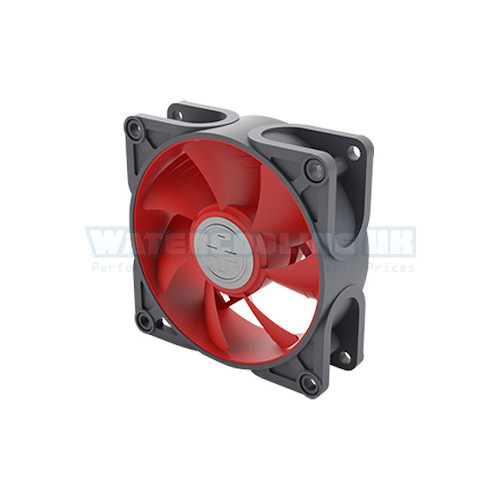

Xilence 2 Component Fan 92mm 92x92x25mm

The new Xilence 2CF fans are made from a two-component material mix which combines the advantages of flexible and rigid materials. The inner frame is made from a special rubber framw which absorbs vibrations effectively. The main frame structure serves as a strong and and vibration-dampening basis. A massive metal bearing sleeve forms the balance point and additionally prevents imbalance. The voltage range for the motor is 7 to 13V and drives the aerodynamically optimized fan blades. The fan is mounted with special rubber vibration absorbers – annoying vibrations are hence absorbed. Xilence grants five years of warranty on the fan series.

Technical specifications:
Dimensions: 92 x 92 x 25 mm (BxHxT)
Material: Plastic, rubber
Colour: Grey/red
Nominal voltage: 10,8 – 13,2 V
Nominal current: 0.13A
Noise emissions: 17,6 – 24,6 dB(A)
Speed range: 900 – 1.800 U/Min
Airflow: 55,3 m³/h respectively 32,55 CFM
Power consumption: 0,96 W / 0,08 A
Connector type: 4Pin
Weight: 130g
Warranty: 5 years
Connectors:

4Pin PWM
3-Pin to 4-Pin adaptor (7V)
4-Pin Molex to 4-Pin adaptor

Extent of delivery:
1x Xilence 2 Component Fan 92mm (92 x 92 x 25 mm)
4x Rubber decouplers
