XFX is a manufacturer of premium graphics cards is now known worldwide. To provide such pixel accelerator is also appropriate XFX has launched its own power supply line, the XTR Series features a fully modular cable management.
XFX is a manufacturer of premium graphics cards is now known worldwide. To provide such pixel accelerator is also appropriate XFX has launched its own power supply line, the XTR Series features a fully modular cable management.
XFX is a manufacturer of premium graphics cards is now known worldwide. To provide such pixel accelerator is also appropriate XFX has launched its own power supply line, the XTR Series features a fully modular cable management.
No products found

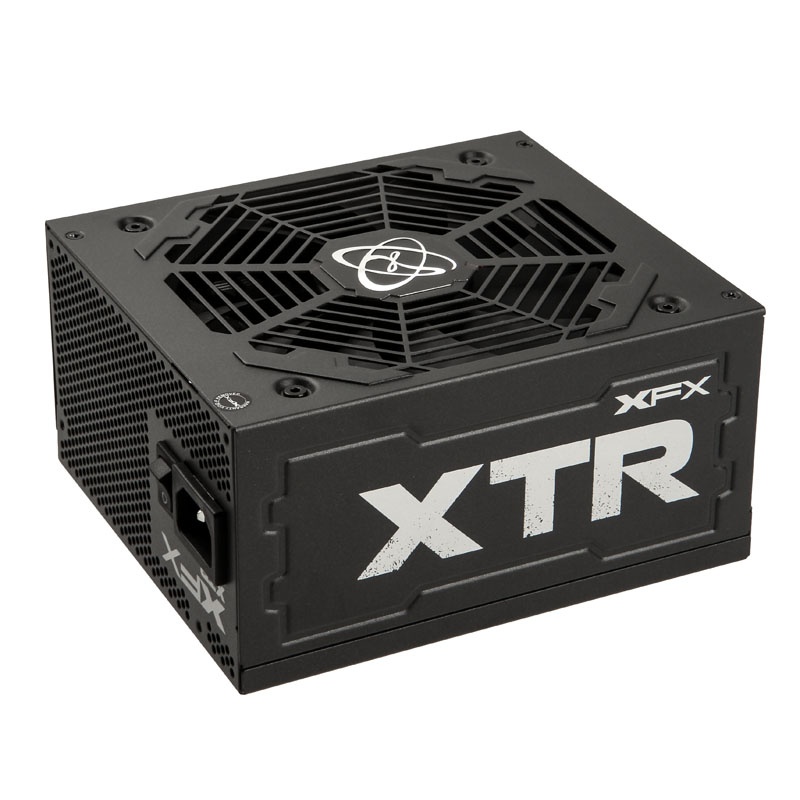

The largely classical design of the power supply is broken up by a fancy fan grill. How cobwebs stretch, the individual cross-connections and have the logo placed in the middle – XFX quasi spider in a web. Behind carries a smooth-running 135 mm fan its service.
Like all Power Supplies from XFX also sets the XTR 650 Watt Series to a central 12-V line. A so-called single-rail design offers significant advantages especially with the use of several powerful components. Share in a multi-rail system, for example, CPU and graphics card, a line whose load limit is exceeded, the system is fast and fast unstable, although other lines are not yet exhausted.
In a single line all components rely jointly on this, so that individual components can also relate significantly higher current strengths – especially when overclocked hardware a decisive Stability Plus. In addition, the port is no longer a problem as they are usually assigned to a specific line. In Multi-Rail PSUs must be scrutinized by contrast, which PCIe connector is used to avoid overloading individual lines.
With a current of 54 amps on the 12 volt rail is a very powerful 650-watt power supply. In addition, can be output to 12 volts with 648 watts almost the entire performance. The connection Arsenal features a 20 + 4 pin, one 4 + 4-pin and one 8-pin motherboard and CPU, four 6 + 2-pin PCIe connectors for video cards and ten SATA, six 4-pin Molex and a floppy port for peripherals.
Technical Details:
Dimensions: 150 x 86 x 140 mm (WxHxD)
Fan: 135 mm
Efficiency:. Ø 89.51%, Max 90.99% (50% utilization), 80Plus Gold certificate
Active PFC (0.99)
Power: 650 W
+ 3.3V: 20 A
+ 5V: 20 A
3.3V + 5V: 100 W
+ 12V: 54 A (648 W)
-12V: 0.3 A (3.6 W)
+ 5VSB: 2.5 A (12.5 W)

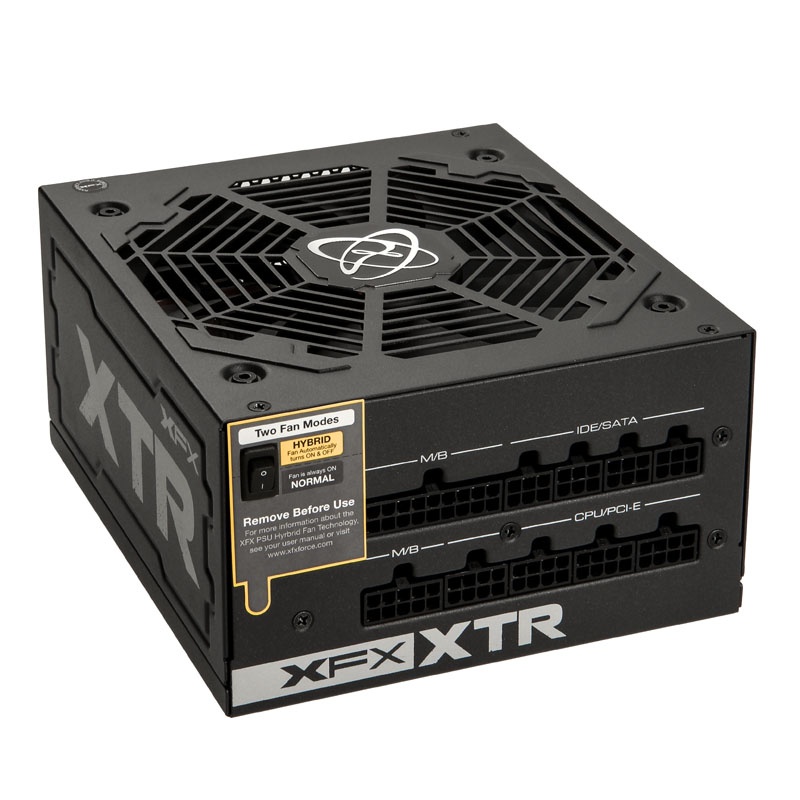

Connector (modular):
1x 20 + 4-pin
1x 4 + 4-Pin (ATX12V)
1x 8-Pin (EPS12V)
4x 6 + 2-pin PCIe
10x SATA
6x 4-pin Molex
1x Floppy
Warranty: 5 years
