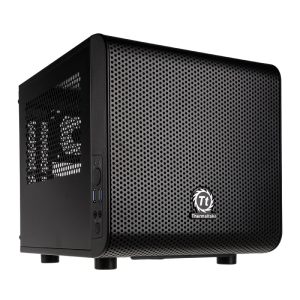

The new Core V1 is a small Mini-ITX Cube from Thermaltake with a pre-installed 200 mm fan in the front panel. This allows both sides, simply remove and cap, floor, front and back, and allow the user to convert the housing in an instant to a showcase. Whether for precious water cooling systems or a housing with superb airflow, with the Core V1 has to many options in a small space and this can also optionally present very simple.
So youre building a strong mini-system, despite the small size not only able but also incorporate numerous OC components. The space is distributed intelligently to the two areas. The upper area is for motherboard, graphics card and cooling components, while the lower section is for the power supply and cable management. The HDD cage mounts are located on the right side and can also be removed if necessary, to have more space in the housing.
The new Core V1 is a small Mini-ITX Cube from Thermaltake with a pre-installed 200 mm fan in the front panel. This allows both sides, simply remove and cap, floor, front and back, and allow the user to convert the housing in an instant to a showcase. Whether for precious water cooling systems or a housing with superb airflow, with the Core V1 has to many options in a small space and this can also ...
The new Core V1 is a small Mini-ITX Cube from Thermaltake with a pre-installed 200 mm fan in the front panel. This allows both sides, simply remove and cap, floor, front and back, and allow the user to convert the housing in an instant to a showcase. Whether for precious water cooling systems or a housing with superb airflow, with the Core V1 has to many options in a small space and this can also ...
No products found

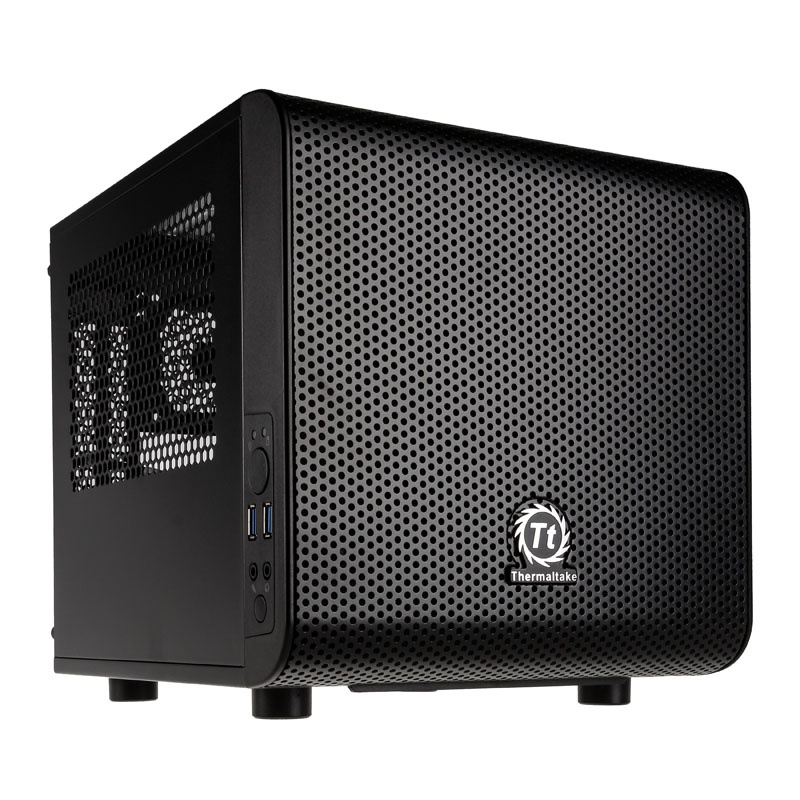

The black design of the cube is executed with much mesh insert, especially in the front. And the two sides is given a mesh insert. The front panel is located at the V1 on the side and offers power and reset switches, two audio jacks and two USB 3.0 ports.

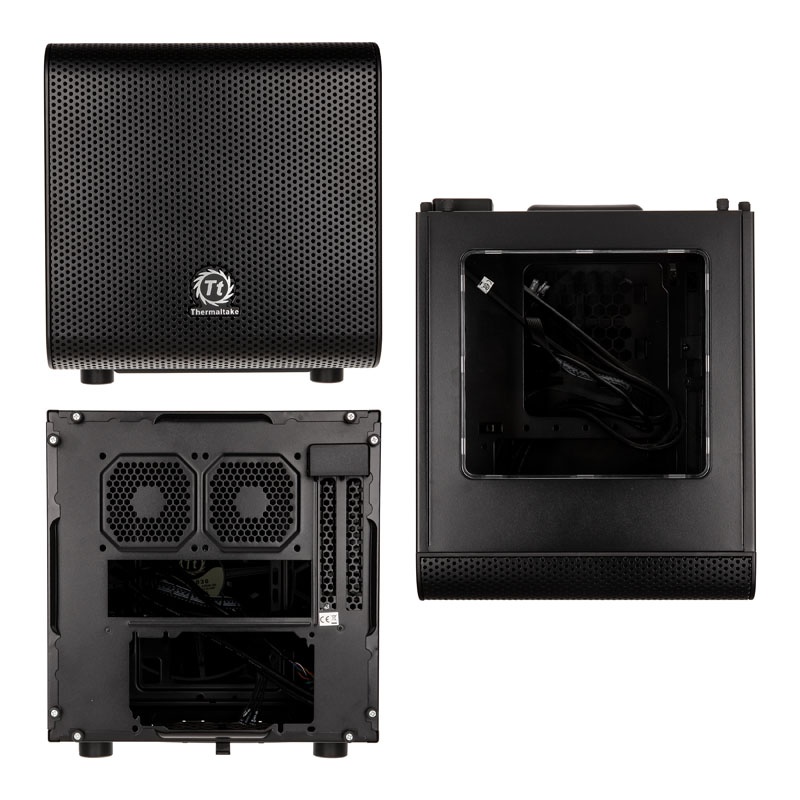

The lid, however there is a window which gives the view from the top of the free components. This allows all six panels also easy to remove, so as to not only share the view of the components in every way that you prefer, but also to extend the maximum graphics card length.
Here, the Core V1 already comes with a 800 U / min rotating, pre-installed 200 mm fan behind the front panel and can send to the user the possibility to install two additional 80 mm fan in the rear. In addition, a 140 or a 120 mm large radiator can be installed in the Core V1 instead of the front fan.

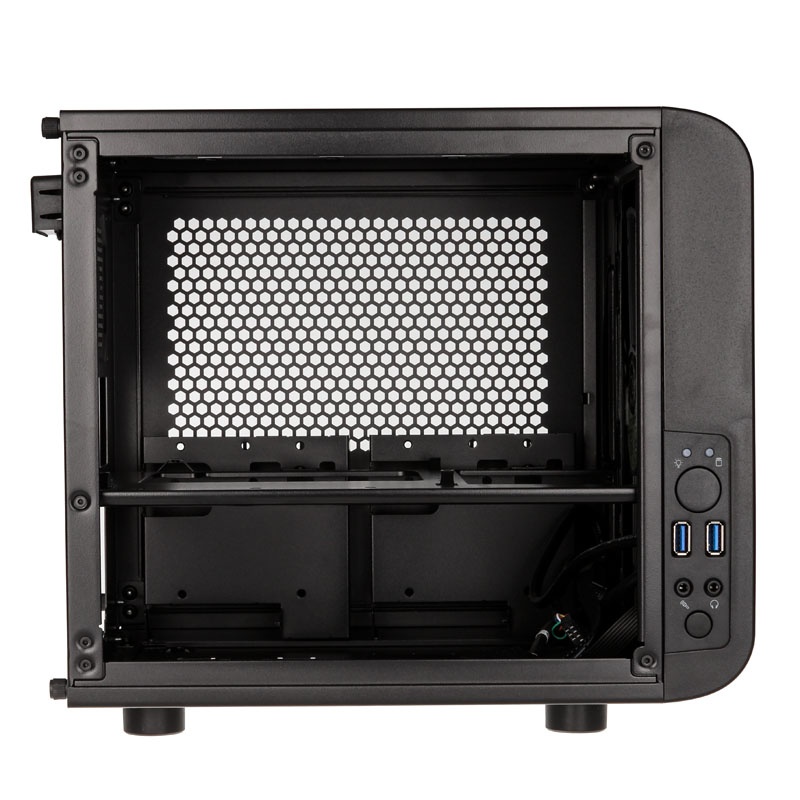

In the lower part there are beside the power supply and the 80 mm free space for cable management and the removable HDD brackets on which you can install two 3.5-inch hard drives and two 2.5-inch drives. Under the power supply is a removable dust filter. Another, however, fixed filter located in the front.
In the back are also two expansion slots, so that in the Core V1 can also install a dual-slot graphics card. The maximum graphics card length is closed at Core V1 at 255 mm. Do you need something more, you can also remove the front part and so come to 285 mm space for the graphics card. A CPU cooler should it be up to 140 mm high, while the power supply must be 200 mm long.
Technical Details:
Dimensions: 260 x 276 x 316 mm (W x H x D)
Material: Steel
Color: Black
Form Factor: Mini-ITX
Fan total possible:
1x 200/140/120 mm (front)
2x 80 mm (rear)
Thereof pre-installed:
1x 200 mm (front side; 800 rev / min, 13 dB (A))
Radiator Mountings:
1x 140/120 mm (front)
Filters: front, bottom (removable part)
Drive bays:
2x 3.5 inch (internal, 3.5 inches)
2x 2.5 inch (internal, 2.5 inches)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 2
I / O panel:
2x USB 3.0
1x per Audio In / Out
Maximum video card length: 255 mm (inner case)
Maximum video card length: 285 mm (outer casing)
Maximum CPU cooler height: 140 mm
Maximum PSU length: 200 mm
