Thermaltakes new Pacific W1 CPU Water Block delivers extreme cooling performance and compatibility for custom PC builders. Featuring 0.15mm internal fin construction, the Pacific W1 is manufactured with a full copper base and anti-corrosive nickel plating.

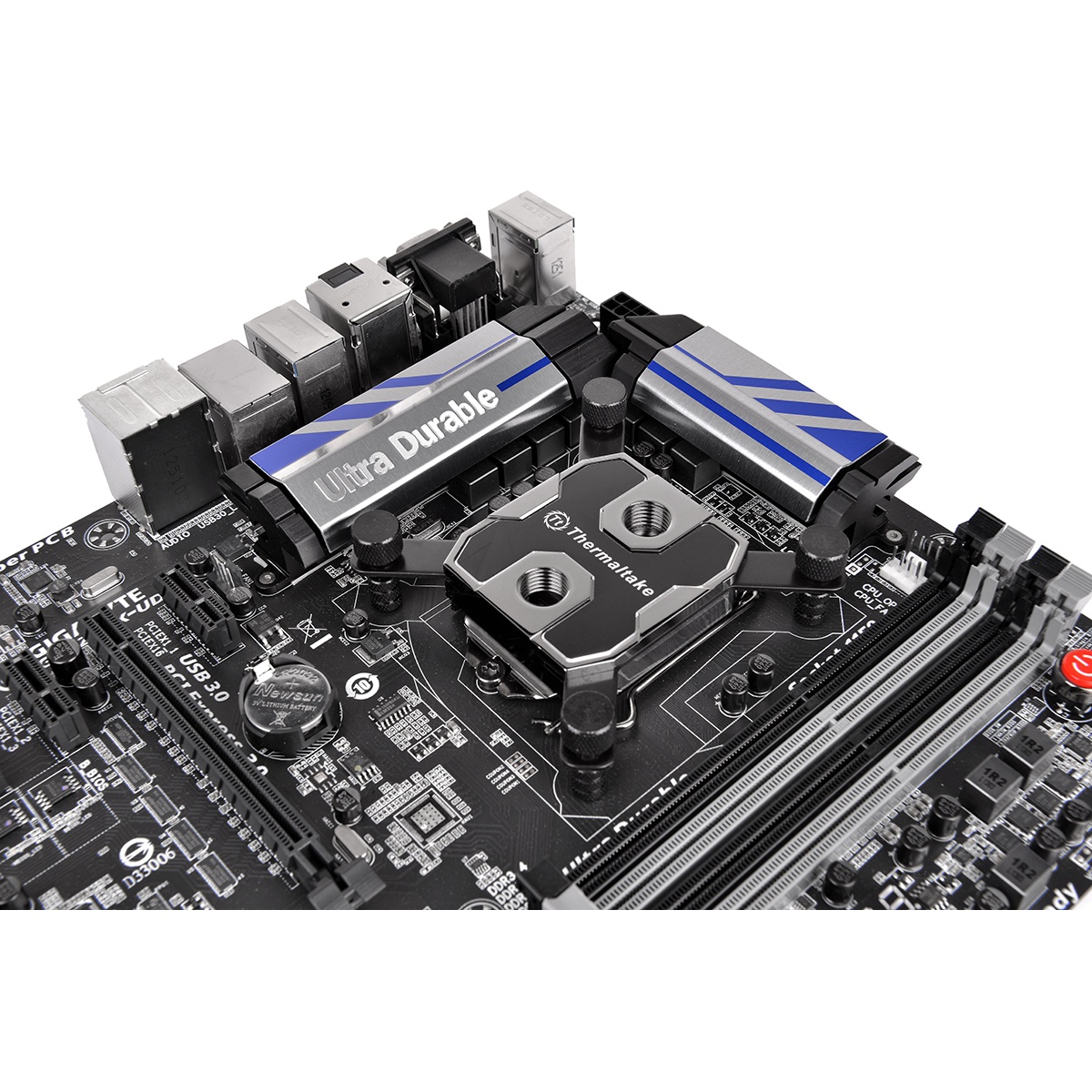

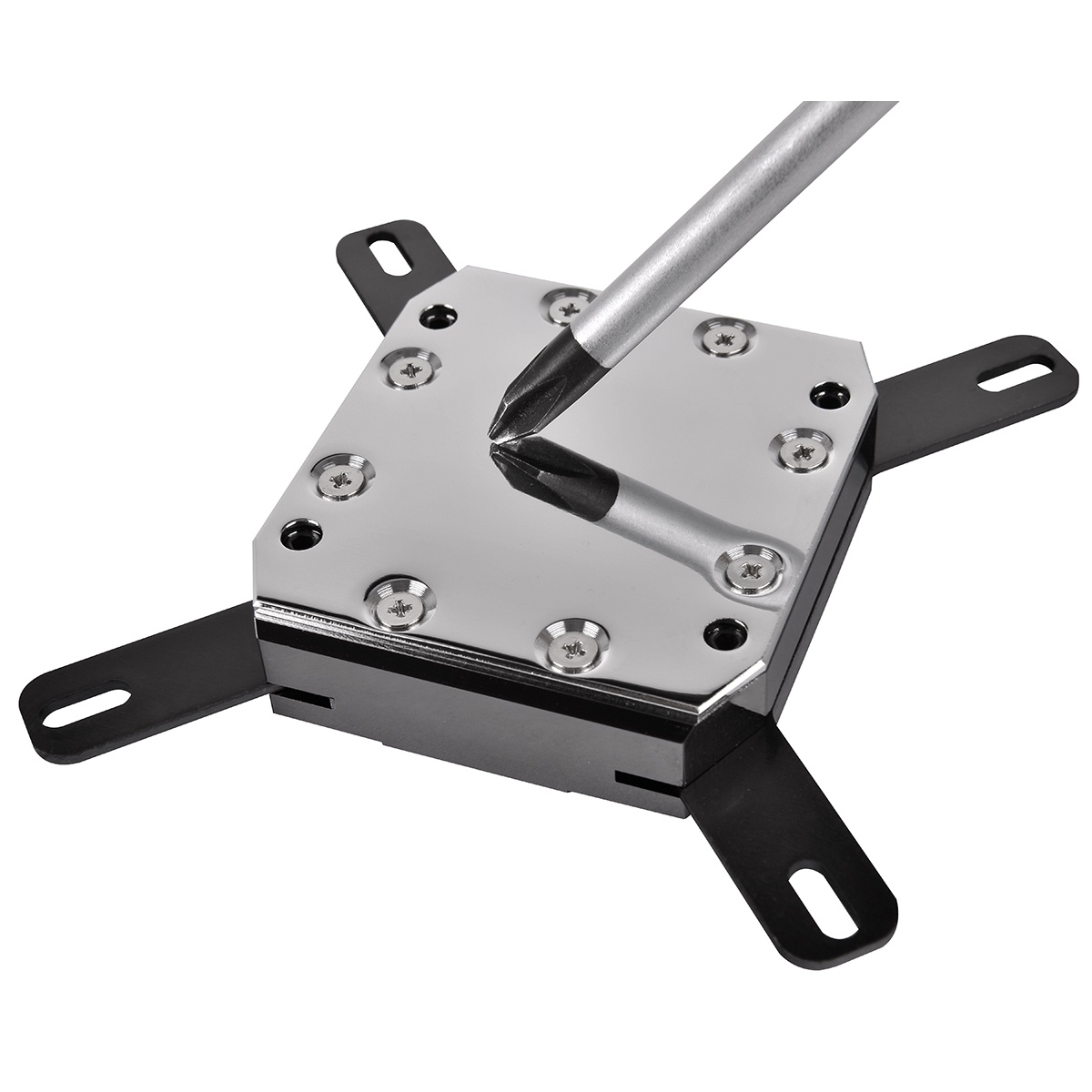

A universal mounting mechanism offer error-free as well as no-tools installation, providing the ultimate in cooling performance.
Thermaltakes new Pacific W1 CPU Water Block delivers extreme cooling performance and compatibility for custom PC builders. Featuring 0.15mm internal fin construction, the Pacific W1 is manufactured with a full copper base and anti-corrosive nickel plating.
A universal mounting mechanism offer error-free as well as no-tools installation, providing the ultimate in cooling performance.
Thermaltakes new Pacific W1 CPU Water Block delivers extreme cooling performance and compatibility for custom PC builders. Featuring 0.15mm internal fin construction, the Pacific W1 is manufactured with a full copper base and anti-corrosive nickel plating.
A universal mounting mechanism offer error-free as well as no-tools installation, providing the ultimate in cooling performance.
No products found
Tt LCS Certified is a Thermaltake exclusive certification applied only to LCS products that meet the design standards of hardcore enthusiasts.
The Tt LCS certification was created so that we at Thermaltake can guide power users to chassis products that have been tested to be most compatible with extreme liquid cooling configurations to ensure the best performance, features, and fit.

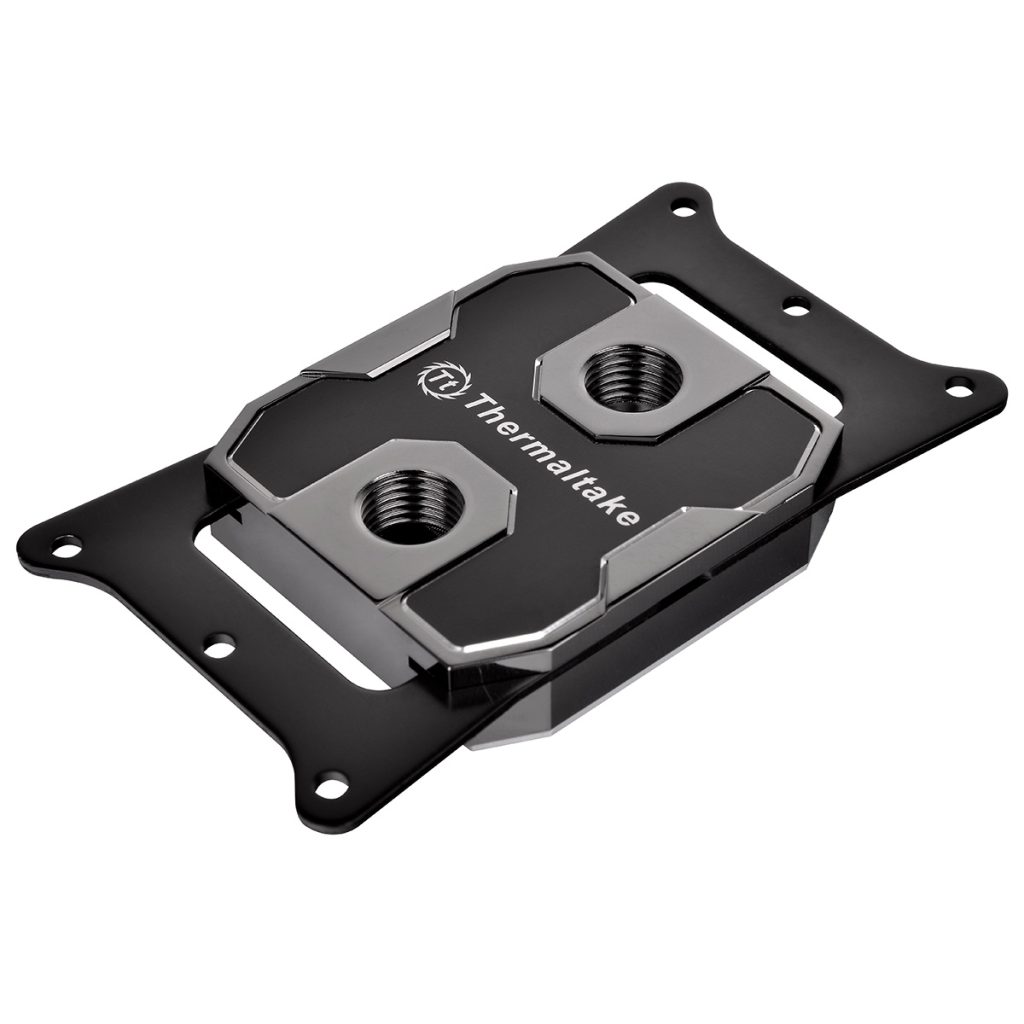

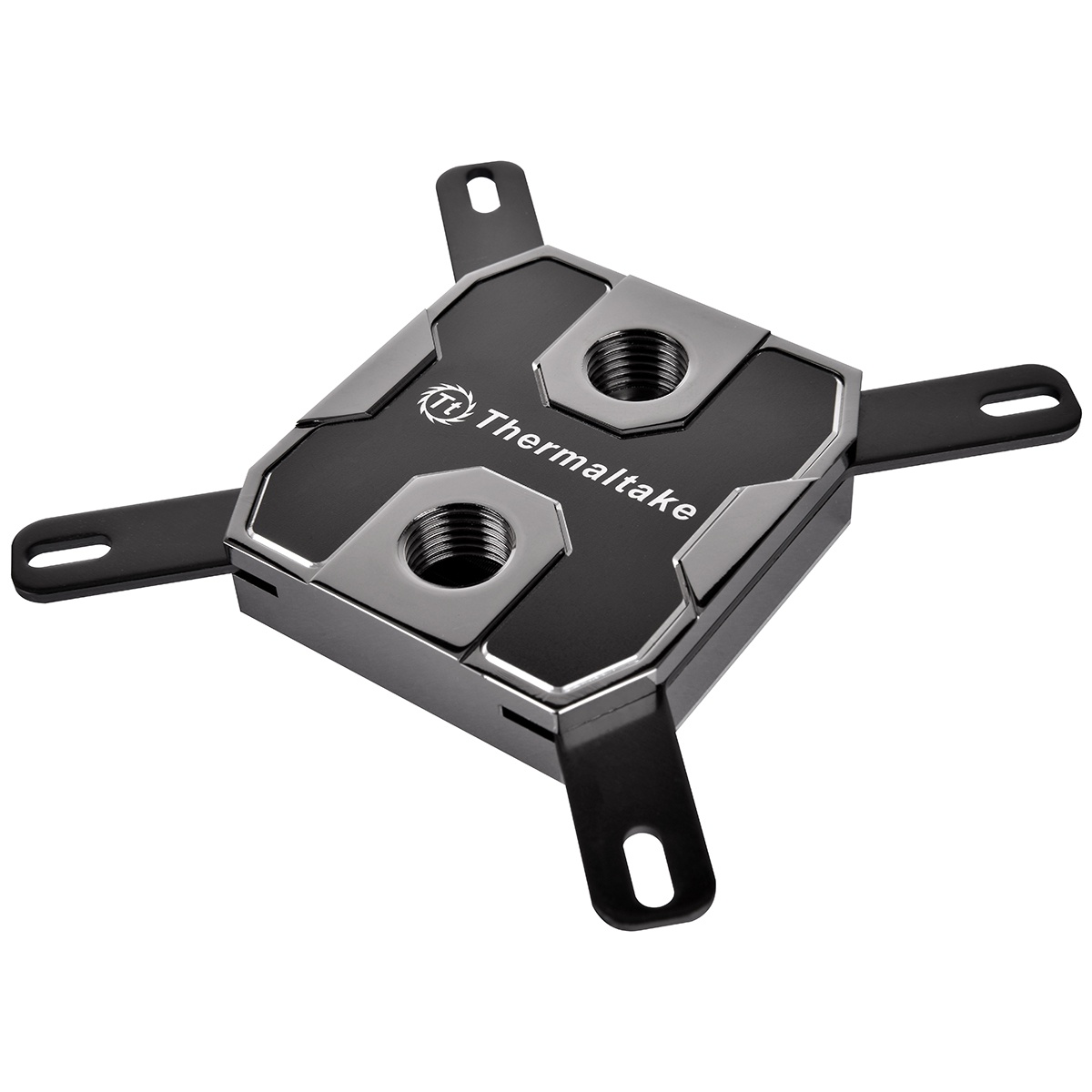

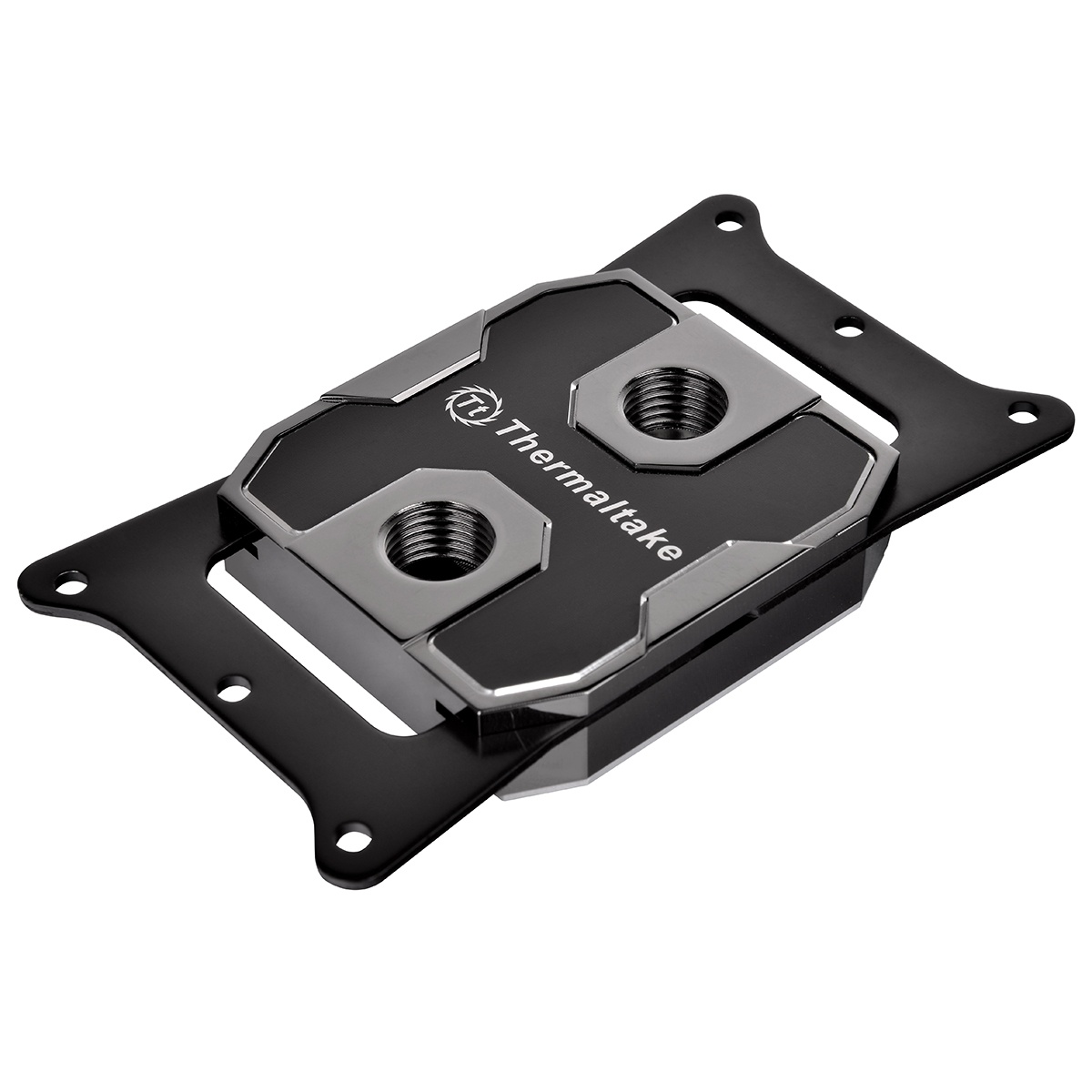

Made in Taiwan, the Pacific W1 Water Blocks specially machined copper base with nickel coating prevents corrosion and fully complies with Thermaltakes highest quality standards. The mating surface to the CPU sports an absolute mirror polish.
The Pacific W1 Water Block is designed with a compact form factor featuring 0.15mm micro-channel fin construction for optimal clearance and extreme heat dissipation. A silicone rod guides coolant through the bottom of each micro-channel.
Specifications:
P/N CL-W022-CU00BL-A
Dimension 60 H * 54 W* 16 L mm
Heatsink Material Copper
Threads G ¼
Weight 345 g
Compatability:
Intel LGA 2011/1366/1155/1156/1150/775
AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Note:
Thermaltake recommends the following steps to be taken after completing your water loop setup
– It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
– Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
– DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
– Fill the reservoir to the top as it will prevent air from going into the pump
– If necessary tilt the system slightly from side to side to bleed the air out of the loop.
– Place some paper towels under fittings and joining points to test for leaks.
– Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop
