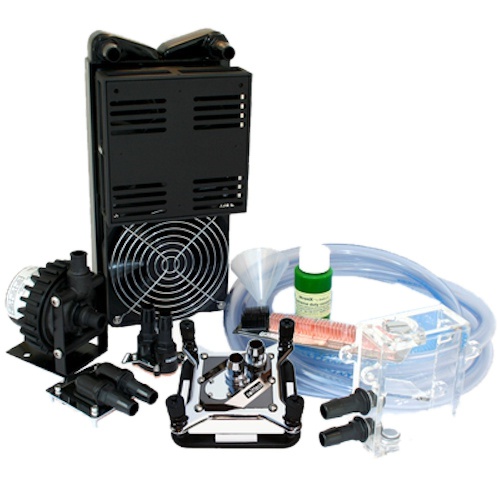

Swiftech H20-220 Apex Ultima XT Plus CPU Liquid Cooling Kit

As a result of the substantial cooling headroom afforded by this combination of top performance components the Ultima XT kit will satisfy both extremes of the enthusiast market spectrum: Overclockers in search of the lowest CPU temperatures and Silent computing users in search of the lowest possible operating noise.

Content of the KIT
Apogee XT CPU Block
MCP655-B 12Volts DC pump
MCR220-QPK radiator with 120mm fan
MCW60-R Rev.2 waterblock for graphic chipset
MC21 Mosfet heatsink & MC14 memory heatsink
MCW30 Northbridge waterblock
MCRES Micro Rev.2 reservoir
MCB120 Radbox Rev.2
Thermal grease
2 Oz of HydrX extreme duty coolant
Vinyl tubing and inserts

CPU Compatibility
AMD : Socket 754/939/F/AM2/AM3
Intel : Socket 775/1366/1156

Overclockers in search of the lowest CPU temperatures
AND
Silent computing users in search of the lowest possible operating noise.

Whereas an increasing number of cases can now accommodate dual 120mm radiators internally, users convenience was not forgotten, and the Ultima XT is shipped standard with our MCB120 Radbox Revision 2 which allows the radiator to be bolted-on at the back of practically any mid-or full tower cases. Overall thermal performance also clearly benefits from the use of our Radbox, as explained HERE, and demonstrated in a number of FIELD TESTS .

The MCR220 dual 120mm radiator fits nicely at the back of any mid-tower chassis thanks to the MCB120 Radbox Revision2 .

Platform Compatibility:
All Intel Core™ Desktop processor family (Core™2, Quad, Duo, Extreme, i5, i7) in socket 775, 1156 and 1366 form factor.
Intel Server processor family (Xeon™) in socket 603, 604 and 771 form factors (free hold-down plate sent factory-direct on demand worldwide – see details here)
AMD processors in their respective socket form factors – 754, 939, F, AM2 and AM3 (free hold-down plate sent factory-direct on demand worldwide – see details here)

Features:
Kit noise/performance ratio can be fine-tuned at the user leisure.
The 12 Volt DC MCP655-B pump plugs directly into computer power supply.
High-reliability, no-maintenance industrial pump is rated at 50,000 hour MTBF(Mean Time Between Failure) equivalent to 5 year lifetime.
The MCRES-Micro Revision 2 reservoir fits in any small space available in the system without sacrificing a CD-drive bay and can provides up to 18 month of continuous operations without refills. An additional fill-port adds in installation versatility by offering users multiple tube routing options and elaborate mounting brackets allow installation just about anywhere in the PC. Optional remote fill-ports are also available to further enhance the versatility of the installation.
The Apogee XT water-block is compatible with all current Intel desktop processors.
The MCR-220 radiator is completely self-bleeding in upright position, or when installed on its side.
The MCB-120 Radbox Revision 2 provides a bolt-on mechanism to hang the radiator at the back of the case with minimum case modifications.
