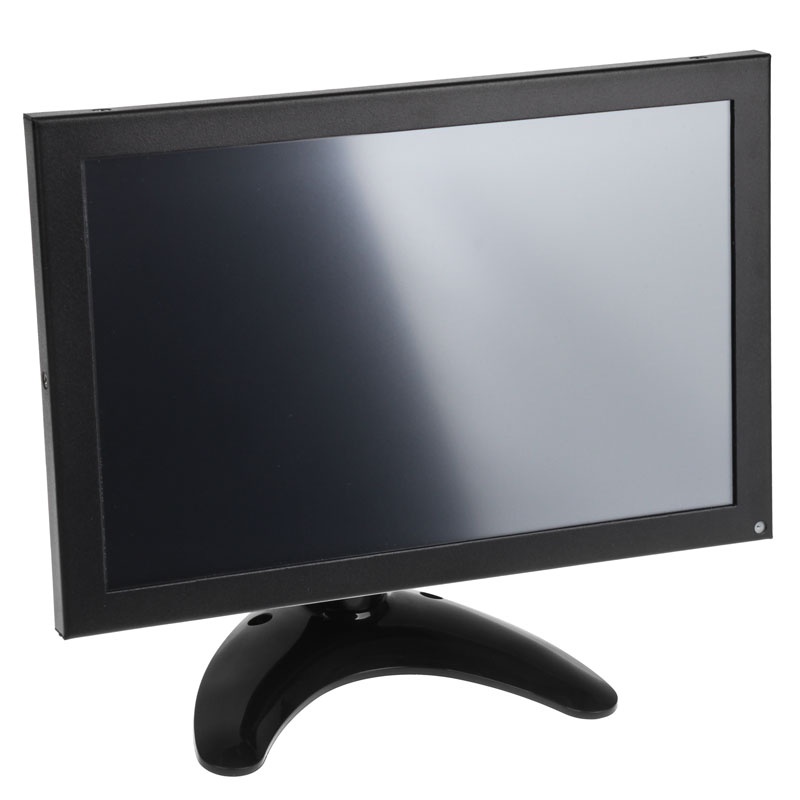

The Raspberry Pi single-board computer usually transmits its video data to a TV or fixed screen via the HDMI output. However, for those who like mobility, this compact 10.1-inch Raspberry TFT touch-screen display has a 21.6 x 13.5 cm visible image area.
The Raspberry Pi single-board computer usually transmits its video data to a TV or fixed screen via the HDMI output. However, for those who like mobility, this compact 10.1-inch Raspberry TFT touch-screen display has a 21.6 x 13.5 cm visible image area.
The Raspberry Pi single-board computer usually transmits its video data to a TV or fixed screen via the HDMI output. However, for those who like mobility, this compact 10.1-inch Raspberry TFT touch-screen display has a 21.6 x 13.5 cm visible image area.
No products found

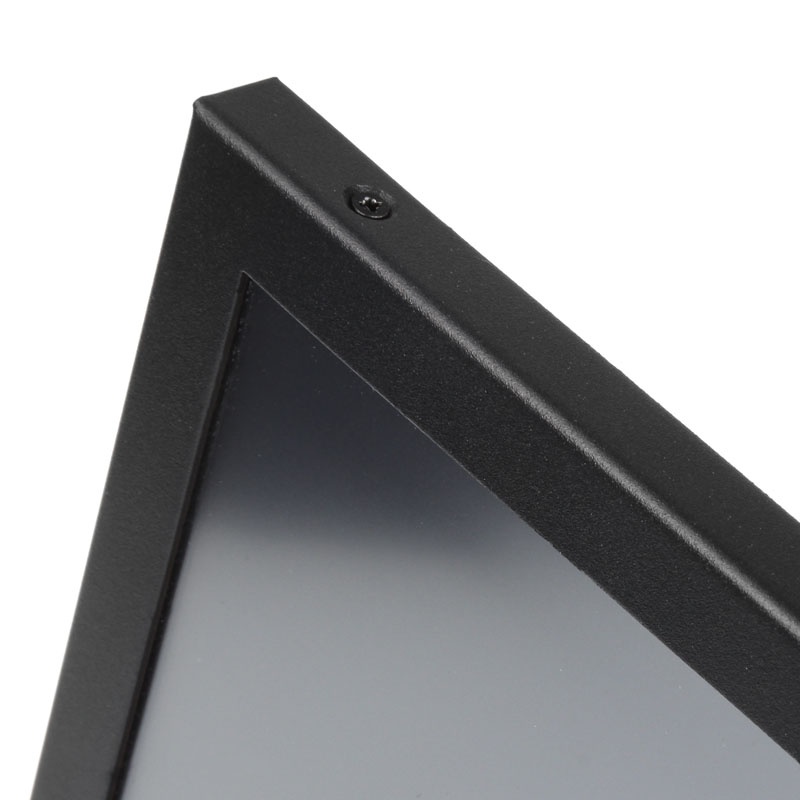

The small screen with high-quality IPS panel has a resolution of neat 1,280 x 800 pixels (HD-ready) and is connected via the supplied HDMI cable to the Raspberry Pi or to other single-board computers or Windows PCs. The GPIO port remains free for other devices and add-on modules. The display is integrated into a black acrylic frame, to the back of which single-board computers can be attached and also display stands with a tilt angle of 30 or 45 degrees. Wall mounting or integration into furniture is also possible.
In addition, the display has a capacitive digitiser with multi-touch function that transmits finger touches via a USB port to terminals. A micro USB cable for this is already included. Touch inputs can thus be executed very precisely and without pressure via the display, similar to a smartphone or tablet. The display is powered by a supplied USB power adapter.
Technical details:
Dimensions without stand: 275 x 190 x 20 mm (W x H x D)
Visible image area: 216.96 x 135.60 mm (W x H)
Screen size: 10.1 inches (26.65 cm)
Color: Black
Resolution: 1,280 x 800 pixels
Panel: IPS with multitouch (capacitive)
Tilt angle: 30 degrees / 45 degrees
Connections:
1x HDMI
2x microUSB (for power & touch screen)
Compatibility:
All Raspberry Pi with Raspbian, Ubuntu or Windows 10 IoT (Model A, B, A +, B +, 2 & 3, Pi Zero)
other single-board computers with Raspbian, Ubuntu or Angstrom (Banana Pi (Pro), Beagle Bone)
PC systems with Windows 7, 8, 8.1, 10
Delivery:
1x 10.1 LCD screen
1x display stand
1x integrated housing frame made of acrylic (black)
1x HDMI cable
1x USB cable (USB-A male to Micro-B male)
1x micro USB power supply with EU plug adapter (5 V, 2.5 A)
1x screws
Special feature: Raspberry Pi can be attached to display back
