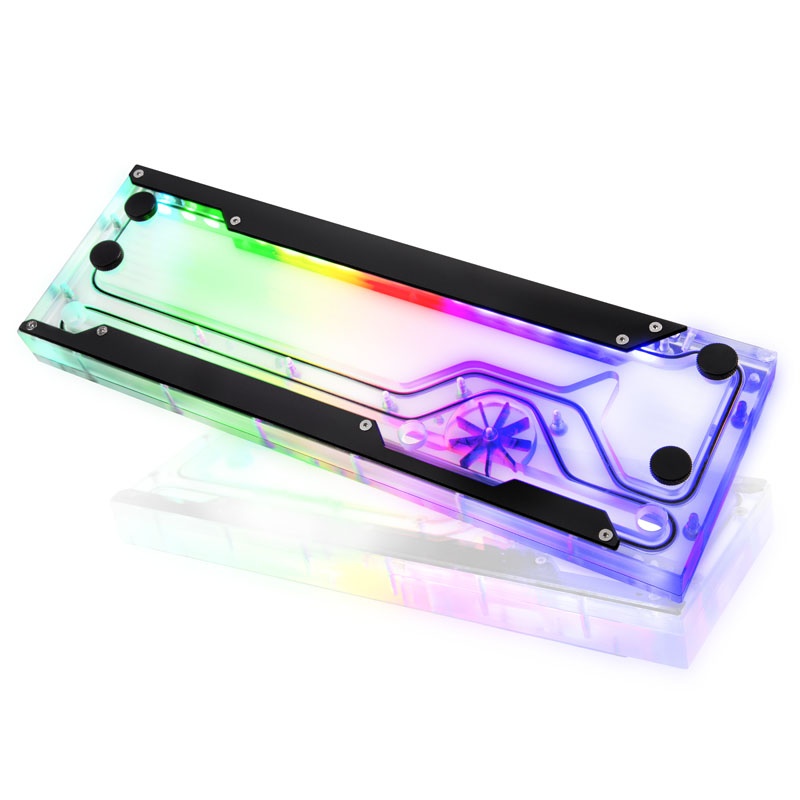

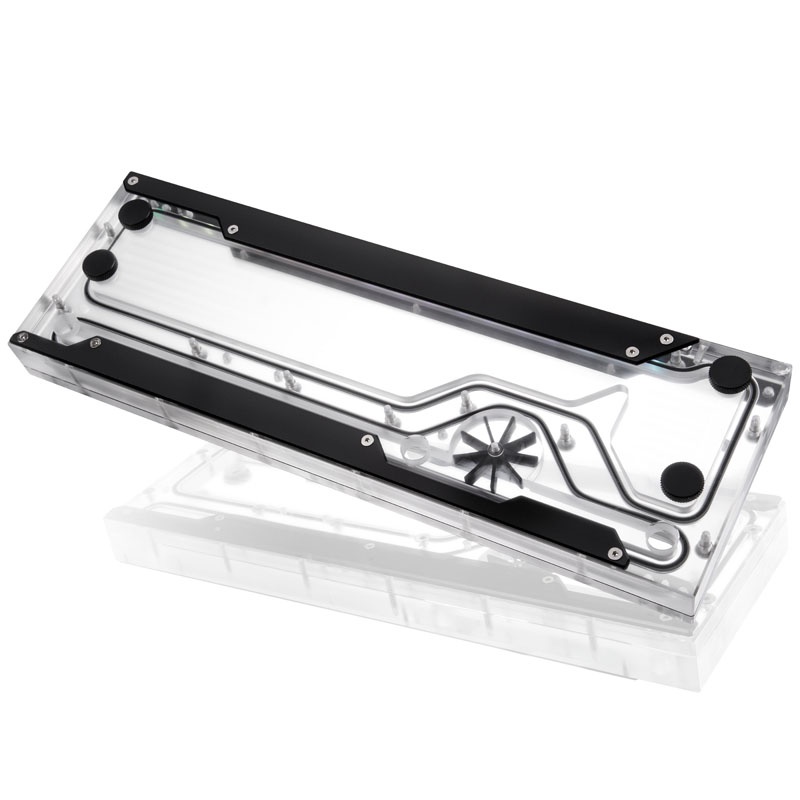

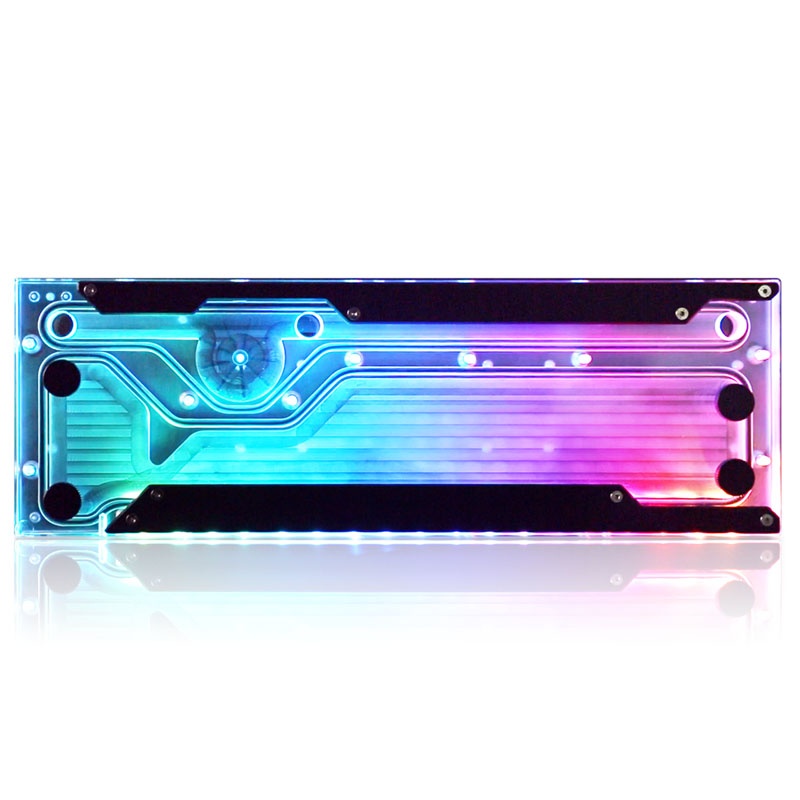

RAIJINTEK ACHERON 360 RBW Distro Plate - Acryl, D-RGB

With the ACHERON series, Raijintek offers chic distro plates made of acrylic glass with RGB lighting, which also serve as expansion tanks.

The features of the Raijintek ACHERON 360 RBW Distro-Plate at a glance:
– Transparent distro plate made of acrylic glass
– A total of seven G1 / 4-inch connections
– Versatile mounting options
– Digitally addressable RGB LED lighting
– Integrated flow indicator
– Chic distro plate with digital RGB lighting

The Raijintek ACHERON 360 RBW is made of high quality acrylic glass and offers a clear view of the coolant. The distro plate has a total capacity of 220 ml and can therefore also function as a compensation container. In addition to the purely optical effect, the Raijintek ACHERON 360 RBW also facilitates the conception and implementation of the custom loop.

The Raijintek ACHERON 360 RBW offers two inlets, three outlets as well as a fill and a drain port with G1 / 4-inch threads. A flow sensor in the form of a small screw shows the direction and speed of flow. A total of 21 digitally addressable RGB LEDs stage this effectively on the distro plate. The lighting can be controlled via a digital RGB header of compatible mainboards or the RAIJINTEK RJK ARGB-PWM Control Set (item no .: LULS-334).

Technical details:
– Dimensions (W x H x D): 120 x 360 x 34 mm
– Weight: 1475 g (without liquid)
– Material: acrylic glass / aluminum
– Color: Transparent / Black
– Capacity: 220 ml
– Connections: 7x G1 / 4 inches (including fill and drain port)
– Lighting: RGB (digitally addressable)
– Number of LEDs: 21
– Connection: 1x 3-pin (5V)
– Maximum coolant temperature: not specified
Scope of delivery:
– 1x Raijintek ACHERON 360 distro plate
– 2x mounting brackets
– 4x M4 nut
– 4x M4 screw (6 mm)
– 8x M4 screw (8 mm)
– 4x screw (31.75 mm)
– 1x instruction
