When Primo Chill CTR (Compression Tube Reservoir = pressure pipe expansion tank) Phase II is an expansion tank, which is to satisfy the need of modders by design and especially color.

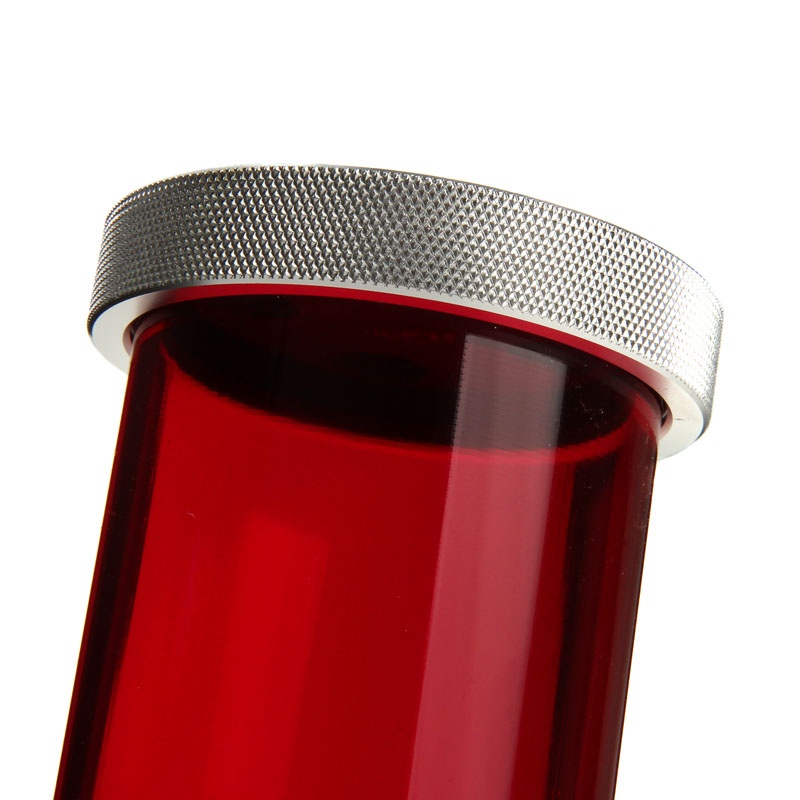

What makes the new CTRs compared to other similar products so unique in the market, are the new caps of the compression rings made of Delrin. These seal the reservoir from complete without that one must also cut Kompontenen or Resevoir must mask off with tape. For here, a simple screw mechanism already completely out to seal the reservoir.
When Primo Chill CTR (Compression Tube Reservoir = pressure pipe expansion tank) Phase II is an expansion tank, which is to satisfy the need of modders by design and especially color.
What makes the new CTRs compared to other similar products so unique in the market, are the new caps of the compression rings made of Delrin. These seal the reservoir from complete without that one must als...
When Primo Chill CTR (Compression Tube Reservoir = pressure pipe expansion tank) Phase II is an expansion tank, which is to satisfy the need of modders by design and especially color.
What makes the new CTRs compared to other similar products so unique in the market, are the new caps of the compression rings made of Delrin. These seal the reservoir from complete without that one must als...
No products found
Similar to the PrimoCHILL rigid fittings, the CTR use phase II, the same principle, to secure the sensitive acrylic tube and sealed. So little to no force is exerted on the Terms of acrylic and thus also prevents the possible formation of cracks.

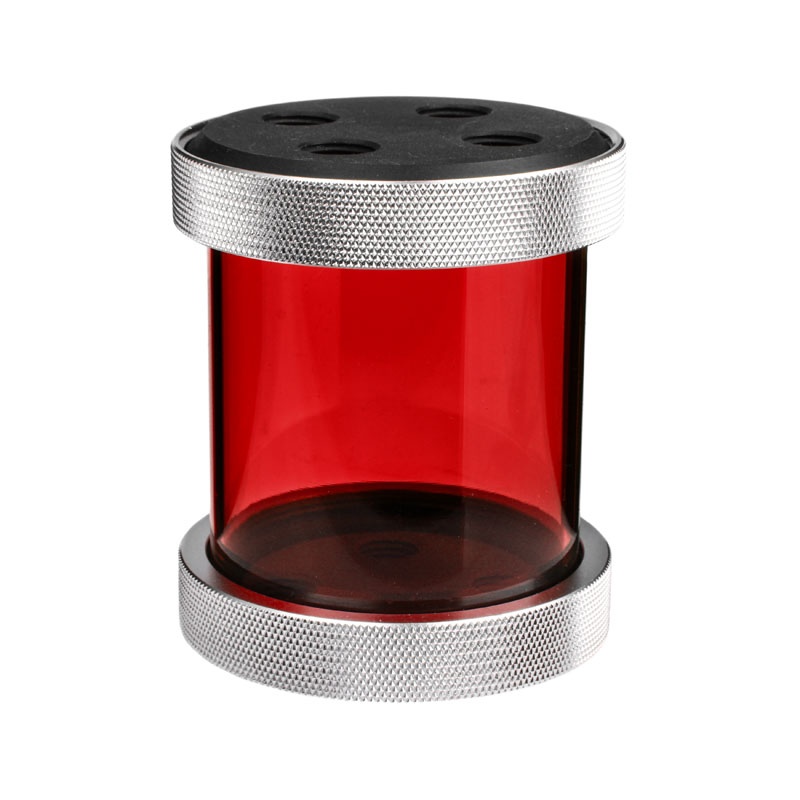

Four G1 / 4 ports on the lid and four G1 / 4 ports at the bottom of the phase II are in this variant. The former serve the influence of the coolant, while the latter outflow serve selbigens.
This reservoir appears in bright red and has an inner diameter of 57 mm and an outer diameter of 63 mm. The CTR Phase II is 90 mm long (without fittings).
Included is corresponding accessories such as sealing plugs for the ports, sealing rings and a simple mounting system is not required. Watercooling ports or acrylic tubes are not included and must be purchased separately.
Technical Details:
Material: acrylic glass (reservoir), Delrin (caps)
Color: Red
Connectors: 8x G1 / 4 inch
Diameter (outside / inside): 63/57 mm
Length: 90 mm (with caps)
Scope of delivery:
Primo Chill 80mm Conditions CTR System Phase II – red
sealing plug
Mounting System
seal rings
