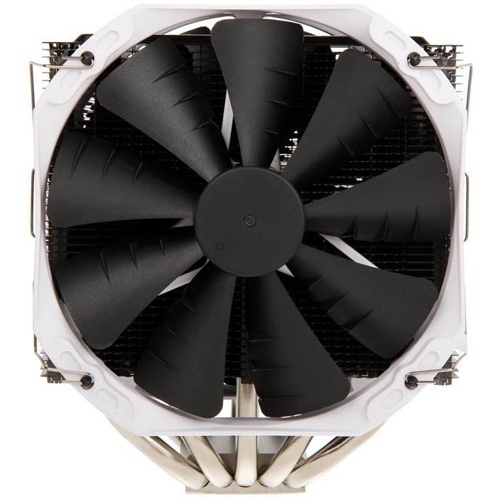

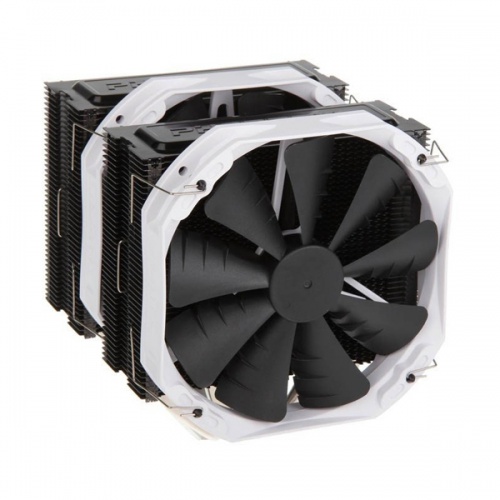

PHANTEKS PH TC14PE CPU Cooler - Black

The TC14PE has five thick heatpipes in 8mm format, which distribute the heat evenly across two large cooling towers. The cooling towers are available in different colors so that the optics are adapted perfectly to the body styling. Suitable also the fans are colored depending on the version.

Two 140s are included here can be supplemented by a third thanks to an extra pair of parentheses (the fans are also available separately). Apart from the enormous size of the fans, which is advantageous even on its own to transport more air at lower volume, Phanteks has developed an optimized wing geometry, which enhances this effect.

Nearly 150 m³ / h at 19.6 dB (A) is an announcement! Phanteks also submit to the cooler in a PWM-adapter, with both fans by pulse-width modulation can be controlled automatically. From a high camp also benefits not only the smoothness, but also the life. With 150,000 hours, the condenser is thus a permanent investment, not least of which underlines the high base-compatibility.

Technical details:
    Measurements:
    No fan: 140 x 134 x 160 mm (W x H x D)
    With fans: 140 x 159 x 171 mm (W x H x D)
    Material: Nickel-Copper (base plate, heat pipes), specially coated aluminum (blades)
    Color (cooler / fan): Black / White-Black
    Weight:
    Fanless: 970 g
    With 1x Fan: 1.100 g
    With 2x fans: 1.250 g
    Heatpipes: 5x 8 mm
    Fan: 2x 140 mm PH-F140
    Non-PWM operation:
    Speed: 1,300 rpm /
    Volume: 19.6 dB (A)
    Airflow: 149.7 m³ / h
    Static Pressure: max. 1.37 mmH2O
    PWM operation:
    Speed: 700-1200 r / min
    Volume: 13.4 to 19 dB (A)
    Airflow: 76.2 to 132.0 m³ / h
    Static Pressure: max. 0.45 to 1.21 mm H2O
    Life expectancy: 150,000 hours
    Compatibility:
    Intel Socket 775, 1155, 1156, 1366, 2011
    AMD Socket AM2, AM2 +, AM3 and AM3 +, FM1 (requires reference backplate)
    Warranty: 5 years
