Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has achieved in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate.
With the fans of MP, SP and XP series Phanteks would like to emphasize that call once more and truly great sends fans into the race, the SP and XP versions (with and without PWM connector) to a very high airflow are designed, while the MP-fans (with PWM connector) of the maximum static pressure in the foreground.
Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has achieved in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. With the fans of MP, SP and XP series Phanteks would like to emphasize that call once more and truly great sends fans into the race, the SP and XP versio...
Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has achieved in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. With the fans of MP, SP and XP series Phanteks would like to emphasize that call once more and truly great sends fans into the race, the SP and XP versio...
No products found
The nine fan blades on the rotor of the PH F200SP were further optimized to and designed in a perfect angle to generate an ideal relationship between oil flow and static pressure: at this 200-mm specimen obtained with 3-pin connector that with full 12 volts Airflow from a rich 186 m³ / h and 1.04 mm H2O in static air pressure.
The fan operates at full 12 volts with low 25 dB (A), the good result is partly due to the feature called Maelstrom Vortex Booster, short MVB. The jagged ridges on the outer edges thereby define the airflow stronger, which means less turbulence and thus reduced noise level.
All the amenities of an innovative blade design fizzle out, however, if the drive and bearings fail and chirps of the fan, humming and / or rattles. Such a thing does not exist in Phanteks of course, the fans come with the proven UFB-Bearing (Updraft Floating Balance), which quiet operation and extreme life of 100,000 hours ensures.
No wonder that Phanteks once again does not hesitate to provide very generous five years warranty on the PH F200SP fan. Thanks to the built-in fan frame rubber gates at the 154-mm holes is counteracted when used as a case fan vibration transmission to the case – even at full 800 rev / min.

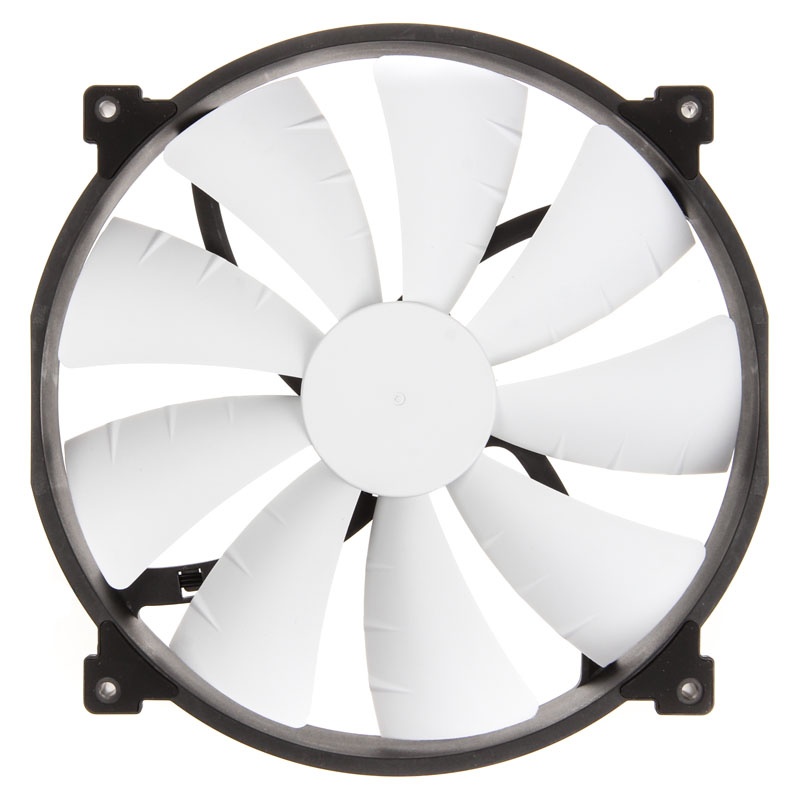

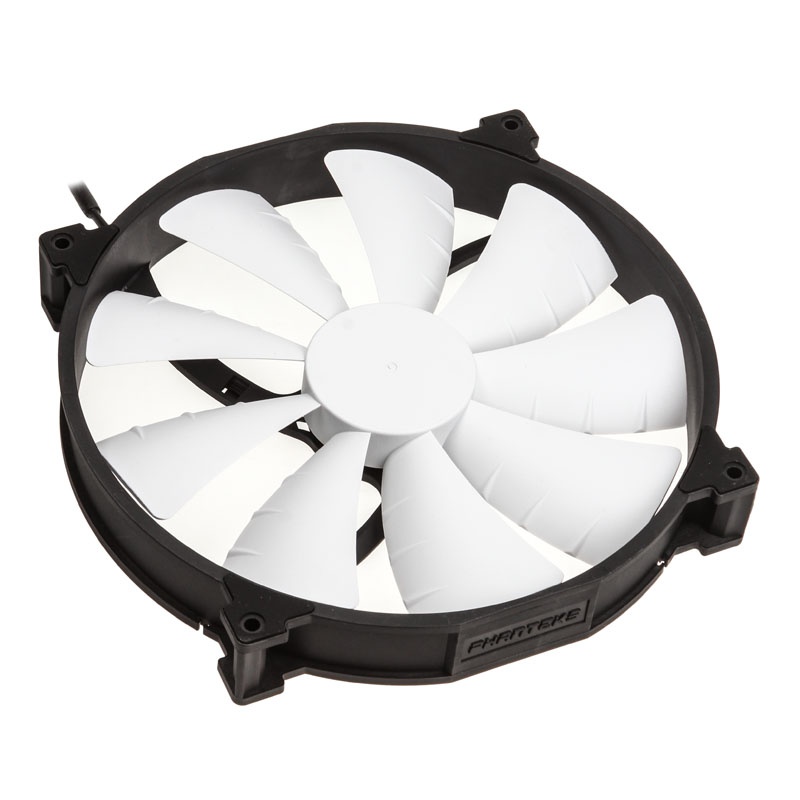

Visually, the quiet but powerful fans an asset to any housing are: the black frame with extra cad design and curved webs sits the white rotor with nine leaves. The 90 cm long 3-pin connector cable is sleeved black, which also go to the 40 cm long additional cable. It comes with four standard fan screws.
Technical details:
Dimensions: 200 x 200 x 30 mm (W x H x D)
Holes: 154 x 154 mm
Color: Black (frame), White (rotor)
Noise level: 25 dB (A)
Speed: 800 (+/- 250) U / min
Stroke: 186.1 m³ / h
Static pressure: 1.04 mm H2O
Voltage: 12 V
Power Consumption: 3 W / 0.25 A
Life expectancy: 100.000 hours
Manufacturer Warranty: 5 years
connection:
3-pin
Scope of delivery:
PH-F200SP fan
4x fan screws
1x 3-Pin Extension Cable (400 mm)
