Phanteks stands for innovation, quality and distinctiveness - a reputation the young company has developed in a short time. With cool strong, specially coated and excellent processor coolers fans, both in terms of quietness and handling performance.
With the fans, the SP and XP series (with and without PWM connector) would Phanteks underline this call once more and truly sends great fans into the race, which should be further refined technically compared to the previous series - a ambinioniertes undertaking which was dissolved with flying colors!
Phanteks stands for innovation, quality and distinctiveness - a reputation the young company has developed in a short time. With cool strong, specially coated and excellent processor coolers fans, both in terms of quietness and handling performance.With the fans, the SP and XP series (with and without PWM connector) would Phanteks underline this call once more and truly sends great fans int...
Phanteks stands for innovation, quality and distinctiveness - a reputation the young company has developed in a short time. With cool strong, specially coated and excellent processor coolers fans, both in terms of quietness and handling performance.With the fans, the SP and XP series (with and without PWM connector) would Phanteks underline this call once more and truly sends great fans int...
No products found
The nine fan blades on the rotor of the PH F140SP were further optimized to and designed at a perfect angle to generate an ideal ratio between oil flow and static pressure at this 140-mm specimen with 3-pin connector is the at full 12 volts Airflow from a rich 138 m³ / h and 1.33 mm H2O in air pressure.
The fan operates at low 19 dB (A), and thus not even louder than its predecessor. The Silence also provides success here, especially the feature called Maelstrom Vortex Booster, short MVB. The serrated ridges on the outer edges defining thereby the air flow stronger, which makes for less turbulence and thus for less noise.
All the amenities of an innovative blade design fizzle, however, if the drive and bearings fail and the fan chirps, hums and / or rattles. Such a thing does not exist for Phanteks of course, the fans come with the proven UFB Bearing (Updraft Floating Balance), which quiet operation and extreme durability of 150,000 ensures hours.
No wonder Phanteks once again not afraid to provide very generous five years warranty on the PH F140SP fan. Thanks to the built-in fan frame Rubber-gates at the 140-mm holes is counteracted when used as a case fan vibration transmission to the case – even at full 1200 r / min.

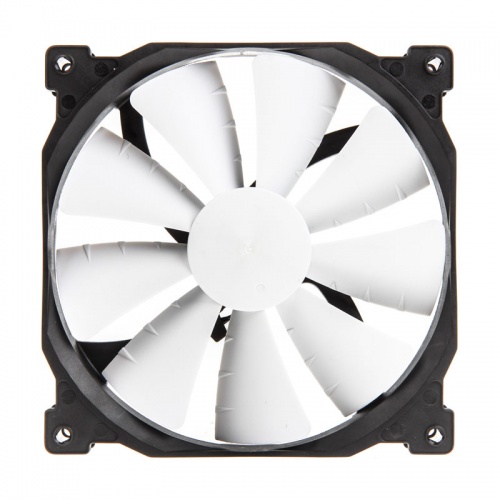

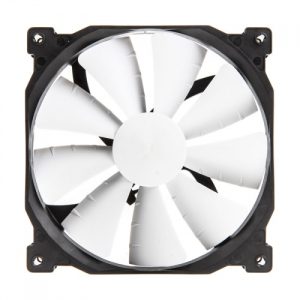

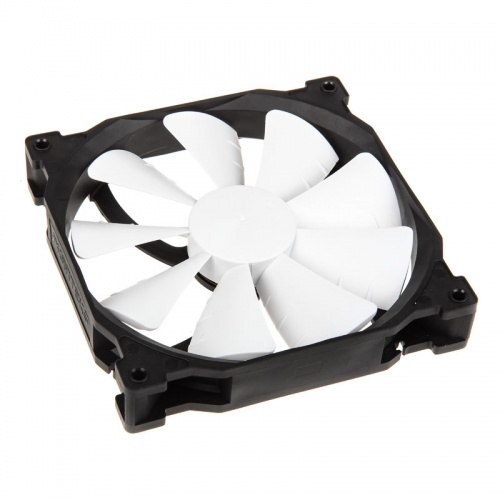

Visually, the quiet but powerful fans are an asset to any CPU cooler and each case: in a black frame with extra vulgar shape and curved ridges sits the white rotor with nine leaves. The 3-pin connector cable is black sleeved, which is also for the additional 40 cm long cable.
Technical details:
Dimensions: 140 x 140 x 25 mm (W x H x D)
Holes: 140 x 140 mm
Black (frame), White (rotor)
Noise level: 19 dB (A)
Speed: 1,200 (+ / – 250) U / min
Air flow volume: 138.7 m³ / h
Static Pressure: 1.33 mm H2O
Voltage: 12 V
Power consumption: 1.8 W / 0.14 A
Life expectancy: 150,000 hours
Manufacturer Warranty: 5 years
Connection:
3-pin
Scope of delivery:
PH F140SP fan
4x Fan screws
1x 3-pin extension cable (400 mm)
