Phanteks stands for innovation, quality and distinctiveness - a reputation the young company has developed in a short time . With cool strong , specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. And also in terms of design we sat with new shapes and colors much joy accents.
With the luxury Big-Tower Primo , the Dutch presented not only the first representatives of their Enthoo series, but also her first computer case at all. The Phanteks Enthoo Primo was able to convince away with his distinctively elegant design , the massive features and its overwhelming support for internal cooling water from the spot, but nevertheless remained a prohibitive hardware treasure for many.
Phanteks stands for innovation, quality and distinctiveness - a reputation the young company has developed in a short time . With cool strong , specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. And also in terms of design we sat with new shapes and colors much joy accents.
With the luxury Big-Tower Primo , the Dutch presented not only the first re...
Phanteks stands for innovation, quality and distinctiveness - a reputation the young company has developed in a short time . With cool strong , specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. And also in terms of design we sat with new shapes and colors much joy accents.
With the luxury Big-Tower Primo , the Dutch presented not only the first re...

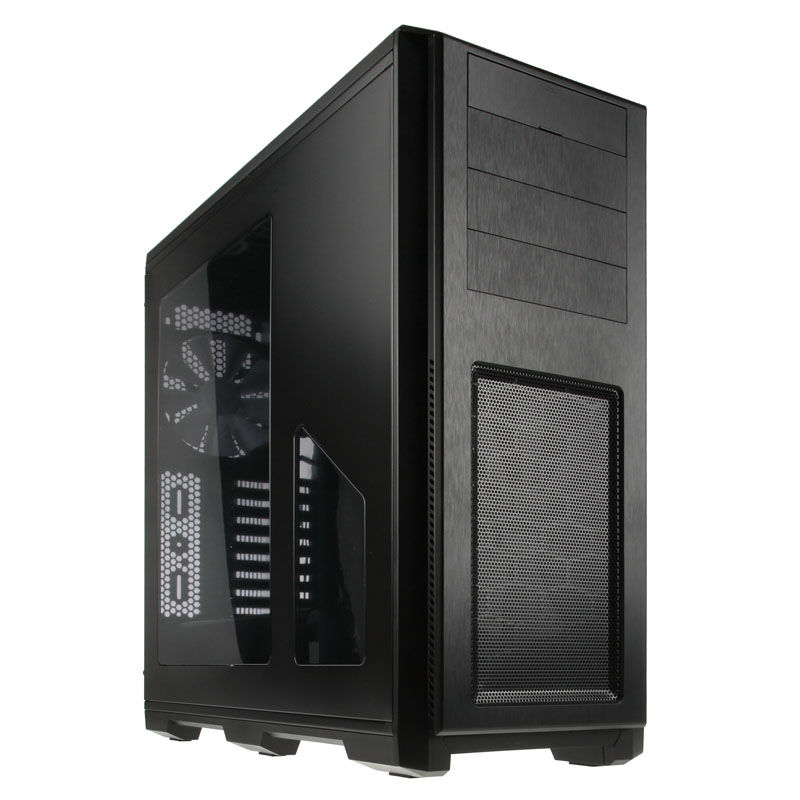

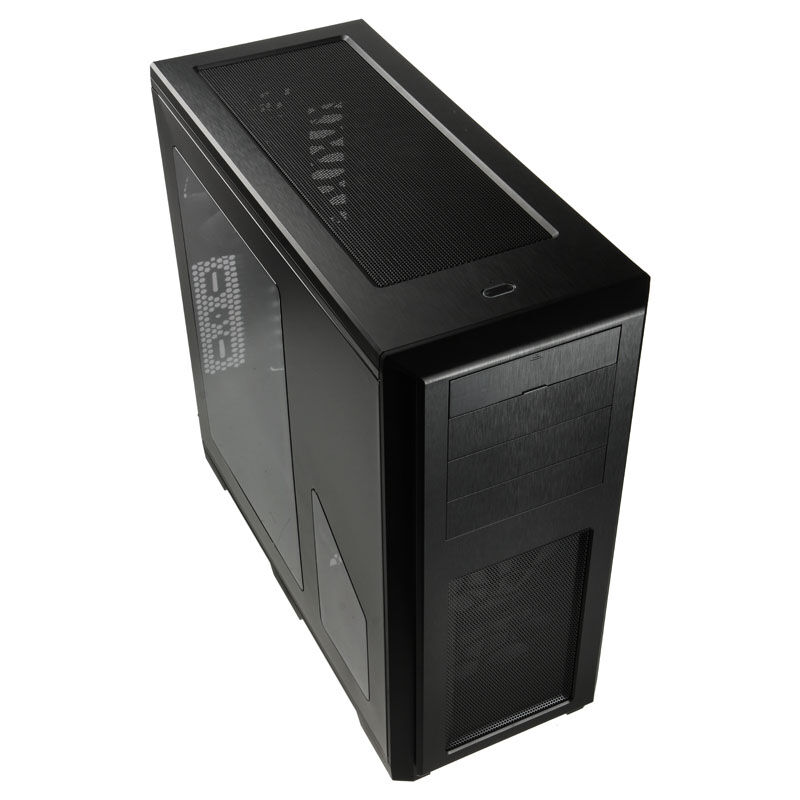

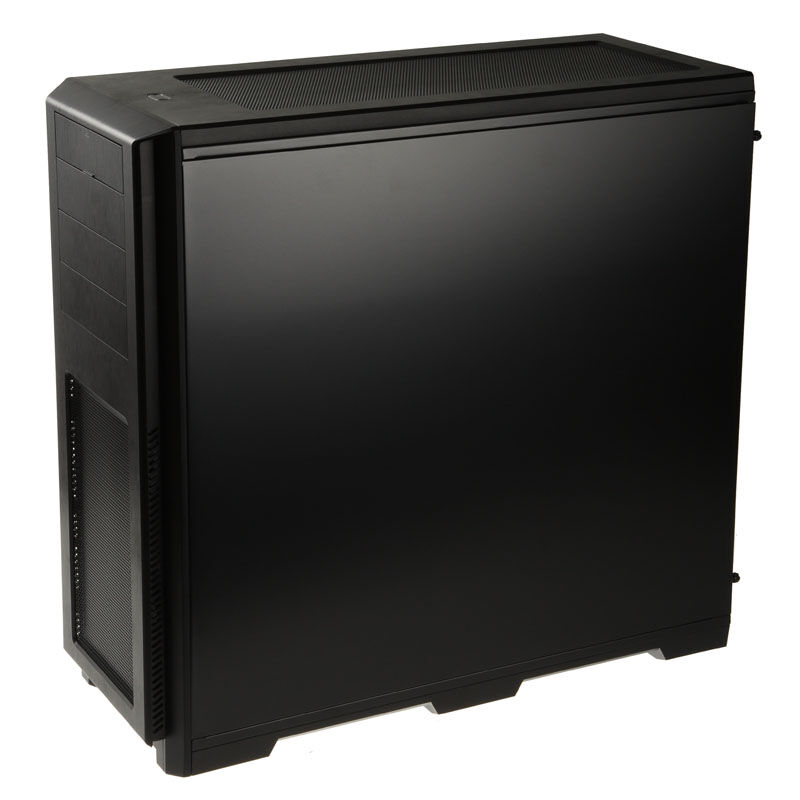

Phanteks has managed the Enthoo Pro, the cost-saving cuts to hide so well that you can hardly believe you have something less than the Primo right Noble . An example of this is the choice of material at the front end and top panel. That this is only apparently brushed aluminum, but in truth it is specially treated plastic, can be purely visual glimpse little . Thus, the strong family resemblance between midi and Big-Tower is maintained.

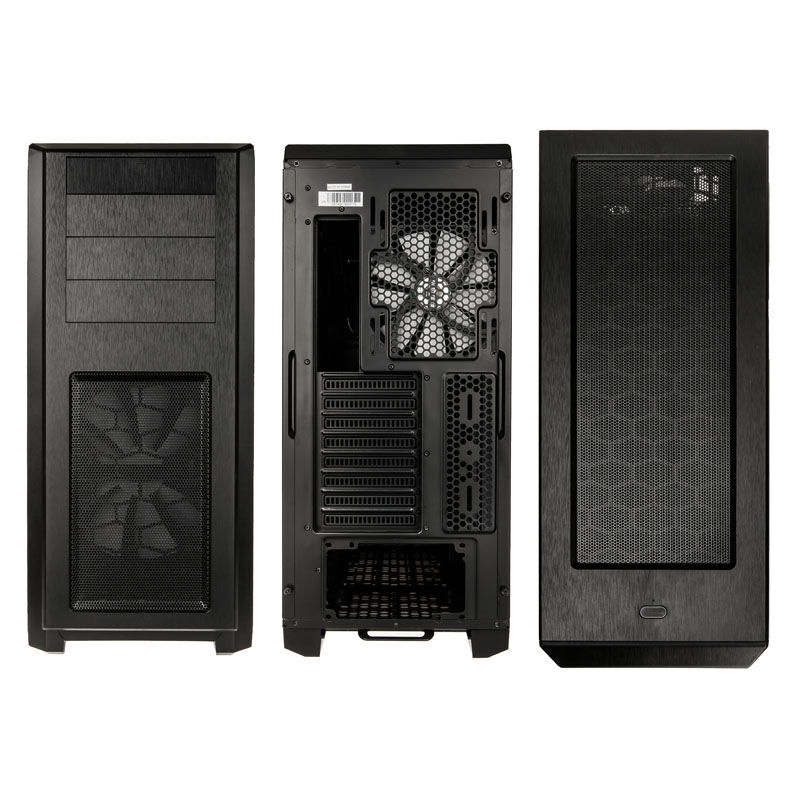

This also applies to the forms that fail a little more conservative when Enthoo Pro again . This , however, does a wonderful aesthetic appeal not disturb wonderfully straight and one hundred percent symmetrical enters the Phanteks Enthoo Pro . At the bottom of the front of a rectangular grid of holes area forms the Ansaugareal for the fan positioned behind it . A 200 – mm rotor is already advanced.

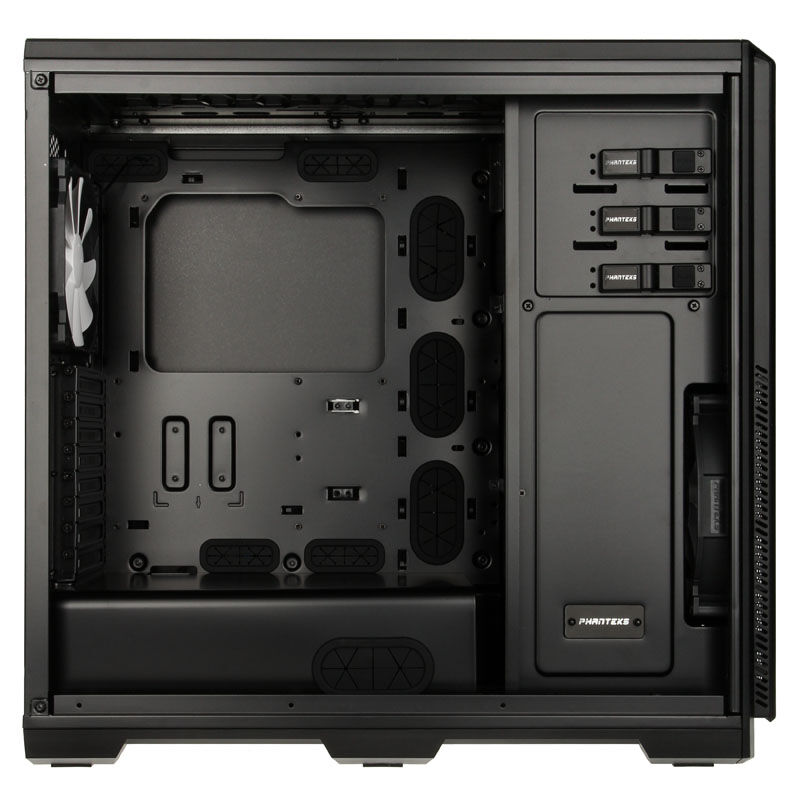

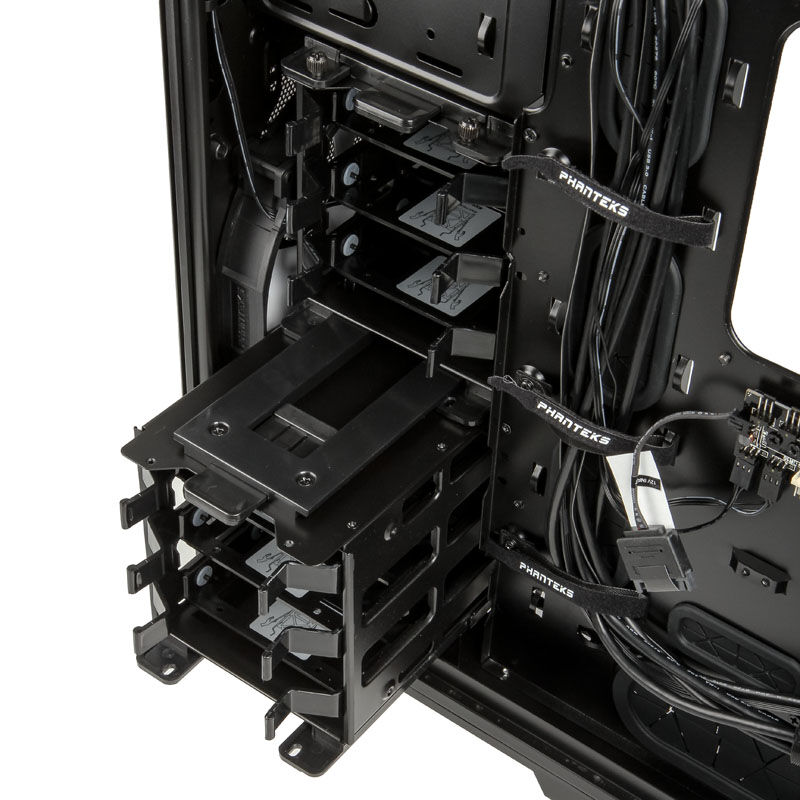

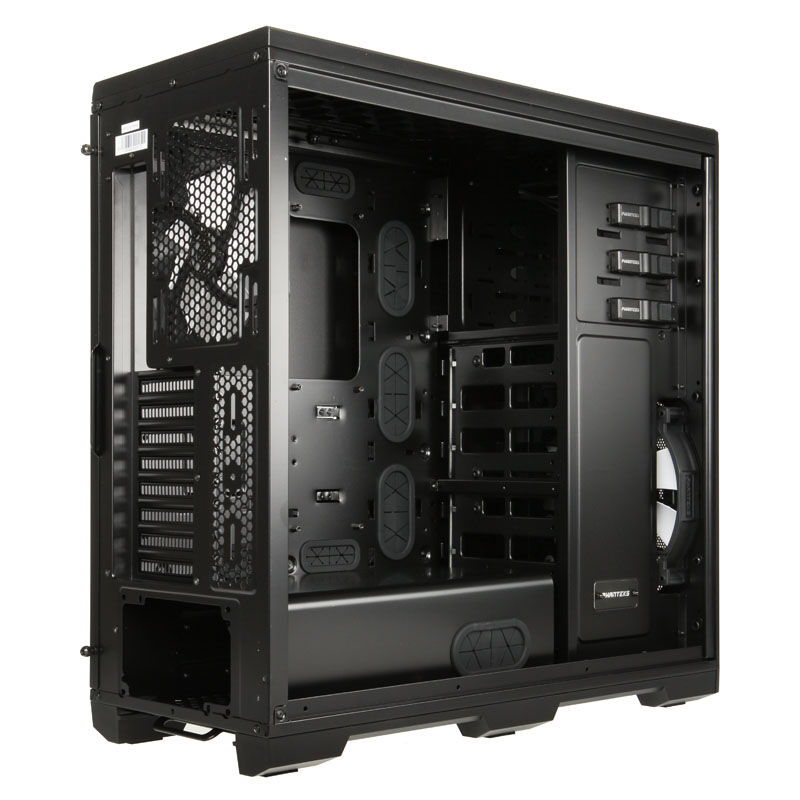

The open right side of the case reveals more great features , as they already know from Enthoo Primo : Front sitting two individually removable HDD cages , which is also from here with 3,5 – or 2,5- inch drives are to be loaded . At the back , however, there is an additional 2.5-inch recording with Drop -n -Lock mechanism. Thanks to the many Velcro fasteners and clips from the concentrating and directing of cables is very easy to do , especially since this rule space from 2.7 to 3.9 cm.

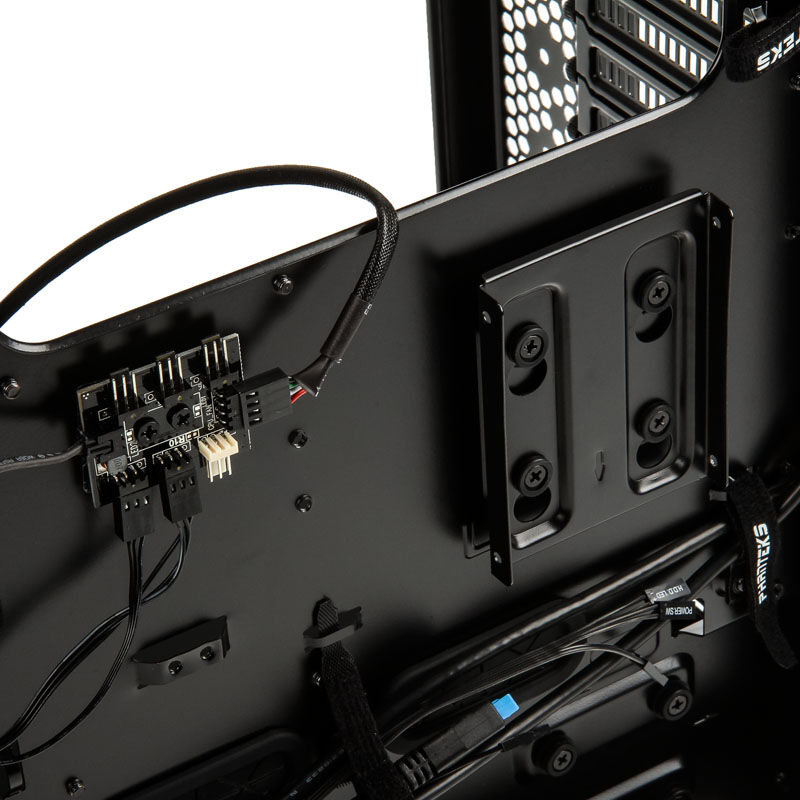

And also another enormous practical Phanteks – invention is housed there. A small circuit board with connections for up to six 3- pin fan . Per Molexkabel these are power supply side power. The trick is that they are all automatically controlled speed – and depending on the PWM signal , which specifies the built-in motherboard. On this point, an extra cable from the fan hub to the 4-pin PWM connector on the motherboard . Thus the two pre-installed and four additional fans can be controlled synchronously and temperature dependent.
The mid-tower offshoot Enthoo Pro is the ideal alternative for all fans of Phanteks housing designs that visually and technically do not have to give up too much here, but it got a lot of Phanteks offered .
Specifications
| Dimensions | 235 x 535 x 550 mm (W x H x D) |
|---|---|
| Material | Steel (Body), Plastic with brushed aluminum optics (front cover) |
| Color | Black |
| Form Factor | E-ATX, ATX, Micro-ATX, Mini-ITX, SSI EEB |
| Total Fans Possible | 1x 200 / 2x 140/120 mm (front) 1x 140/120 mm (rear) 2x 120 mm (HDD cage) 1x 200 / 3x 140/120 mm (top) 1x 140 / 2x 120 mm (bottom) |
| Pre-installed Fans | 1x 200 mm (front) 1x 140 mm (rear) |
| Radiator Mountings | 1x max. 240 mm (front) 1x max. 120/140 mm (rear) 1x max. 360/420 mm (top, up to 65 mm height) 1x max. 240/140 mm (bottom) |
| Filters | Front, Top, Base, Power Supply (removable) |
| Drive Bays | 3x 5.25 inch (external; tool-less) 6x 3.5 / 2.5 inch (internal, 2 HDD cages, 3.5″ tool-less) 1x 2.5 inch (internal; SSD bracket behind motherboard tray with Drop-n-Lock) |
| Power Supply | 1x Standard ATX (optional) |
| Expansion Slots | 8 |
| I/O Panel | 2x USB 3.0 (internal connection) 2x USB 2.0 1x Audio In 1x Audio Out |
| Maximum GPU Length | 347 mm (with HDD cages) 472 mm (without HDD cages) |
| Maximum CPU Cooler Height | 193 mm |
£106.99£89.16 Inc VatEx Vat
