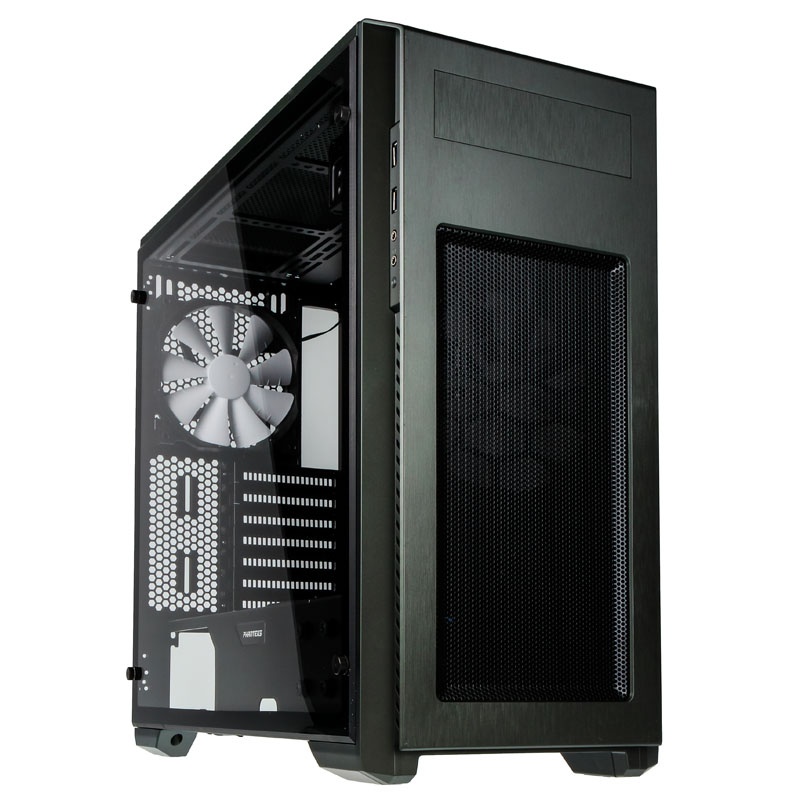

With the luxury Big-Tower Primo, the Dutch presented not only the first member of their Enthoo series, but also their first computer case at all. The Phanteks Enthoo Primo convinced away with his distinctively elegant design, the mass features and its overwhelming support for internal water cooling from the spot, but still remained a prohibitive hardware treasure for many.
Therefore followed the favorable Enthoo offshoot called Luxe and Pro in mid-tower format. With the Enthoo Pro M Acrylic Window Edition now follows a further variant, which is slightly smaller than the versions above. It combines the sophisticated inner workings of Enthoo Evolv ATX with a design that inspired by the Enthoo Primo and Enthoo Pro and is equally straightforward. Overall, the housing is more compact than the mentioned, but also includes a lot of space for water cooling systems and even for E-ATX motherboards up to 264 mm width. In particular, the front panel is made very high quality with the high-quality surface in the style of brushed metal and has a large black mesh as air inlet. Up in the front, a 5.25-inch bay is hidden behind a screen, the side in the front are the I / O ports, two USB 3.0 and two audio ports and reset button.

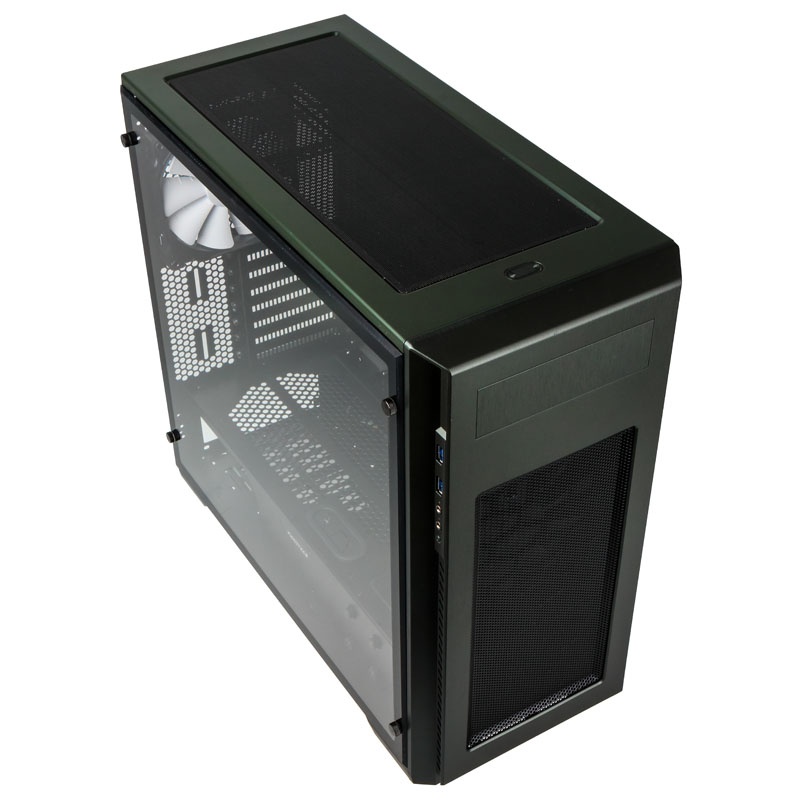

The top part is the look continues seamlessly. Front only a power button, behind are fan slots behind mesh hidden. Unlike many other cases Phanteks has the Enthoo Pro M donated a dust filter not only in front and bottom, but also here. The offered Acylic Window version of Enthoo Pro M in the color Titanium Green has a large side window that covers the entire left side surface and makes the interior visible and allows a breathtaking view of the hardware. The view through the window reveals, besides many rubberized cable passages and a separate, sealed chamber for the ATX power supply that draws its fresh air from below and its heat does not radiate to other parts in the Tower.
Behind the front panel two 140- or 120-mm fans can be attached, for elimination of the 5.25-inch cage even three 120 or a corresponding heat exchanger, and at the rear an additional 140s is preassembled. The fan assembly can hereby be increased by a further two 140- or three 120 mm fans in the lid. Alternatively, also according to each a 280- or 360-mm heat exchangers are mounted, which can be installed in the cover on a side pull-out bracket. This clashes with the inserted RAM modules can be prevented during the installation of a Radis – including contributing to the fan and possibly the radiator are not mounted centrally but offset to the left, which is the maximum space available between the motherboard and fan / radiator. At the back of the installation of a radiator the size is similar to the fan assembly also 120 or 140 mm possible – overall a very strong ventilation and plenty of space for water cooling components.
The power supply, which is mounted in the housing bottom and is decoupled from the aeration of the hardware, sitting under a black metal cover, which makes the interior look very tidy and behind the front in this area also two bays for 2,5 or 3, 5-inch disk provides. At this point, however, the included anti-vibration pump bracket can be mounted alternatively. If this is installed in conjunction with a larger reservoir or behind the front a radiator is used, can be removed from the horizontal separation of a portion of its part but also provides for mounting a pump and reservoir. There are so many different ways, drives and accommodate water cooling. Also directly behind the front, there is the possibility of using optional trays up to five 3.5 or 2.5-inch drives to accommodate – the trays are screwed here with the motherboard support.
On the back of Mainboardtrays invite stately 35 mm space for ordinary cable laying. Furthermore, here a 2.5-inch bracket with Drop-n-Lock mechanism for a 2.5-inch Drive is available, depending on another of this type can be right next to it and the front side is mounted on the power supply cover ,
Note: There can only one 360-mm radiator to be installed, either the top of the cover or the front of the front.
Technical details:
Dimensions: 235 x 480 x 500 mm (W x H x D)
Weight: approx 7.4 kg
Material: Steel (Body), acrylic (side windows), plastic optics of brushed aluminum (front cover)
Color: Titanium Green
Form Factor: E-ATX (up to 264 mm wide), ATX, Micro-ATX, Mini-ITX
Fan total possible:
2 x 140/3 x 120 mm (front, with 5.25-inch cage only 2 x 120 mm))
2 x 140/3 x 120 mm mm (lid)
1 x 140/120 mm (rear)
Of preinstalled:
1 x 140 mm (back side; PH-F140SP, 1200 U / min, 19 dB (A))
Radiator Mountings (partial waiving HDD and / or fan slots):
1 x max. 280/360 mm (front, 360 mm only without 5.25 Cage)
1 x max. 140/120 mm (rear)
1 x max. 280/360 mm (lid) *
* Distance from the motherboard tray in 120 format: 68 mm
* Distance from the motherboard tray in a 140 format: 48 mm
Please note possible maximum amount of memory!
Filter: Front, lid, power supply (removable)
Drive Bays:
1 x 5.25 inches (external, removable shaft)
2 x 3.5 inch (internal; decoupled; + 5 x optional via the optionally available HDD Bracket PH HDDKT_02)
4 x 2.5 inch (internal; 2 x instead of 3.5 inches; 2 x per SSD bracket behind the motherboard tray with Drop-n-Lock + 1 x or 2 x optional via the optionally available SSD Bracket GEPH -009 or GEPH-010)
PSU: 1 x Standard ATX (optional)
Expansion Slots: 7
I / O panel:
2 x USB 3.0
2 x Audio
Maximum video card length 420/300 mm (with / without HDD brackets)
Maximum CPU cooler height: 194 mm
Maximum power supply Length: 318 mm
Warranty: 5 years
