Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has achieved in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. And in terms of design you sat with new shapes and colors much joy accents. With the luxury Big-Tower Primo, the Dutch not only presented the first representatives of their Enthoo series, but also her first computer case at all.
The Phanteks Enthoo Primo could convince away with its distinctive elegant design, the massive features and its overwhelming support for internal water cooling from the spot, but still remained a prohibitive hardware treasure for many.

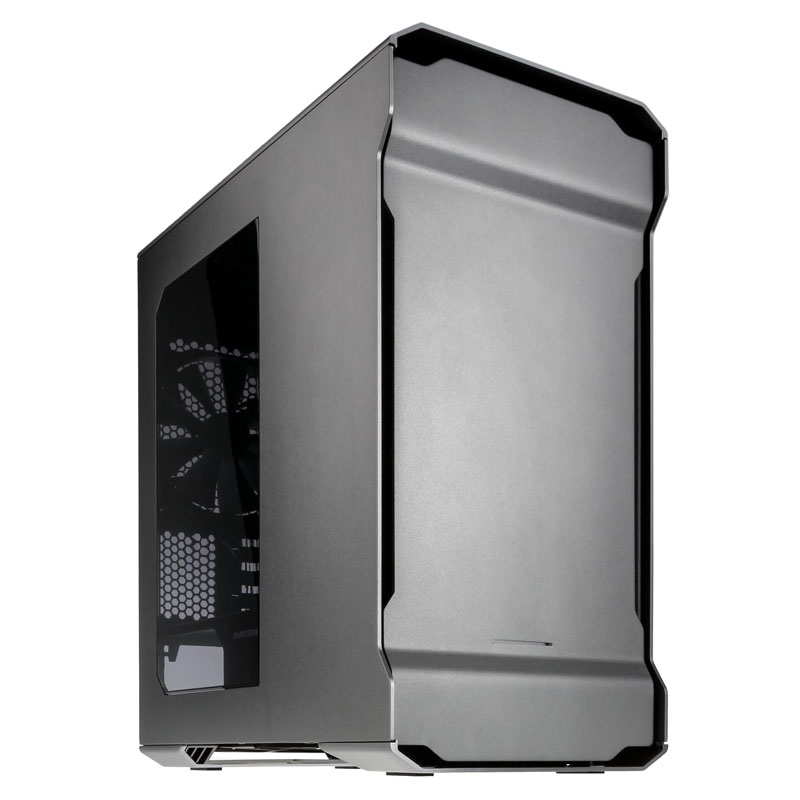

Phanteks Enthoo Evolv Micro-ATX Case - Anthracite
Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has achieved in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. And in terms of design you sat with new shapes and colors much joy accents. With the luxury Big-Tower Primo, the Dutch not only presented the first repre...
Phanteks stands for innovation, quality and uniqueness - a reputation that the young company has achieved in a short time. With its cool and strong, specially coated processor coolers and excellent fans, both in terms of smoothness and flow rate. And in terms of design you sat with new shapes and colors much joy accents. With the luxury Big-Tower Primo, the Dutch not only presented the first repre...
Featured products
No products found

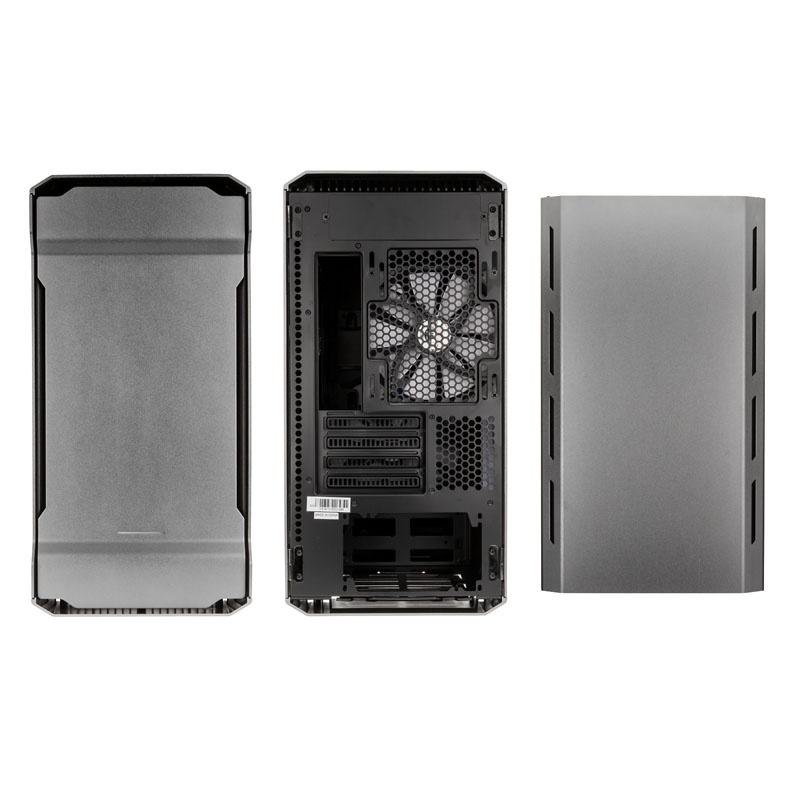

Despite its high functionality, the design of the Evolv is anything come as too short. The actual body inside is made of anthracite painted steel, the visible outer sides but in this version chic charcoal gray aluminum plates available. Thanks to a practical mechanism can be upper and front-side panel without tools and with only a slight pressure decrease, the left and right side panel (left with integrated window) even swings back on. Since the connect two USB 3.0 devices and a headset are embedded in the right panel as well as power or reset button, the unique appearance of Evolv remains unbroken in the front end. Below sits a narrow strip of light that shines in the ON state in one of four colors, the user decides itself here, which supplied the LEDs he likes to use. Air intakes for cooling were integrated in this noble-dark gray areas so as not to disturb the minimalist look.
And also another enormous practical Phanteks-invention is housed there. A small circuit board with connections for up to six 3-pin fan. Per SATA power cables, these are supplied by the power supply. The trick is that they are all automatically controlled speed – and depending on the PWM signal, which specifies the built-in motherboard. Leads an extra cable from the fan hub to the 4-pin PWM connector on the motherboard. Thus the two pre-installed and four other fan can be controlled synchronously and temperature dependent. With all these features it creates Phanteks which to establish itself in the Micro-ATX and Mini-ITX sector enormous flexibility and power comes to mind when the name Enthoo. The designers Enthoo the look and remain faithful to make thanks to aluminum insert and in the valence no compromise!
Technical details:
Dimensions: 230 x 450 x 400 mm (W x H x D)
Weight: 9 kg
Material: Steel (Body), aluminum (outer side)
Color: Anthracite
Form Factor: Micro-ATX, Mini-ITX
Fan total possible:
1x 200 / 2x 140/120 mm (front)
1x 140/120 mm (rear)
2x 140/120 mm (cover)
Of this pre-installed:
1x 200 mm (front)
1x 140 mm (rear)
Radiator Mountings (partial waiver of HDD and / or fan-Slots)
1x max. 240/140 mm (front)
1x max. 120/140 mm (rear)
1x max. 240/280 mm (lid, up to 68 mm height)
Filters: front, power supply (removable), cover
Drive Bays:
1x 5.25 inches (external, backward; removable)
3x 3.5 inch (internal, 2x tools)
6x 2.5 inch (internal; 4x instead of 3x 3.5 inches; 1x SSD bracket behind the motherboard tray with Drop-n-Lock + 1x optionally via the optionally available SSD bracket GEPH-009)
Power supply: 1x Standard ATX (optional, max 216 mm in length.)
Expansion Slots: 4
I / O Panel:
2x USB 3.0 (internal links)
1x per Audio In / Out
Maximum video card length: 318 mm
Maximum CPU cooler height: 192 mm
Maximum power supply Length: 180 mm (without any waiver)
Maximum power supply Length: 216 mm (without HDD cage)
