Refined Design - Handmade in Europe!
The Latin word Parvus means small, low or insignificant. However, the housing company Parvum system are anything but a trifle. Founded by two young passionate modders from England in 2012, located Parvum system prepares to conquer with a unique strategy to housing market. To be able to effectively compete in the market, we need a very special unique selling point: All Parvum system enclosures are worked out in a tiny workshop in a rural area in Essex completely handmade. Thus, the small two-person housing Manufaktur wants to establish itself as a new player in the field of design housing.
Refined Design - Handmade in Europe!The Latin word Parvus means small, low or insignificant. However, the housing company Parvum system are anything but a trifle. Founded by two young passionate modders from England in 2012, located Parvum system prepares to conquer with a unique strategy to housing market. To be able to effectively compete in the market, we need a very special unique selling ...
Refined Design - Handmade in Europe!The Latin word Parvus means small, low or insignificant. However, the housing company Parvum system are anything but a trifle. Founded by two young passionate modders from England in 2012, located Parvum system prepares to conquer with a unique strategy to housing market. To be able to effectively compete in the market, we need a very special unique selling ...
No products found
In the procurement of raw material Parvum system relies on high-quality recycled acrylic directly from Europe. Thanks waste-avoidant quality raw materials the production of housing is particularly environmentally friendly. The 5 mm thick acrylic plates are manually milled with a small CNC machine work. This production process ensures a first class build quality according to European standards, it also allows a number of modifications to incorporate and ensures a wide range of possible color combinations. Meanwhile, the production facilities have been expanded to reflect the enormous attention to detail by the team even greater precision invoice and to be able to meet increased demand.
Now on the popular in the scene S2.0 Micro-ATX case and its equally coveted shrunken brother X1.0 in Mini-ITX format follows another small Mini-ITX offshoot. The ITX Case Veer 1.0 is, however, failed again slightly larger because it has been specifically designed to meet the requirements of a compact mini-system with very high performance, its powerful hardware to be reliably held mainly by water cooling temperature. Even for graphics card and CPU cooler is now a little more space, which accounts for the difference in many cases, and so even more hardware allows. This goes Parvum system one more time specifically to the wishes of the enthusiasts community and its company name again lived.

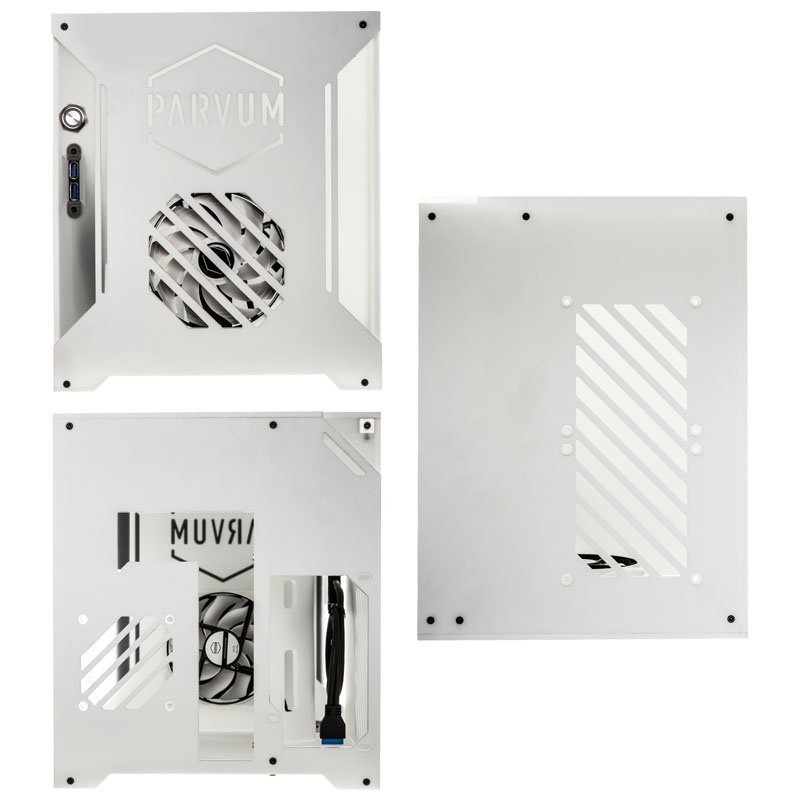

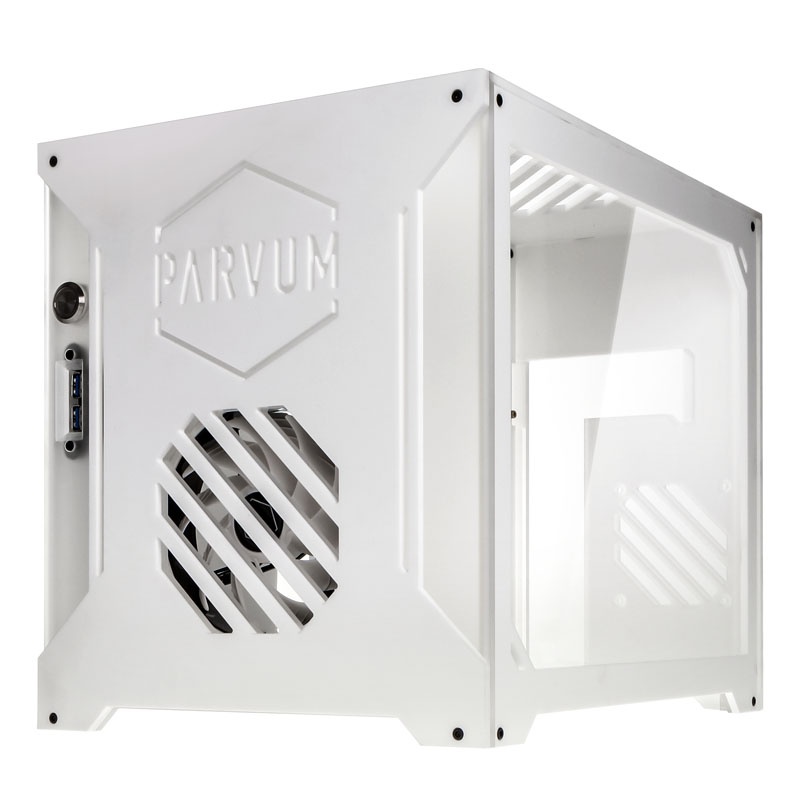

The white acrylic glass enclosures Veer 1.0 is a personal case for the personal computer, can be realized with enormous great performance especially with the small systems. The plain style is elegant but unobtrusive and makes it possible to create from a compact piece of furniture in the spirit of British understatement. The small dimensions of 267 mm by 295 mm by 357 mm come counterclockwise. As with the siblings S2.0 and X1.0, the feet of Veer 1.0 are subtly molded from the acrylic plates and ensure a secure grip on the desk without the premium look of the enclosure impairing.
The I / O panel located on the front of the compact Veer-1.0-cuboid with two fast USB 3.0 ports with internal motherboard connectivity, the illuminated power button and a ventilation grille for an enclosed 120 mm fan type Parvum system F1.0. There is another ventilation grille, alternatively, a 240-mm-radiator can be fixed by either breathe two 120 mm fans or at the at the top. When using an air-cooled graphics card with Stock cooler, the radiator can be up to 25 mm wide here, when a water-cooled graphics card comes with a correspondingly smaller dimensions used are the cover-radiator up to 65 mm are available.
The backside can be fitted with an optional 80-mm fans on the front and fit alternatively compact AiO-water cooler with 120mm radiators. As with the system Parvum X1.0 the motherboard is installed inverted even when Veer 1.0, so that the large window on the right allows an interesting insight to the interior of the housing. The material of the side window is scratch-resistant acrylic continue, so the owner always keeps a crystal clear insight. Fittingly, offers the chic copy truly British craftsmanship by his thoughtful interior.
The motherboard in the Mini-ITX format is installed vertically on a worrying additional stability partition (with cable outlet), which is also the optics to good and a decent cable management. All relevant components such as graphics cards and CPU cooler (with a maximum height of 160 mm) can be clearly seen through the viewing window. Behind the partition wall is located at the top of a suspension for two 2.5-inch hard drives. In the lower part of the left ventricle also finds decoupled from the airflow power supply in full ATX form its place, which draws its fresh air directly through the sidewall and transported on the back again.
Note: It is supplied as a handy flatpack and must be assembled yourself! All the necessary components, including screws and motherboard spacers are included.
Technical details:
Dimensions: 267 x 295 x 357 mm (W x H x D)
Material: Acrylic
Weight: 5 kg
Color white
Form Factor: Mini-ITX
Fan total possible:
1x 120 mm (front)
1x 80 mm (rear)
2x 120 mm (lid)
Of this pre-installed:
1x 120mm F1.0 Parvum (front)
Radiator Mounting (without fans):
1x 120 mm (front; maximum width: 100 mm)
2x 120 mm (cover; maximum width: 65 mm with watercooling GPU / 25 mm with Lukü GPU)
Drive Bays:
2x 2.5 inch (internal)
Power Supply: 1x standard ATX (optional)
Extension slots: 2
I / O Panel:
2x USB 3.0 (internal connection)
Maximum CPU cooler height: 160 mm
Maximum video card length: 335 mm
