The cutting-edge GPU architecture named Maxwell which inherits the Kepler generation, NVIDIA had first presented with the small, fine gaming Introductory card GeForce GTX 750 (Ti) based on the GM107-GPU - was followed in second Generation GTX 970 and 980 (GM204), the GTX 960 with the GM206 and finally - with 12 GB VRAM and 50% more shaders than the already very fast GTX 980 - the GeForce GTX Titan X as brachial fast but very expensive power hammer , With the GTX 980 Ti (here with optimized custom cooler from Palit), there is now the technical basis with the GM200 chip at an affordable price, and also impressed this graphics card like the other cards of the Maxwell generation through superior gaming performance at the same time very high energy efficiency.
The cutting-edge GPU architecture named Maxwell which inherits the Kepler generation, NVIDIA had first presented with the small, fine gaming Introductory card GeForce GTX 750 (Ti) based on the GM107-GPU - was followed in second Generation GTX 970 and 980 (GM204), the GTX 960 with the GM206 and finally - with 12 GB VRAM and 50% more shaders than the already very fast GTX 980 - the GeForce GT...
The cutting-edge GPU architecture named Maxwell which inherits the Kepler generation, NVIDIA had first presented with the small, fine gaming Introductory card GeForce GTX 750 (Ti) based on the GM107-GPU - was followed in second Generation GTX 970 and 980 (GM204), the GTX 960 with the GM206 and finally - with 12 GB VRAM and 50% more shaders than the already very fast GTX 980 - the GeForce GT...
No products found
The GM200 chip the Palit GeForce GTX 980 offered here Ti Super JetStream clocked into the basic level with 1.152 MHz and boosts when needed on average 1,241 MHz, just with increased power and temperature target can even tease higher clock speeds. The map unfolds while an overwhelming gaming performance! This conjures up via DisplayPort 1.2, HDMI 2.0 and DVI even 4K (surround) resolutions smoothly and with high details at (more) Ultra-HD displays.
G-Sync-compliant monitors can be operated by the NVIDIA GeForce GTX 980 Ti even right up to 4K resolution, which now also the ultra-HD gaming, the specific interaction of NVIDIA graphics card and display ensures that unsightly tearing effects thing of the past. Thanks to NVIDIAs new Super Resolution feature 4K graphics are now displayed in detail on Full HD monitors and the Game Stream technology ensures that PC games can be streamed to an NVIDIA SHIELD device.
For the enormously strong performance of Palit GeForce GTX 980 Ti Super JetStream is next to the Maxwell GPU GM200 with its revised SMX units and the 2,816 CUDA cores and the 6,144 MB lush GDDR5 video memory responsible for the in 3505 (effective 7010) MHz works and is connected via a whopping 384-bit wide memory interface. The power of the GeForce GTX 980 Ti is carried out in this model with an 8-pin and one 6-pin PCI Express connector of the power supply, which can muster at least 600 watts of power after recommendation from NVIDIA should.

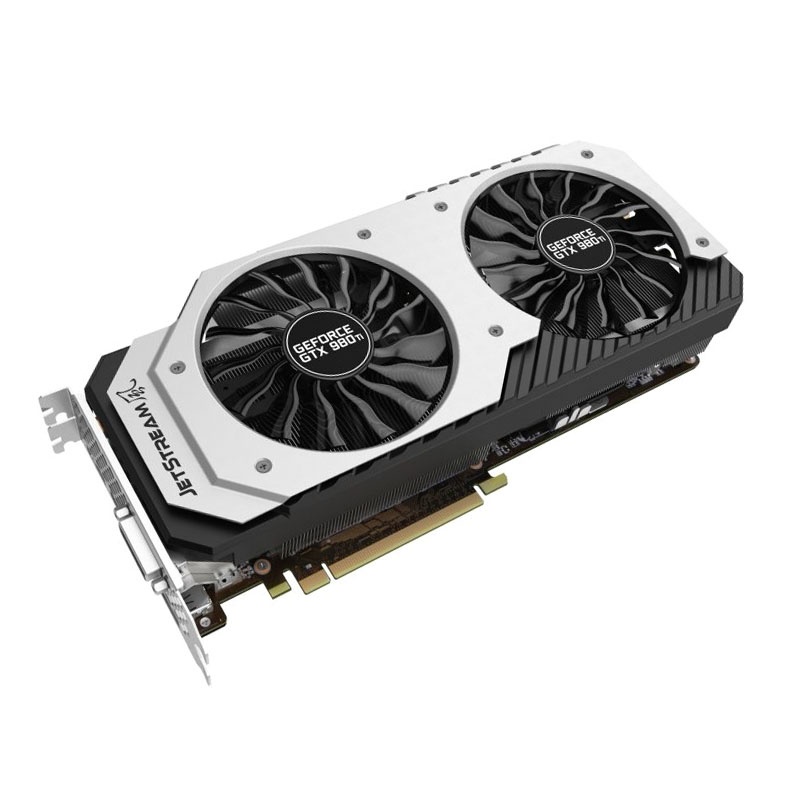

This NVIDIA GPU Boost 2.0 can take full effect, it is important that the electronics of the card stays as cool as possible, so Palit relies on its own JetStream -Kühlerdesign with several heatpipes, a large aluminum radiator and two large axial fans, which ensure that always enough fresh air is available to cool the GPU, Voltage converters, RAM and Co.. Below 60 degrees GPU temperature they remain even completely stand (0 db Tech), so that the card in Idle is passively cooled and therefore completely silent. Incidentally know even purely external to loved the design of the JetStream cooler and blue LEDs.
In addition to its particularly high gaming capability, the GeForce GTX 980 Ti inspired by many other modern features, such as Adaptive Vertical Sync, the image enhancement modes FXAA and TXAA, support for PCI Express 3.0 and DirectX 12, NVENC, VXGI or NVIDIA Shadowplay. Of course, not missing old friends such as the ability to GPU PhysX, 3D Vision and Surround.
With the latest NVIDIA drivers, it is still experience with GeForce GEFORCE EXPERIENCE! The ingenious tool is integrated directly into the graphics driver and enables next Potty Driver updates also perfect settings for every computer on every game! For this, the huge database is queried in NVIDIAs cloud computing center to diverse configurations, so that can be a mouse click to make the optimum settings.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or Palit should be downloaded and installed at regular intervals.
Technical Details:
Dimensions: 280 x 133 mm (W x H)
Height: 2.5 slot
GPU: NVIDIA GeForce GTX 980 Ti
Type: Maxwell GM200
Production: 28 nm
GPU clock: 1,152 MHz
Boost Clock (average): 1,241 MHz
Shader units (CUDA cores): 2,816
Memory Size: 6144 MB
Memory clock: 3,505 (7,010) MHz
Type: GDDR5
Memory interface: 384-bit
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.2
1x HDMI 2.0 (4K at 60 Hz)
1x DVI-I (Dual Link)
Power supply: 1x 8-pin PCIe, 1x 6-pin PCIe
Recommended power supply capacity: min. 600 Watt
Features: DirectX 12, OpenGL 4.5, 3D Vision, NVIDIA Surround, Tessellation, PhysX, CUDA, NVENC, SMX, GPU Boost 2.0, Adaptive Vertical Sync, SLI, G-Sync, VXGI, super resolution, 4K Ultra HD Support, 4K Surround , NVIDIA Shadow Play, NVIDIA Game Stream
Compatibility (Operating System): Windows 8.1, 8, 7, Vista
