The GeForce GTX 1070 is the Pascal graphics card from the performance segment. The GTX achieved in 1070 places benchmark results as the old flagship of the Maxwell GPU generation! The enormous performance increase in Pascal graphics cards resulting from the new Pascal GPU architecture and the greatly enhanced in comparison to the previous 16-nm FinFET manufacturing process. The computing power of the GTX 1070 is 6.5 TFLOPS. This puts the GTX 1070 in terms of computing power slightly above the GeForce GTX Titan X!
The GeForce GTX 1070 is the Pascal graphics card from the performance segment. The GTX achieved in 1070 places benchmark results as the old flagship of the Maxwell GPU generation! The enormous performance increase in Pascal graphics cards resulting from the new Pascal GPU architecture and the greatly enhanced in comparison to the previous 16-nm FinFET manufacturing process. The computing power of ...
The GeForce GTX 1070 is the Pascal graphics card from the performance segment. The GTX achieved in 1070 places benchmark results as the old flagship of the Maxwell GPU generation! The enormous performance increase in Pascal graphics cards resulting from the new Pascal GPU architecture and the greatly enhanced in comparison to the previous 16-nm FinFET manufacturing process. The computing power of ...
No products found

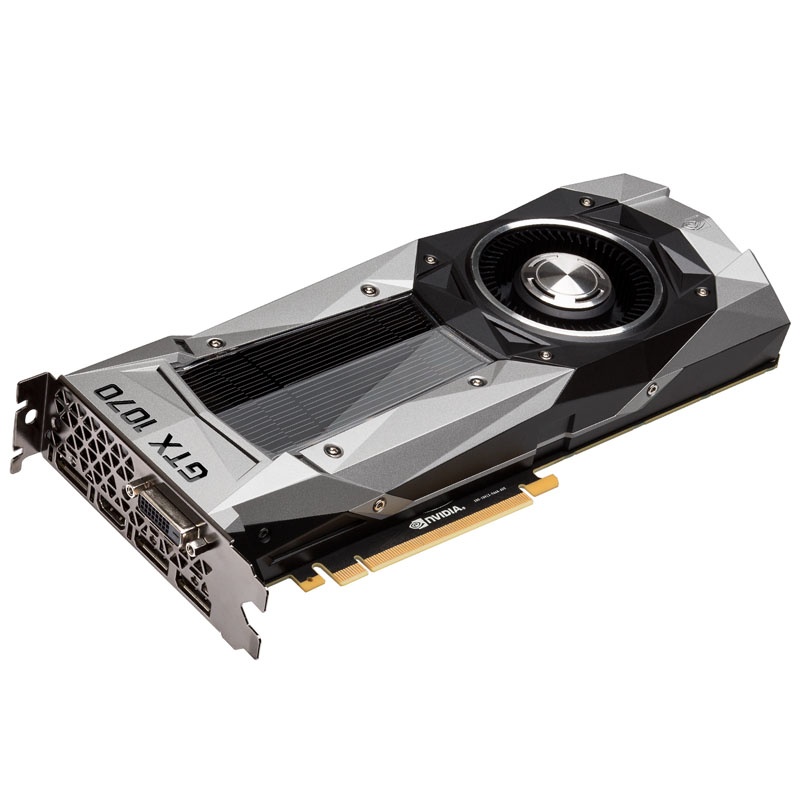

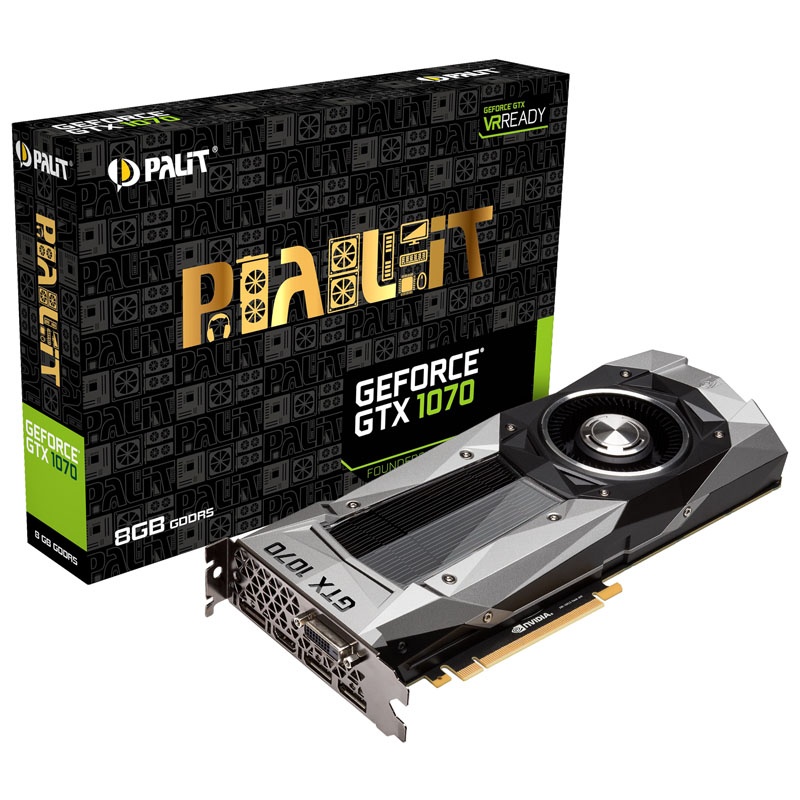

The features of the NVIDIA GeForce GTX 1070 Founders Edition at a glance
Martial cooler design
High base clock of the GPU: 1,506 MHz
Huge Boost clock of the GPU: 1683 MHz
Video Memory: 8 GB GDDR5
Very fast memory clock: 4,000 MHz (8,000 MHz effective)
Memory interface: 256-bit
Memory Bandwidth: 256GB / s
Computing Pure power: 1,920 CUDA cores (shader)
Low TDP: 150 Watt
As an additional power connector 1 x 8 pin
Video outputs of the new generation: DP 1.3, HDMI 2.0
Gaming power for VR and 4K: the GeForce GTX 1070!
The base clock of the graphics chip (GPU) of the GeForce GTX 1070 Founders Edition is 1,506 MHz. If there is a need for additional processing power, this can be raised by GPU Boost 3.0 to 1,683 MHz. The GTX 1070 has 8 GB of GDDR5 video memory, which is connected with a 256-bit memory interface to the GPU. The VRAM GTX 1070 Founders Edition is clocked at 4000 MHz (effective 8000 MHz).
In addition to the 8 GB video memory of 1070 GTX the 1,920 CUDA Cores GP104 graphics chips for the huge gaming power of the GTX 1070 are partly responsible. The GTX-1070-series graphics cards support DirectX 12 and the latest gaming technologies, including NVIDIA GameWorks, Warp, stereo X, VR-Audio, PhysX and SMP (Simultaneous Multi-Projection). The latter is supported in version 4.0 and provides mainly for VR, Curved displays and multi-display setups great benefits.
Thus, the GeForce GTX 1070 retrieve their full potential, the graphics chip must be cooled accordingly. In the Founders Edition which is cooled by a copper baseplate which is connected via three heatpipes with a block of aluminum fins. For air circulation a radial fan in the rear area provides. Heat quickly and efficiently transported away from the GPU and thus permits a quiet but effective cooling.
Dimensions and connections of the GeForce GTX 1070
To conjure up the result of the pixel calculation of the necessary quality on a monitor or on the display of VR goggles, the GeForce GTX 1070 has the most modern terminals. For an image transfer of 4K / Ultra HD resolutions at 60 Hertz three DisplayPort 1.4 and HDMI 2.0b port are available, the latter has HDCP 2.2, and thus send encrypted signals and receive (4K Blu -Rays / 4K streams). Alternatively, has the GTX 1080 a DVI-D (Dual Link) output.
Despite the powerful acting designs measures the Founders Edition only 26.67 inches in length and 11-12 cm in width. As is usual for such computing wonder the GTX requires two 1070 expansion slots. The GeForce GTX 1070 has a TDP of 150 watts and the power supply itself is needed is a single 8-pin PCIe power connector.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or Palit should be downloaded and installed at regular intervals.
Graphics Card Exchange without waiting for Caseking!
During the warranty period of 2 years from receipt of the goods are at Caseking of retail entitled complaining graphics cards – that is, those with a confirmed defect of us – all brands listed below directly exchanged against virgin (if in stock). A submission of the defective goods to the manufacturer and related longer waiting times thus completely eliminated! If the graphics card to be replaced is no longer in stock or available, so a credit issued by us. Then can thus be freely selected from our range an alternative graphics card. Here incurred extras are easily been settled and any resulting excess payment shall be refunded by us.
What do I do with failures of my graphics card? -> Graphics Card immediate replacement if defective
Brands: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, PowerColor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
Each Purchased at Caseking games graphics card will be the associated Coupon codes in the latest game bundles. Not eligible products are not accompanied by vouchers. All promotions are limited and only valid while stocks last or will be finished by the offer. The decision is final. Subsequently all currently active coupon actions are listed by NVIDIA:
Currently there are currently no active games Bundles for NVIDIA GeForce GTX graphics cards
Technical details:
Dimensions: 266.7 x 111.15 mm (W x D)
Height: 2-Slot
GPU: NVIDIA GeForce GTX 1070
Type: Maxwell GP104
Production: 16 nm
GPU clock: 1,506 MHz
Boost Clock: 1683 MHz
Shader units (CUDA cores): 1,920
Memory Size: 8192 MB
Memory clock: 4,000 (8,000) MHz
Type: GDDR5
Memory interface: 256-bit
Memory Bandwidth: 256GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
1x DVI-D (dual link)
Power supply: 1x 8-pin PCIe
Recommended power supply capacity: min. 500 Watt
Features: DirectX 12, OpenGL 4.5, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Game Stream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super resolution 4K Ultra HD support, SMP, NVIDIA Shadowplay
