Women carry a handbag, a gamer Vulcan - no less stylish but much more functional!

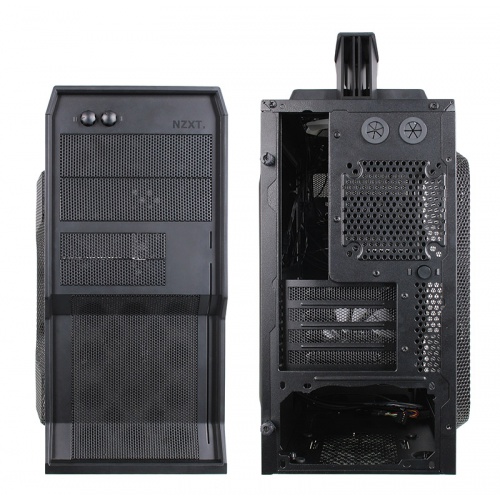

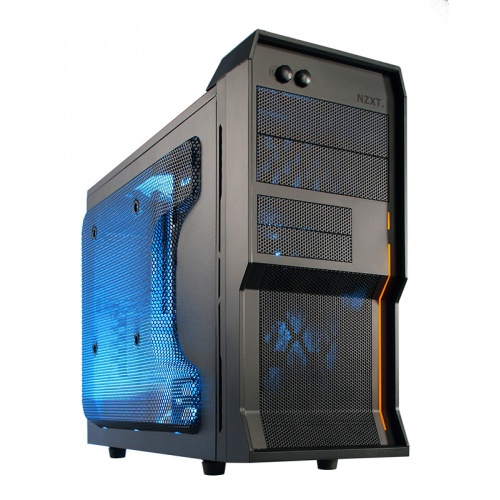

NZXT offers it the perfect accessory for LAN-goers and friends compact yet powerful housing. Externally, the Vulcan will obviously edged securities on the M59 and its front end. In contrast to this mid-tower his fiery counterpart is significantly more compact. This results from the optimization of micro-ATX motherboard, making a much flatter structure is possible.
The benefits include: Compact design, distinctive style, removable carrying handle, deactivated lighting, two pre-installed and individually controlled fan, room for large CPU coolers and very long graphics cards, tool-less installation of drives, painted black interior, cable management and CPU back plate recess
Women carry a handbag, a gamer Vulcan - no less stylish but much more functional!NZXT offers it the perfect accessory for LAN-goers and friends compact yet powerful housing. Externally, the Vulcan will obviously edged securities on the M59 and its front end. In contrast to this mid-tower his fiery counterpart is significantly more compact. This results from the optimization of micro-ATX mo...
Women carry a handbag, a gamer Vulcan - no less stylish but much more functional!NZXT offers it the perfect accessory for LAN-goers and friends compact yet powerful housing. Externally, the Vulcan will obviously edged securities on the M59 and its front end. In contrast to this mid-tower his fiery counterpart is significantly more compact. This results from the optimization of micro-ATX mo...
No products found
The power supply is placed below and can relate directly filtered through a bottom opening of fresh air. Very unusual for a case of this size also the option of graphics cards up to a length of 35 cm is to be able to accommodate. It is thus almost the entire interior length is available, so that there are virtually no restrictions on the choice of pixel accelerator – even a monster card like an ATI HD5970 is not a problem
To such a powerful hardware and to cool adequately, two fans are already included – mounted in the front and in the lid. Both are independently controlled with the fan control and illuminated the upper fan in addition, but even here the illumination can be deactivated. In addition, a large 200 mm fan in side panel, and another 120 in the lid and a 92 – or 80-mm-care fan at the back for pulling. Generous mesh area is also excellent for passive cooling provided. The installation dimensions for the 200 slot correspond to any standard! The hole spacing is just 148 mm and 208 mm diagonally.
Figure 6 shows the NZXT Vulcan compared with a Cooler Master HAF932 tower to illustrate the compact dimensions. The HAF is not included. Also optional are the cathode, which enhance the pictures 1, 5 and 9, the cabinet lighting.
Technical details:
Dimensions (with handle): 180 * x 422.5 x 406 mm (WxHxD)
Dimensions (without handle): 180 * x 380 x 406 mm (WxHxD)
Material: Steel
Weight: 5.8 kg
Color: Black
Form Factor: ATX
Fan:
1x 120mm (front)
1x 120mm (lid, orange LED illumination can be deactivated)
1x 120mm (lid, optional)
1x 200mm (side panel, optional)
1x 92/80 mm (rear optional)
2x fan control (front, 8 watts)
Drive Bays:
2 x 5.25 inches (external, tool-less)
2 x 3.5 inches (external, tool-less)
2x 3.5-inch (internal, expandable, tool-less)
AC adapter (optional): Standard ATX (incl. dust filter)
Expansion Slots: 4 (tool-less)
I / O panel:
2x USB 2.0
1x eSATA
1x each Audio In / Out
Front-Lighting: Orange LED (deactivated)
Possible length for graphic cards: 350 mm
* The width refers to the case itself, the total width is higher because the left side panel includes a flared mesh, so the usable internal width increases by about 1.5 cm. Is installed so no 200-mm fan, generally, larger tower CPU coolers are used.
