NZXT S340 Elite Matte White Mid Tower Case

NZXT ELITE S340 midi tower: with front HDMI fit for the VR!

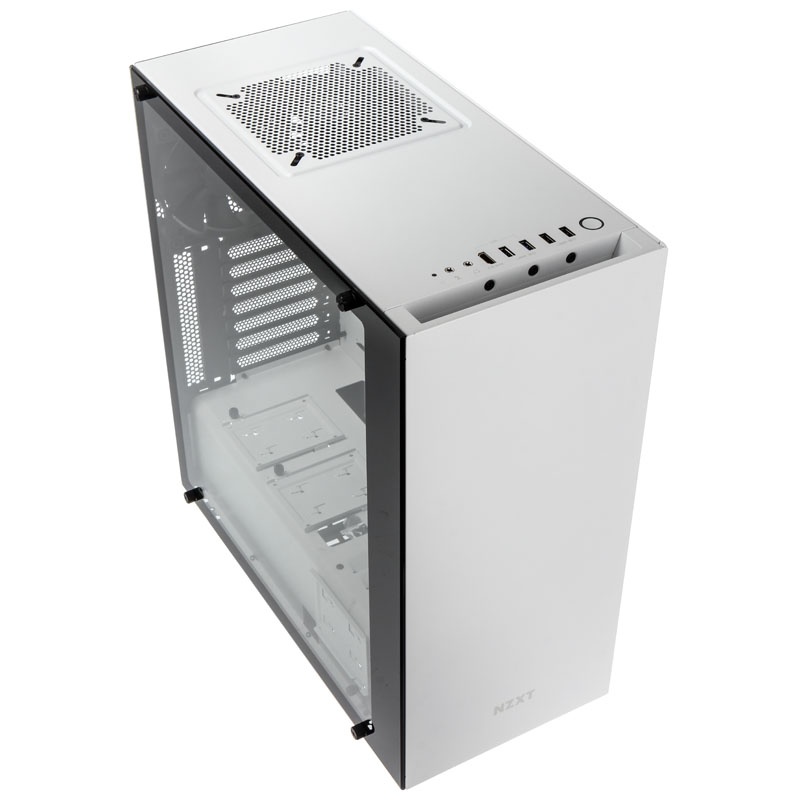

The front panel is completely flat and without I / O panel. The latter is located on the lid of the small housing space. On the panel are two USB 3.0 and 2.0 ports and two audio jacks as well as the discreet power button. In addition, there is a small storage space for cables or similar available.

As a special feature, the NZXT ELITE S340 has an HDMI connection in the front panel, which allows you to connect VR glasses quickly and conveniently! At the back of the tower, there is a cable duct to connect an HDMI cable from the graphics card to the internal port. A practical mount for VR glasses or headsets is included with the Midi-Tower. The magnetic holder can be attached to the front or the right side panel and is padded.

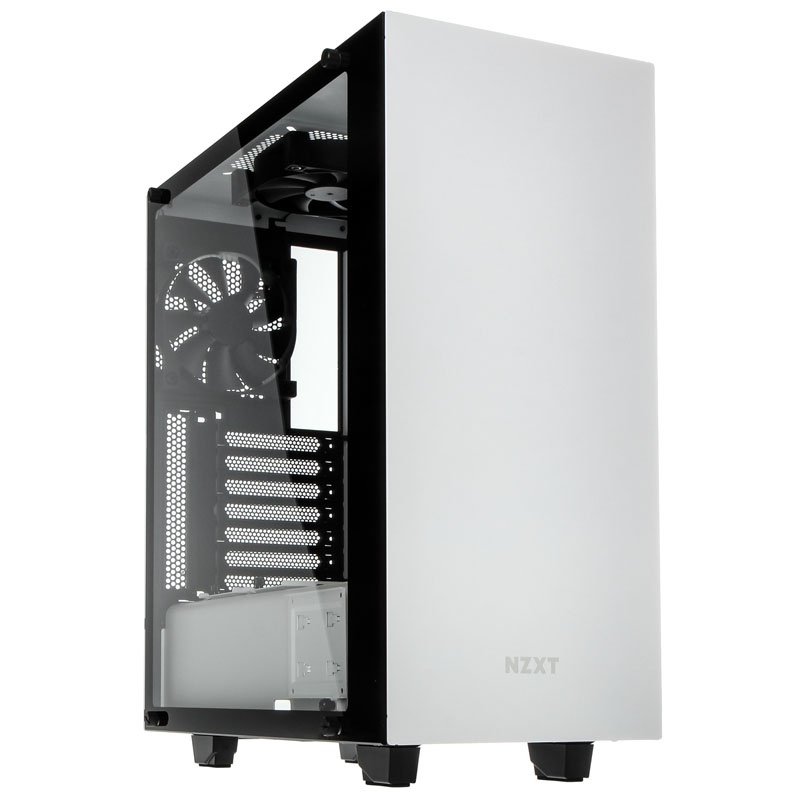

There is a lot of space in the white interior. In addition to ATX, Micro ATX and Mini ITX motherboards, seven expansion cards can also be installed in the enclosure. In addition, three 3.5-inch drives can also be installed in the drive cage. There are also two 2.5-inch slots at the bezel, which separates the power supply from the mainboard.

The front and bottom are conveniently designed to be isolated from the mainboard and the rest of the inner space. This provides space in the interior and makes it particularly suitable for placing cables there, which should not be seen from the outside. Instead, CPU coolers with illuminated fans or LED stripes can be integrated there, which are then excel- lent by the large window.

In addition, the case provides several ways to keep it cool. There is already a preinstalled 120 mm fan in the back and lid. Furthermore, two 120 or two 140s can be installed in the front.

Practically, a dust filter is also installed in the front, which can be easily removed and cleaned. A 140 mm fan can also be installed in the cover instead of the pre-installed fan.

CPU coolers can be installed in the S340 with a height of up to 161 mm. Thin radiators can also be installed in the housing. If you do not have the fans in the front, you have up to 58 mm in width to install a 240 or even 280 radiator upright. If you build the cable management rail, you have about 120 mm space. In the rear, it is possible to install a 120 mm radiator with a width of approx. 75 mm, if the fan is removed there.

Technical details:
Dimensions: 200 x 445 x 432 mm (W x H x D)
Material: steel, plastic, hard glass
Weight: approx. 7 kg
Color white
Form Factor: ATX, Micro-ATX, Mini-ITX
Total fan possible:
2x 140/120 mm (front)
1x 120 mm (rear side)
1x 140 / 1x 120 mm (cover)
Pre-installed:
1x 120 mm (cover)
1x 120 mm (rear side)
Filter: Front, bottom
Radiator mountings (with partial absence of fan / front rail):
2x 140 or 2x 120 mm (front)
1x 120 mm (rear side)
Drive Shafts:
3x 3.5 inches (internal)
2x 2.5 inches (internal)
Power supply: 1x standard ATX (optional)
Expansion slots: 7
I / O panel:
2x USB 3.0 (internal connection)
2x USB 2.0 (internal connection)
1x HDMI (internal connection)
1x per HD Audio In / Out
Maximum CPU cooler height: 161 mm
