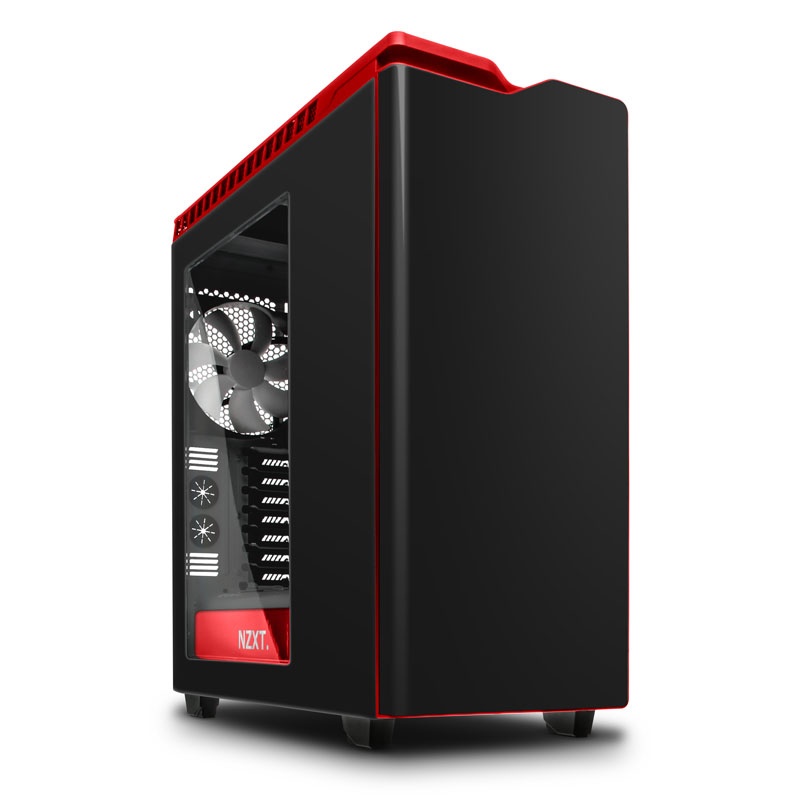

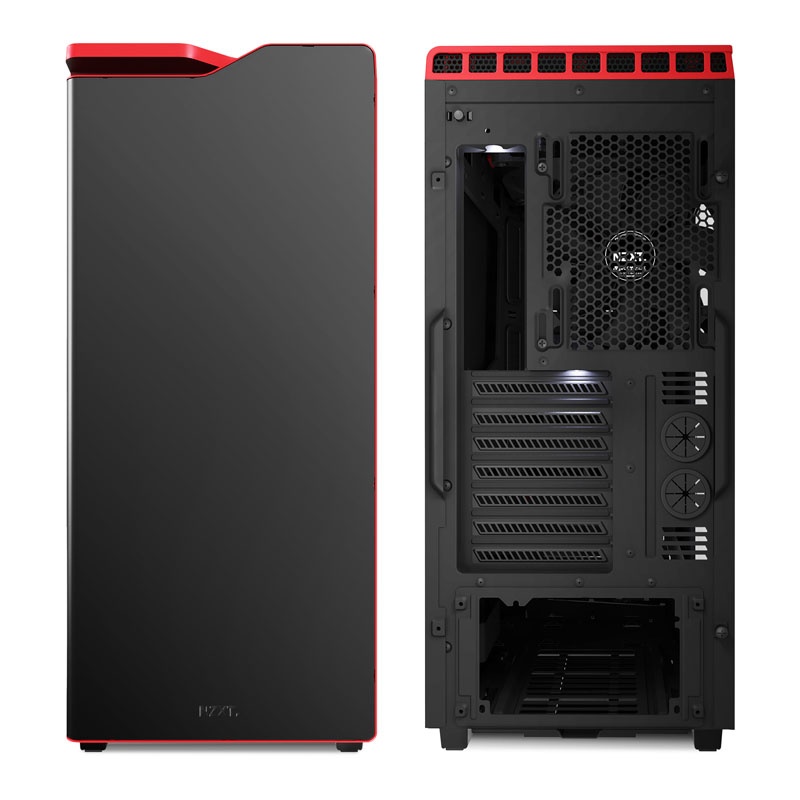

The new addition to the H family, the H440 features a doorless, ODD-free front panel made entirely of steel while a large, full view window reveals an interior specially engineered to make any build seamless and beautiful. On the inside, an integrated power supply shroud completely conceals cables and increases cable management space up to 80%. Additionally, two attached SSD trays mounted above the shroud allows you to easily showcase a remarkably clean interior.
The H440 comes standard with 360mm of direct CPU/GPU cooling behind its front panel, offering an unprecedented level of cooling right out from the box. Supporting both 140mm and 120mm fans, the steel top and front panels come Kraken™ ready-fitting radiators up to 360mm in size to offer comprehensive water cooling performance in a sleek, minimalist package.
The new addition to the H family, the H440 features a doorless, ODD-free front panel made entirely of steel while a large, full view window reveals an interior specially engineered to make any build seamless and beautiful. On the inside, an integrated power supply shroud completely conceals cables and increases cable management space up to 80%. Additionally, two attached SSD trays mounted above th...
The new addition to the H family, the H440 features a doorless, ODD-free front panel made entirely of steel while a large, full view window reveals an interior specially engineered to make any build seamless and beautiful. On the inside, an integrated power supply shroud completely conceals cables and increases cable management space up to 80%. Additionally, two attached SSD trays mounted above th...
No products found
In H440 there are no HDD cages in the narrow sense in which per cage several drives are inserted , but several separate bays for one 3.5 – inch hard drive (or optional 2.5 inch). What is the advantage here? You can remove each slide individually , to make room for example at certain height over a long graphics card (up to 40.6 cm!) , And you do not have to do without it with a match on several hard drives or SSDs.
The third change concerns the rectangular side window in the left panel , a first in the series of NZXT Silent housing . The great thing is that NZXT has created a case that can be kept incredibly clean inside. To the Window to the front drive area , both saves completely, whereby the data and power cables to the storage media does not even appear . Secondly, the power supply is to verbauende down behind a hidden Shroud , which shines on the window side with a red decorative plate together with illumination NZXT logo.
The PSU is characterized not only invisible, but also thermally largely decoupled from the rest of the interior. Thus, CPU , VGA, RAM heat on one side and power supply on the other side unnecessarily each other out. All cables are from the Shroud continued behind the motherboard tray , for which 15.6 to 26.4 mm are available. Thanks to numerous , partially rubberized openings all components can be achieved ideal and the cable routes remain visible maximum short. Two USB 3.0 and 2.0 ports complement the lush features of the NZXT H440 .
Technical details :
Dimensions: 220 x 510 x 476 mm (W x H x D)
Material: Steel (Body ), plastic ( front cover)
Weight: about 9.8 kg
Color: Matt Black, Red
Form Factor: ATX, Micro -ATX , Mini -ITX
Fan Hub : 10x 3- pin fan
Fan total possible :
2x 140/ 3 x 120 mm (front)
1x 140/120 mm (rear)
2x 140 / 3x 120 mm ( lid)
Of preinstalled:
3x 120 mm ( front; FN V2)
1x 140 mm ( rear; FN V2)
Radiator Mountings (partial waiver of drive and / or fan slots) :
1x max. 280/360 mm ( front)
1x max. 140 mm (rear)
1x max. 280/360 mm ( lid)
Filters: front , power supply
Drive Bays:
6x 3,5 inch (internal ; tools )
7x 2.5 inch (internal , 5x instead of 3.5 inches)
Power Supply: Standard ATX 1x (optional)
Expansion Slots : 7
I / O panel :
2x USB 3.0 ( internal connection)
2x USB 2.0 ( internal connection)
2 for each Audio In / Out
Maximum graphics card length : 305 mm ( without any disclaimer)
Maximum graphics card length : 406mm (without HDD cage )
Maximum CPU cooler height : 180 mm
