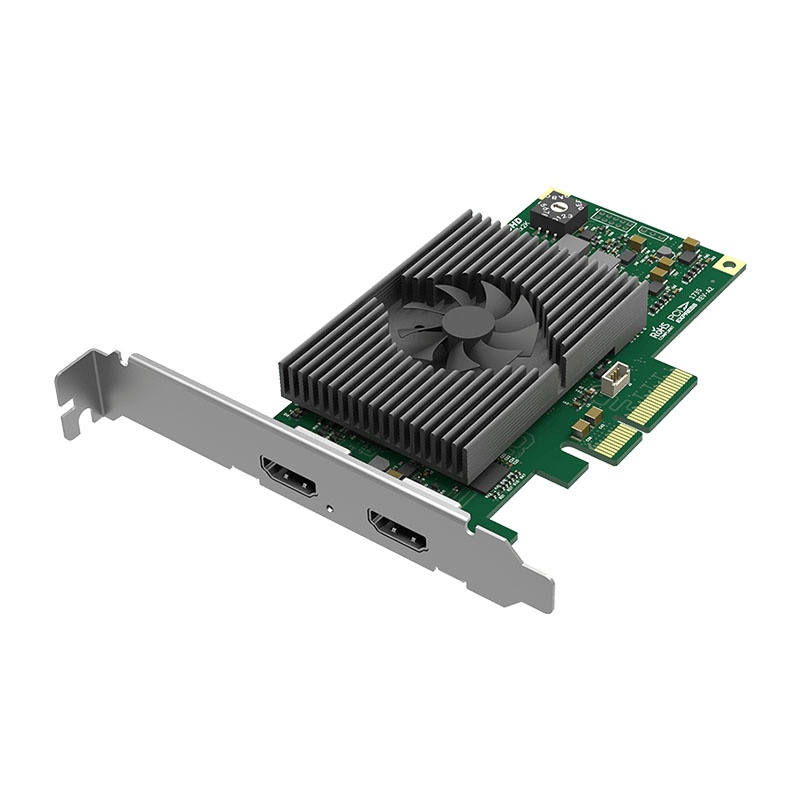

Magewell Pro Capture HDMI 4K Plus LT - PCIe Capture Card

Input resolutions of up to 4,096 x 2,160 pixels and refresh rates of up to 144 FPS are processed internally and output via the loop-through output. The Magewell Video Engine supports various functions such as HDR10, 10-bit video processing, cropping, color correction, hardware timestamps and many more. In addition, the synchronous operation of several of these cards is possible.

The features of the Magewell Pro Capture HDMI 4K Plus LT at a glance:
Professional PCIe capture card with HDMI loop-through
Recording in 4096 x 2160 and max. 144 FPS (at lower resolutions)
Powerful Magewell video engine
Various video editing and conversion functions
HDR10 support
10-bit video processing
Hardware-based timestamps every 100 ns
Windows, Linux and Mac support
Universal drivers, firmware for updating
Including Capture Express software

Magewell Pro Capture HDMI 4K Plus LT: Capture card with HDMI loop-through
The Magewell Pro Capture HDMI 4K Plus LT is a capture card for the PCI Express slot. An input signal is connected to the card via HDMI and looped through via HDMI loop-through. The Magewell Video Engine processes the signals independently and does not use the CPU of the host PC. Functions such as conversion (up and down) of resolution and refresh rate, de-interlacing, color correction, color space conversion and an on-screen display (OSD) are available.

The maximum input and recording resolution is 4,096 x 2,160 pixels at a maximum of 144 FPS. The actual frame rate can be limited by the PCIe bandwidth and resolution. By adapting the drivers, non-standardized resolutions and frame rates can also be processed. This model also supports HDR10 and thus offers 1,024 brightness levels per color channel.

Use of multiple cards, hardware timestamps and support
The use of several Magewell Pro Capture HDMI 4K Plus LT is explicitly intended. A rotatable switch is installed on the circuit board. This can be set in 16 different positions (0 to F) and then determines the card number. This is then displayed in the system; about 01: Pro Capture HDMI 4K + LT when the switch is set to 1. Connected audio and video devices are identified in the software with the card number so that an overview is always kept.

A high-resolution hardware-based clock with 100 ns sets timestamps in audio and video frames. This guarantees an exact dating of the recordings. The clock can be synchronized across several installed cards via SDK (Software Development Kit). The capture card supports various Windows and Linux operating systems as well as numerous APIs and additional software. A detailed list can be found in the technical details.

The Magewell Pro Capture HDMI 4K Plus LT records with a particularly low latency of just 60 ms. The low-latency mode can be activated via the SDK, which reduces the latency to 64 scan lines. The extensive recording software Capture Express is also supported. If necessary, the firmware can be updated manually. A low-profile PCI bracket is included in the scope of delivery. This allows the form factor to be further reduced and allows space-saving installation in tight spaces.

Technical details:
Dimensions (without PCI bracket): 140 x 68.88 mm (L x W)
Form factor: low-profile PCIe x4 add-on card
Color: green (PCB), black (heat sink and fan), silver (PCI bracket)
Interface: PCIe 2.0 x4
Input: 1x HDMI 2.0 (type A)
Output (loop-through): 1x HDMI 2.0 (type A)
Max. Input resolution: up to 4096 x 2160 pixels

System requirements:
Supported Operating Systems:
Windows:
-Windows 7/8 / 8.1 / 10, Server 2008/2008 R2 / 2012/2016 (x86 and x64)
Linux (supports x86, x64 and ARM architecture):
-Ubuntu 04/12 / 04/14 / 04/16 / 04/17 / 10/17 / 04/18 (x86 and x64)
-CentOS 6.5 / 7 (x86 and x64)
-Red Hat 6.5 and higher (x86 and x64)
-Fedora 25/26/27 (x86 and x64)
Other Linux OS with kernel version 2.6.35 and higher
Mac:
-OS X 10.9 / 10.10 / 10.11
-macOS 10.12 and higher

Recommended operating systems (tested by the manufacturer):
Windows:
-Windows 7 Ultimate / 8.1 Enterprise / 10 Enterprise, Server 2008 R2 DataCenter / 2012 R2 DataCenter / 2016 R2 DataCenter (x86 and x64)
Linux:
-Ubuntu 04/12 / 04/14 / 04/16 / 04/17 / 10/17 / 04/18 (x86 and x64)
-CentOS 6.5 / 7.2 (x86 and x64)
-Fedora 25/26 (x64)
-Red Hat 6.5 (x86 and x64)
Mac:
-OS X 10.9.5 / 10.10 / 10.11.2 / 10.11.3 / 10.11.4
-macOS 10.12 / 10.13 / 10.13.3 / 10.14.3 / 10.15
Supported APIs:

Windows:
-DirectShow
-DirectKS
-Wave API / DirectSound / WASAPI
Linux:
-V4L2
-AS A
macOS:
-AVCaptureSession
-AudioUnit

Supported software:
VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow / V4L2 / AVCaptureSession encoding / streaming software

HDMI-specific features
-594 MHz HDMI receiver
-Adaptive HDMI equalizer
-Full colorimetry support

Support of:
-HDR10
-Customizable EDID (Extended Display Identification Data)
-8 / 10/12-bit color depth
-RGB 4: 4: 4, YCbCr 4: 4: 4, YCbCr 4: 2: 2 color subsampling
– Up to 8-channel IEC60958 / IEC61937 audio streams via SDK
-Extraction of AVI / Audio / SPD / MS / VS / ACP / ISRC1 / ISRC2 / Gamut / HDR / VBI InfoFrames
-Extraction of audio format information and channel status data
-Extraction of video timing information
-Extraction of 3D format information
-Sony / Canon DSLR time code extraction
-Side-by-Side Half, Top-and-Bottom, Frame-Packing 3D modes

Supported video recording formats:
Max. Recording resolution: 4096 x 2160 pixels
Max. Refresh rate: 144 FPS *
* The actual refresh rate can be limited by the PCIe bandwidth and resolution.
4: 2: 0 8-bit recording formats: NV12, I420, YV12
4: 2: 2 8-bit recording formats: YUY2, YUYV, UYVY
4: 4: 4 8-bit recording formats: V308, IYU2, V408, BGR24, BGR32
4: 4: 4 10-bit recording formats: V410, Y410
Other recording formats are supported via Magewell Capture SDK

Video processing features:
-Video processing pipeline with approx. 720 Mpixel / s processing bandwidth
-Full 10-bit video processing
-Video cutting
Video scaling
-Video de-interlacing: weave, blend top and bottom field, top field only, bottom field only
– Aspect ratio conversion:
Automatic or manual selection of the aspect ratio of input and recording
Three modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

– Conversion of the video color format:
Automatic or manual selection of the input color format and the quantization range
Automatic or manual selection of the recording color format as well as the quantization and saturation range
Support of the color formats RGB, YCbCr 601, YCbCr 709, YCbCr 2020
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation ranges
-Conversion of the video frame rate
-Video OSD Composition:
Support of PNG OSD image (up to 4096 x 2160 pixels)
Support of dynamic loading of an RGBA OSD image via SDK
Multi-card support: Yes
Rotatable on-board switch to set card number, with 16 positions from 0 to F
Display of the card number in software (including connected audio and video devices)

Timestamps and A / V synchronization:
-Hardware-based high resolution clock of 100 ns
-Audio frames (192 audio samples) and video frames are stamped with a hardware clock
– Cross-card synchronization of the hardware clock (via SDK)
Video recording SG-DMA (Scatter / Gather Direct Memory Access):
approx. 1,600 MB / s per channel DMA bandwidth with PCIe 2.0 system
approx. 800 MB / s per channel DMA bandwidth with PCIe 1.0 system
Support of automatic detection of Intel-tiled-GPU-surface
DirectGMA support for AMD video adapter chipsets
GPUDirect support for NVIDIA video adapter chipsets
SDK: Magewell Capture SDK

Power consumption:
-Max. Current at 12 V: approx. 0.82 A.
-Max. Current at 3.3 V: approx. 0.48 A.
-Max. Power consumption: approx. 8.08 W.
Working environment:
-Operating temperature: 0 to 40 degrees Celsius
-Storage temperature: -20 to 70 degrees Celsius
-Relative humidity: 5% to 90% (non-condensing)

Scope of delivery:
1x Magewell Pro Capture HDMI 4K Plus LT
1x low profile bracket
Guarantee: 2 years manufacturer guarantee
