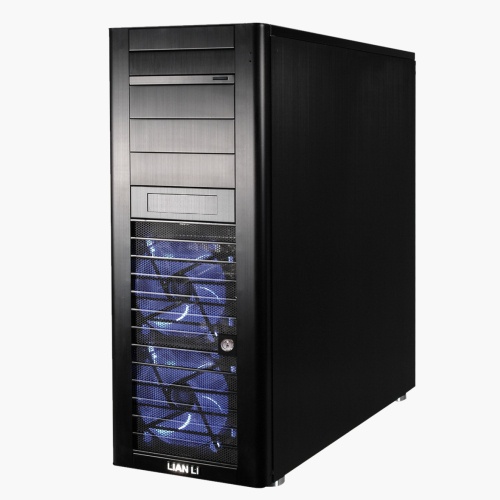

The PC-B70 is the case which functionality and style converge, features the upright removable E-ATX motherboard tray, anti-vibration HDD racks, two14cm blue LED silent intake fans with filter in the front, other two12cm silent intake fans in the back, top mounted multi-media I/O ports, and the graphics card holder, and lots more – because when it comes to your comfort, every detail counts
User Interface is very important key in Lian Li chassis. The external fixture, user interface, and the internal structure all has been test to meet Lian Lis high quality standard. 2009 Lian Li launched the new PC-B70, with all aluminum alloy chassis, round edge design with stylish look. PC-B70 has hair-line brush anodized aluminum finishing with diamond cut detail.
The PC-B70 is the case which functionality and style converge, features the upright removable E-ATX motherboard tray, anti-vibration HDD racks, two14cm blue LED silent intake fans with filter in the front, other two12cm silent intake fans in the back, top mounted multi-media I/O ports, and the graphics card holder, and lots more – because when it comes to your comfort, every detail counts
U...
The PC-B70 is the case which functionality and style converge, features the upright removable E-ATX motherboard tray, anti-vibration HDD racks, two14cm blue LED silent intake fans with filter in the front, other two12cm silent intake fans in the back, top mounted multi-media I/O ports, and the graphics card holder, and lots more – because when it comes to your comfort, every detail counts
U...
No products found
Key Features:

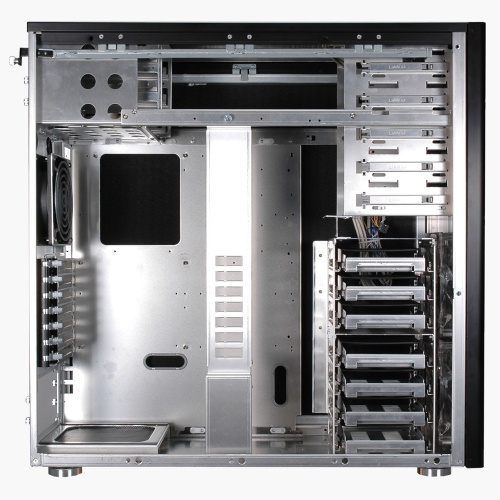

Huge internal space fits E-ATX motherboard, and graphics card, which can up to 345mm long, and there are room for 10 hard drivers, there are space for dual power supply units. There are 2 x 12cm and 2 x 14cm cooling fans to cool the system down, and a lot of internal space for liquid cooling system. It is an ideal for gamer and pro users!
All new PCI lock design, switch the lock off , install the extra card then switch it on. Easily and quickly.
The new switch design for CD-ROM cage, user can easily remove CD-ROM without a screws. and Lian-li designer use plastics to absorb the vibration to reduce the noise, make sure steadiness of it.
PC-B70 has equipped two 140mm cooling fans in the fornt of the chassis, there are two fans intake the cool air into the case, The Fan not only cool the HDD down, it also help the motherboards North & South bridge chipset, and the graphics card.
There are two silent 14cm ball-bearing intake blue LED fan (1200RPM) which brings cold air into the chassis
PC-B70 features Lian Li patented Anti-virbation HDD cage, which allow user to fit seven of 3.5 HDD. It is easy to use, no tool required, simply using the special thrumb screw to secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage.
The Front panel is mounted with a specially made plastic kit, this prevents the metal parts touching each other, and reduces the noise by reducing the vibration.
Lian Li designers consider every detail. The PC-B70 is equipped with anti-vibration clips and grommets on the chassis, to absorb the noises created by vibrating and spinning parts. The EMI spring on the top cover absorbs the vibrations, without interfering with the side panel.
PC-B70 is using Thermal Tunnel solution, the two 140mm fans in the front input cold air into the system, the two 120mm fans and the PSUs fan draw the hot air out as a heat circulation. PC-B70 Features a three-speed fan controller, user can adjust the fan speeds to get the best balance between silent and increased cooling. Factory setting are default at Mid Speed, but user can adjust the fan speed as needed.
There are two 140mm intake blue LED fan on PC-B70, The fan can output high air flow volume with lower RPM to push the cold air through the HDD rack. It connected to a three-speed controller, factory setting at middle(890RPM), user can adjust it to suit.
There is a 120mm exhaust fan behind HDD cage to draw the hot air out, and improve the air flow inside the chassis.
Specifications:
Model : PC-B70
Case Type : Full Tower Chassis
Dimensions : 220mm x 595mm x 590mm(W x H x D)
Front bezel Material : Aluminum
Side Panel : Aluminum
Body Material : Aluminum
Net Weight : 14kg
5.25 drive bay (External) : 5 (one for 3.5 inch convertor)
3.5 drive bay (External) : 1
3.5 drive bay (Internal) : 10
Expansion Slot : 7
Motherboard : E-ATX, ATX, M-ATX
System Fan (Front) : 2 x 140mm blue LED fan (1200RPM)
System Fan (Rear) : 2 x 120mm Ball-Bearing Fan (1500RPM)
I/O Ports : USB2.0 x 4, IEEE1394 x 1, ESATA x 1, HD+AC97 Audio
