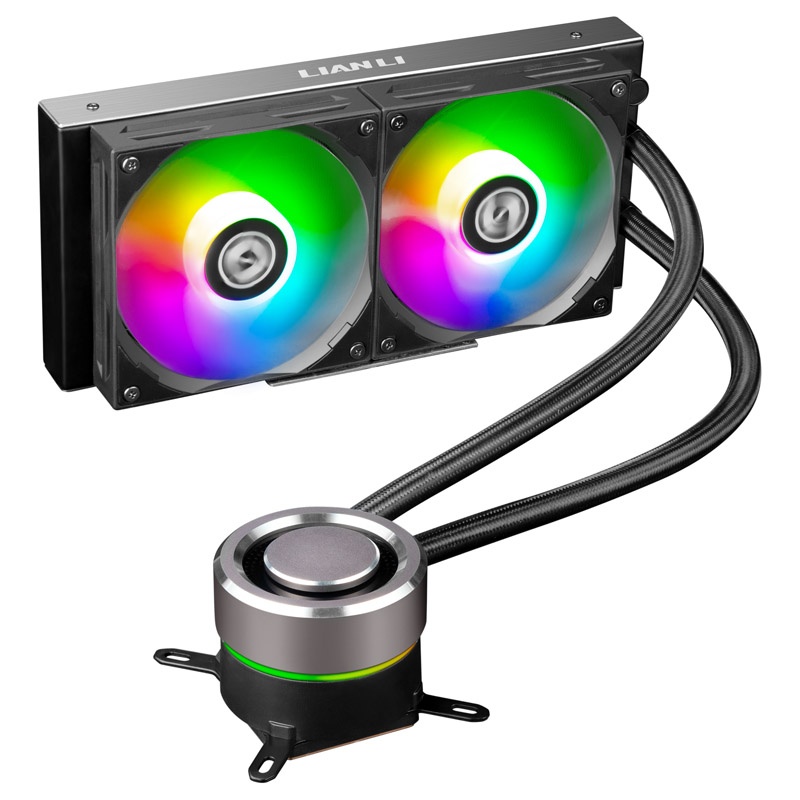

All-in-one water cooling with digitally addressable RGB lighting from Lian Li: The special three-chamber pump design and fans designed for high static pressure ensure high cooling performance with quiet operation.
All-in-one water cooling with digitally addressable RGB lighting from Lian Li: The special three-chamber pump design and fans designed for high static pressure ensure high cooling performance with quiet operation.
All-in-one water cooling with digitally addressable RGB lighting from Lian Li: The special three-chamber pump design and fans designed for high static pressure ensure high cooling performance with quiet operation.
The GALAHAD 240 v2 is compatible with many sockets from AMD and Intel and offers high performance and quiet operation in a noble and robust overall package.
The features of the Lian Li GALAHAD 240 v2 at a glance:
– AIO by Lian Li with integrated DRGB lighting
– 240mm radiator with two 120mm fans
– High performance due to dense aluminum radiator with 27 mm thickness
– Quiet operation thanks to three-chamber pump design and PWM fan
– Fan and pump/cooler with addressable RGB lighting
– High compatibility with sockets from AMD and Intel (incl. LGA 1700)
– Strong cooling and quiet operation

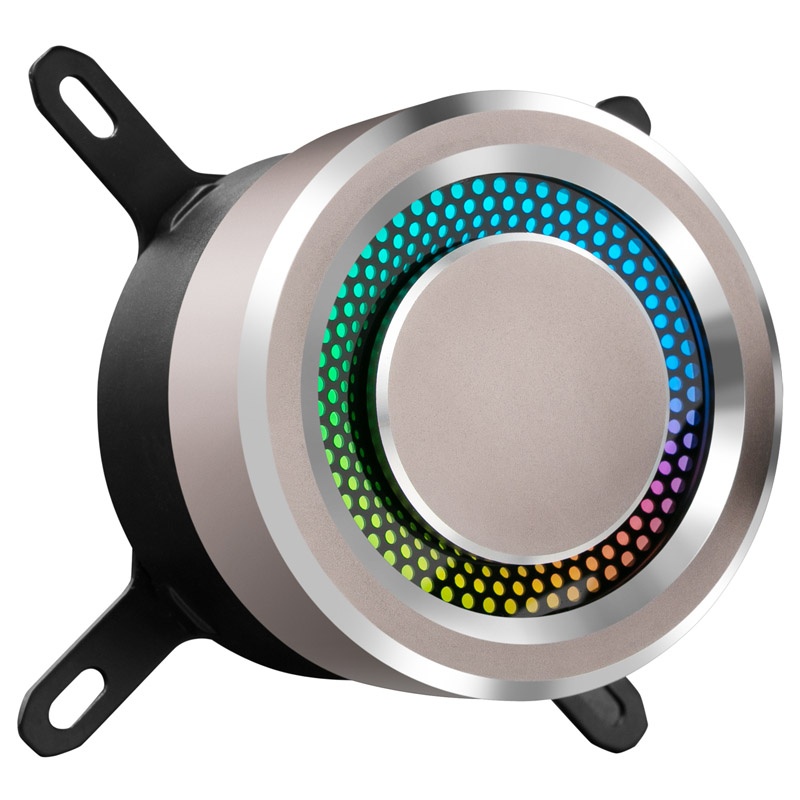

The GALAHAD 240 v2 from Lian Li has been optimized for high performance with quiet operation at the same time. This is ensured by the 27 millimeter thick aluminum radiator with its dense cooling fins, the fans designed for high static pressure and the three-chamber design of the pump. The CPU block consists of a chamber for the cooling plate, a connecting chamber and a pump chamber. The special design directs the coolant specifically and with maximum pressure to the cooling fins of the radiator bottom, which results in rapid heat dissipation.
The three-chamber design also eliminates turbulence inside the cooler and allows for the pumps low operating noise of just 20 dBA at full speed. Together with the PWM-controlled 120 mm fans, quiet operation with maximum cooling capacity is guaranteed.
The fans operate in a speed range from 800 to 1900 rpm and transport up to 117.5 m³/h in air with up to 2.6 mmH2O static pressure. Considerable.
High quality and chic design
In keeping with the impressive performance, the GALAHAD 240 v2 also looks particularly stylish. The high-quality aluminum housing of the radiator and the CPU block as well as the sleeved 400 mm long hoses ensure a noble and robust appearance. The design is complemented by the integrated and digitally addressable RGB lighting in the fans and the pump housing.
The DRGB lighting is connected via 3-pin RGB (5V) and can be controlled with the included controller or synchronized with the entire setup via motherboard software. The CPU cooler is rotatable and its orientation can be adapted to any mounting location.

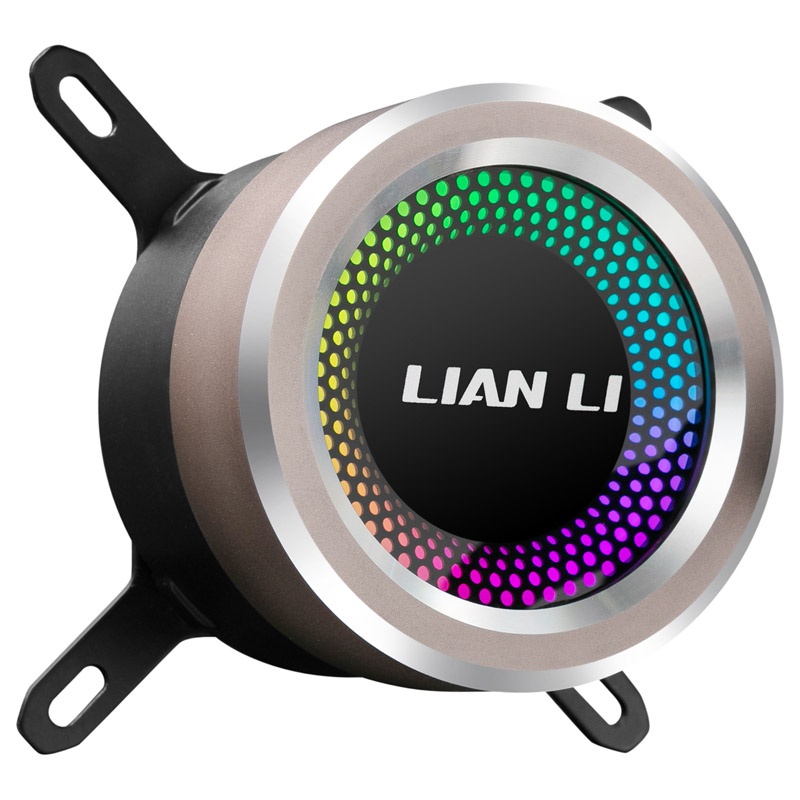

In addition, the magnetic lid of the cooler can be removed, which reveals the Lian Li logo and RGB effects gain luminosity.
| Specifications | |
|---|---|
| Color | Black |
| Radiator | |
| Dimensions | 273 × 123.5 × 27 mm (L × W × H) |
| Material | Aluminium, Plastic |
| Hose Length | 400 mm (Sleeved) |
| Fans | |
| Quantity | 2 × 120 mm |
| Dimensions | 120 × 120 × 26 mm |
| Connections | 4-pin PWM / 3-pin ARGB (5V) |
| Speed | 800 – 1900 rpm |
| Airflow | 117.5 m³/h |
| Static Pressure | Max. 2.6 mmH₂O |
| MTTF | 40,000 hours |
| Voltage | 12 VDC |
| Pump / Cooler | |
| Dimensions | 87.1 × 74 × 62 mm (L × W × H) |
| Noise Level | < 20 dBA |
| Illumination | ARGB, 3-pin RGB (5VDG, 5V) |
| MTTF | 70,000 hours |
| Connection | 3-pin |
| Rated Voltage | 12 VDC |
| Compatibility | |
| Intel | LGA 1700, 1200, 115X, 1366, 775, 2011, 2066 |
| AMD | AM4 |
| Manufacturer Warranty | |
| Warranty | 5 years (fans limited to 2 years) |
