In PC, there are various sources of noise, with the conventional solutions such as speed reduction and decoupling indeed contain, but can not completely turn off. Who is at this point, so has already taken various measures, but still not satisfied with the result, which should consider the possibility of housing insulation into consideration. Also recommended is this method to be possible to avoid a complete solution elaborate individual conversions.
The starting point of the noise in all cases, a specific form of movement or vibration, which brings the air to vibrate, but also transmitted via the hardware itself and simultaneously elsewhere in turn stimulates air. Fan rotation for example, leads to vibrations that are transmitted to the PC cover over the frame and the air, this thought-resonate, so it also becomes a source of noise.
This demonstrates a fundamental phenomenon of the limitations of other noise reduction measures. You usually use only one side of the problem - the vibration transmission through direct contact - and hide the transfer via air. Insulating mats contribute to noise reduction at first by their very own weight. Because they increase the mass of the outer housing parts, which is why at constant energy - the panels are not so strong to vibrate - so vibration source.
King Mod Premium Silencing Kit - XFX Type 1 Bravo
In PC, there are various sources of noise, with the conventional solutions such as speed reduction and decoupling indeed contain, but can not completely turn off. Who is at this point, so has already taken various measures, but still not satisfied with the result, which should consider the possibility of housing insulation into consideration. Also recommended is this method to be possible to avoid...
- SKU: ZUDM-151
- MPN: ZUDM-151
- EAN: n/a
- Warranty: 12 Months
In PC, there are various sources of noise, with the conventional solutions such as speed reduction and decoupling indeed contain, but can not completely turn off. Who is at this point, so has already taken various measures, but still not satisfied with the result, which should consider the possibility of housing insulation into consideration. Also recommended is this method to be possible to avoid...
Featured products
No products found
But insulating mats go further by preventing them as well, that air vibrations react upon the body. This superbly soft material absorbs incoming sound waves and thus prevents them can bring to vibrate the outer walls, while reducing rapidly the reflected sound.
As a result, they achieve effect via two methods and are thus inherently more effective than traditional measures. This makes them the ideal way for noise reduction and the best way to reduce the noise level of the PC.

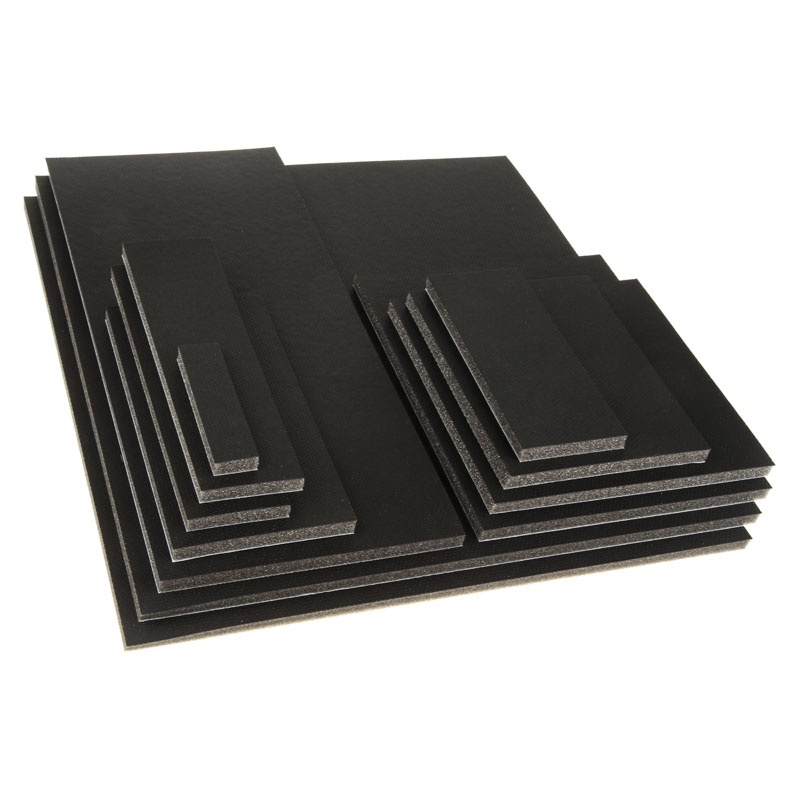

The insulating mats are high quality products from German production and are also used for cabin construction. Your soundproofing is therefore proven and desires as well in industrial solutions. They are made of soft polyurethane ester acoustic foam, which was provided at the top with a finely perforated leatherette. Thus, the mats are visually appealing, dirt-resistant and can be washed off. The underside is self-adhesive.
Especially effective is the sound absorption in the frequency range 1800-3500 Hz. Between 1,200 and 6,000 Hz over 40 percent of the sound are nevertheless still swallowed and at 400 Hz least ten percent. With these properties, a wide range is covered. Especially the annoying high frequency noise of many fans is particularly effective reduced. Lower frequencies such as droning noises are indeed less absorbed by the material itself, but also minimized by its own weight.

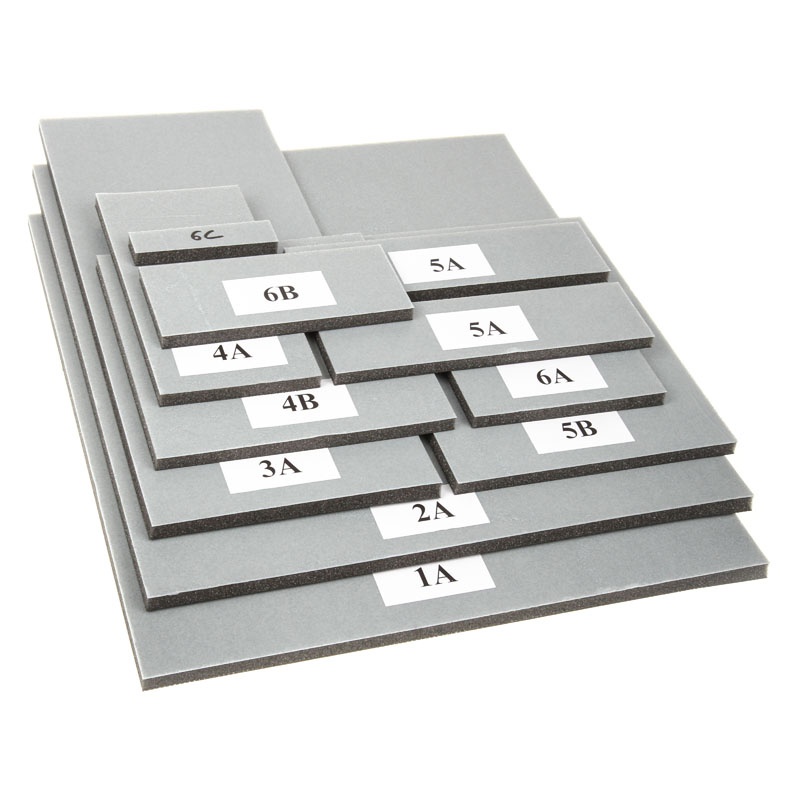

This set is designed for the XFX Type 1 Bravo and includes 11 insulation mats. The damping set can also be installed without any special knowledge. This is ensured precisely tailored and labeled insulation mats and precise installation instructions. This is specially designed for the requirements of the case and explains step by step the installation, gives practical tips and explains the possibilities and insulation options.
The number of mats is supplied sufficient to dampen the entire housing may – even the fan slots. As a result, you have the choice of how much insulation you obstruct, in order to achieve an individual optimum of cooling and Laustärkereduzierung.
For more information about the material specifications of the insulation material can be obtained from the datasheet. Note: Some pictures show the to be insulated housing, which is not included.
Technical Details:
Suitable for:
XFX Type 1 Bravo Midi-Tower
Content (tailored mats for):
The left side panel
Right side panel
front
floor Front
bottom center
2x Front cover
back cover
Back up (fan-Slot)
Rear center (next to PCI slots)
Back down (next to the power supply)
material:
PUR-ester acoustic foam
Fine Art perforated leather (top)
self-adhesive back
Color: Black
Sound absorption per frequency range:
> 80%: from 1800 to 3500 Hz
> 40%: from 1200 to 6000 Hz
Temperature resistance: – 40 to + 100 degrees C
Thermal conductivity: 0.04 W / (m * K) at 10 degrees C
features:
Good acoustic effect
washable
Insensitive to dirt
attractive appearance
