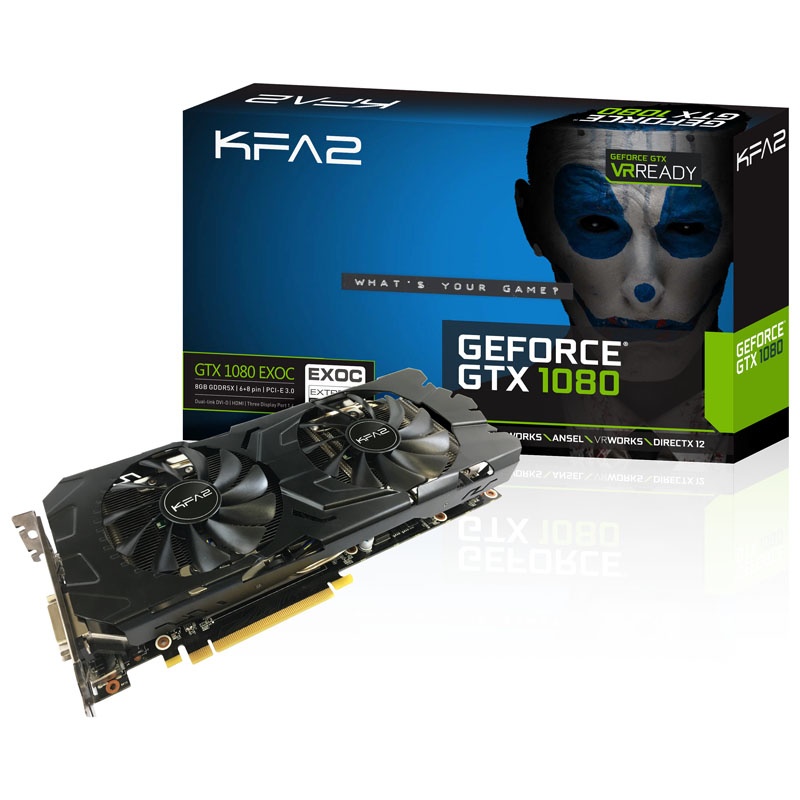

KFA2 GeForce GTX 1080 EX OC, 8192 MB GDDR5X

The features of KFA2 GeForce GTX 1080 EXOC Overview

    Manufacturers Private Külerdesign
    High base clock of the GPU: TBD (final clock rates are determined)
    Huge Boost clock of the GPU: TBD (final clock rates are determined)
    Very fast memory clock: TBD (final clock rates are determined)
    As an additional power connector: 1x 8 pin

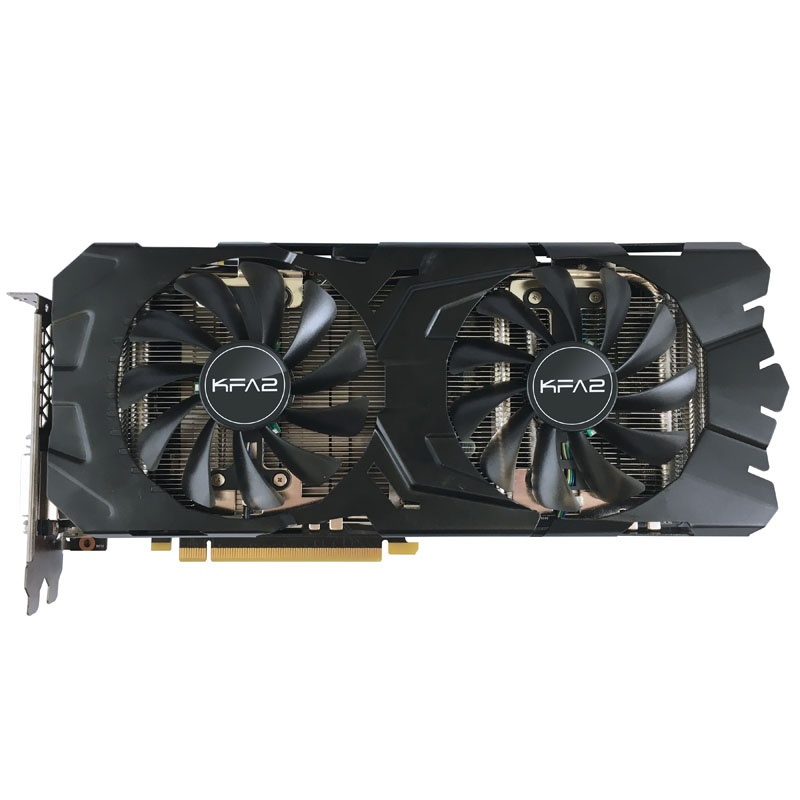

The KFA2 GeForce GTX 1080 EXOC with private Cooler Design & Production overclocking
The KFA2 GeForce GTX 1080 EXOC has a base clock of TBD MHz (final clock rates are determined). With GPU Boost 3.0 this may indicate a boost clock of TBD MHz if necessary (final clock rates are determined) are raised. The memory clock is TBD MHz (final clock rates are determined). For the cooling of the graphics card manufacturer, the cooler design is used.

GeForce GTX 1080: Maximum Gaming Power for VR and 4K!

The 8 GB GDDR5X video memory of the GTX 1080 are connected via a 256-bit memory interface to the GPU, thereby forming a memory bandwidth of 320 Gb / s is achieved. In addition to the video memory the 2,560 CUDA cores of GP104 graphics chips for the awesome gaming power of GeForce GTX 1080 are responsible.

The GTX-1080 series of graphics cards supporting DirectX 12 and the latest gaming technologies, including NVIDIA GameWorks, Warp, stereo X, VR-Audio, PhysX and SMP (Simultaneous Multi-Projection). The latter is supported in version 4.0 and provides mainly for VR, Curved displays and multi-display setups great benefits.

Multiple monitors were simply viewed games as a kind of wide monitor, whereby the GPU only below renders a viewport and could result in distortions. Thanks SMP Pascal now supports 16 simultaneous viewports, allowing a much more realistic representation on multiple monitors, on Curved displays or in 3D mode.

Especially VR benefits from the new technology, because it may be the same two viewports are rendered in a single pass. By utilizing multiple viewports the rendered image also comes out with a lower number of calculated pixels, which increases the energy in VR mode improved enormously.

Despite the extremely high computing power and the memory configuration with 8GB GDDR5X the GeForce GTX 1080 works with a TDP of only 180 watts, which is more in comparison to the direct predecessor GTX 980 only 15 watts – at a significantly higher speed. Thanks to the renewed power of the PCB GTX 1080, because by the new five-phase supply of the GPU and the various optimizations on PCB energy efficiency increases compared to the GTX 980 by a whopping six percent.

The GeForce GTX 1080 has the most modern terminals. For an image transfer of 4K / Ultra HD resolutions at 60 Hertz three DisplayPort 1.4 and HDMI 2.0b port are available, the latter has HDCP 2.2, and thus send encrypted signals and receive (4K Blu -Rays / 4K streams). Alternatively, has the GTX 1080 a DVI-D (Dual Link) output.

In order to exploit the full potential of the card in the future, new drivers should be downloaded and installed from NVIDIA or KFA2 periodically.

Graphics Card Exchange without waiting for Caseking!

During the warranty period of 2 years from receipt of the goods are at Caseking of retail entitled complaining graphics cards – that is, those with a confirmed defect of us – all brands listed below directly exchanged against virgin (if in stock). A submission of the defective goods to the manufacturer and related longer waiting times thus completely eliminated! If the graphics card to be replaced is no longer in stock or available, so a credit issued by us. Then can thus be freely selected from our range an alternative graphics card. Here incurred extras are easily been settled and any resulting excess payment shall be refunded by us.

What do I do with failures of my graphics card? -> Graphics Card immediate replacement if defective

Brands: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, PowerColor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games for NVIDIA GeForce GTX gaming graphics cards:
Each Purchased at Caseking games graphics card will be the associated Coupon codes in the latest game bundles. Not eligible products are not accompanied by vouchers. All promotions are limited and only valid while stocks last or will be finished by the offer. The decision is final. Subsequently all currently active coupon actions are listed by NVIDIA:

    Currently there are currently no active games Bundles for NVIDIA GeForce GTX graphics cards

Technical details:

    Dimensions: TBD (final dimensions follow)
    Height: 2-Slot
    GPU: NVIDIA GeForce GTX 1080
    Chip: GP104
    Production: 16 nm
    GPU clock: TBD (final clock rates are determined)
    Boost Clock: TBD (final clock rates are determined)
    Shader units (CUDA cores) 2560
    Memory Size: 8192 MB
    Memory clock: TBD (final clock rates are determined)
    Type: GDDR5X
    Memory interface: 256-bit
    Memory bandwidth of 320 GB / s
    Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
    connectors:
    3x DisplayPort 1.4
    1x HDMI 2.0b
    1x DVI-D (dual link)
    Power supply: 1x 8-pin PCIe
    Recommended power supply capacity: min. 500 Watt
    Features: DirectX 12, OpenGL 4.5, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Game Stream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super resolution 4K Ultra HD support, SMP, NVIDIA Shadowplay
